FS-BS

Vacuum sheet lifter

Lifting solution for steel plate, glass and flat materials in industry

Key features

  • Safe working load 500 – 2500 kg depending on model.
  • Power supply AC208~460V (±10%) or DC12V.
  • Performs well in harsh conditions on glass and steel surfaces.
  • Dual vacuum system with alarm device for safe operation.
  • Fast lifting speed and high vacuum level.
  • Handles flat steel plates and slightly curved sheets.
  • DC models need no external power supply during use.

Specifications

ModelSafe working loadDimensions (mm)Suction cup diameterSuction cupsSystemControlWeight
FS-BS1500-6S500KG2000×800×720φ2306 pcsAC208~460V (±10%)Manual/Remote control120KG
FS-BSZ500-6S500KG2000×800×720φ2306 pcsDC12VManual/Remote control150KG
FS-BSQ500-6S500KG2000×800×2100φ2306 pcsPneumaticManual155KG
FS-BSJ1000-6S1000KG2000×800×720φ3006 pcsAC208~460V (±10%)Manual/Remote control125KG
FS-BSZ1000-6S1000KG2000×800×720φ3006 pcsDC12VManual/Remote control155KG
FS-BSJ800-8S800KG2800×800×720φ2308 pcsAC208~460V (±10%)Manual/Remote control140KG
FS-BSZ800-8S800KG2800×800×720φ2308 pcsDC12VManual/Remote control140KG
FS-BSJ1500-8S1500KG2800×800×720φ3008 pcsAC208~460V (±10%)Manual/Remote control150KG
FS-BSZ1500-8S1500KG2800×800×720φ3008 pcsDC12VManual/Remote control150KG
FS-BSJ1000-10S1000KG(1000×3000×1000)×1000×950φ23010 pcsAC208~460V (±10%)Manual/Remote control250KG
FS-BSZ1000-10S1000KG(1000×3000×1000)×1000×950φ23010 pcsDC12VManual/Remote control250KG
FS-BSJ2000-10S2000KG(1000×3000×1000)×1000×950φ30010 pcsAC208~460V (±10%)Manual/Remote control260KG
FS-BSZ2000-10S2000KG(1000×3000×1000)×1000×950φ30010 pcsDC12VManual/Remote control260KG
FS-BSJ2500-12S2500KG(1000×3000×1000)×1000×950φ30012 pcsAC208~460V (±10%)Manual/Remote control280KG
FS-BSZ2500-12S2500KG(1000×3000×1000)×1000×950φ30012 pcsDC12VManual/Remote control280KG

Actual products

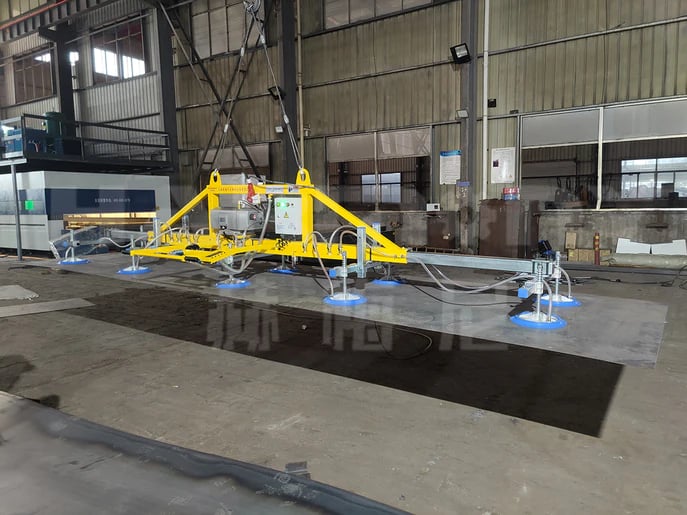

Nâng chân không dùng điện AC (6 cốc hút)
AC-powered vacuum lifter (6 suction cups)FS-BSJ1000-8S (1000KG)

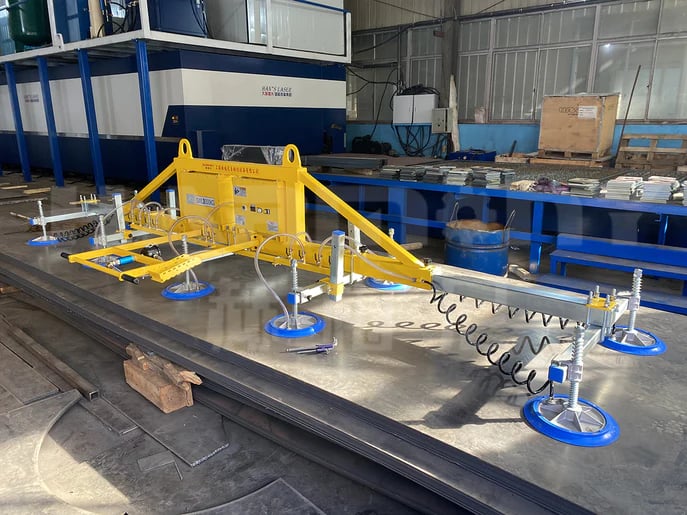

Nâng chân không dùng ắc quy DC (6 cốc hút)
DC battery vacuum lifter (6 suction cups)FS-BSZ1000-6S (1000KG)

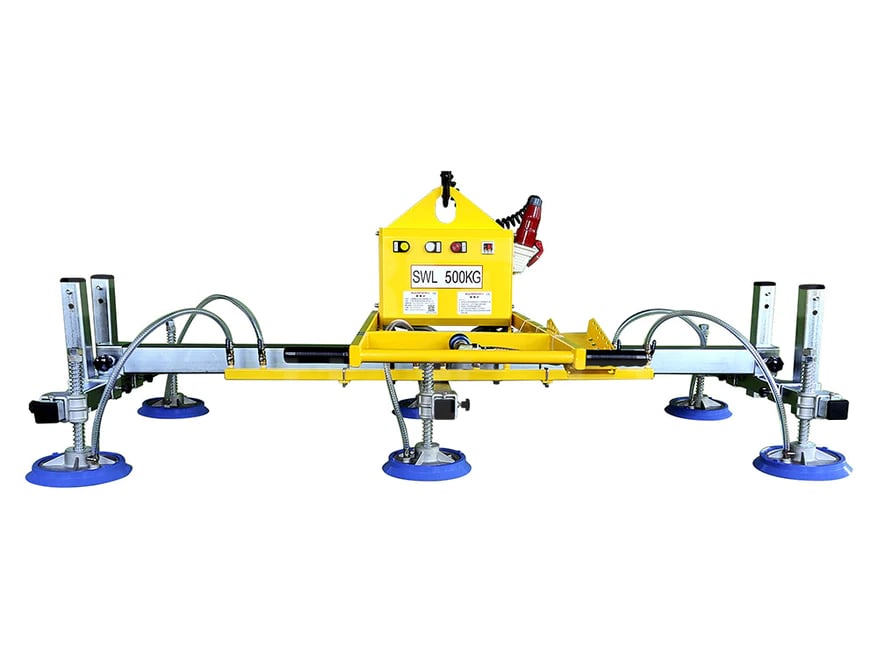

Nâng chân không khí nén (6 cốc hút)
Pneumatic vacuum lifter (6 suction cups)FS-BSQ500-6S (500KG)

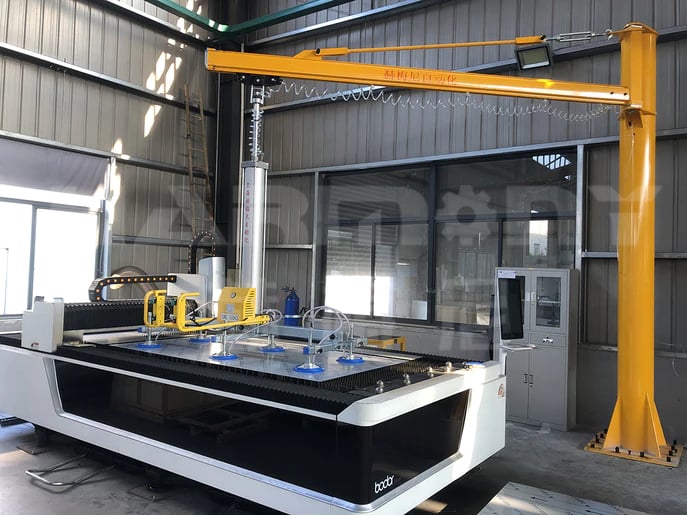

Nâng chân không dùng điện AC (10 cốc hút)
AC-powered vacuum lifter (10 suction cups)FS-BSJ2000-10S (2000KG)

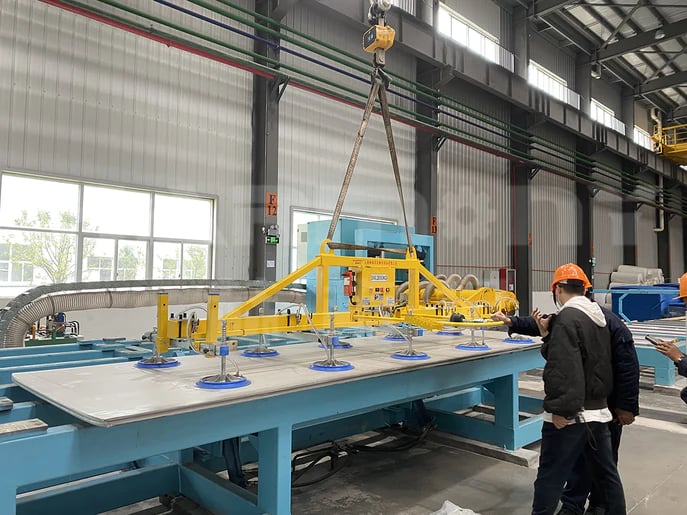

Nâng chân không dùng ắc quy DC (10 cốc hút)
DC battery vacuum lifter (10 suction cups)FS-BSZ2000-10S (2000KG)

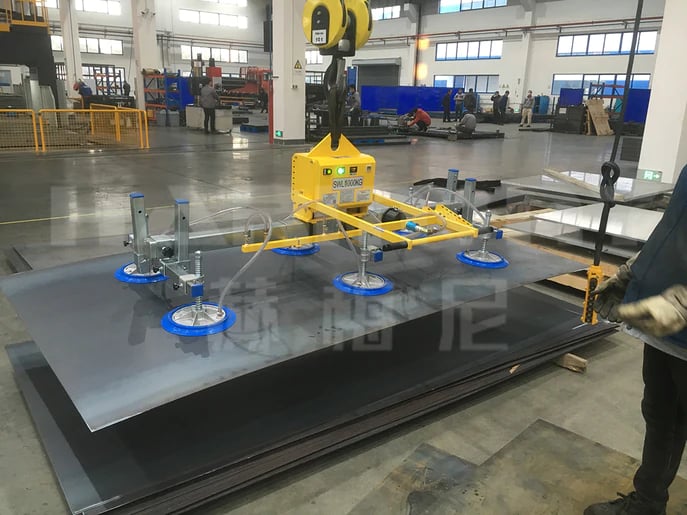

Nâng chân không DC (10 cốc hút), ắc quy dùng lâu
DC vacuum lifter (10 suction cups), long-life batteryFS-BSZ2000-10S (2000KG)
