| Specifications | FSDC-A-0530 | FSDC-A-1025 | FSDC-A-1030 |
|---|---|---|---|
| Lifting capacity (kg) | 500 | 1000 | 1000 |
| Max. lifting height (mm) | 3000 | 2500 | 3000 |
| Battery capacity (V/Ah) | 24/165 | 24/165 | 24/210 |
| Charger (V/A) | 24/20 | 24/20 | 24/30 |
| Lift motor power (kW) | 2.5 | 2.5 | 2.5 |
| Drive motor power (kW) | AC1.2 | AC1.2 | AC1.2 |

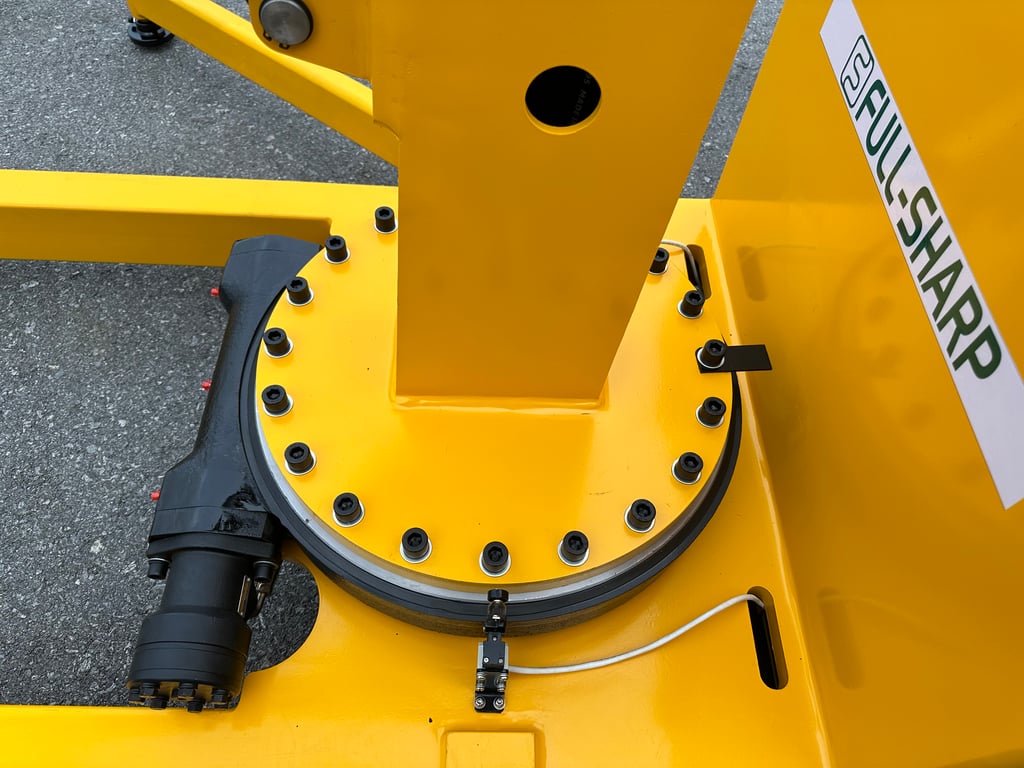

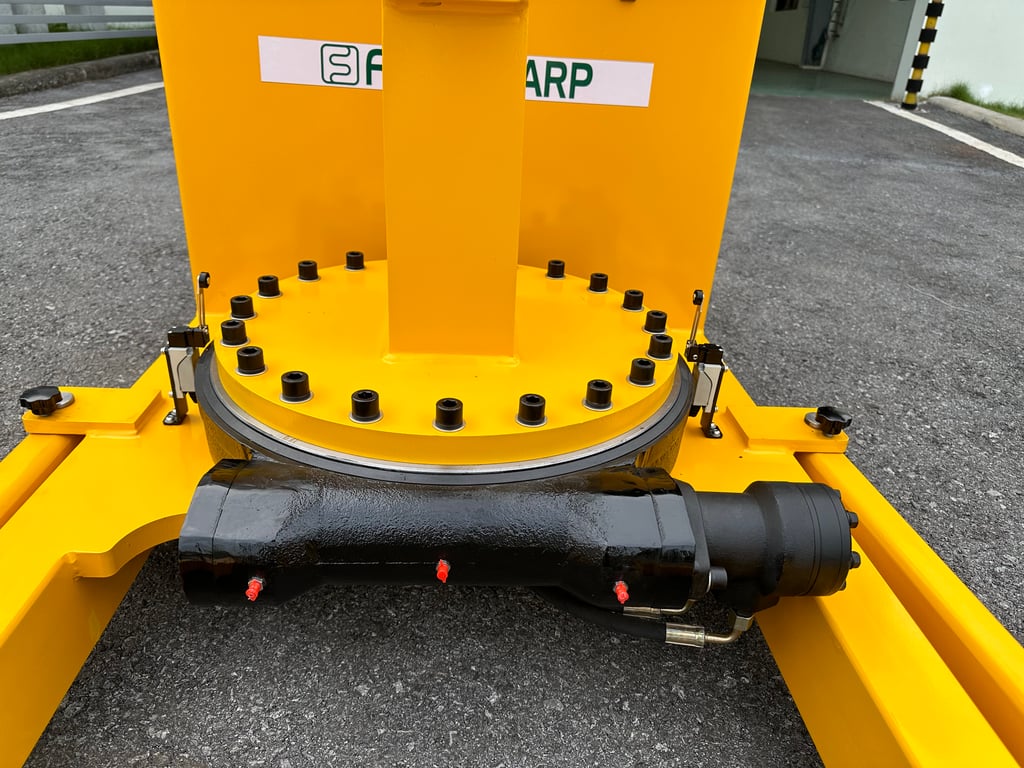

| Slewing angle | ±90° | ±90° | ±90° |
| Outrigger length (mm) | 950 | 950 | 950 |
| Inner width between outriggers (mm) | 680 | 680 | 680 |
| Outer width of outriggers (mm) | 990 | 990 | 990 |
| Ground clearance (mm) | 200 | 200 | 200 |
| Distance from hook to outriggers (mm) | 420 | 400 | 350 |
| Truck weight (kg) | 730 | 730 | 760 |
| Overall dimensions L×W×H (mm) | 2670×990×1800 | 2900×990×1800 | 2900×990×1800 |
| Turning radius (mm) | 2800 | 3100 | 3100 |
| Min. aisle width (mm) | 1100 | 1100 | 1100 |
| Drive wheel (mm) | 1×Φ250×80 | 1×Φ250×80 | |
| Auxiliary wheels (mm) | 2×Φ150×50 | 2×Φ150×50 | |
| Front wheels (mm) | 2×Φ150×75 | 2×Φ150×75 | |
| Gradeability (%) | 4/6 | 4/6 | |
| Travel speed laden/unladen (km/h) | 4/6 Loaded/Unloaded | 4/6 Loaded/Unloaded | |
| Lifting speed laden/unladen (mm/s) | 45/50 Loaded/Unloaded | 45/50 Loaded/Unloaded | |
| Lowering speed laden/unladen (mm/s) | 45/40 Loaded/Unloaded | 45/40 Loaded/Unloaded | |
| Brake | Electromagnetic braking | ||
