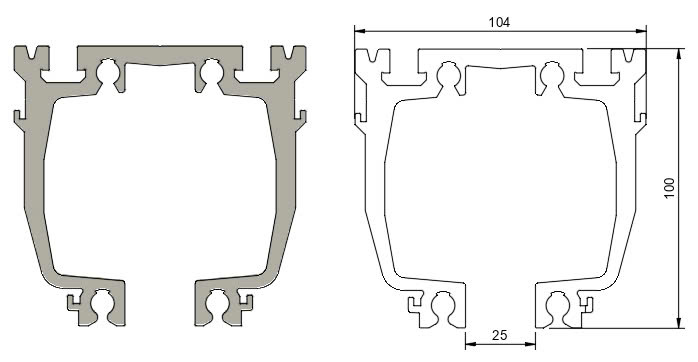

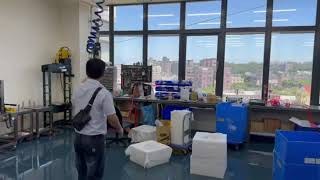

The aluminum rail handles lifting loads of up to 200 kg when combined with a trolley. Extruded in one piece and offering one of the best load-to-weight ratios in Taiwan, it delivers high performance while remaining lightweight and easy to install. The rail is manufactured to tight tolerances for dimensions and straightness, ensuring consistent quality.
| Specifications | |
|---|---|
| Material | Aluminum alloy |
| Rated load | 200 kg |
| Runway rail length | Unlimited |
| Bridge rail length | 5.5 m |
| Length | Weight |
|---|---|
| 1000mm | 7 kg |
| 2000mm | 14 kg |
| 3000mm | 20 kg |
| 4000mm | 27 kg |
| 5000mm | 34 kg |
| 6000mm | 40 kg |

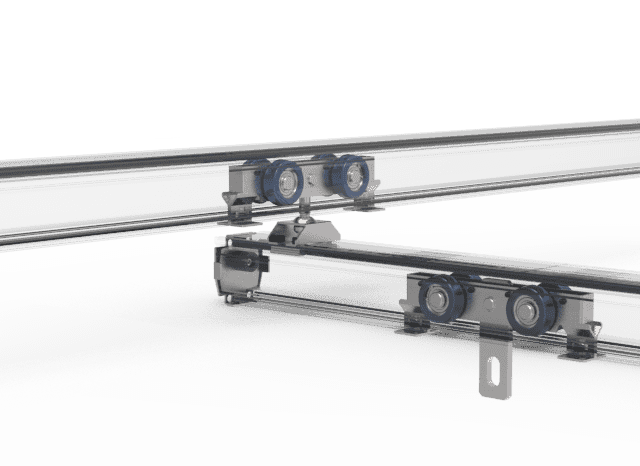

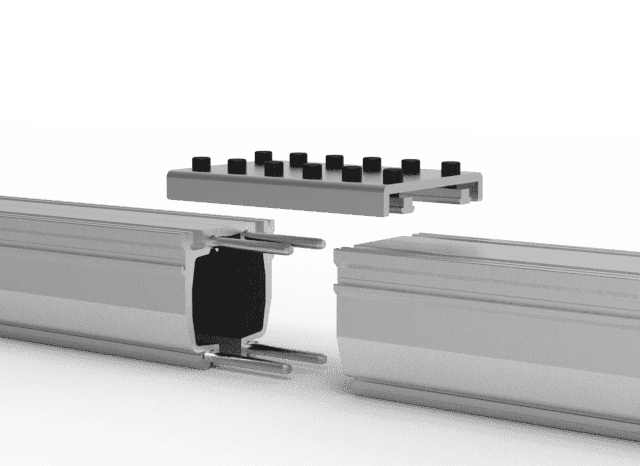

Chamfered rail ends allow fast, accurate assembly with no further adjustment. No tools or measuring are required. The smart joint design makes installation easy even in tight spaces. Precise alignment between rail sections lets the trolley run smoothly, lightly and quietly. Rails can be installed from either end without flipping the profile. The optimized design saves installation time.

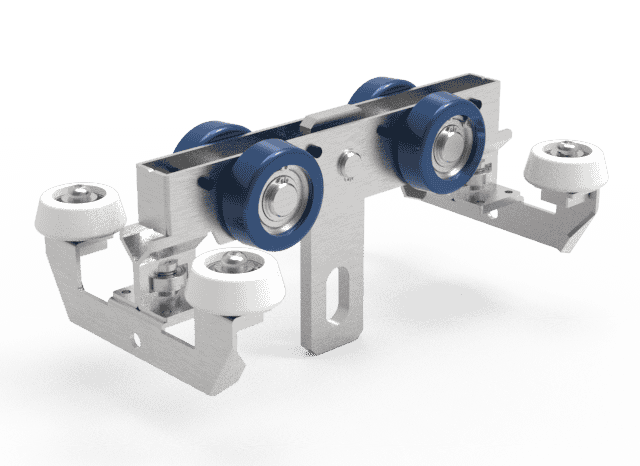

The trolleys are built for durability and smooth running. They operate quietly with very low rolling resistance and move with minimal effort. Side guide wheels keep the trolley perfectly centered inside the rail. Each rail is also fitted with rubber end stops at both ends to absorb impact.
