FS-WDL400-6S

  • No installation needed, the vacuum pad's lifting eye can connect directly to the hook of a lift truck or crane.
  • A cylinder controls vacuum generation and release; pick-up and release are carried out via the vacuum control valve.
  • Simple control, no external electricity or compressed air, unaffected by power outages or unstable voltage.
  • No electrical cables or air hoses to connect, so the unit can be moved to any location equipped with lifting equipment.
  • Just turn the valve to open and release air to drop the workpiece, with vacuum pressure gauge.

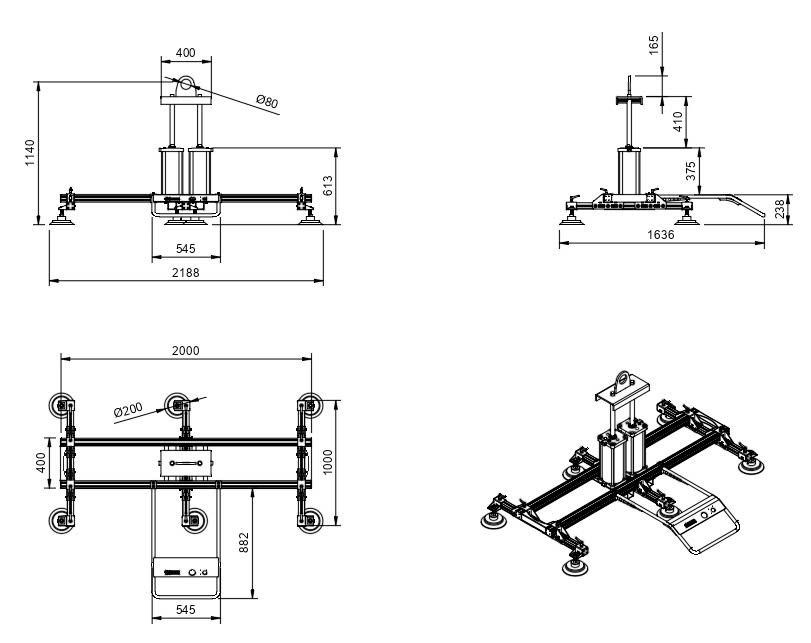

View CAD Drawing

Specifications - Model FS-WDL400-6S

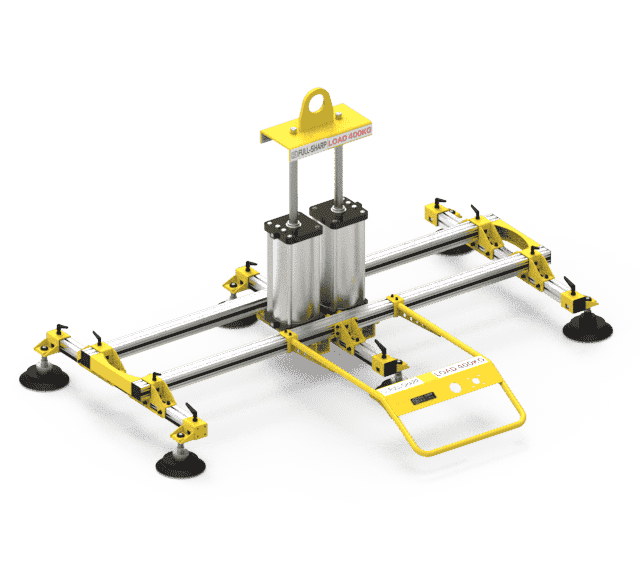

Hình ảnh 1
Hình ảnh 2
Product name & modelMax. loadDimensions (mm)Pad diameterNumber of padsPower sourceControl methodUnit weight
FS-WDL400-6S400KG2000 × 1640 × 1140Φ200 mm6 pcsNon-poweredManual190KG
