FS-NP-WDL400-6S

Key features

No installation needed, the vacuum pad's lifting eye can connect directly to the hook of a lift truck or crane.
A cylinder controls vacuum generation and release; pick-up and release are carried out via the vacuum control valve.
Simple control, no external electricity or compressed air, unaffected by power outages or unstable voltage.
No electrical cables or air hoses to connect, so the unit can be moved to any location equipped with lifting equipment.
Just turn the valve to open and release air to drop the workpiece, with vacuum pressure gauge.

View CAD Drawing

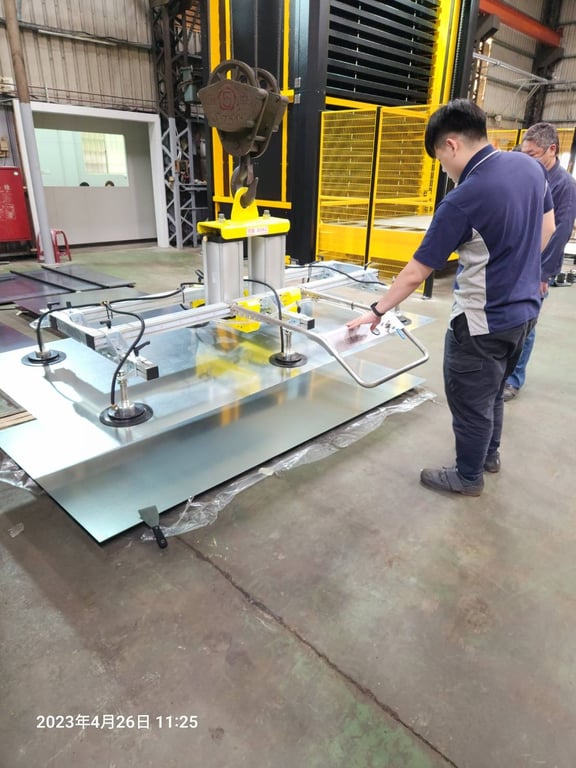

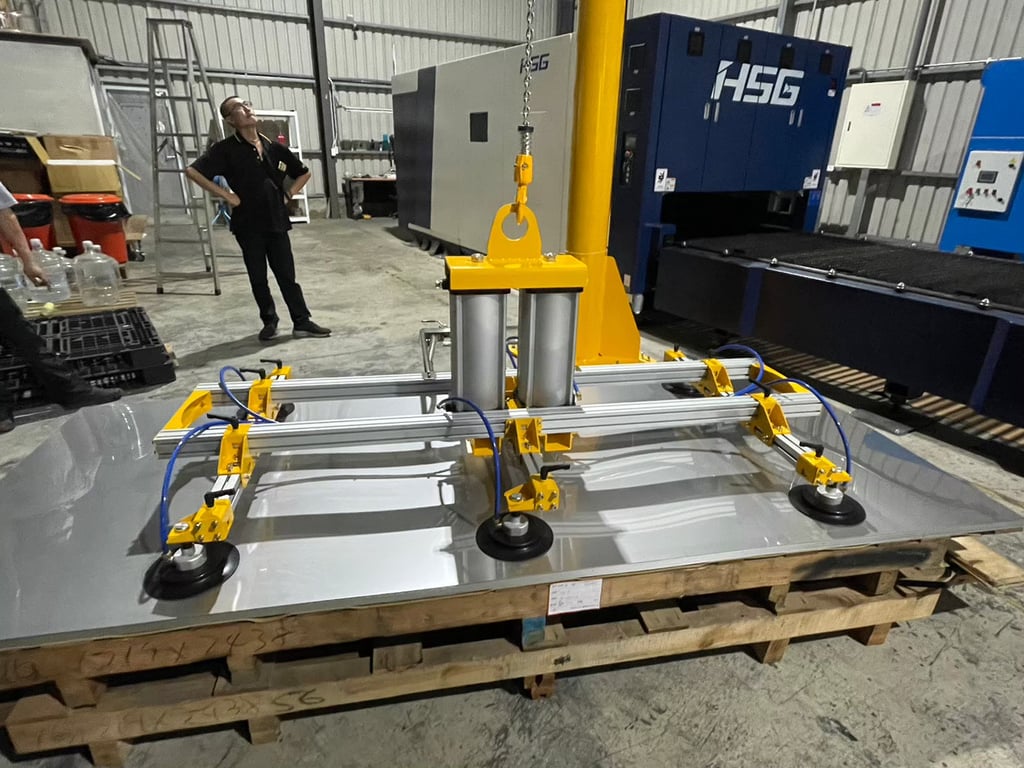

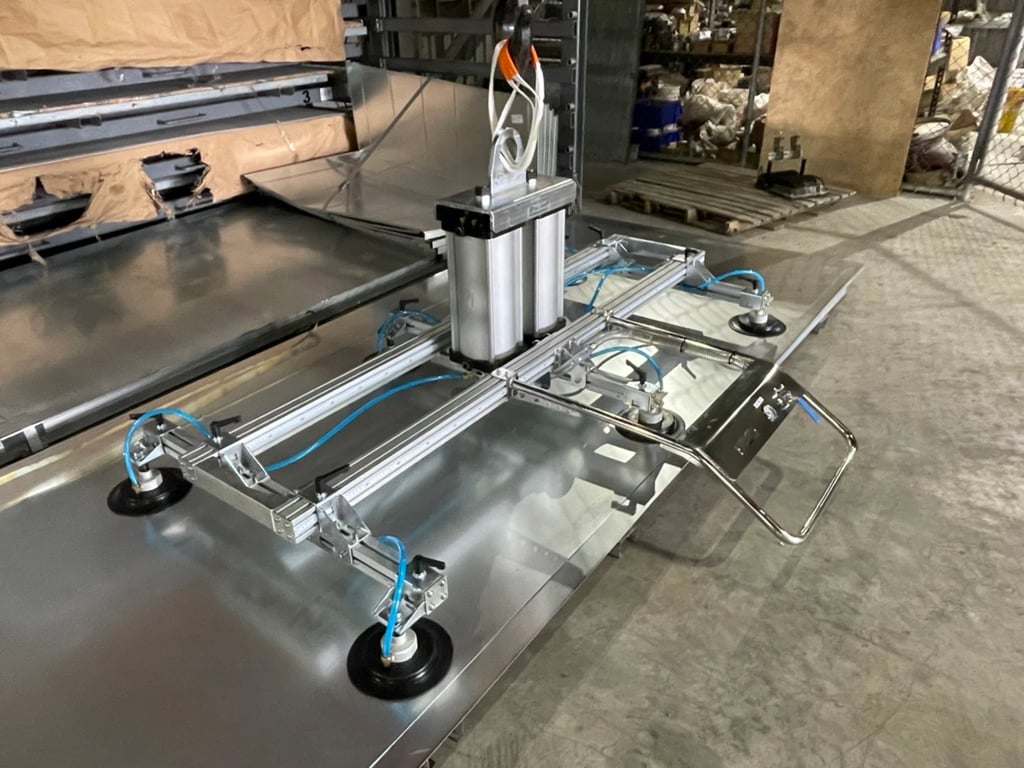

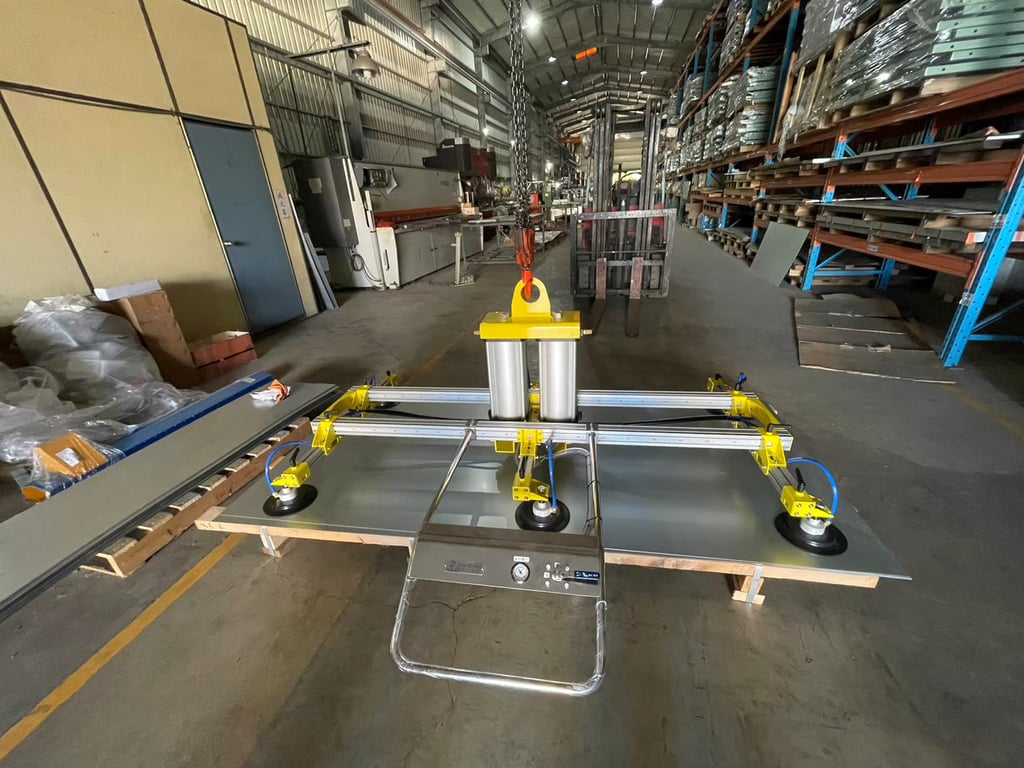

Product photos

Specifications - Model FS-NP-WDL400-6S

Product name & model	Max. load	Dimensions (mm)	Pad diameter	Number of pads	Power source	Control method	Unit weight
FS-NP-WDL400-6S	400KG	2000 × 1640 × 1140	Φ200 mm	6 pcs	Non-powered	Manual	190KG

Dimension drawing
