FS-SFX

Safe load400, 600, 800 kg
PowerDC 12 V battery
Suction cups4, 6 or 8 × Φ300
Tilt / rotateManual 0–90° tilt, 0–360° rotation
ControlManual or remote
FrameReconfigurable, 900×730 to 1800×1190 mm

Download PDF spec sheet

FS-SFX glass vacuum lifter with manual tilt and rotation, 400–800 kg

The FS-SFX vacuum lifting series handles glass, marble, composite panels and similar materials. It is a medium-size, multi-function vacuum lifter that raises productivity and reliability on construction sites and in manufacturing workshops.

There are 3 types, rated 400 kg, 600 kg and 800 kg, all with 90° tilt and 360° rotation. The frame can be assembled in many different shapes for small or large glass panes, indoors or outdoors.

FS-SFX800-8S glass vacuum lifter, X frame with 8 suction cups

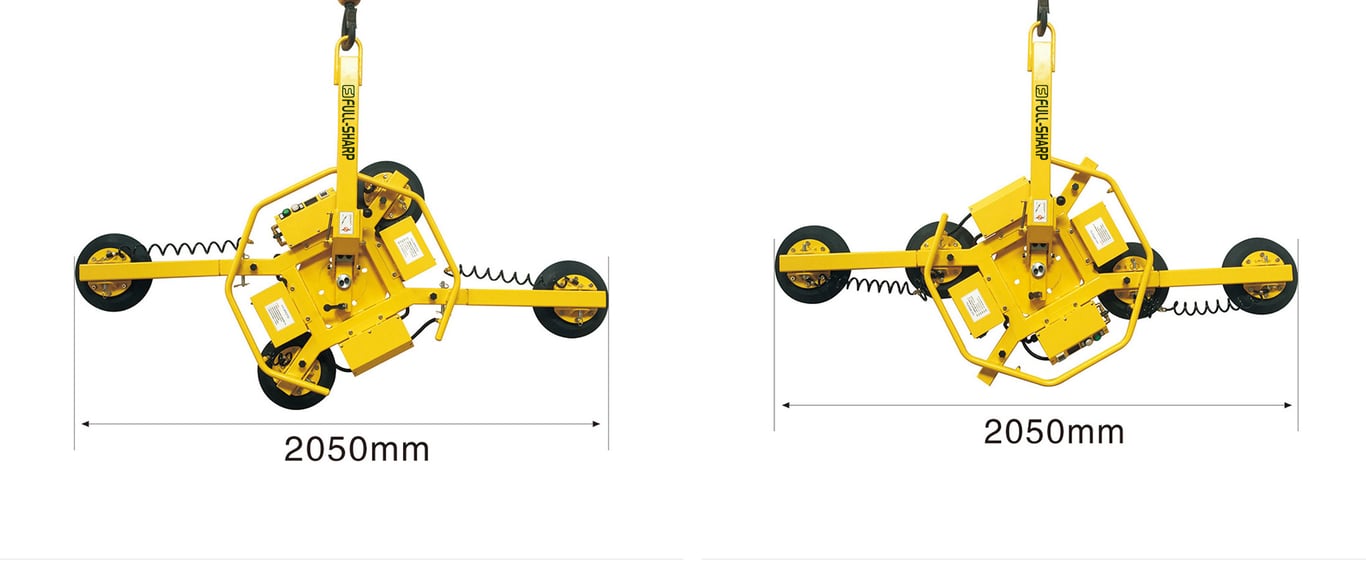

**Extended layout 2,050 mm long, two arm arrangements**

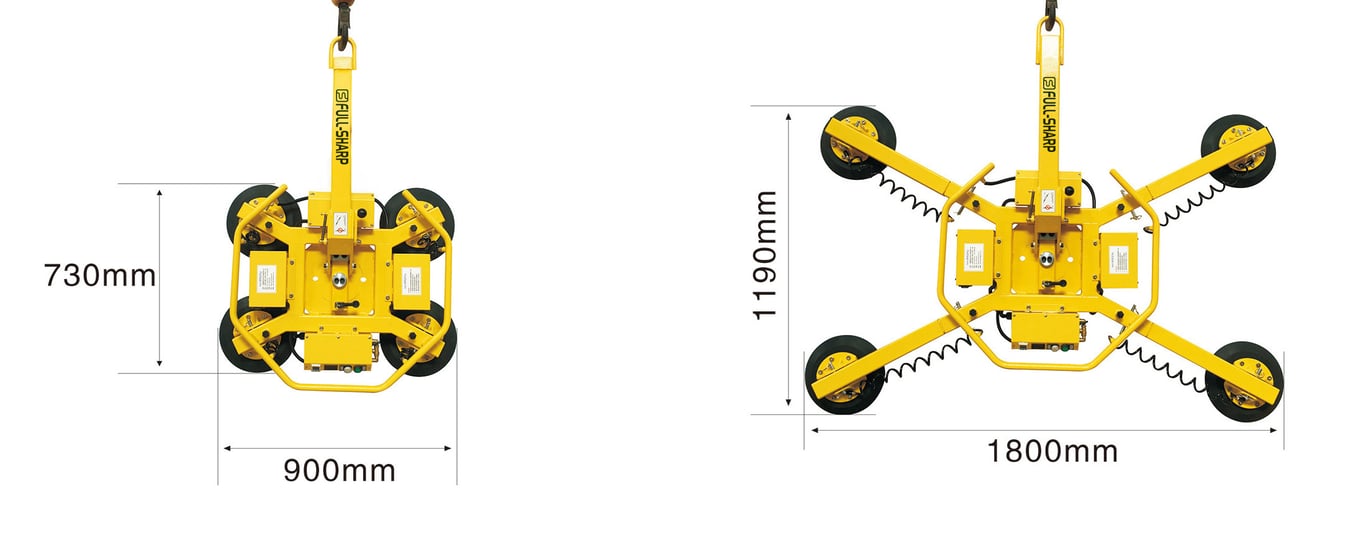

**Compact layout 900×730 mm and X layout 1800×1190 mm**

Specifications

Model	Safe load	Size (mm)	Suction cup diameter (mm)	Suction cups	Power system	Control mode	Function
FS-SFX400-4S	400 kg	900×730×240	Φ300	4	DC 12 V	Manual / Remote	0–90° manual tilt + 0–360° manual rotation
FS-SFX600-6S	600 kg	1800×1190×240	Φ300	6	DC 12 V	Manual / Remote	0–90° manual tilt + 0–360° manual rotation
FS-SFX800-8S	800 kg	1800×1190×240	Φ300	8	DC 12 V	Manual / Remote	0–90° manual tilt + 0–360° manual rotation

Main components

Vacuum pump

Low energy consumption / High vacuum, strong suction / International-brand pump that runs continuously for 24 hours with more stable performance

Vacuum suction cup

New upgraded vacuum suction cup / Three sealing rings prevent air leakage and hold pressure for a long time

Battery

International-brand battery / Very high quality, stable voltage / Sturdy, durable and reliable

Electric control box

Stainless steel fasteners / Digital pressure display / Intelligent vacuum pressure control

Other accessories

If you already own a vacuum lifter, however good its parts are, these are usually the first items to need maintenance. You can order spare parts for them for your lifter.

**Replacement cups, coiled hose and fittings**

On-site photos

**Installing a long glass pane inside scaffolding**

**Placing a glass deck panel on a mountain glass bridge**

**Installing a dark glass panel indoors**

**Installing a facade cladding panel from an aerial work platform**

**Picking glass from an A-frame rack in the yard**

**Installing an overhead glass canopy panel at an entrance**

Applications

**Lifting a large glass pane in the yard**

**Installing upright glass on a steel-frame building**

**Raising a tall glass pane in front of a building facade**
