ANVER is a leading US manufacturer of vacuum tube lifting systems, offering a wide range of lifters and spare parts. Its products are designed for long-term use in production.

Made in the USA.
The #1 best-selling vacuum lifter line in North America.
Outstanding quality, engineering and value.

Thiết bị nâng chân không ANVER

ANVER Vacuum Tube Lifters

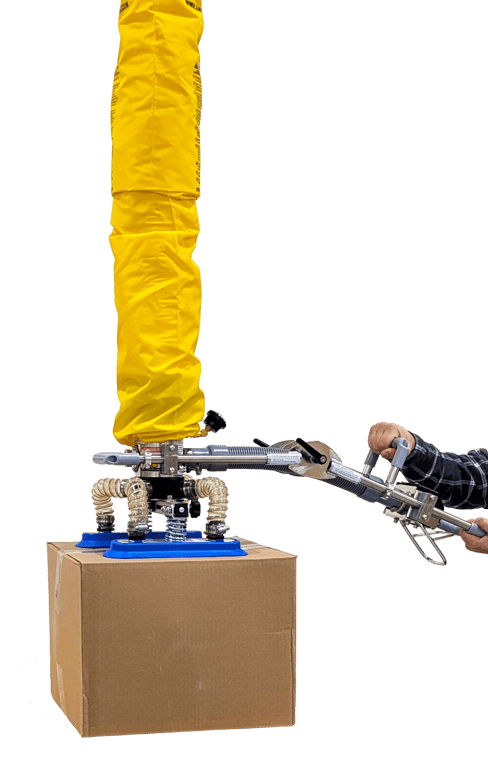

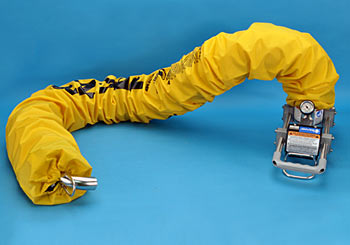

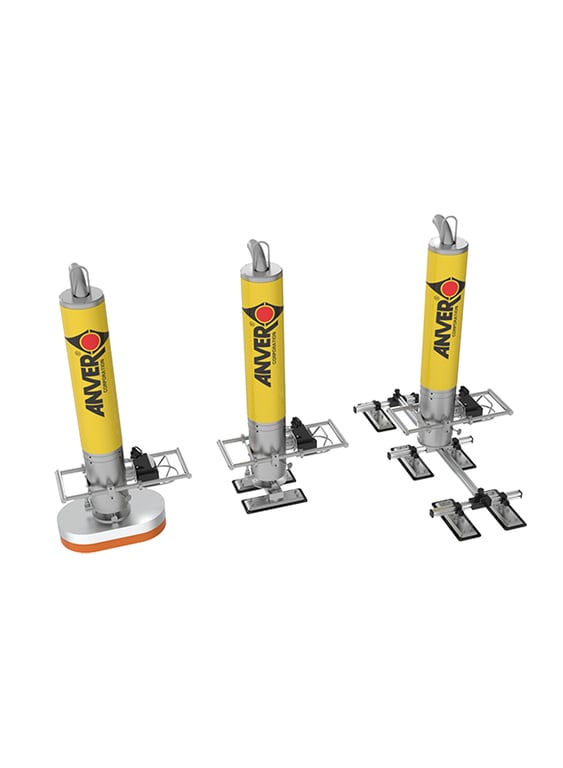

ANVER VT Vacuum Tube Lifter
VT đệm hút
VT + Suction Pad
Tay điều khiển VT
Control Handle
VB System
VB System
VM System
VM System

World-Leading Vacuum Lifting Systems

Series: VT / VB / VM — Made in USA

FULLSHARP Vietnam is the official distributor of ANVER Vacuum Tube Lifting Systems in the Vietnamese market. The products are designed and manufactured in the USA to the highest quality standards, serving continuous industrial production for many years.

A vacuum tube lifter is an ergonomic lift assist device that raises labor productivity while offering an economical solution for material handling. The system grips, lifts, holds and lowers the load by vacuum through a single control, with no separate hoist required. Vacuum pads ensure that product surfaces and edges are free from the scratches and damage that manual lifting can cause.

*Note: There are 3 main series - VT (Vacuum Tube) with ergonomic control, VB (Vacuum Beam) using a hoist for low-headroom areas, and VM (Vacuum Module), a compact pneumatic unit. FULLSHARP can advise on custom configurations for specific applications.
Choose the Right System for Your Application

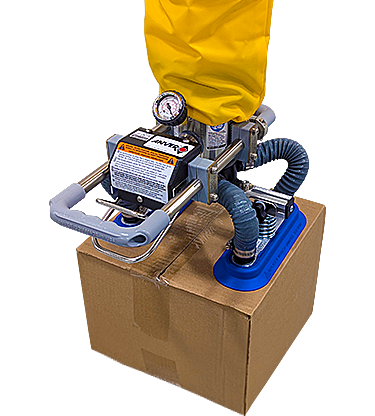

VT System
VT Systems
Vacuum Tube
  • Ergonomic control
  • Easy to operate and adjust
  • Flexible movement
  • Many integration options
Learn More
VB System
VB Systems
Vacuum Beam
  • Hoist-controlled lifting and lowering
  • Suitable for low-headroom areas
  • Continuous vacuum
  • Multiple configuration options
Learn More
VM System
VM Systems
Vacuum Module
  • Compact and easy to use
  • Compressed-air powered
  • 2-speed chain hoist
  • Two-hand control
Learn More
Operating Principle & Optimal Selection

Operating Principle

ANVER VT vacuum lifters are designed for efficient, continuous-duty handling, allowing multiple lifts per minute.

The system works on a simple principle: a remotely connected vacuum pump generates suction in the lift tube and control handle. When the suction head and pads contact the load, they grip its surface firmly by vacuum. As suction increases, the lift tube contracts and raises the load. As suction decreases (regulated by the control handle), the tube extends and lowers the load safely.

FULLSHARP encourages customers to send samples for load testing to determine the actual lifting capacity. The FULLSHARP team can assess the surface of the load or run tests directly at the factory in Hai Phong.

Factors Affecting Lifting Capacity

  • Weight and material of the load (porous, semi-porous, non-porous)
  • Available gripping surface area
  • Type of load (loose, light or heavy, bulky...)
  • Vacuum pump system (high/low pressure)
  • Vacuum level achieved
  • Size and shape of the suction head
  • Vacuum safety factor (ratio of tube diameter to suction area)
ANVER Vacuum Lifter Videos

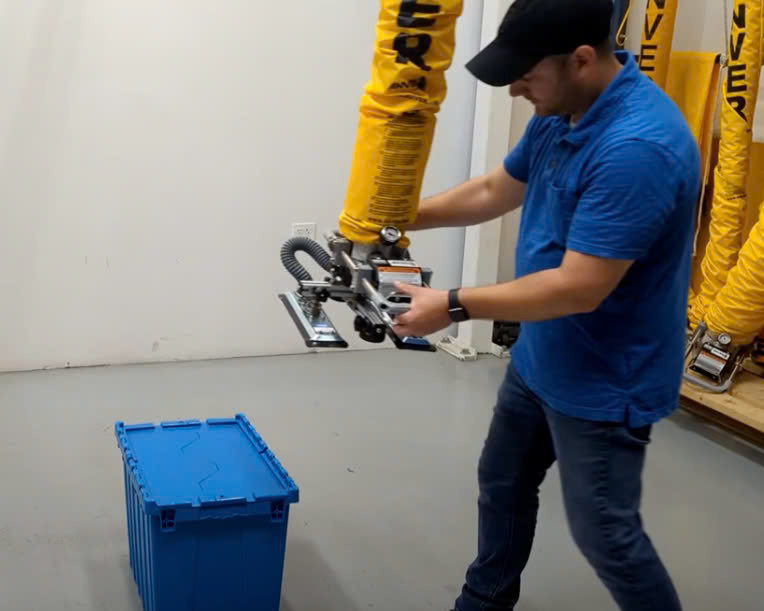

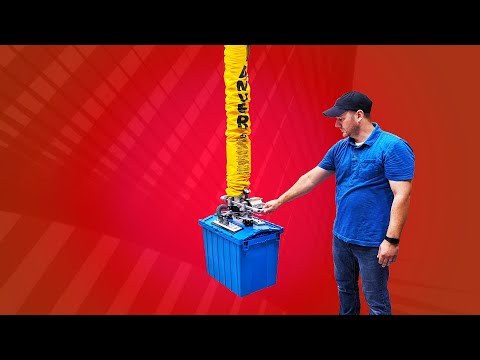

VT for Plastic Bins

*ANVER vacuum lifter for plastic crates

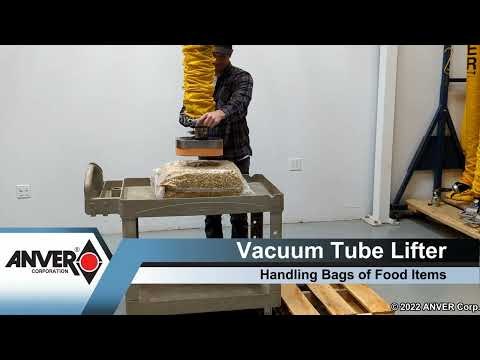

VT for Food Bags

*VT lifter handling packaged food bags

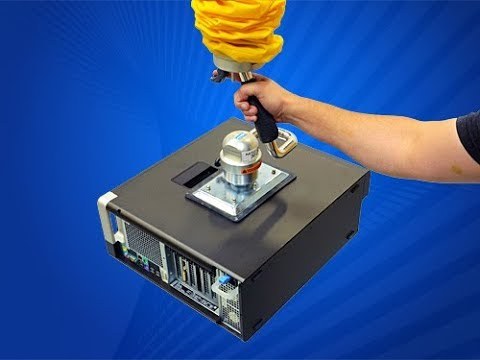

Pistol Grip Control

*Vacuum Tube Lifter with Pistol Grip control

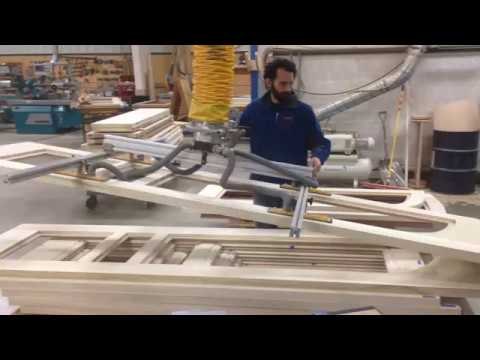

Wood Door Frames

*VT Lifter handling wooden door frames

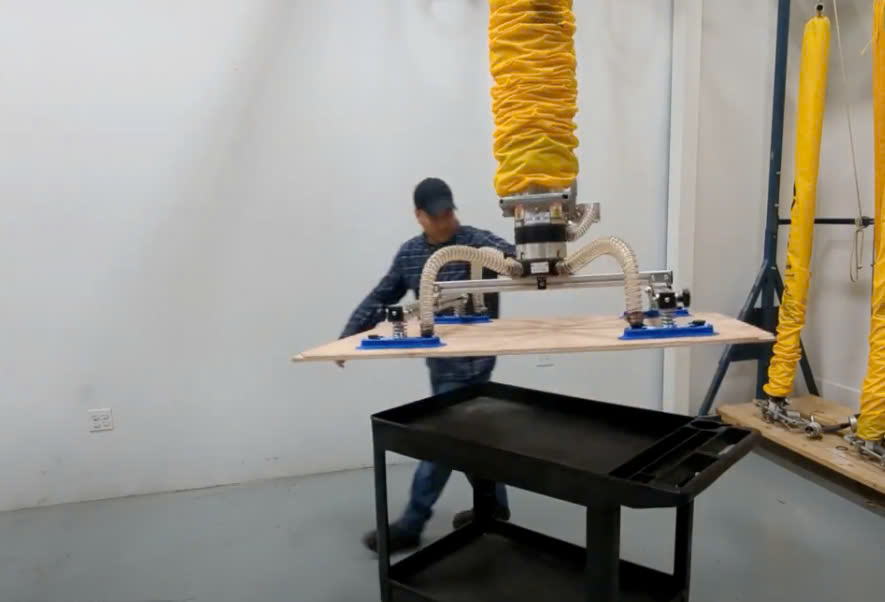

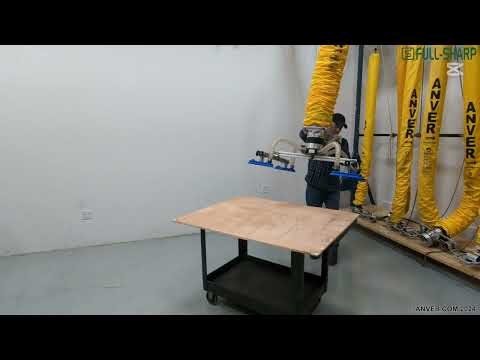

Wood Sheet

*ANVER lifter handling wood panels

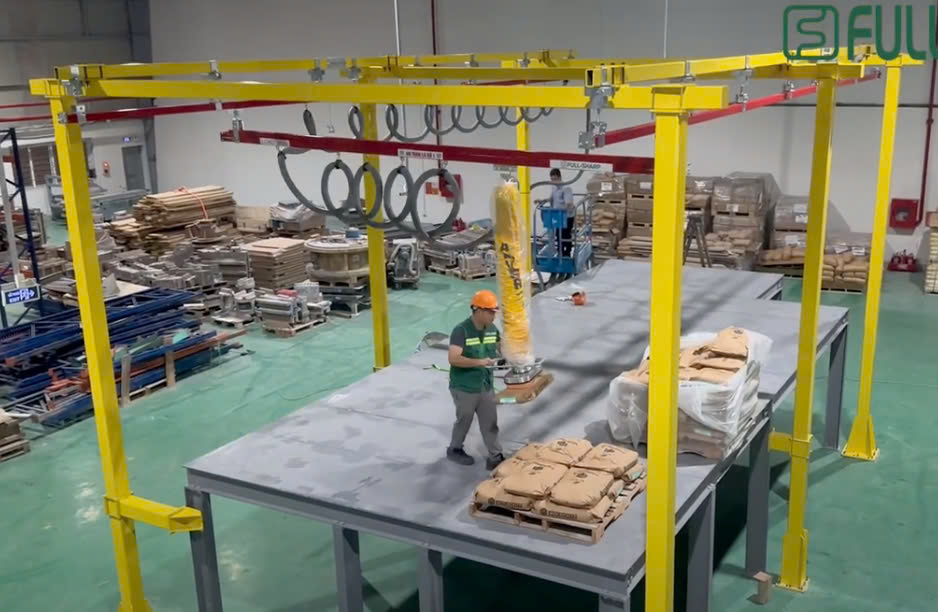

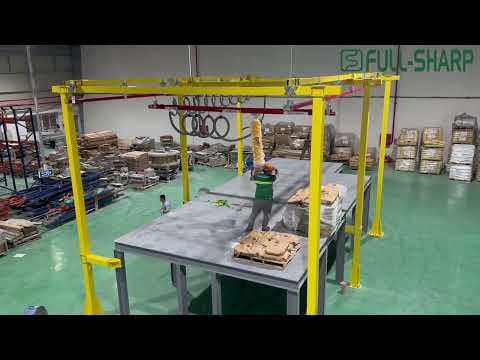

Material Bags

*ANVER lifter handling raw material sacks
Quality Commitment
Made in USA

Made in USA
Manufactured in the USA

ISO 9001:2015

ISO 9001:2015
Quality certified

Over 58 years of experience in industrial vacuum lifting - the Vacuum Tube Lifter line that is #1 in sales in North America. Superior quality, engineering and service.

Completed Projects (click to view details)

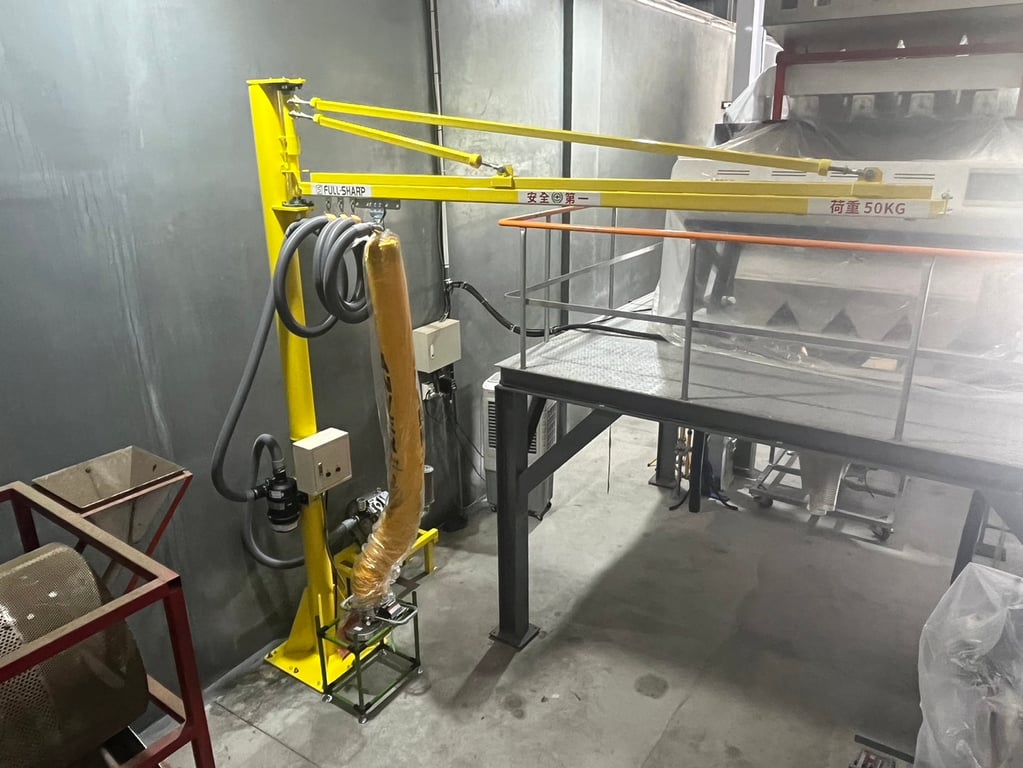

Khớp nối tay cần hút bao trong thiết bị nâng hạ chân không

Khớp nối tay cần là bộ phận cho phép tay cần hút bao xoay nhiều hướng khi bốc xếp. Album ảnh lắp đặt cho thấy cách gá khớp nối và đầu hút chân không tại khu vực đóng bao của nhà máy.
Read more

Cầu trục xoay khớp nối treo trần với thiết bị chân không ANVER hút bao

Cầu trục xoay khớp nối treo trần kết hợp thiết bị nâng chân không ANVER chuyên hút bao. Cần gập luồn tới sát pallet, xếp bao nhanh và không chiếm nền xưởng. Album ảnh lắp đặt.
Read more

Thanh ray 5T treo trần 200 kg, ANVER hút thùng giấy bên hông

Thanh ray 5T treo trần tải 200 kg kết hợp ống hút chân không ANVER hút thùng giấy bên hông, lấy được thùng xếp sát nhau. Album ảnh lắp đặt thực tế tại kho khách hàng.
Read more

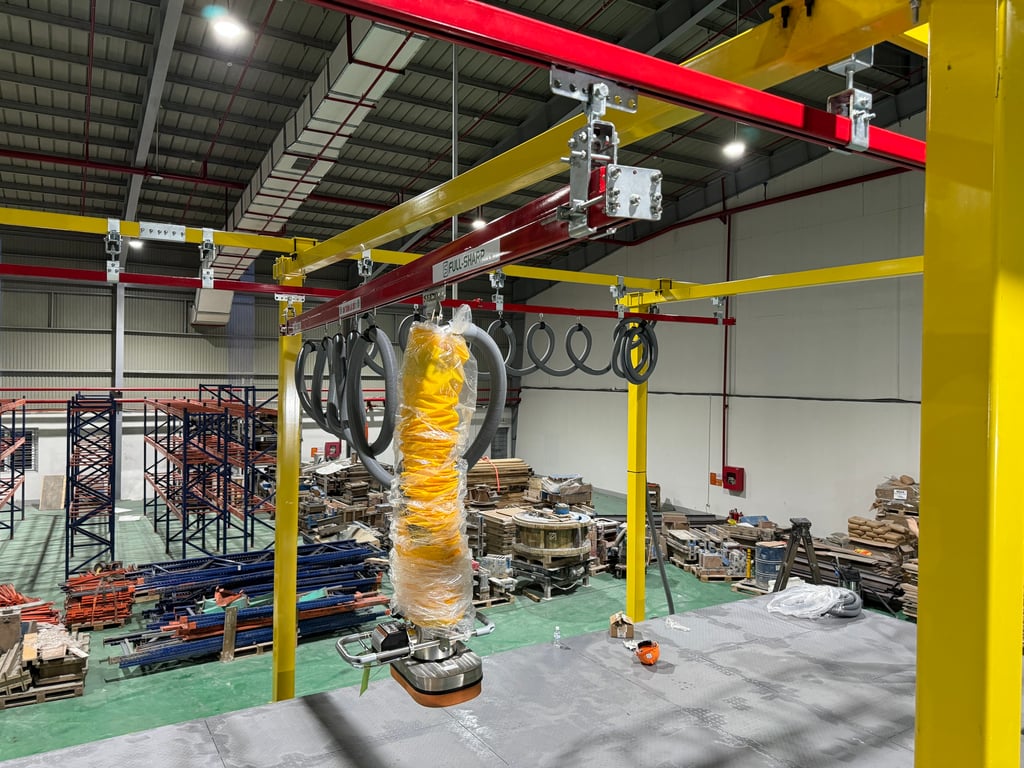

Bộ khung thanh ray 500 kg treo ANVER hút tấm

Bộ khung kết cấu thanh ray 500 kg tự đứng, treo thiết bị ANVER hút tấm để nâng và chuyển tấm phẳng dọc tuyến ray. Album ảnh lắp đặt chi tiết tại xưởng của khách hàng.
Read more

Thanh ray 5T 200 kg treo thiết bị nâng hạ chân không ANVER

Hệ thanh ray 5T tải 200 kg treo thiết bị nâng hạ chân không ANVER hút thùng giấy, hàng đi dọc tuyến ray rất nhẹ tay. Album ảnh lắp đặt thực tế tại kho của khách hàng.
Read more

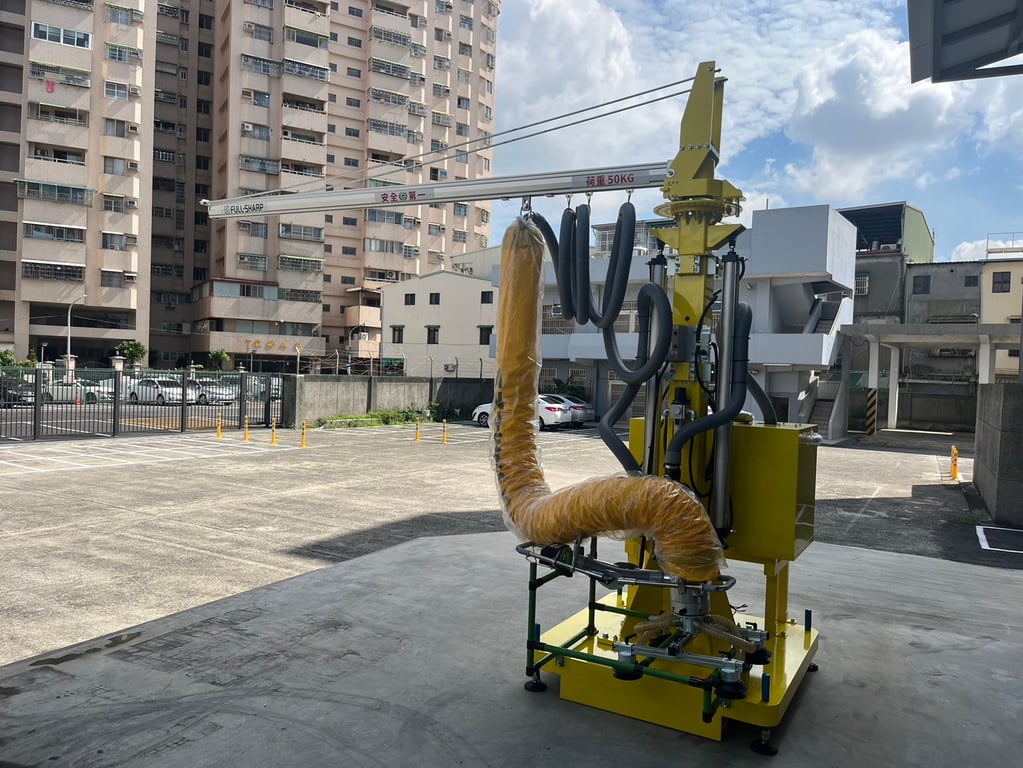

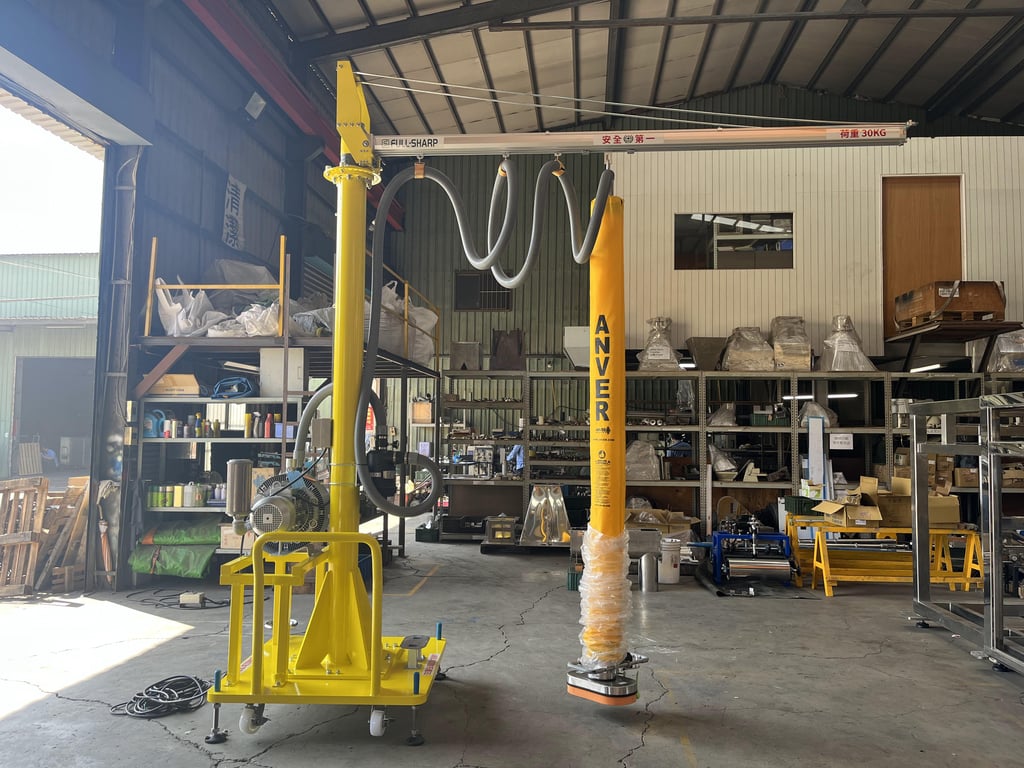

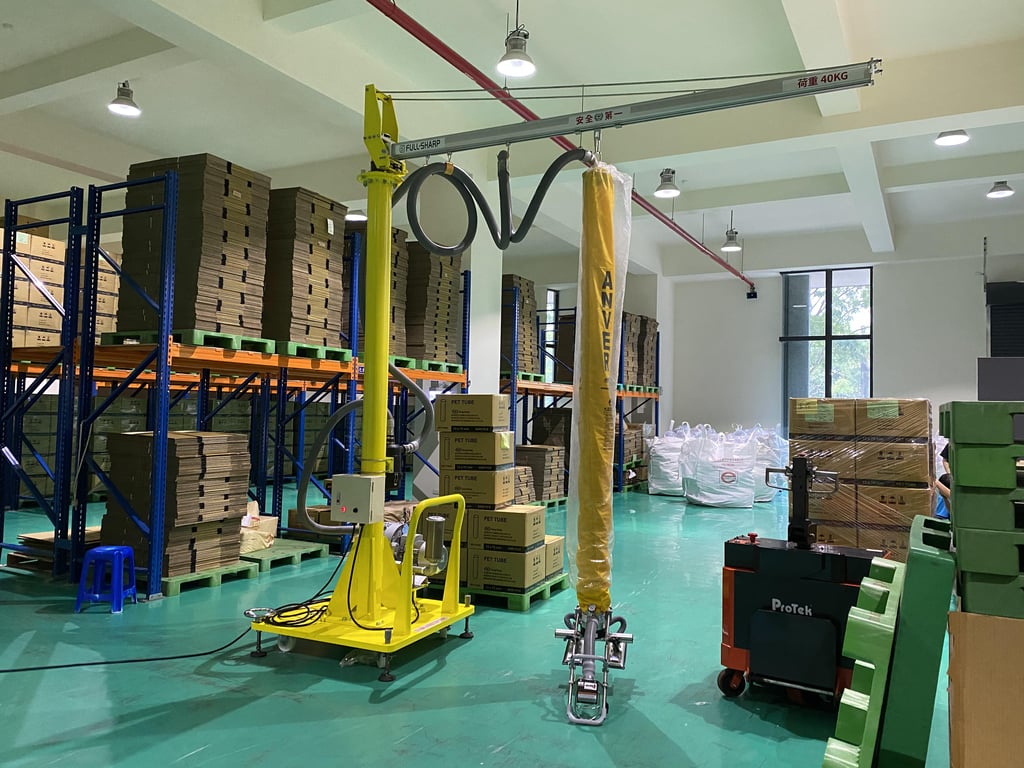

Cầu trục xoay đế di động nâng chân không ANVER hút thùng giấy

Cầu trục xoay trên đế di động, treo thiết bị nâng chân không ANVER chuyên hút thùng giấy. Ảnh lắp đặt cho thấy đế, tay cần thanh ray nhôm và đầu hút đang giữ thùng carton.
Read more

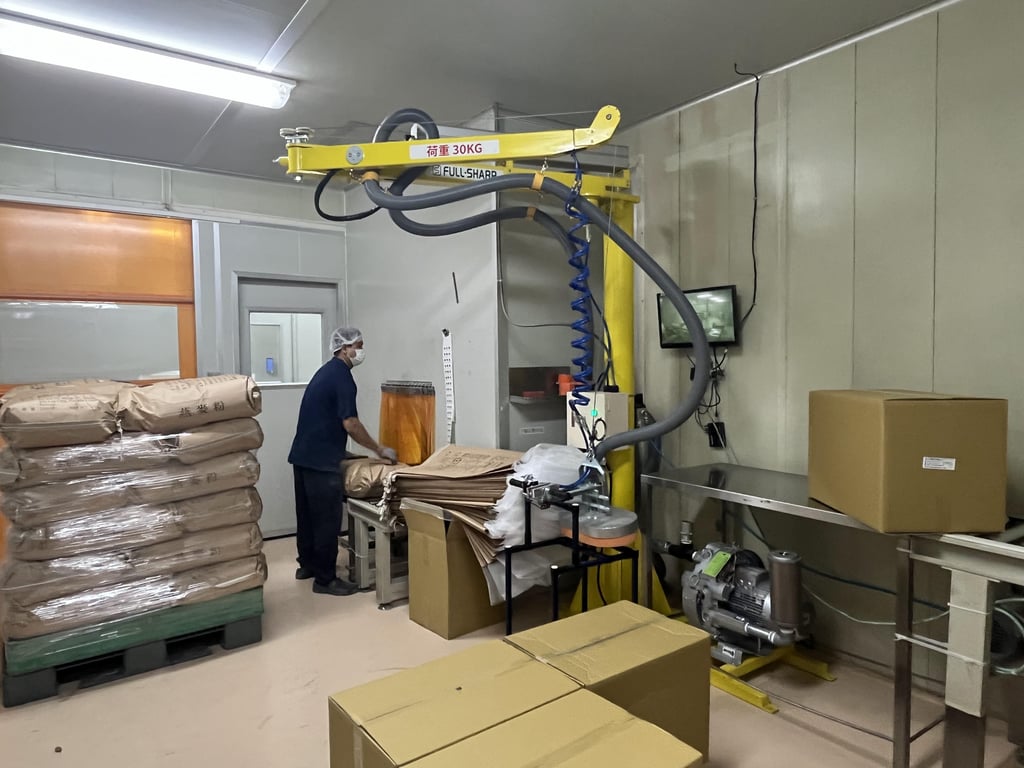

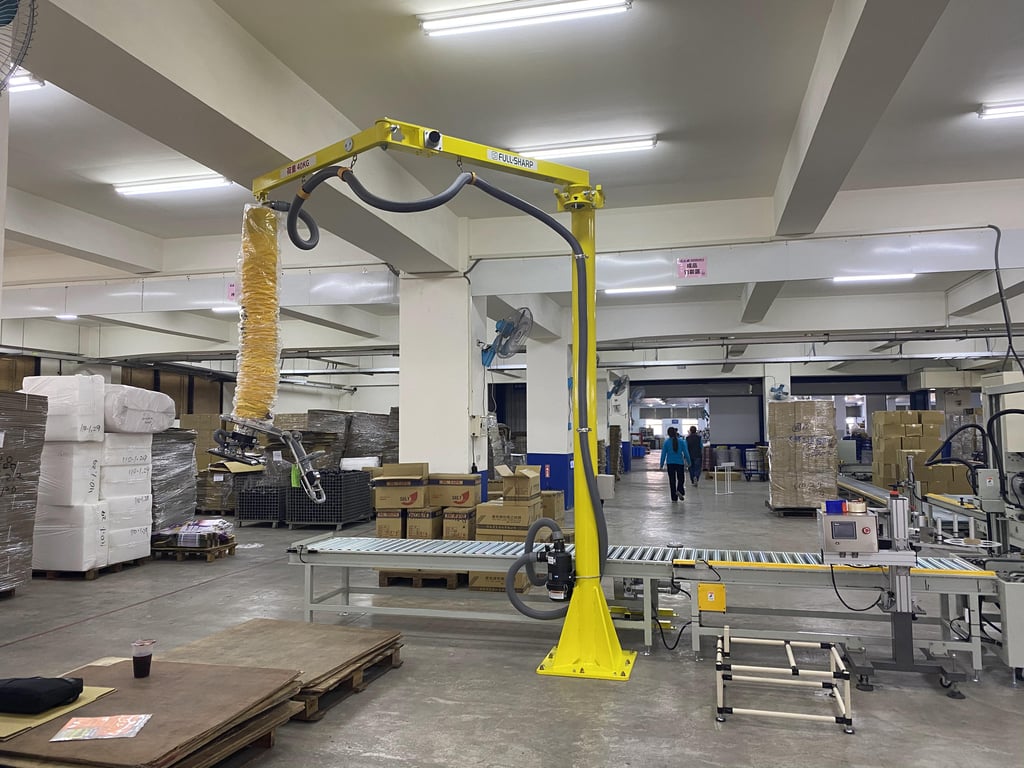

Cầu trục xoay kèm thiết bị nâng chân không ANVER hút bao

Cầu trục xoay kết hợp thiết bị nâng chân không ANVER với đầu hút chuyên cho bao. Ảnh lắp đặt cho thấy tay cần, ống hút và cách đầu hút bám lên mặt bao nguyên liệu.
Read more

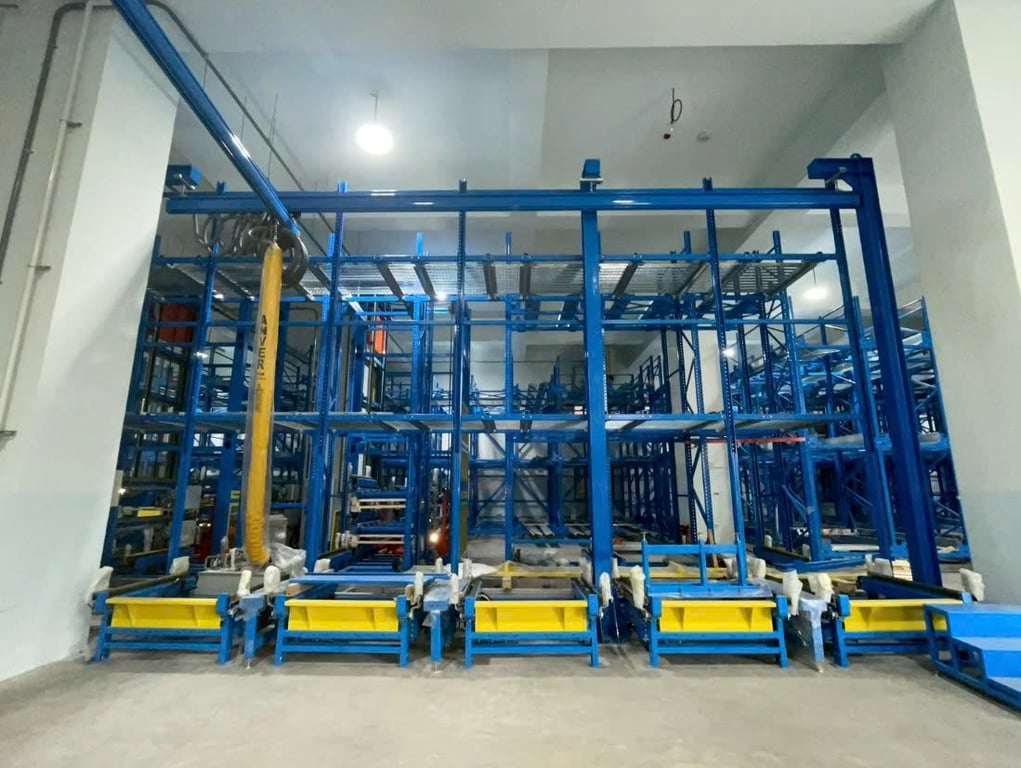

Bộ khung thanh ray thép 200 kg và ống hút chân không ANVER

Bộ khung thanh ray thép 200 kg tự đứng, treo ống hút chân không ANVER chuyên hút bao. Album ảnh lắp đặt gồm 60 ảnh, ghi lại toàn bộ khung và quy trình hút bao.
Read more

Cầu trục xoay ray nhôm treo bộ hút Anver hút bao khối cao su

Cầu trục xoay thanh ray nhôm treo bộ hút chân không Anver, chuyên hút và chuyển bao khối cao su trong nhà máy. Album ảnh lắp đặt thực tế do FullSharp thi công.
Read more

Cầu trục xoay treo tường ray 5T treo ống hút chân không Anver

Cầu trục xoay gắn tường, cần làm bằng ray 5T tải 200 kg, treo ống hút chân không Anver để hút và đặt bao đúng vị trí. Không tốn diện tích sàn. Album ảnh lắp đặt thực tế.
Read more

Thanh ray 5T treo trần kết hợp ống hút chân không Anver

Thanh ray 5T treo trần tải 200 kg, đầu ống hút chân không Anver hút thùng giấy nhẹ nhàng, một người vận hành cả tuyến. Album ảnh lắp đặt thực tế tại nhà xưởng.
Read more

Thanh ray 5T treo trần, bên dưới treo thiết bị hút chân không ANVER

Thanh ray 5T treo trần, tải định mức 200 kg, bên dưới treo thiết bị hút chân không ANVER để hút bao và kiện hàng phẳng. Xem album ảnh lắp đặt tại nhà xưởng khách hàng.
