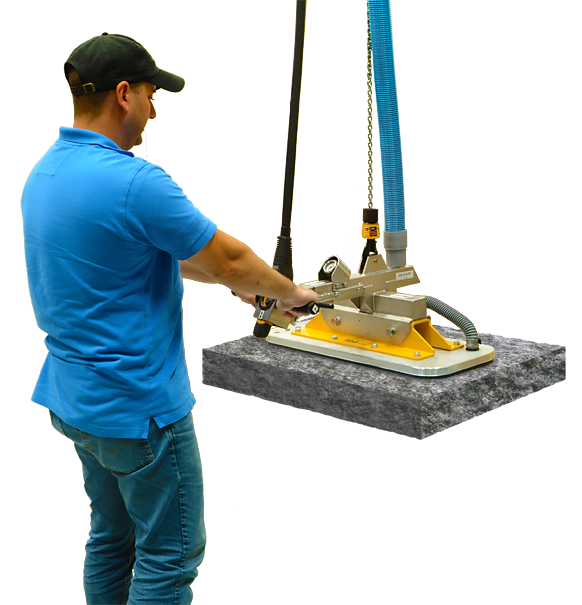

The ANVER VB vacuum lifting system is a fully integrated unit designed for fast, safe, single-operator lifting and handling of bags, carton boxes and other porous materials.
The system uses a high-vacuum, high-flow direct-drive vacuum pump to hold the load, combined with a rugged electric chain hoist for lifting and lowering.
It provides positive, drift-free load holding that is not weight-sensitive, and can be supplied with an air hoist, electric hoist or air balancer to suit the application.

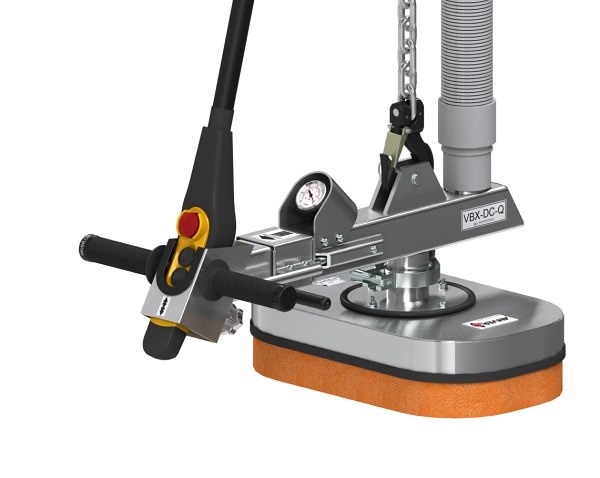

Standard
- Basic VB control head
- Straight or extended/pivoting handle
- Standard load capacity

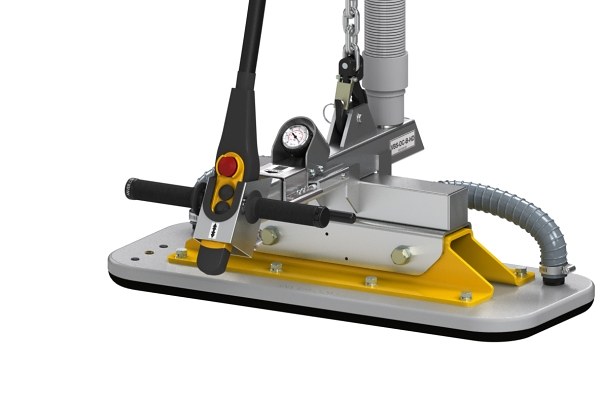

Heavy-Duty
- Load capacity up to 700 lb (317 kg)
- Extruded aluminum / steel frame
- For heavy-duty applications
Pneumatic Tilt
- Model 74000118 (200 lb)
- Model VBT25M2-61-1220NBR (250 lb)
- 90° pneumatic tilt
The ANVER VB Vacuum-Hoist Lifter is powered by a remote vacuum pump that can be located up to 150 ft (46 m) from the lifting head, and accepts a range of quick-change pad attachments for different loads. Equipped with a vacuum gauge and quick release, this fully integrated lifter has fingertip controls mounted directly on the handle.
The ANVER VB Vacuum-Hoist Lifter can be supplied with an extruded aluminum or steel frame and a variety of custom pads to suit specific load requirements. It provides positive, drift-free load holding that is not weight-sensitive, and is available with an air hoist, electric hoist or air balancer.
▸ Available Pad Attachments

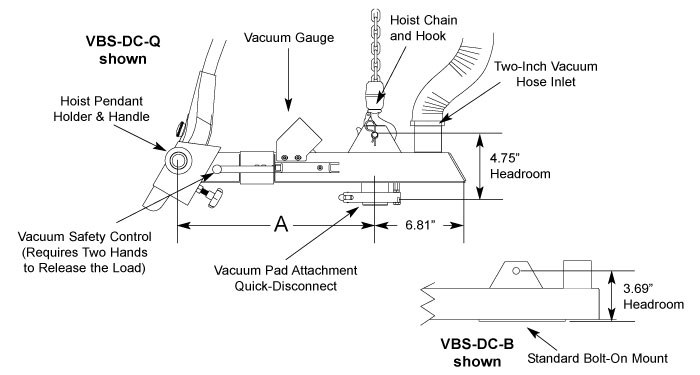

▸ Standard Control Head Specifications
| Standard Control Head — Part Numbers & Dimensions | ||
|---|---|---|
| Quick Release (VB-Q) |
Bolt-On (VB-B) |
A — Horizontal Length in (mm) |
| VBS-DC-Q | VBS-DC-B | 14.75 (375) |
| VBX-24DC-Q | VBX-24DC-B | 24 (610) |
| VBX-30DC-Q | VBX-30DC-B | 30 (762) |
| VBX-36DC-Q | VBX-36DC-B | 36 (914) |

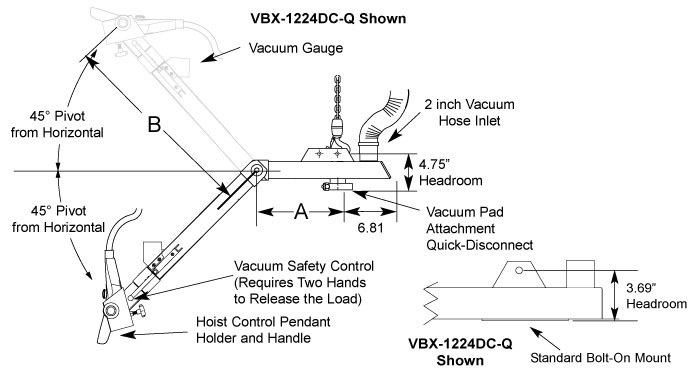

| Extended / Pivoting Control Head — Part Numbers | |||
|---|---|---|---|
| Quick Release (VB-Q) |
Bolt-On (VB-B) |
A — Horizontal in (mm) |
B — Pivoting in (mm) |
| VBX-1215DC-Q | VBX-1215DC-B | 12 (305) | 15 (381) |
| VBX-1220DC-Q | VBX-1220DC-B | 12 (305) | 20 (508) |
| VBX-1224DC-Q | VBX-1224DC-B | 12 (305) | 24 (610) |
| VBX-1230DC-Q | VBX-1230DC-B | 12 (305) | 30 (762) |
| VBX-1236DC-Q | VBX-1236DC-B | 12 (305) | 36 (914) |
| VBX-2015DC-Q | VBX-2015DC-B | 20 (508) | 15 (381) |
| VBX-2020DC-Q | VBX-2020DC-B | 20 (508) | 20 (508) |
| VBX-2024DC-Q | VBX-2024DC-B | 20 (508) | 24 (610) |
| VBX-2030DC-Q | VBX-2030DC-B | 20 (508) | 30 (762) |
| VBX-2036DC-Q | VBX-2036DC-B | 20 (508) | 36 (914) |
| VBX-2415DC-Q | VBX-2415DC-B | 24 (610) | 15 (381) |
| VBX-2420DC-Q | VBX-2420DC-B | 24 (610) | 20 (508) |
| VBX-2424DC-Q | VBX-2424DC-B | 24 (610) | 24 (610) |
| VBX-2430DC-Q | VBX-2430DC-B | 24 (610) | 30 (762) |
| VBX-2436DC-Q | VBX-2436DC-B | 24 (610) | 36 (914) |
| VBX-3015DC-Q | VBX-3015DC-B | 30 (762) | 15 (381) |
| VBX-3020DC-Q | VBX-3020DC-B | 30 (762) | 20 (508) |
| VBX-3024DC-Q | VBX-3024DC-B | 30 (762) | 24 (610) |
| VBX-3030DC-Q | VBX-3030DC-B | 30 (762) | 30 (762) |
| VBX-3036DC-Q | VBX-3036DC-B | 30 (762) | 36 (914) |
| VBX-3615DC-Q | VBX-3615DC-B | 36 (914) | 15 (381) |
| VBX-3620DC-Q | VBX-3620DC-B | 36 (914) | 20 (508) |
| VBX-3624DC-Q | VBX-3624DC-B | 36 (914) | 24 (610) |
| VBX-3630DC-Q | VBX-3630DC-B | 36 (914) | 30 (762) |
| VBX-3636DC-Q | VBX-3636DC-B | 36 (914) | 36 (914) |
The ANVER VB Vacuum-Hoist Lifter is powered by a remote vacuum pump that can be located up to 150 ft (46 m) from the lifting head, and accepts a range of quick-change pad attachments for different loads. Equipped with a vacuum gauge and quick release, this fully integrated lifter has fingertip controls mounted directly on the handle.
With a load capacity of up to 700 lbs (317 kg), the ANVER VB Vacuum-Hoist Lifter can be supplied with an extruded aluminum or steel frame and a variety of custom pads to suit specific load requirements. It provides positive, drift-free load holding that is not weight-sensitive, and is available with an air hoist, electric hoist or air balancer.
▸ VBS-DC-B-HD Specifications

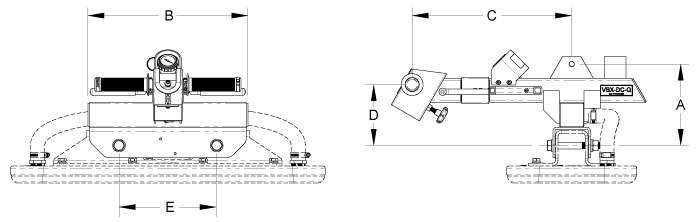

Technical drawing — main vacuum hose and hoist pendant not shown for clarity.
| VB Heavy-Duty Control Head Specifications | |
|---|---|
| Specification | VBS-DC-B-HD |
| Maximum Structural Capacity [lbs (kg)] * | 700 (317) |
| Unit Weight [lbs (kg)] (excluding pad) |
30 (14) |
| A — Maximum Headroom [in (mm)] | 7.5 (190) |
| B — Unit Width [in (mm)] | 14.75 (375) |
| C — Handle Length [in (mm)] | 14.69 (373) |
| D — Handle Height [in (mm)] | 5.61 (142) |
| E — Mounting Center Distance [in (mm)] | 9 (229) |

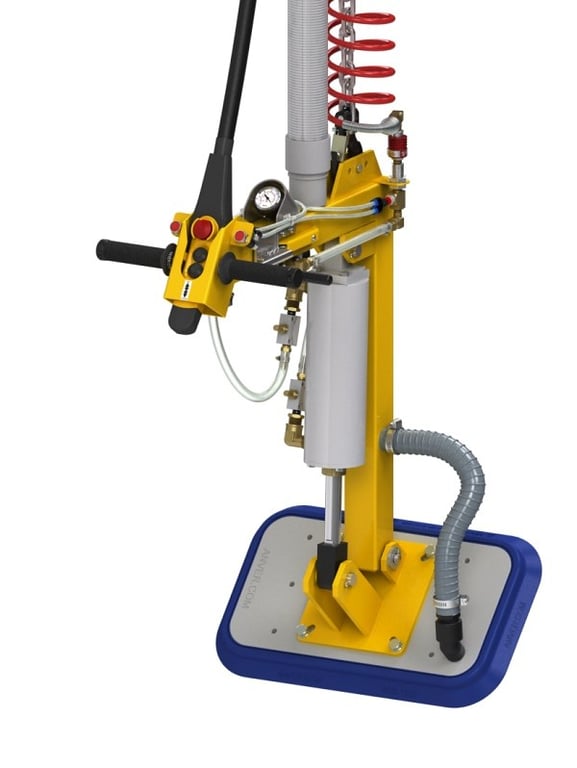

A newly designed hoist-operated vacuum lifter with high airflow and a pneumatic tilt mechanism for handling building materials, composites and textured surfaces.
The ANVER VB Powered Lifter-Tilter is a hoist-operated vacuum lifter with pneumatic tilt for handling a wide range of textured, semi-porous materials. With a capacity of up to 200 lbs, it can be ordered with a range of vacuum pumps and pads matched to the surface texture and porosity of the load.
Designed for 100% duty cycle, the ANVER VB Powered Lifter-Tilter is available with application-sized pads, including foam pads up to 20" × 25". With fully integrated controls for the variable-speed hoist, vacuum attach and release, and pneumatic tilt, this versatile lifter-tilter provides positive, drift-free load holding.
▸ 74000118 Specifications

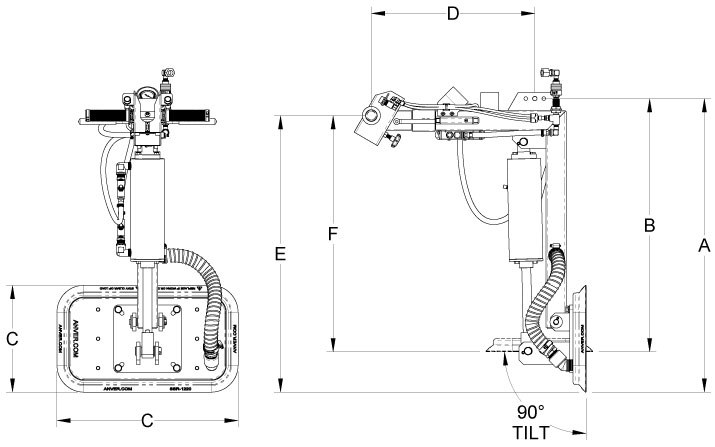

Technical drawing — vacuum hose, coiled compressed air hose and hoist pendant not shown.
| Model 74000118 Specifications | |
|---|---|
| Specification | 74000118 |
| Maximum Structural Capacity [lbs (kg)] * | T.B.D. (depends on configuration) |
| Unit Weight [lbs (kg)] | 70 (32) |
| Required Air Pressure [psi] | 75 |
| Tilt Speed | Variable (100% Duty Cycle) |
| A — Vertical Headroom [in (mm)] | 32.62 (829) |
| B — Horizontal Headroom [in (mm)] | 28.14 (715) |
| C — Pad Dimension [in (mm)] | 12.1 × 20.5 (307 × 521) |
| D — Handle Length [in (mm)] | 18.16 (461) |
| E — Vertical Handle Height [in (mm)] | 30.73 (781) |
| F — Horizontal Handle Height [in (mm)] | 26.25 (667) |
| Pad Number (included) | VP1220A |
A newly designed hoist-operated vacuum lifter with high airflow and a pneumatic tilt mechanism for handling building materials, composites and textured surfaces.
The ANVER VB Powered Lifter-Tilter is a hoist-operated vacuum lifter with pneumatic tilt for handling a wide range of textured, semi-porous materials. With a capacity of up to 250 lbs, it can be ordered with a range of vacuum pumps and pads matched to the surface texture and porosity of the load.
Designed for 100% duty cycle. With fully integrated controls for the variable-speed hoist, vacuum attach and release, and pneumatic tilt, this versatile lifter-tilter provides positive, drift-free load holding.
▸ Specifications

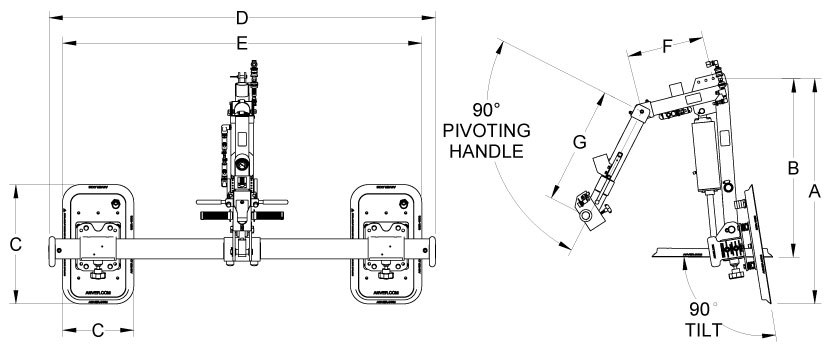

Technical drawing — vacuum hose, coiled compressed air hose and hoist pendant not shown.
| Model VBT25M2-61-1220NBR Specifications | |
|---|---|
| Specification | VBT25M2-61-1220NBR |
| Maximum Structural Capacity [lbs (kg)] * | 250 (113) |
| Unit Weight [lbs (kg)] | 138 (63) |
| Required Air Pressure [psi] | 75 |
| Tilt Speed | Variable (100% Duty Cycle) |
| A — Vertical Headroom [in (mm)] | 37.56 (954) |
| B — Horizontal Headroom [in (mm)] | 29.75 (756) |
| C — Pad Dimension [in (mm)] | 12.1 × 20.5 (307 × 521) |
| D — Beam Length [in (mm)] | 18.16 (461) |
| E — Maximum Pad Spacing [in (mm)] | 60 (1524) |
| E — Minimum Pad Spacing [in (mm)] | 25 (635) |
| F — Fixed Handle Length [in (mm)] | 13 (330) |
| G — Pivoting Handle Length [in (mm)] | 19.69 (500) |
| Pad Number (included) | VP1220A |
