WilsonX220A-X270A-VR

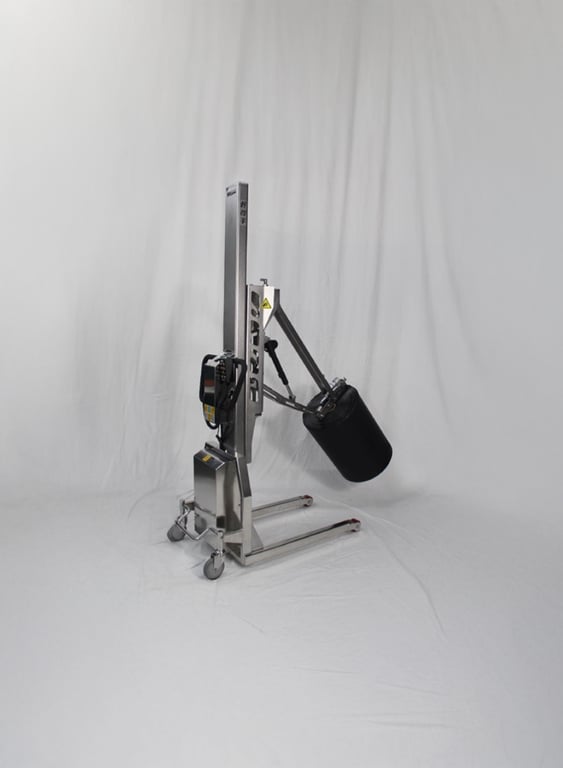

The WilxonX220A-VR and WilxonX270A-VR roll lifters are designed for the food and pharmaceutical industries and other environments with strict hygiene and durability requirements. With a load capacity of up to 130kg and a maximum lifting height of 1500mm – 2000mm, they run on a lead-acid battery or an optional fast-charging lithium battery, with a durable and safe 304 stainless steel body.

Advanced functions include:

Standard lifting speed of 125mm/s
ASP automatic deceleration when approaching the set position
Memory for 15 working positions
Automatic horizontal rotation at the push of a button
Suitable for rolls with 3” or 6” inner diameter and a maximum width of 1300mm

The equipment suits clean environments, is easy to clean, and supports precise, continuous and professional lifting.

Specifications

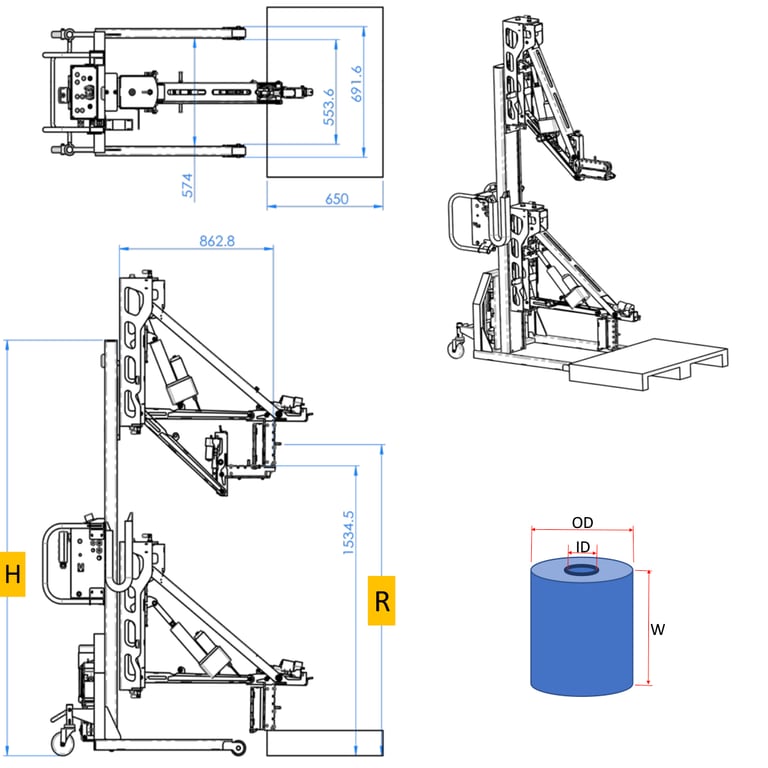

Model	WilxonX220A-VR	WilxonX270A-VR
Dimensions	1514 x 695 x 2200	1514 x 695 x 2700
Lifting height R Lifting height	150 - 1500	150 - 2000
Load capacity Load	130kg	130kg
Lifting speed Lifting speed	125 mm/s (standard)
Protection rating Protection level	IP41
Battery Battery	▢ Lead-acid battery DC24V20AH standard ▢ Lithium battery DC24V15AH optional
Charging Charging	Input 100-240V AC, 50/60Hz
Charging time Charging time	▢ Lead-acid battery: 7 hours ▢ Lithium battery: 70 minutes
Material Material	304 stainless steel
Applicable rolls Applicable roll material	ID 3” or 6” W ≤ 1300mm
Options Options	ASP (automatic deceleration when approaching the set position) 15 storable lifting positions; press a button to move to a stored position automatically Push-button automatic horizontal rotation For special roll materials or lifting requirements, contact Full-Sharp
