FS-YF

Safe working load2–10 t
PowerDC 24 V
Suction cups20 × Φ300 or 8–20 × 1200×650 mm
TiltHydraulic 0–90°
ControlWireless remote
LengthUp to 18–20 m, multi-section frame

FS-YF hydraulic tilt vacuum lifter for long glass sheets

FS-YF is a hydraulic tilt vacuum lifter series for glass processing plants. Safe working load ranges from 2 to 10 t, powered by DC 24 V.

The lifter can reach 18–20 m in length, suited to large and very large glass factories. A large-bore hydraulic cylinder tilts the glass from 0 to 90°; the system is stable and simple to operate. Vacuum release needs two buttons and has a time delay, for safe and reliable handling. Some models use independent vacuum modules for higher safety and productivity. The frame is assembled from several sections to suit glass of different lengths.

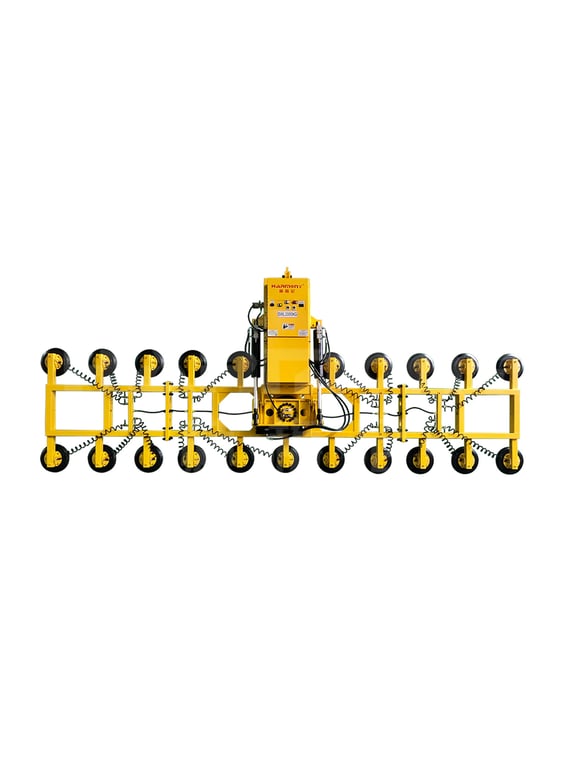

FS-YF vacuum lifter with a long multi-cup frame

Features

Up to 18–20 m long

Lifter length can reach 18–20 m, for large and very large glass factories.

0–90° hydraulic tilt

A large-bore hydraulic cylinder tilts the glass from 0 to 90°; stable system, simple operation.

Two-button delayed release

Vacuum release needs two buttons and has a time delay, for safe and reliable handling.

Independent vacuum modules

Some models use independent vacuum modules for higher safety and productivity.

Multi-section frame

The frame is assembled from several sections to suit glass of different lengths.

Specifications

Model	Safe working load	Size (mm)	Suction pad size (mm)	Number of cups	Power	Control	Function
FS-YF2000-20S	2,000 kg	(1375+2500+1375)×1340	Φ300	20 pcs	DC 24 V	Wireless remote	0–90° hydraulic tilt
FS-YF3000-8S	3,000 kg	(1250+2500+1250)×1800	1200×650	8 pcs	DC 24 V	Wireless remote	0–90° hydraulic tilt
FS-YF5000-12S	5,000 kg	(2000+4300+2000)×1900	1200×650	12 pcs	DC 24 V	Wireless remote	0–90° hydraulic tilt
FS-YF10T-20S	10 t	(3000+6000+3000)×1900	1200×650	20 pcs	DC 24 V	Wireless remote	0–90° hydraulic tilt

All four models share DC 24 V power, wireless remote control and 0–90° hydraulic tilt. FS-YF2000-20S uses 20 round Φ300 cups; the 3–10 t models use 1200×650 mm suction pads.

Main components

Vacuum pump

Low energy consumption / High vacuum level, strong suction / International brand, runs continuously for 24 hours with more stable performance

Modular suction cup group

Independent module of 6 × 300 mm suction cups / Fully independent vacuum system with its own vacuum pump, control circuit, battery, etc. / Safer and more efficient

Equipment frame

Custom-built at the factory / National-standard structural steel sections / Welded, machined and formed, baked-paint surface, durable

Other parts

Power switches, batteries, etc. from international brands / UL and other international certifications / Low failure rate, durable

Parts diagram

Numbers on the diagram match the part names below.

Lifting ring
Vacuum body
Hydraulic tilt cylinder
Main beam
Crossbeam
Vacuum suction cup
Hydraulic rotary motor
Vacuum hose
Shunt (vacuum manifold)
Ball valve (on/off)
Hydraulic system control box
Vacuum solenoid valve
Vacuum system control box, including: 13-1 charging port; 13-2 power switch; 13-3 vacuum indicator lamp; 13-4 alarm lamp; 13-5 power indicator; 13-6 vacuum pressure sensor
