FS-SF

Safe load1,500 kg / 2,000 kg
PowerDC 12 V battery
Suction cups16 or 20 × Φ300
Tilt0–90° manual
ControlManual / remote
Frame(1375+2500+1375)×1540 or (1375+5000+1375)×1740 mm

Download PDF spec sheet

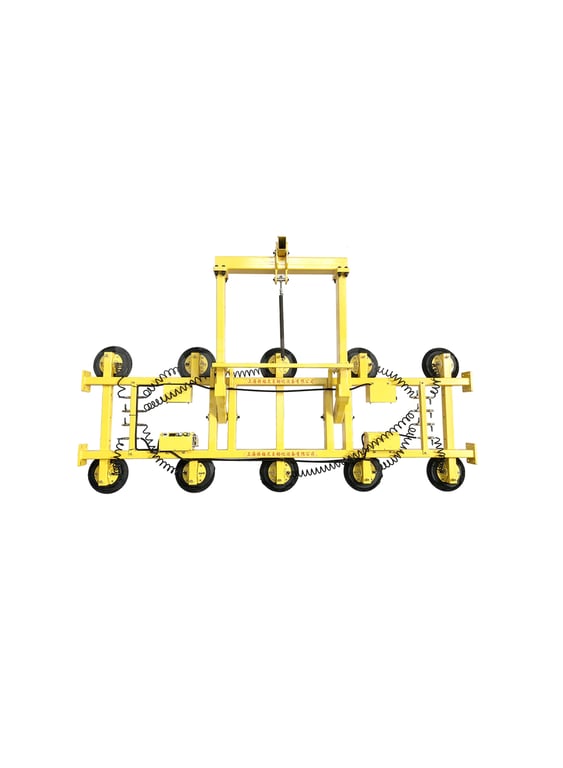

FS-SF manual tilt vacuum lifter for large glass sheets

FS-SF belongs to the manual tilt series of vacuum lifters. Safe loads of 1,500 kg and 2,000 kg, powered by a DC 12 V battery.

It is used indoors to lift large and extra-large glass sheets and tilts the glass by hand from 0 to 90°. Once the operator is practised, handling becomes more efficient and faster. The battery lasts a long time, the whole machine is durable and maintenance costs are low.

FS-SF manual tilt vacuum lifter for large glass sheets

Specifications

Model	Safe load	Size (mm)	Suction cup diameter (mm)	Suction cups	Power system	Control	Function
FS-SF1500-16S	1,500 kg	(1375+2500+1375)×1540	Φ300	16	DC 12 V	Manual / remote	0–90° manual tilt
FS-SF2000-20S	2,000 kg	(1375+5000+1375)×1740	Φ300	20	DC 12 V	Manual / remote	0–90° manual tilt

Both models share Dia. 300 suction cups, DC 12 V power, the same control and the 0–90° manual tilt; they differ in frame length, number of cups and safe load.
