Ann160S-VBR

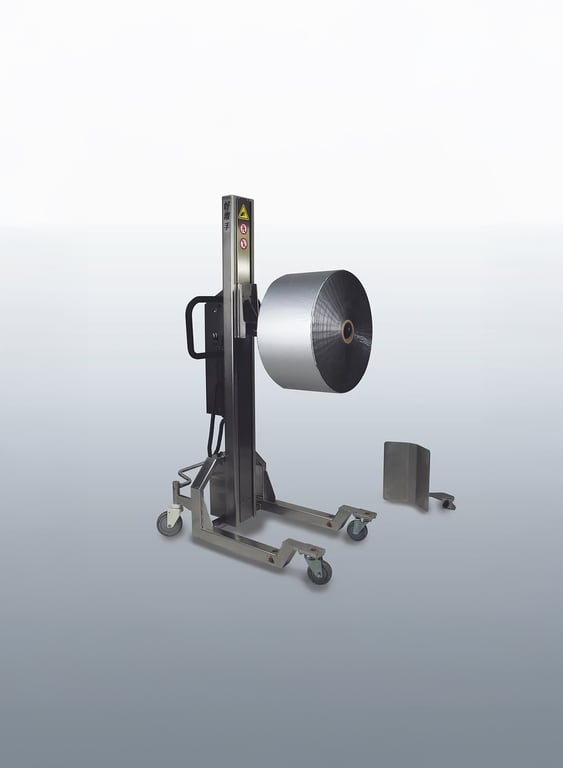

This cleanroom electric lifter series is designed for light lifting tasks: 80kg load capacity, 24V/10AH battery, 125mm/s lifting speed and a maximum lifting height of 1900mm. Fast 4-hour charging, IP41 rated with an optional IP66 upgrade. Swivel or fixed front wheels are available, making it suitable for flexible production environments and confined spaces.

Specifications - Models S1160 / S1190 / S1220

Parameter	S1160	S1190	S1220
Mast height Mast height (mm)	1600	1900	2200
Lifting height Lifting height (mm)	1300	1600	1900
Lifting speed Lifting speed (mm/s)	125 mm/s	125 mm/s	125 mm/s
Protection class IP protection	IP41	IP41	IP41
Battery Battery	24V / 10AH lead-acid	24V / 10AH lead-acid	24V / 10AH lead-acid
Charger input Charging power supply	100–240VAC, 50/60Hz	100–240VAC, 50/60Hz	100–240VAC, 50/60Hz
Charging time Charging time	4 hours	4 hours	4 hours
Load capacity Load capacity	80kg

Upgrade Options

Option	Description
IP Protection	IP66
Ø75mm Swivel wheel	Front leg height 92mm
Ø80mm Fixed wheel	Front leg height 85mm

Note: can be customized to your actual application requirements.
