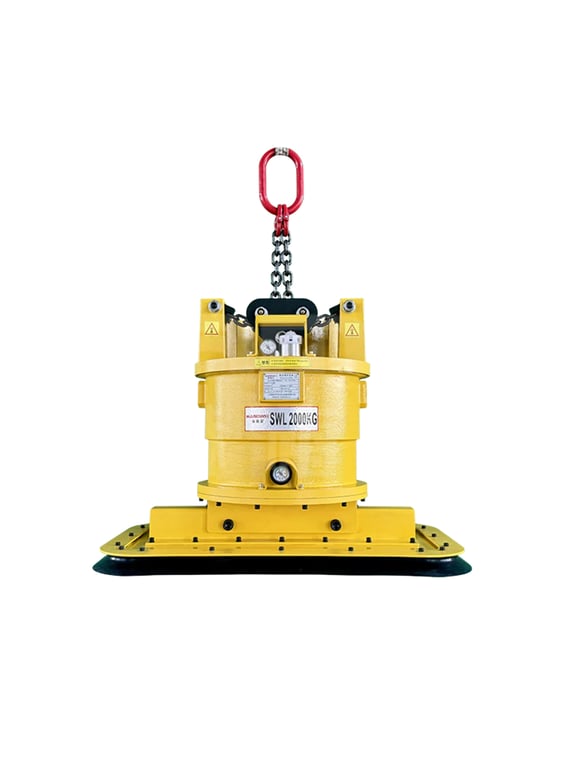

FS-WDL2000-1S

  • No installation needed; the pad's hook attaches directly to the crane hook.
  • Vacuum generation and release are controlled by slackening or tensioning the chain; pick-up and release are carried out via the vacuum control valve.
  • No control buttons and no external power supply; unaffected by power outages or low voltage.
  • No electrical cables or air hoses to connect; the unit can be moved to any location with a hoist or crane.
  • The unit releases the load only when it has been set down and the chain is fully slack, so operating errors cannot occur and safety is extremely high.

Specifications

ModelMax. loadOuter dimensions (mm)Pad size (mm)Number of padsPower systemControl modeUnit weight
FS-WDL2000-1S2000KG1000×680×7501000×5801 pcNon-poweredAutomatic270KG
