BMC-500

Name: BMC-500
Brand: Brand
Availability: InStock
Rating: 4.4 (1 reviews)

COMEUP BMC-500 is a modern lifting solution for industries that demand high precision and stable performance. Powered by a brushless DC motor, it eliminates carbon dust and sparks entirely, reduces maintenance and extends service life. Speed is adjustable in low-speed mode.

View catalogue

Technical Specifications

Model	BMC-500
Duty cycle	25% ED
Classification	1Bm(FEM), M3(ISO)
Power supply	AC200-240V 50/60Hz, single phase
Rated load	500 kg
Lifting height	3 m
Hook type	Single
Motor output	500W, brushless motor 6.6A
Lifting speed	0.2~1.8 / 6.5 m/min
Brake	Dual motor brake + mechanical ratchet
Gear ratio	70.2 : 1
Chain	Grade 80 – 6.3 mm diameter x 19 mm pitch

Maximum lifting height with the standard chain bag. Other options can be supplied on request.

Warnings:

Not for lifting people.
The suspension point must have sufficient load capacity.

Warranty:

12-month warranty against defects in material and workmanship (load chain excluded).

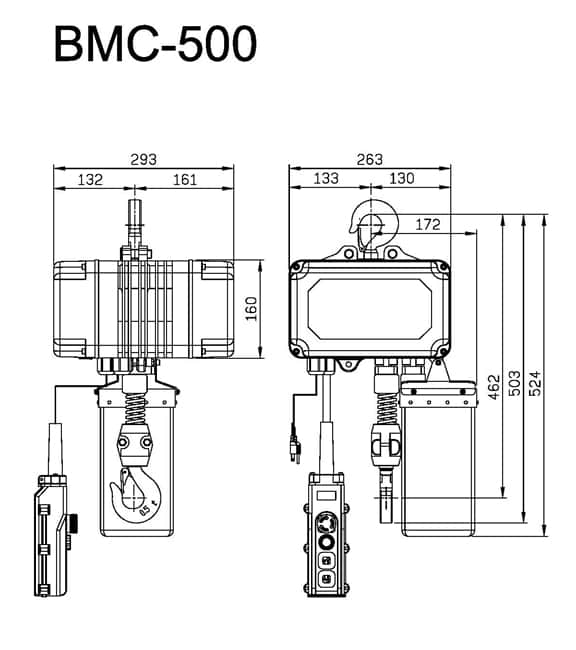

Dimensions

Accessories

FC80 load chain
Pendant control with emergency stop, cable 0.5 mm² x 7C x 3 m
Industrial plug 1.5 mm² x 3C x 3 m
BMC-500 suspension hook
Hook suspension fitting
Chain bag

Packaging

Hoist weight: 19.3 kg
Gross weight: 27 kg
Carton size: 380 x 410 x 345 mm

Downloads

Document	Date	Format	Download
BMC-500 User Manual	2023-09-11	PDF, 0.8 MB	Download
