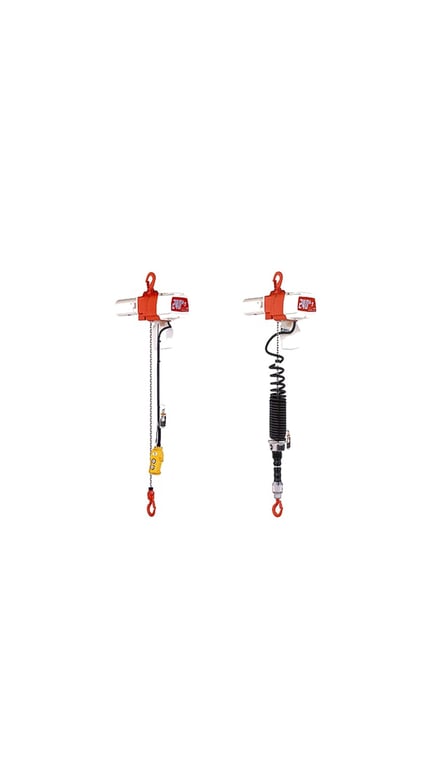

KITO ED Series Electric Chain Hoist (ED/EDL/EDC/EDCL)
KITO ED Series Electric Chain Hoist (ED/EDL/EDC/EDCL) – Compact, light, easy, and fast.
- High-speed lifting/lowering
- Compact design minimizes headroom
- Powerful and high-performance
- High-performance mechanical brake
- Compact and lightweight. The 100 kg standard lift type weighs just 11.5 kg.
| Capacity | 60 to 480 kg (Push Button Control), 60 to 240 kg (Cylinder Control) |
|---|---|
| Standard Lift | 3 m (Push Botton Control), 1.8 m (Cylinder Control) |
| Use | Lifting Up/Down |
| Voltage | 1 Phase AC 120V or 240V |
| Ratings | Hoist-IP54, Push Button Control-IP65, Cylinder Control-IP44 |
Standard Specification
| Voltage | 1 Phase AC 120V or 240V both for 50Hz and 60Hz |
|---|---|
| Motor Insulation | Class F |
| Enclosure | IP54 |
| Operation Method | Push Button Control (Floor Operation) Cylinder Type |
| Operating Temperature | -20 to 40℃ (-4 to 104℉) |
| Operating Humidity | 85%RH or Less |
Lightweight, high-speed, adaptable, and portable.
The ED series is technologically advanced, easy to service, and high quality.
Compact Design
The die-cast aluminum body is lightweight, with low headroom, to fit confined spaces. Easy to install, move and store.
Dual-braking System
The dual-braking system includes both mechanical and regenerative brakes for added safety.
Heavy-duty Motor
With 300 to 600W, the unit offers above-average motor output for industrial applications, while a compact DC motor with AC current rectifier reduces weight, generates less heat and maintains duty cycles.
High-performance Friction Clutch
The friction clutch, built into the load brake, is designed to slip to prevent overwinding or overloading.
Upper Limit Switch
Prevents overwinding and sets a standard upper limit.
Abrasion-resistant, Case-hardened, and Plated Chain
Made from heat-treated alloy steel for high, uniform strength and corrosion resistance.
Heat-treated Gearing
The deep-groove ball and needle bearings are immersed in an oil bath resulting in smooth, quiet operation.
Speed Flexibility (Dual Speed / Cylinder Control Model)
The low speed can be adjusted from 0 to 100% of maximum speed by setting a screw inside the push button switch.
In-line Handgrip (Cylinder Control Model)
Allows one-handed operation and gives the operator a free hand to easily position the load.
High/Low Speeds (Cylinder Control Model)
The easy-touch rocker switch above the handgrip allows the user to swiftly change between low and high-speed control, while the finger-turn knobs allow custom speed setting from 0–100%.
Removable Bottom Hook (Cylinder Control Model)
Allows insertion of various below-the-hook material handling devices.
Specifications & Dimensions
Single Speed with Hook Suspension, Standard Voltage
The single speed delivers high speed and contribute operation efficiency.
Specifications
*Major capacities example. For more information, please refer to Product Catalog.
| Code | Capacity (kg) | Standard Lift (m) | Push Button Code:L (m) | Motor Output (W) | Lifting Speed (m/min) | Net Weight (kg) | |
|---|---|---|---|---|---|---|---|
| High | Low | ||||||
| ED06S | 60 | 3 | 2.5 | 300 | 21 | - | 11.5 |
| ED10S | 100 | 13 | |||||
| ED18S | 180 | 8 | |||||
| ED16S | 160 | 600 | 20 | ||||
| ED24S | 240 | 13.5 | 15.5 | ||||
- Power supply cable 2 ㎟ × 3 conductors × 5 m with grounding wire.
- The lifting speed is the average of the lifting/lowering speed under the rated load. The speed will vary in a load or voltage.
- Capacity indicates maximum load (working load limit) which a hoist is designed to support in general service.
Dimensions (mm)
*Major capacities example. For more information, please refer to Product Catalog.
| Code | Headroom: C | d | e | f | k |
|---|---|---|---|---|---|
| ED06S | 315 | 187 | 184 (177)* | 205 | 340 |
| ED10S | |||||
| ED18S | |||||
| ED16S | 330 | 205 | 223 | 219 | 362 |
| ED24S |
- In case of with mini trolley, dimensions "C" and "K" are shorter by 45 mm.
*Figures in parentheses show the data for 240V (max).
Single Speed with Hook Suspension, Low Voltage Control 30V
The single speed delivers high speed and contribute operation efficiency.
Specifications
*Major capacities example. For more information, please refer to Product Catalog.
| Code | Capacity (kg) | Standard Lift (m) | Push Button Code:L (m) | Motor Output (W) | Lifting Speed (m/min) | Net Weight (kg) | |
|---|---|---|---|---|---|---|---|
| High | Low | ||||||
| EDL06S | 60 | 3 | 2.5 | 300 | 21 | - | 12 |
| EDL10S | 100 | 13 | |||||
| EDL18S | 180 | 8 | |||||
| EDL16S | 160 | 600 | 20 | 16 | |||
| EDL24S | 240 | 13.5 | |||||
- Power supply cable 2 ㎟ × 3 conductors × 5 m with grounding wire.
- The lifting speed is the average of the lifting/lowering speed under the rated load. The speed will vary in a load or voltage.
- Capacity indicates maximum load (working load limit) which a hoist is designed to support in general service.
Dimensions (mm)
*Major capacities example. For more information, please refer to Product Catalog.
| Code | Headroom: C | d | e | f | k |
|---|---|---|---|---|---|
| EDL06S | 315 | 187 | 184 (177)* | 205 | 340 |
| EDL10S | |||||
| EDL18S | |||||
| EDL16S | 330 | 205 | 223 | 219 | 362 |
| EDL24S |
- In case of with mini trolley, dimensions "C" and "K" are shorter by 45 mm.
*Figures in parentheses show the data for 240V (max).
Dual Speed with Hook Suspension, Standard Voltage
The dual speed delivers high speed and contribute operation efficiency.
Specifications
*Major capacities example. For more information, please refer to Product Catalog.
| Code | Capacity (kg) | Standard Lift (m) | Push Button Code:L (m) | Motor Output (W) | Lifting Speed (m/min) | Net Weight (kg) | |
|---|---|---|---|---|---|---|---|
| High | Low | ||||||
| ED06ST | 60 | 3 | 2.5 | 300 | 21 | 4 | 12 |
| ED10ST | 100 | 13 | 3 | ||||
| ED18ST | 180 | 8 | |||||
| ED16ST | 160 | 600 | 20 | 4 | 16 | ||
| ED24ST | 240 | 13.5 | 3 | ||||
Dimensions (mm)
*Major capacities example. For more information, please refer to Product Catalog.
| Code | Headroom: C | d | e | f | k |
|---|---|---|---|---|---|
| ED06ST | 315 | 187 | 184 (177)* | 205 | 340 |
| ED10ST | |||||
| ED18ST | |||||
| ED16ST | 330 | 205 | 223 | 219 | 362 |
| ED24ST |
- In case of with mini trolley, dimensions "C" and "K" are shorter by 45 mm.
*Figures in parentheses show the data for 240V (max).
Dual Speed with Hook Suspension, Low Voltage Control 30V
The dual speed delivers high speed and contribute operation efficiency.
Specifications
*Major capacities example. For more information, please refer to Product Catalog.
| Code | Capacity (kg) | Standard Lift (m) | Push Button Code:L (m) | Motor Output (W) | Lifting Speed (m/min) | Net Weight (kg) | |
|---|---|---|---|---|---|---|---|
| High | Low | ||||||
| EDL06ST | 60 | 3 | 2.5 | 300 | 21 | 4 | 12.5 |
| EDL10ST | 100 | 13 | 3 | ||||
| EDL18ST | 180 | 8 | |||||
| EDL16ST | 160 | 600 | 20 | 4 | 16.5 | ||
| EDL24ST | 240 | 13.5 | 3 | ||||
- Power supply cable 2 ㎟ × 3 conductors × 5 m with grounding wire.
- The lifting speed is the average of the lifting/lowering speed under the rated load. The speed will vary in a load or voltage.
- Capacity indicates maximum load (working load limit) which a hoist is designed to support in general service.
Dimensions (mm)
*Major capacities example. For more information, please refer to Product Catalog.
| Code | Headroom: C | d | e | f | k |
|---|---|---|---|---|---|
| EDL06ST | 315 | 187 | 184 (177)* | 205 | 340 |
| EDL10ST | |||||
| EDL18ST | |||||
| EDL16ST | 330 | 205 | 223 | 219 | 362 |
| EDL24ST |
- In case of with mini trolley, dimensions "C" and "K" are shorter by 45 mm.
*Figures in parentheses show the data for 240V (max).
Cylinder Control, Dual Speed with Hook Suspension, Standard Voltage
Specifications
*Major capacities example. For more information, please refer to Product Catalog.
| Code | Capacity (kg) | Standard Lift (m) | Motor Output (W) | Lifting Speed (m/min) | Net Weight (kg) | |
|---|---|---|---|---|---|---|
| High | Low | |||||
| EDC06SD | 60 | 1.8 | 300 | 21 | ４ | 14.5 |
| EDC10SD | 100 | 13 | ３ | |||
| EDC18SD | 180 | 8 | ３ | |||
| EDC16SD | 160 | 600 | 20 | ４ | 18.5 | |
| EDC24SD | 240 | 13.5 | ３ | |||
Dimensions (mm)
*Major capacities example. For more information, please refer to Product Catalog.
| Code | Headroom: C | d | e | f | k |
|---|---|---|---|---|---|
| EDC06SD | 945 | 187 | 184 (177)* | 205 | 340 |
| EDC10SD | |||||
| EDC18SD | |||||
| EDC16SD | 960 | 205 | 223 | 219 | 362 |
| EDC24SD |
- In case of with mini trolley, dimensions "C" and "K" are shorter by 45 mm.
*Figures in parentheses show the data for 240V (max).
Cylinder Control, Dual Speed with Hook Suspension, Low Voltage Control 30V
The dual speed delivers high speed and contribute operation efficiency.
Specifications
*Major capacities example. For more information, please refer to Product Catalog.
| Code | Capacity (kg) | Standard Lift (m) | Motor Output (W) | Lifting Speed (m/min) | Net Weight (kg) | |
|---|---|---|---|---|---|---|
| High | Low | |||||
| EDCL06SD | 60 | 1.8 | 300 | 21 | ４ | 15 |
| EDCL10SD | 100 | 13 | ３ | |||
| EDCL18SD | 180 | 8 | ||||
| EDCL16SD | 160 | 600 | 20 | 4 | 19 | |
| EDCL24SD | 240 | 13.5 | 3 | |||
- Power supply cable 2 ㎟ × 3 conductors × 5 m with grounding wire.
- The lifting speed is the average of the lifting/lowering speed under the rated load. The speed will vary in a load or voltage.
- Capacity indicates maximum load (working load limit) which a hoist is designed to support in general service.
Dimensions (mm)
*Major capacities example. For more information, please refer to Product Catalog.
| Code | Headroom: C | d | e | f | k |
|---|---|---|---|---|---|
| EDCL06SD | 945 | 187 | 184 (177)* | 205 | 340 |
| EDCL10SD | |||||
| EDCL18SD | |||||
| EDCL16SD | 960 | 205 | 223 | 219 | 362 |
| EDCL24SD |
- In case of with mini trolley, dimensions "C" and "K" are shorter by 45 mm.
*Figures in parentheses show the data for 240V (max).
Options
Chain Spring
Recommended when using the upper limit switch.
Mini Trolley TMH25 for 60 to 240 kg
Fits ED models up to 240 kg capacity.
Trolley for Max. 480 kg
For ED 480 kg capacity use the TSP005 trolley or TSG005 trolley
