FS-YFX

Safe working load1,500 kg – 10 t
PowerDC 24 V battery
Suction cups16–26 × Φ300 or 8–20 × 1000×640
Tilt / rotationHydraulic 0–90° tilt, 0–360° rotation
ControlWireless remote, delayed release against misoperation
FrameMulti-section, modular pad sets

FS-YFX hydraulic tilt and rotate glass vacuum lifter

FS-YFX is a series of glass vacuum lifters with hydraulic tilting and rotation. Safe working load is 1.5 to 10 t, powered by a DC 24 V battery.

It is built for installing and handling heavy, large glass panels. The hydraulic drive tilts the glass 0–90° and rotates it 360°. The modular suction cup sets each use an independent vacuum system. The cups are controlled by wireless remote with a delayed release function to prevent misoperation. The frame is assembled from multiple sections to suit glass of various sizes.

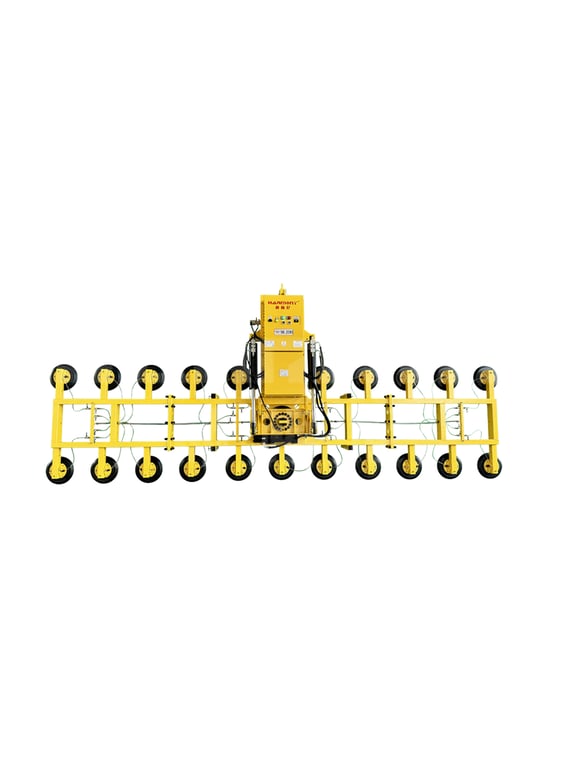

FS-YFX hydraulic tilt and rotate glass vacuum lifter with 4 modular pad sets

Specifications

Model	Safe working load	Size (mm)	Pad diameter (mm)	Number of pads	Power system	Control	Function
FS-YFX1500-16S	1,500 kg	(1375+2500+1375)×1340×580	Φ300	16 pcs	24 V	Wireless remote	0–90° hydraulic tilt + 0–360° hydraulic rotation
FS-YFX2000-22S	2,000 kg	(1375+2500+1375)×1340×580	Φ300	22 pcs	24 V	Wireless remote	0–90° hydraulic tilt + 0–360° hydraulic rotation
FS-YFX2500-26S	2,500 kg	(1375+2500+1375)×1340×580	Φ300	26 pcs	24 V	Wireless remote	0–90° hydraulic tilt + 0–360° hydraulic rotation
FS-YFX3000-8S	3,000 kg	(1250+2500+1250)×1800	1000×640	8 pcs	24 V	Wireless remote	0–90° hydraulic tilt + 0–360° hydraulic rotation
FS-YFX5T-12S	5 t	(2000+4300+2000)×1900	1000×640	12 pcs	24 V	Wireless remote	0–90° hydraulic tilt + 0–360° hydraulic rotation
FS-YFX10T-20S	10 t	(3000+6000+3000)×1900	1000×640	20 pcs	24 V	Wireless remote	0–90° hydraulic tilt + 0–360° hydraulic rotation

All six models use 24 V power, wireless remote control and hydraulic tilt and rotation. FS-YFX3000-8S, FS-YFX5T-12S and FS-YFX10T-20S use 1000×640 mm pads; for these three only length × width is given.

Main components

Vacuum pump

Low energy consumption / High vacuum, strong suction / Well-known brand, can run 24 hours continuously with more stable performance

Suction cup module

Independent module of 6 × Φ300 mm suction cups / Fully independent vacuum system with vacuum pump, control circuit, battery, etc. / Safer and more efficient

Equipment frame

Custom made by the factory / National standard structural steel profiles / Welded, machined, shaped and baked-paint finished, durable

Other spare parts

Power switches, batteries, etc. from internationally known brands / UL and other international certifications / Low failure rate, durable

Part details

Numbers on the drawing match the part names below. Items 13-1 to 13-6 are on the vacuum system control box (no. 13).

Lifting ring
Vacuum body
Hydraulic tilt cylinder
Main beam
Crossbeam
Vacuum suction cup
Hydraulic rotary motor
Vacuum hose
Shunt (vacuum manifold)
Switch ball valve
Hydraulic system control box
Vacuum solenoid valve
Vacuum system control box, with: 13-1 charging port; 13-2 power switch; 13-3 vacuum indicator lamp; 13-4 alarm lamp; 13-5 power indicator; 13-6 vacuum pressure sensor

On site

**Moving glass in a glass processing plant**

**Picking a large glass panel lying flat**

**Unloading an extra-long glass panel from a truck**

**Setting glass onto a rack, operator guiding**

Applications

**Hydraulic tilting and rotating of curtain-wall glass**FS-YFX2000-20S (2000KG)

**Hydraulic tilting and rotating of large curtain-wall glass**FS-YFX5000-8S (5000KG)

Advantages

Hydraulic 0–90° tilt and 0–360° rotation

The FS-YFX series has a hydraulic drive system that easily tilts the glass 0–90° and rotates it 0–360°. This gives precise positioning and installation and saves the operator time and effort.

Modular pads, independent vacuum

The modular suction cup set is a highlight of the FS-YFX series. Each set uses an independent vacuum system for strong, reliable suction in safety glass processing and installation. The wireless remote lets the operator control the cups easily, and the delayed release function prevents accidental release for maximum safety during operation.

Multi-section frame

The flexible design with a multi-section frame suits glass panels of many sizes.
