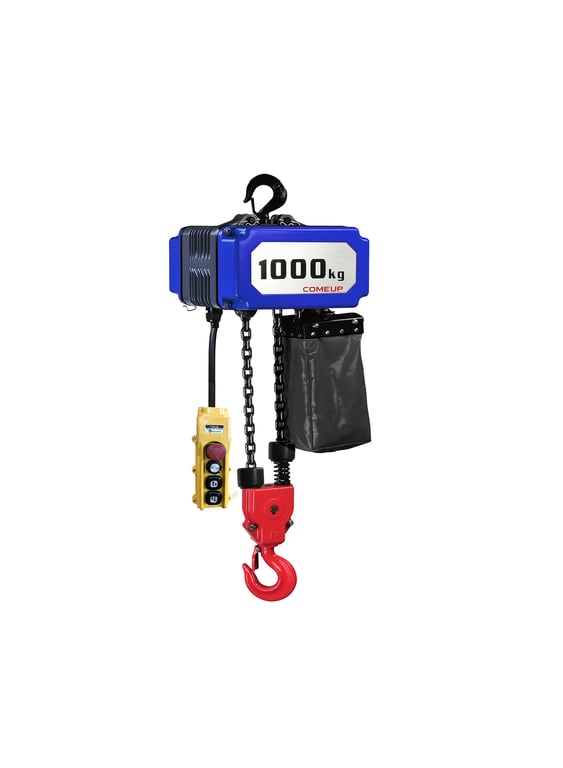

BMC-1000

COMEUP BMC-1000 is a modern lifting solution for industries that demand high precision and stable performance. Powered by a brushless DC motor, it eliminates carbon dust and sparks entirely, reduces maintenance and extends service life. Speed is adjustable in low-speed mode.

View catalogue

Technical Specifications

Model	BMC-1000
Duty cycle	25% ED
Machine classification	1Bm(FEM), M3(ISO)
Power supply	AC200-240V 50/60Hz, single phase
Rated load	1000 kg
Lifting height	3 m
Chain falls	Double
Motor output	500W, 6.6A, brushless motor
Lifting speed (220V 60Hz)	0.1 ~ 0.9 / 3.2 m/min
Brake	Dual brake: motor brake and mechanical ratchet
Gear ratio	70.2:1
Load chain	Grade 80 – 6.3 mm x 19 mm links

Note:
The lifting height shown is the maximum with the standard chain bag. Please contact us for other options.

Warnings:

Not for lifting people.
The suspension point must support the rated load.

Warranty:

12-month warranty against manufacturing defects, load chain excluded.

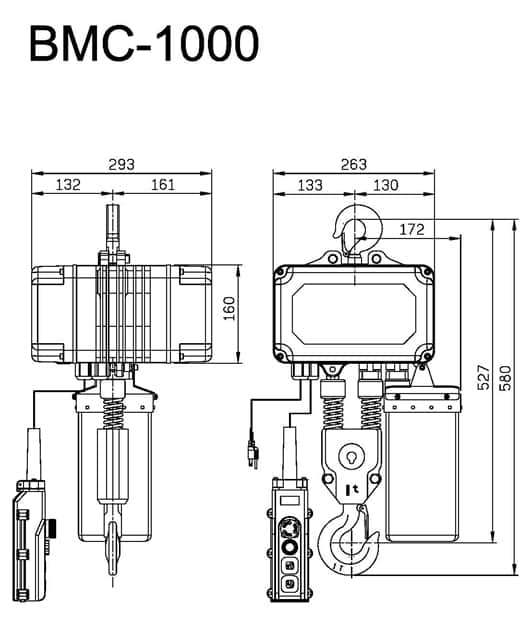

Dimensions

Accessories

Standard accessories:

FC 80 load chain
Pendant control with emergency stop, cable 0.5 mm² × 7C × 3m
Industrial plug 1.5 mm² × 3C × 3m
BMC-1000 suspension hook
Hook suspension fitting
Chain bag

Packaging

Hoist weight: 19.3 kg
Gross weight: 32 kg
Carton size: 380 × 410 × 345 mm

Downloads

Document	Date	Format	Download
BMC-1000 User Manual	2023-09-12	PDF, 0.83 MB	Download
