ANVER VPHF high flow vacuum generators for porous loads

The VPHF-series are high flow electric vacuum generators made only for porous materials that need constant vacuum at the pads. This page lists VPHF-4, VPHF-41 and VPHF-9 specifications and the matching L50M2 FP-HF lifting frames.

Request a quote

Electric powered vacuum generators
High flow electric powered vacuum generators for porous applications – VPHF-series Manufacturer PDF

ANVER’s VPHF-series of high-flow vacuum generators are specifically designed and only suitable for porous applications where constant vacuum at the pads is required to hold the load. Materials such as plywood, OSB, particle board, wood by-product panels, cement board and drywall, foam core board, etc.

The VPHF-series offers high capacity pumps, large filters and gauges for trouble-free operation in most demanding production environments. These vacuum generators are designed for use with a wide assortment of vacuum lifter pad attachments and lifting beams. The VPHF-series features a sturdy welded frame construction and simple ruggedly built construction for lasting reliability in dusty industrial environments.

A whole range of standard vacuum pads and pad attachments are available, however they all must be modified to be used with VPHF-series high flow generators. This usually requires larger diameter vacuum hose, fittings and vacuum ports to handle the higher flow effectively.

Note: this series of high flow generators cannot be used on non-porous loads.

Features:

  • Front mounted controls and gauge
    Manifold vacuum gauge is mounted on manifold block for continuous monitoring by the operator. The electrical control box includes a master on/off switch and circuit breaker as 3 phase power required due to the size of the pump motors. Highly porous materials require high air flow only large vacuum pumps can achieve.
  • Ergonomic adjustable front handlebar
    Easy to grasp, large loop handlebar enables the operator to easily and safely maneuver the attached load without touching the load itself. To release the load two hands are required to slide the spring loaded levers in for safety.
  • Regenerative pumps offer a compact, reliable source of quiet, vibration-free vacuum.
    ANVER’s quality vacuum pumps are made from tough, high-strength materials for long life, and require little maintenance other than keeping the filter clean. Note 3 phase power required due to the large size of the pump motors. If a single phase pump was used in this size range of high flow vacuum pumps the amp draw would be too high. An electrician is recommended to wire in and connect with the correct plugs and cords for the voltage used.
  • Vacuum relief valve
    ANVER easy adjustable vacuum relief valves (VRV) are designed to protect vacuum pumps from internal damage due to a dead-head situation. VRVs allow a small amount of air into the vacuum pump, which cools the temperature and, in doing so, prevents overheating and possible damage. Note that this VPHF-series is for highly porous loads and not recommended for non-porous loads, for which you can use a much smaller and less expensive conventional Vac-Pack.

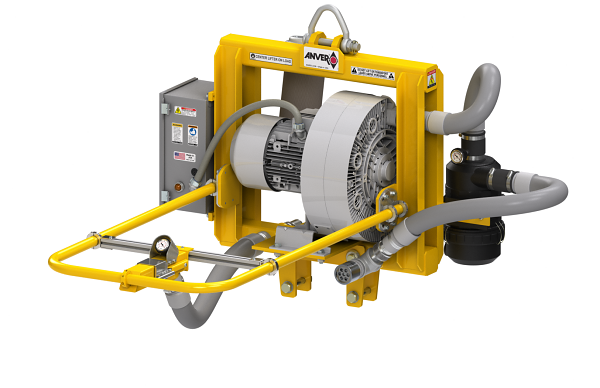

ANVER VPHF-9 high flow vacuum generator
VPHF-9 shown above.

ANVER VPHF-9 with 8-pad lifting frame ANVER VPHF-4 with 2-pad foam seal frame lifting OSB ANVER VPHF-4 with 4-pad foam seal frame lifting OSB ANVER VPHF-41 high flow vacuum generator VPHF-9_8-PAD_82001503

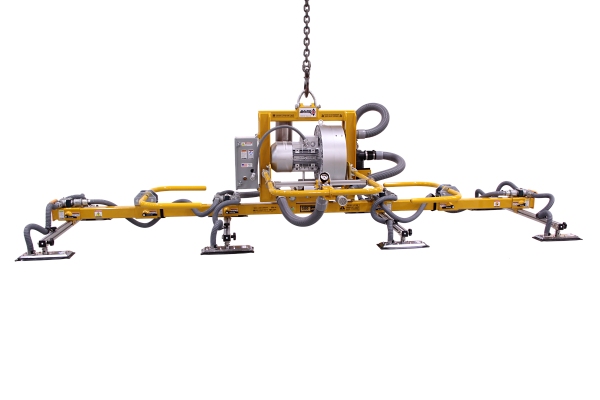

VPHF-9 shown with 8-pad lifting frame (sold separately)

VPHF_2-PAD-OSB_600x450

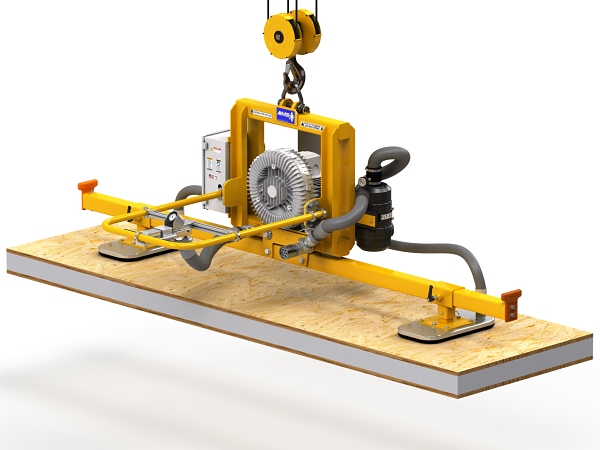

VPHF-4 shown with 2-pad lifting frame with foam seals (sold separately)

VPHF_4-PAD-OSB_600x450

VPHF-4 shown with 4-pad lifting frame with foam seals (sold separately)

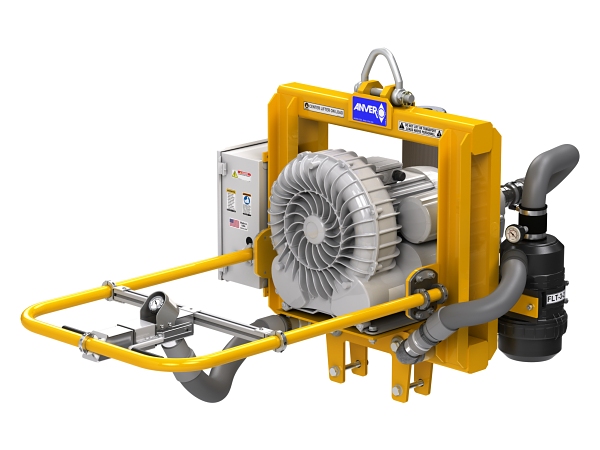

VPHF-41

VPHF-41 shown

  • Vacuum filter:
    High capacity FLT-3 (10 micron, rated flow of 138 SCFM) air filter provides protection against pump damage. The filter is mounted on the side of the lifting frame for easy routine inspection and cleaning.
  • Frame construction
    VPHF-series type frames are fully welded with a structural lifting capacity rating of 2950 lb. (1338 kg) for 3” sq. and 3″ x 6″ beams with beam mounting hardware. The porous panel loads these units are designed for are not usually heavy but rather large and bulky.
  • Application notes
    ANVER’s VPHF-series of high-flow vacuum generators do not have a check valve nor vacuum reservoir as these do not help holding a load in case of a power failure, for example. That is because in case the vacuum pump stops, the load will fall off from leakage right under the vacuum pads through the porous material it is lifting. This makes these high-flow lifters specialized to only porous panel materials and using these lifters requires workers to always be well clear of loads.
  • ANSI/ASME B30.20 compliance notice: Designed for continuous-flow operation on porous materials. Because air continuously migrates through porous loads, these lifters utilize high-volume vacuum pumps to maintain continuous hold rather than sealed vacuum-preservation reserves.

  • Another application issue to be aware of: when lifting a smooth surfaced particle panel off a stack of sheets, some manual moving or compressed air may need to be blown on the load to break it free from the stack. The reason is the vacuum goes right through the top porous panel into the panels below. This is a possibility on all applications with tight stacks of smooth surfaced porous panels. It can be done but may take a preliminary lift on a corner to first break the sheet free in order to lift just one sheet.

High flow generator specifications:

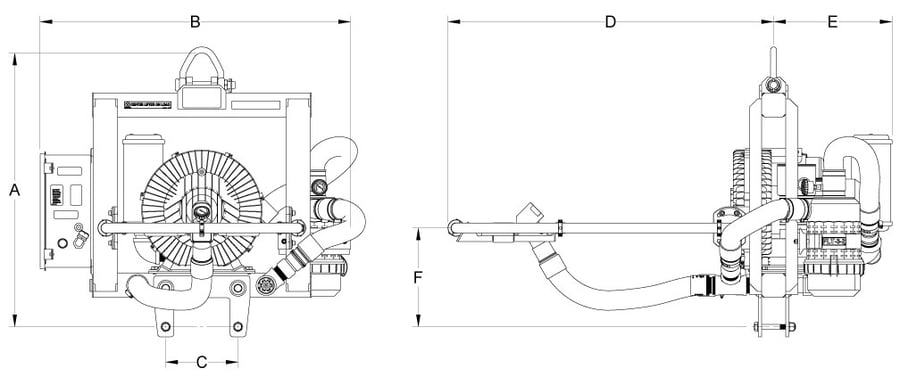

VPHF-4 / VPHF-41 / VPHF-9 dimension drawing

Generator modelVPHF-4VPHF-41VPHF-9
Rated load capacity [lbs (kg.)]2950 (1338)2950 (1338)2950 (1338)
Approx. unit weight [lbs (kg.)]270 (123)315 (143)350 (159)
Fits tube size3x3 (76x76)
3x6 (76x153)		3x3 (76x76)
3x6 (76x153)		3x3 (76x76)
3x6 (76x153)
A Maximum headroom, 3" x 3" beams [in. (mm)]34.13 (867)34.13 (867)34.13 (867)
A Maximum headroom, 3" x 6" beams [in. (mm)]37.13 (943)37.13 (943)37.13 (943)
B Unit width [in. (mm)]41.2 (1047)41.2 (1047)41.2 (1047)
C Hardware centers [in. (mm)]9 (228)9 (228)9 (228)
D Handlebar length [in. (mm)]48 (1219)48 (1219)48 (1219)
E Unit depth [in. (mm)]14.75 (375)18 (457)11.38 (289)
F Handlebar height, 3" x 3" beams [in. (mm)]12.31 (313)12.31 (313)12.31 (313)
F Handlebar height, 3" x 6" beams [in. (mm)]15.31 (389)15.31 (389)15.31 (389)
Pump capacity SCFM220 (370)114 (193) @ 50Hz
138 (234) @ 60Hz		120 (203)
Maximum vacuum at sea level [in. Hg (mbar)]12 (406)12.9 (436)18 (609)
Incoming power requirement AC230/460/575V
3PH/50-60Hz		230/460V
3PH/50-60Hz		230/460/575V
3PH/50-60Hz
Vacuum pumpVB4HFVB41HF-FRVB9HV
Replacement filter elementFLT-3EFLT-3E
and
FLTE41-PA / FLTE41-PO		FLT-3E

Note: when using VPHF-series generators 230/460/575V, 3 phase power is required.

13600210

High flow vacuum lifting frames
High flow lifting frames for porous applications Manufacturer PDF

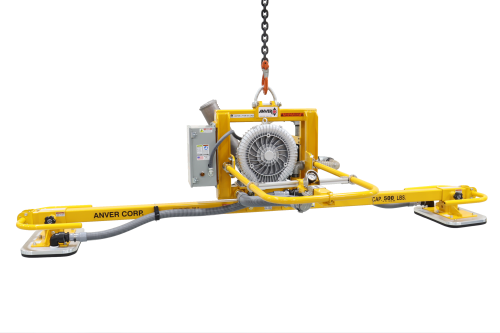

ANVER L50M2-110FP-HF high flow lifting frame

ANVER’s high flow vacuum lifters offer efficient material handling solutions by promoting functionality, safety, and ergonomic operations for a wide variety of porous materials. High flow lifting frames are built to order from stock using modular components, so there are hundreds of possible combinations depending on the vacuum generator, beam, crossarms, and foam vacuum cups selected.

Basic features on ANVER’s high flow horizontal vacuum lifters include: attach/release controls mounted on the generator handlebar; and locking hand knobs on the adjustable vacuum pad, slide assemblies, and crossarms (when applicable).

ANVER high-flow lifters are specialized to only lift porous panel materials and using these lifters requires workers to always be well clear of loads.

  • ANSI/ASME B30.20 compliance notice: Designed for continuous-flow operation on porous materials. Because air continuously migrates through porous loads, these lifters utilize high-volume vacuum pumps to maintain continuous hold rather than sealed vacuum-preservation reserves.

The L50M2-61FP-HF, -86FP-HF, and -110FP-HF two pad lifting frames are ideal for handling particle board and plywood sheets with a capacity up to 500 lb (227 kg).

*Lifting frame shown with vacuum generator and/or optional accessories, not included.

High flow lift frame specifications:

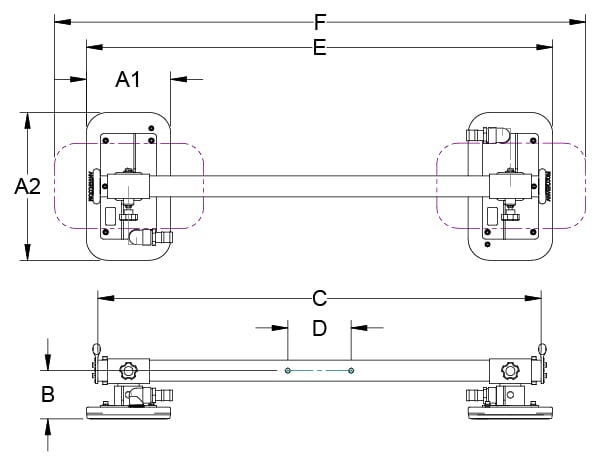

L50M2-FP-HF dimension drawing

Lifting frame numberL50M2-61FP-HFL50M2-86FP-HFL50M2-110FP-HF
Rated load capacity [lbs (kg)]500 (227)500 (227)500 (227)
Unit weight [lbs (kg)]135 (62)150 (68)164 (75)
A Pad size [in. (mm)]12 x 21 (305 x 534)12 x 21 (305 x 534)12 x 21 (305 x 534)
B Lifting frame headroom [in. (mm)]6.9 (175)6.9 (175)6.9 (175)
C Beam length [in. (mm)]63 (1600)88 (2235)112 (2845)
D Hardware mounting centers [in. (mm)]9 (229)9 (229)9 (229)
E Pad distances maximum [in. (mm)]66 (1676)91 (2311)115 (2921)
E Pad distances minimum [in. (mm)]34 (864)34 (864)34 (864)
F Pad distances maximum [in. (mm)]75 (1905)100 (2540)124 (3149)
F Pad distances minimum [in. (mm)]43 (1093)43 (1093)43 (1093)
Maximum sheet size [ft (m)]8 x 6 (2.4 x 1.8)10 x 6 (3.0 x 1.8)12 x 6 (3.7 x 1.8)
Seal numberFR120210FR120210FR120210
Optional parking standsPS-150-3X3PS-150-3X3PS-150-3X3

Note: when using with VPHF-series generators 230/460/575V, 3 phase power is required.

13600288

Various plate sizes can be handled by adjusting the vacuum pad positions on the beam

2-pad frame pad position diagram
Vacuum pads in fully extended position to handle maximum plate size.
2-pad frame pad position diagram
Vacuum pads moved inwards to handle shorter plate.
