ANVER vacuum lifter parking stands for storage when not in use

Parking stands store the vacuum lifter with the pad seals off the floor and double as a grab bar for positioning the lifter on the load. Versions for small and large lifters.

Made in the USA
ISO 9001:2015 certified
More than 58 years of experience

Request a quote

Vacuum lifting accessories

Vacuum lifter parking stands for when the lifter is not in use

Parking stands for small vacuum lifters

Manufacturer PDF

Parking stands

In the “Down” position, which is recommended when you store the vacuum lifter, the parking stands provide support for the lifter so that the vacuum’s rubber seals will not touch the ground. This protects the seals from damage as well as helping to maintain their shape and prevent them from flattening out. In a “Folded In, Out or Up” position, standard spring loaded parking stands provide a grab bar for positioning the lifter easily and precisely onto the load from the side of the lifter.

Features

Adjustable in four positions: pull sideways, turn, let go and it locks in position
Spring-loaded locking mechanism snaps into position for one-sided, quick adjustments
ANVER spring-loaded, adjustable, four position parking stands keep the vacuum sealing rings clean and debris-free. Plus, in their other positions, they can be used to locate the lifter precisely over the load. They feature rugged steel construction.

Folded down

Folded out

Folded up

Folded in

Note: Standard spring loaded parking stands provide a grab bar for positioning the lifter easily and precisely onto the load from the side of the lifter.

Part number	For use with	Mounting	Pair weight lb (kg)
PS-150-3X3	3″ sq beams up to 120″ long with cap. up to 2200 lbs	Bolt on	16 (7)
PS-150-3X6	3×6″ beams up to 190″ long with cap. up to 3000 lbs	Bolt on	15 (6.8)
72000173	Bolt on to generators up to 2200 lbs	Bolt on	22 (10)
72000174	Bolt on to generators up to 4400 lbs	Bolt on	22 (10)
72000038	3×6″ beams up to 190″ long with cap. 2000 lbs to 4400 lbs	Bolt on	32 (15)
72000040	3×6″ beams up to 231″ long with cap. 2000 lbs to 4600 lbs	Adjustable slide mounted	59 (27)
72000041	5×7″ beams up to 325″ long with cap. 3000 lbs to 6000 lbs	Adjustable slide mounted	68 (31)
72000128	5×7″ beams up to 250″ long with cap. 4000 lbs to 9600 lbs	Bolt on	37 (17)

Replacement parts
Part number	Product photo	Description

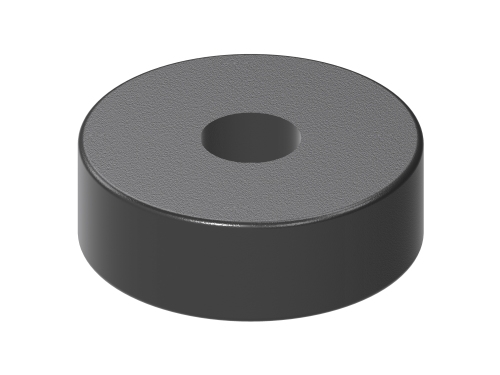

25000976		Rubber bumper, 3″ diameter x 1″ thick

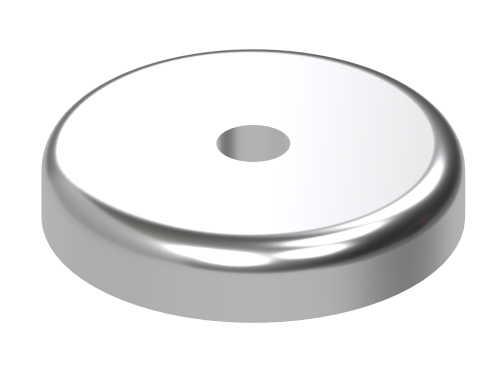

21700371		Bumper support 2-1/2″ diameter x 1/2″, M10x1.5

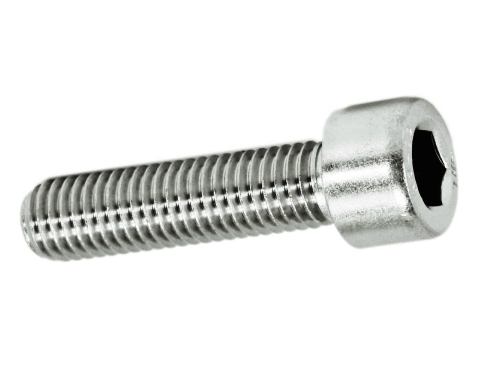

SHCSM10X40		Screw, socket head cap, M10 x 40mm, steel, zinc plated, class 12.9, pitch 1.5

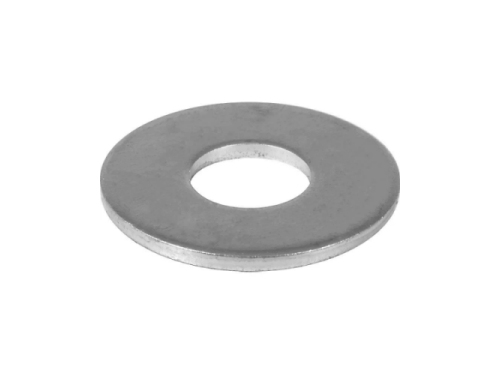

FLWM10		Flat washer, M10

Note: Large rubber discs increase visibility of parking stand ends. Large rubber disc feet are intended to secure the lifter at rest.

Do NOT drag the lifter when using these parking stands.

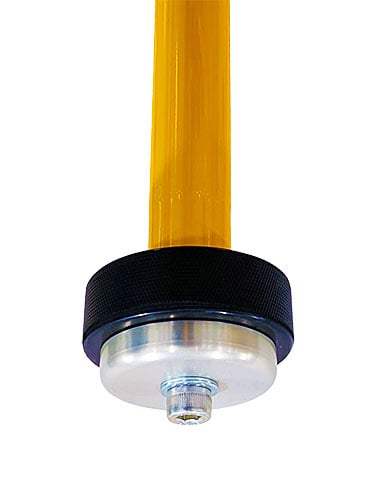

Parking stand feet reassembled with only the metal bolt touching the floor

In environments like machine shops where metal shavings (chips) litter the floor, you can remove and reassemble the parking stand feet elements so only the metal bolt touches the ground. Stacking them in this manner prevents sharp debris from embedding into the rubber discs.

Adjustable slide mounted parking stands

Adjustable slide mounted parking stand 72000164, view 1

Adjustable slide mounted parking stand 72000164, view 2

Bolt-on positioning handles

Positioning handles in use

Positioning handles mounted on a lifter

	Part number	Product photo	Description	For use with	Mounting
PS-150-PH		Positioning handles, bolt-on, pair, ø1.25″ (ø31.75 mm) x 5″ (127 mm) long short handles (21301149)	PS-150 series parking stands	Bolt on

13600004 F

Parking stands for large vacuum lifters

Manufacturer PDF

Multi-position, telescopic parking stands provide a convenient means of storing ANVER lifters when not in use. They permit storage of the lifter with the vacuum pad seals off the ground, reducing the chance of damage to the seals.

Available in three different styles depending on lift frame:

Bolt-on to end of beam
Adjustable on beams with welded angle (mounted below main beam)
Adjustable on a slide along the main beam for longer lifters

Large vacuum lifter M600M with parking stands

Part number	Item number	Leg length in. (mm)	For use with	Mounting	Pair weight lb (kg)
72000222	72000222	22 (559)	End of 3×6 beams	M10	115 (52)
72000189	72000189	22 (559)	End of 5×7 beams	M12	128 (58)
72000164	72000164	27.5 (699)	5×7 beams	Adjustable slide mounted	161 (73)
72000158	72000158	27.5 (699)	6×8 beams	Adjustable slide mounted	165 (75)
PST20-19-21	72000205	21 (533)	GFT series frames	Adjustable beneath beam	115 (52)
PST30-31-21	72000209	21 (533)	GFT series frames	Adjustable beneath beam	116 (53)
PST45-31-21	72000206	21 (533)	GFT series frames	Adjustable beneath beam	129 (59)
PST67-31-24	72000206	24 (610)	GFT series frames	Adjustable beneath beam	135 (61)

Pin-release parking stands

Pin-release parking stands on a lifter, photo 1

Pin-release parking stands on a lifter, photo 2

Pin-release parking stands on a lifter, photo 3

Note: Parking stand assemblies are based on lifter configuration, pad suspension, and load type. Any variations of the criteria may result in a part number change at the discretion of ANVER Corporation.

13600005 C
