ANVER APU-101 and APU-MTY air vacuum pick-up units, 500 lb

APU units are low cost, compact, low maintenance air powered vacuum pick-ups for clean, smooth, non-porous loads. Lifting frame specifications and available pad attachments below.

Request a quote

APU-101 air powered vacuum pick-up units

Manufacturer PDF

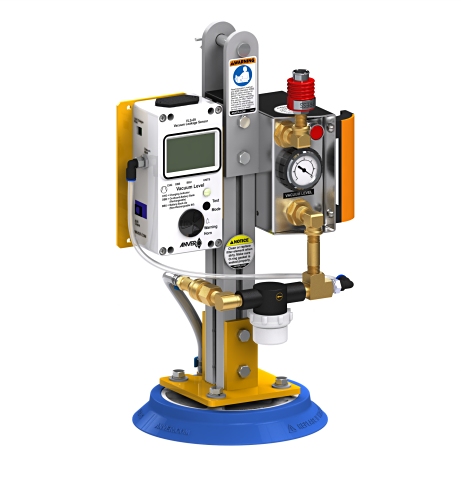

APU-101 with VP86 round pad

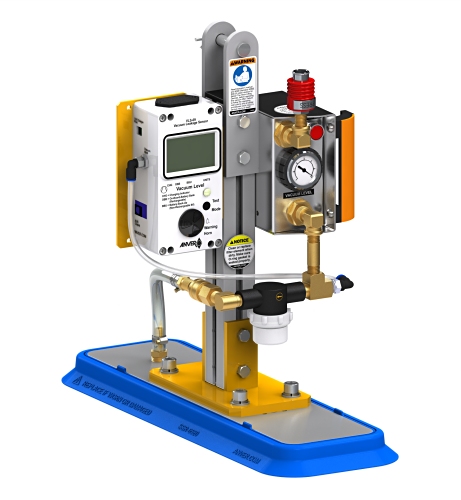

APU-101 with VP86 round padAPU-101 with VP6520 rectangular padAPU-101 with VP6520 pad, second view

APU-101 air-powered vacuum pick-up units are low cost, compact, require little maintenance, and feature quality venturi vacuum generators. A vacuum check valve maintains vacuum in case of power failure. The unit will hold vacuum per ASME standard B30.2 for vacuum lifting devices on clean, smooth, non-porous material, allowing the operator to put down the load safely. A vacuum release/blow-off valve ensures a quick and consistent attach and release for high production usage. Air supply must be clean, dry, and regulated.

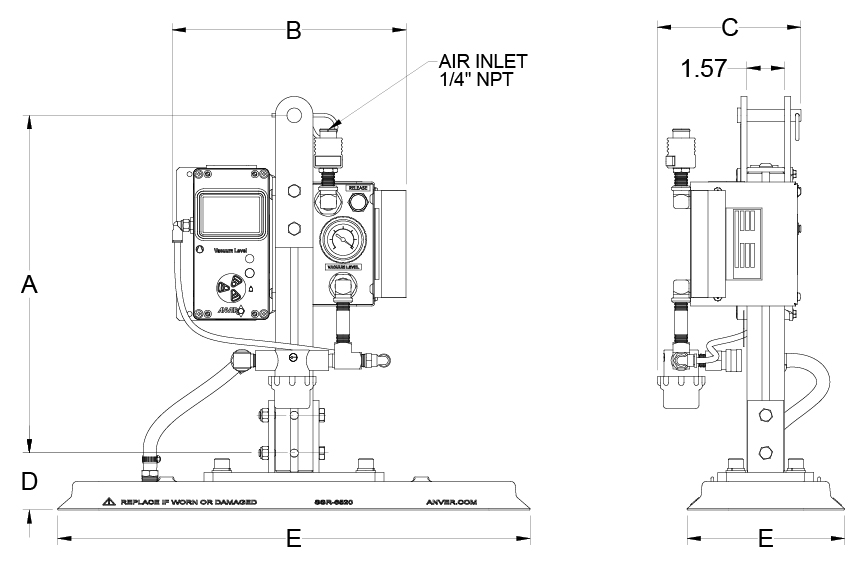

APU-101 dimension drawingAPU-101 shown

Lifting frame specifications:

Product photo

Lift frame model number

Rated load lb. (kg)

Vacuum generator model number

Headroom A In. (mm)Width B In. (mm)Depth C In. (mm)

Weight lbs. (kg)

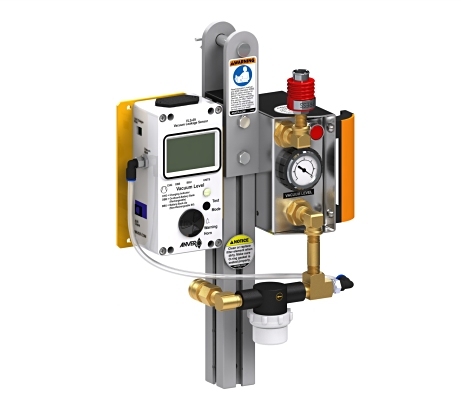

APU-101 vacuum pick-up unitAPU-101500
(227)		 AL101 14
(356)		9.75
(248)		6
(153)		8
(3.6)

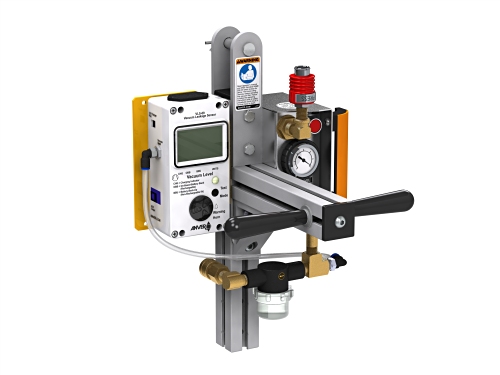

APU-101-WH vacuum pick-up unitAPU-101-WH500
(227)		 AL101 14
(356)		9.75
(248)		10.6
(269)		10
(4.5)

Available pad attachments:

Product photo

Pad attachment part number

Horizontal rated load (flat) lb. (kg)Horizontal rated load (cylindrical) lb. (kg)Minimum load radius in. (mm)Height D In. (mm)Pad size E In. (mm)

Weight lbs. (kg)

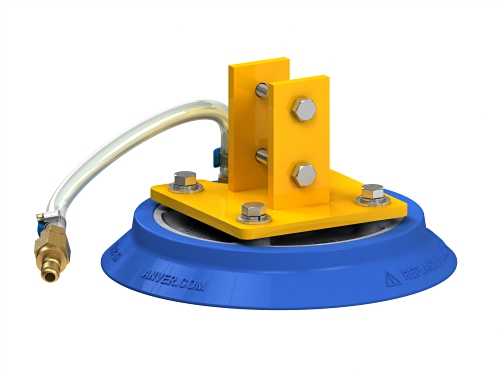

PS86B-NBR pad

PS86B-NBR220
(100)		N/AN/A2.4
(61)		8.81 dia.
(224)		5
(2.3)

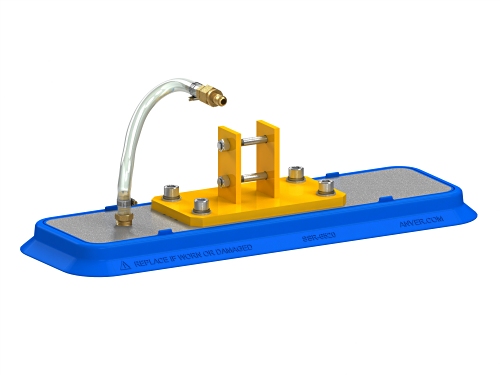

PS6520B-NBR pad

PS6520B-NBR500
(227)		250
(113)		36
(915)		2.4
(61)		20.13 (511)
x
6.88 (175)		11
(5)

APU-MTY air powered vacuum pick-up units

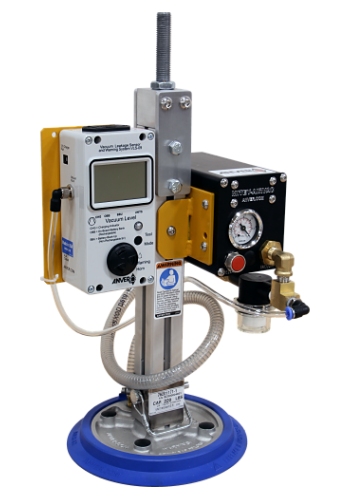

APU-MTY-25-16TM with pad

APU-MTY air-powered vacuum pick-up units are low cost, compact, require little maintenance, and feature quality venturi vacuum generators. A vacuum check valve maintains vacuum in case of power failure. The unit will hold vacuum per ASME standard B30.2 for vacuum lifting devices on clean, smooth, non-porous material, allowing the operator to put down the load safely. A vacuum release/blow-off valve ensures a quick and consistent attach and release for high production usage. Air supply must be clean, dry, and regulated.

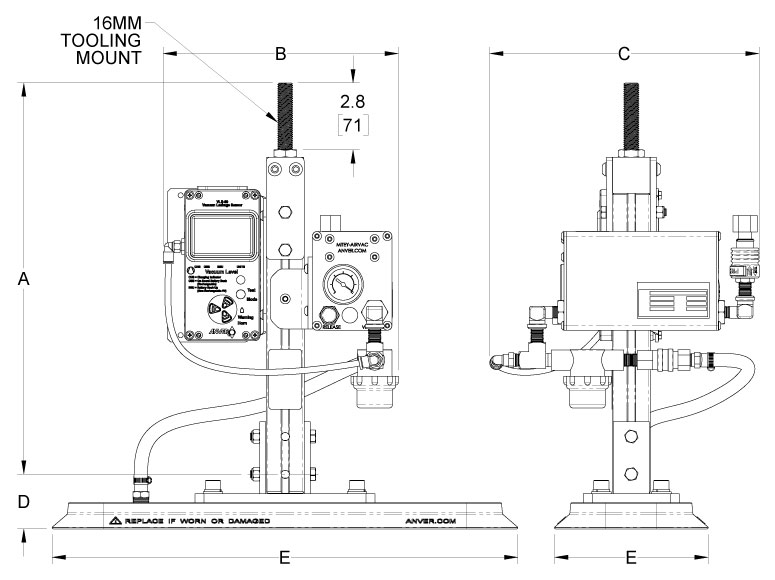

APU-MTY-25-16TM dimension drawingAPU-MTY-25-16TM shown

Lifting frame specifications:

Product photo

Lift frame model number

Rated load lb. (kg)

Vacuum generator model number

Headroom A In. (mm)Width B In. (mm)Depth C In. (mm)

Weight lbs. (kg)

APU-MTY-25-16TM vacuum pick-up unitAPU-MTY-25-16TM500
(227)		 MTY-2-25-FB 16.3
(414)		10
(254)		11.31
(288)		10.5
(267)

Available pad attachments:

Product photo

Pad attachment part number

Horizontal rated load (flat) lb. (kg)Horizontal rated load (cylindrical) lb. (kg)Minimum load radius in. (mm)Height D In. (mm)Pad size E In. (mm)

Weight lbs. (kg)

PS86B-NBR pad

PS86B-NBR220
(100)		N/AN/A2.4
(61)		8.81 dia.
(224)		5
(2.3)

PS6520B-NBR pad

PS6520B-NBR500
(227)		250
(113)		36
(915)		2.4
(61)		20.13 (511)
x
6.88 (175)		11
(5)
