ANVER AL series air powered mini-vacuum stations (AL101, AL1001)

AL series mini-vacuum stations are compact, low maintenance air powered units with venturi vacuum generators. AL101 and AL1001 features and specifications for each model below.

Request a quote

Air powered vacuum pumps and vacuum stations
Mini-vacuum stations
AL series

ANVER air-powered mini-vacuum stations are low cost, compact, require little maintenance, and feature quality venturi vacuum generators. A vacuum check valve maintains vacuum in case of power failure. The unit will hold vacuum per ASME standard B30.2 for vacuum lifting devices on clean, smooth, non-porous material, allowing the operator to put down the load safely. A vacuum release/blow-off valve ensures a quick and consistent attach and release for high production usage. Air supply must be clean, dry, and regulated.

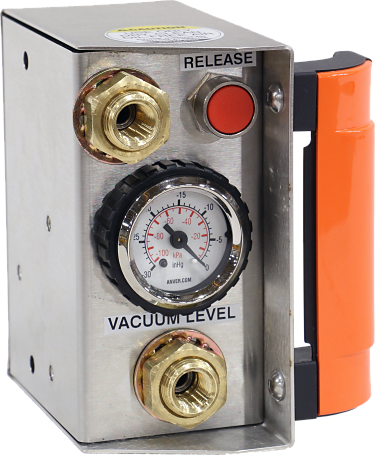

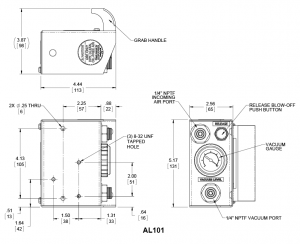

AL101 Features:
Stainless steel enclosure and plated components

AL1001 features:

Air Saver technology: the vacuum controlled valve shuts off the flow of compressed air to the pump when the pre-set level is reached, and consequently the consumption of compressed air is minimized. Input pressure to be regulated to 90 psi on Energy Air Saver models. (Energy Saver not available on AL1001/30.)
Pressure gauge for monitoring incoming compressed air.
Excellent performance on slightly porous material
Internal air filter with replaceable element on vacuum port protects against contamination

ANVER Air Saver technology tag

Specifications for ANVER AL series mini-vacuum generators

Model number	Vacuum generator model number	Air consumption SCFM (l/min.)	Vacuum flow SCFM (l/min.)	Supply pressure (psi)	Maximum vacuum in. Hg (mm Hg)	Weight lb (kg)
AL101	VR09	1.27 (36)	0.74 (21)	72.5	24 (609)	6.61 (3)
*AL1001/20	JE20HCSP	6.1 (170)	4.50 (130)	90	24 (609)	15.43 (7)
*AL1001/25	JE25HCSP	9.20 (260)	7.06 (200)	90	24 (609)	15.43 (7)
AL1001/30 Energy Saver not available	JB30H	14 (396)	9.5 (269)	72.5	24 (609)	15.43 (7)

*Note: with the Air Saver models the air consumption is “0” on a non-porous material once the vacuum level is reached at peak value.
