ANVER Mitey-AirVac MTY-1 and MTY-2 air powered vacuum stations

Mitey-AirVac is a low cost, subcompact air powered vacuum station with no moving parts. MTY-1 suits non-porous loads; MTY-2 offers higher flow for faster evacuation.

Made in the USA
ISO 9001:2015 certified
More than 58 years of experience

Request a quote

Air powered vacuum pumps and vacuum stations
Mitey-AirVac
Manufacturer PDF

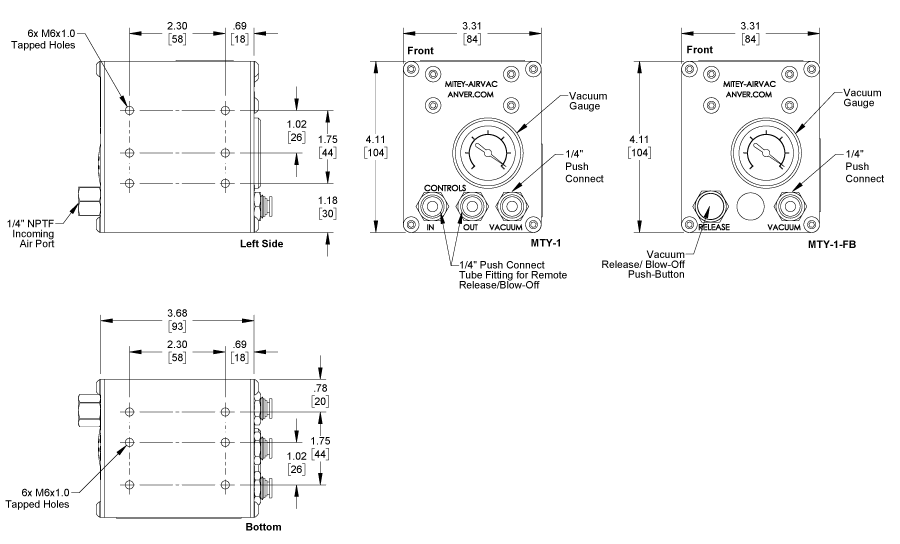

MTY-1 air powered vacuum station

Features:

Low cost, light weight, subcompact size, requires little or no maintenance.
Internal vacuum check valve maintains vacuum in case of incoming compressed air loss.
Unit holds vacuum per ASME standard B30.20 for vacuum lifting devices on clean, smooth, non-porous materials, allowing the operator to put down the load safely.
MTY(series)-FB is available with panel face mounted push-button switch for release/blow-off (shown at left). Other models are provided with control in & out port connections to a remote mounted release/blow-off switch (ANVER P/N: MTY-SW sold separately), which activates a blow-off for quick release.
Vacuum gauge for monitoring manifold vacuum level.
No moving parts to create heat of any type.
Mounting hole locations are symmetrical for multiple mounting orientations.

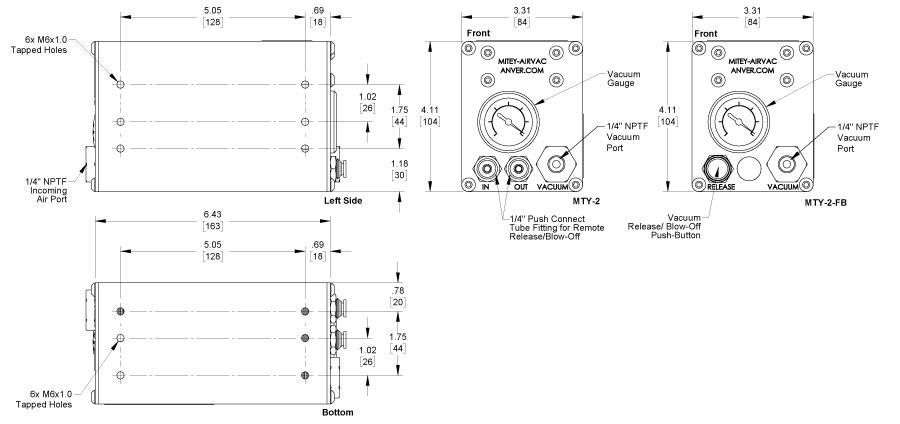

MTY-2 air powered vacuum station

Features:

Higher flow version of the MTY-1
Available in four flow rates and generating capacities
Higher flow for faster evacuation
Good for use on non-porous to slightly porous materials

Note: It is recommended that both the incoming compressed air line and the vacuum connection each be provided with a filter to prevent debris entering the generator.

Specifications for MTY-1 series air powered vacuum stations:
Product photo	Station number	Generator number	Compressed air consumption SCFM (l/min.)	Vacuum flow SCFM (l/min.)	Rated vacuum in. Hg (mm Hg)	Air supply pressure	Unit weight lbs. (kg)	Optional remote mounted switch	1/4″ tubing PCT14	Inline barbed filter
	MTY-1-09	VR09	1.27 (36)	0.74 (21)	24 (610)	72.5 psi	2 (0.9)
	MTY-1-09-FB	VR09	1.27 (36)	0.74 (21)	24 (610)	72.5 psi	2 (0.9)	N/A
Specifications for MTY-2 series air powered vacuum stations:
Product photo	Station number	Generator number	Compressed air consumption SCFM (l/min.)	Vacuum flow SCFM (l/min.)	Rated vacuum in. Hg (mm Hg)	Air supply pressure	Unit weight lbs. (kg)	Optional remote mounted switch	1/4″ tubing PCT14	Inline barbed filter
	MTY-2-12	JE12H	2.10 (59)	1.59 (45)	24 (610)	72.5 psi	3 (1.4)
	MTY-2-12-FB	JE12H	2.10 (59)	1.59 (45)	24 (610)	72.5 psi	3 (1.4)	N/A
	MTY-2-15	JE15H	3.20 (91)	2.47 (70)	24 (610)	72.5 psi	3 (1.4)
	MTY-2-15-FB	JE15H	3.20 (91)	2.47 (70)	24 (610)	72.5 psi	3 (1.4)	N/A
	MTY-2-20	JE20H	6.10 (170)	4.41 (125)	24 (610)	72.5 psi	3 (1.4)
	MTY-2-20-FB	JE20H	6.10 (170)	4.41 (125)	24 (610)	72.5 psi	3 (1.4)	N/A
	MTY-2-25	JE25H	9.20 (260)	7.06 (200)	24 (610)	72.5 psi	3 (1.4)
	MTY-2-25-FB	JE25H	9.20 (260)	7.06 (200)	24 (610)	72.5 psi	3 (1.4)	N/A

13600111 A
