ANVER FTA fork truck adapters for vacuum lifters

FTA-Series adapters convert ANVER lifting frames and pad attachments for use with a forklift. Paired with a battery powered vacuum generator, they form a cord-free, self-contained lifting solution.

Made in the USA
ISO 9001:2015 certified
More than 58 years of experience

Request a quote

Fork lift truck mounting brackets

Self-contained lifting solution

Manufacturer PDF

Forklift carrying a vacuum lifter on fork truck adapters, photo 1

Forklift carrying a vacuum lifter on fork truck adapters, photo 2

Forklift carrying a vacuum lifter on fork truck adapters, photo 3

Forklift carrying a vacuum lifter on fork truck adapters, photo 4

Forklift carrying a vacuum lifter on fork truck adapters, photo 5

ANVER’s FTA-Series fork truck adapters convert many of our lifting frames and pad attachments for use with a forklift. Fork truck adapters can be added to most standard lifters. Combined with our cord-free battery powered vacuum generators, they provide an excellent self-contained lifting solution.

Additional features:

Up to 6000 lb (2722 kg) lifting capacity per pair.
Two-piece design easily installs on new or existing equipment without full disassembly. These fork adapters can be mounted and then removed from lifters as needed.
3 position fork sheath can be adjusted to handle a range of forks commonly used in industry.
Safety chain loop to secure lifter to the forklift. (*Safety chain not included)
A ratcheting locking hand knob is used to clamp the adapter to the forks.
Available for 3″x3″ (77mm x 77mm), 3″x6″ (77mm x 153mm)
and 5″x7″ (127mm x 177mm) standard ANVER vacuum lift frame beams.
All FTA-Series fork truck adapters are sold and designed to be used in pairs.

For use with:

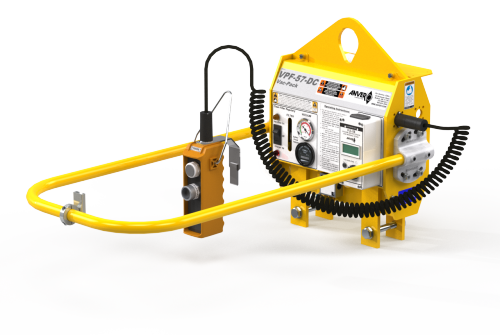

VPF-57-DC series battery powered vacuum generator

Battery powered vacuum generatorsVPF-57-DC series

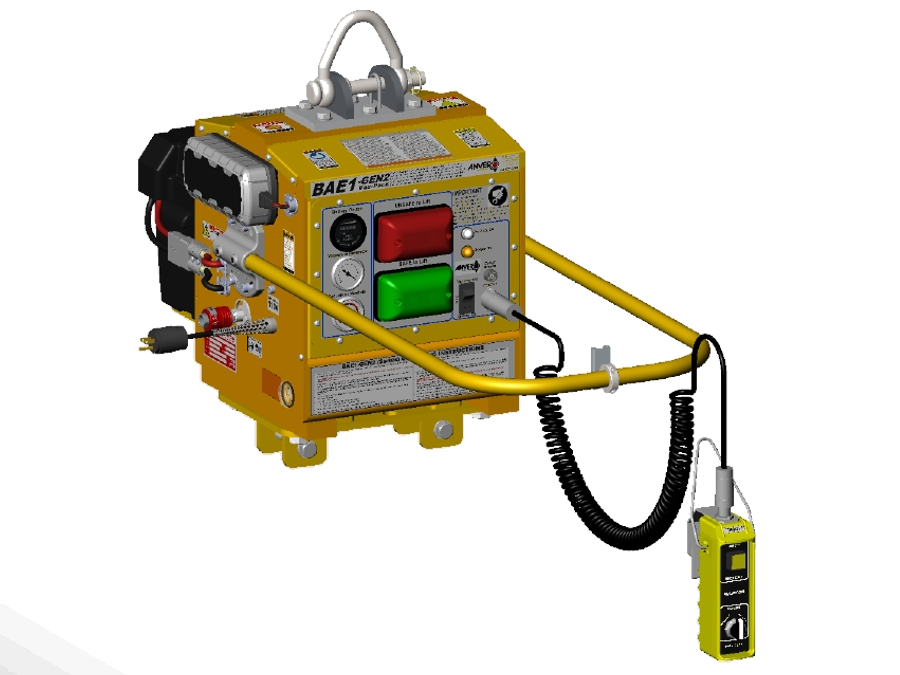

BAE1-GEN3 battery powered vacuum generator

Battery powered vacuum generatorsBAE1-GEN3 series

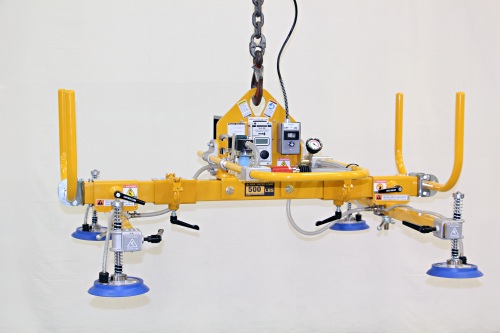

Standard lifting frame with VPFL4-AC vacuum generator

Standard lifting frames

*SAFETY CHAIN NOT PROVIDED.

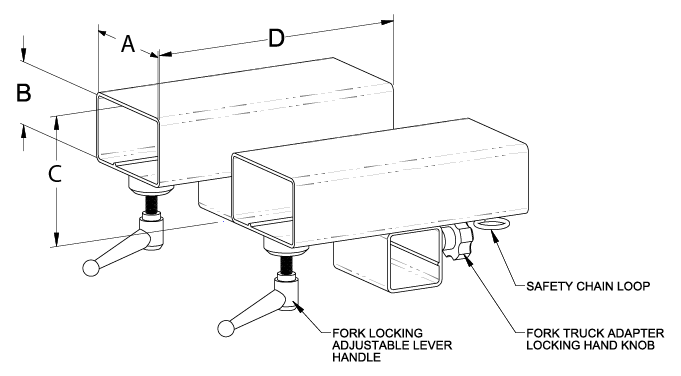

	Product photo	Adapter part no.	Adapter capacity per pair lb. (kg)	Unit weight per pair lb. (kg)	Beam size in. (mm)	A x B Fork sheath size in. (mm) [3 positions]	C Height in. (mm) [3 positions]	D Sheath length in. (mm)
		FTA-33 (72300322)	6000 (2722)	85 (39)	3 x 3 (77 x 77)	6.69 x 1.13 (169.8 x 28.5)	5.75 (146)	19.2 (489)
						6.69 x 1.88 (169.8 x 47.6)	6.00 (153)
						6.69 x 2.63 (169.8 x 66.7)	6.75 (172)
		FTA-36 (72300323)	6000 (2722)	87 (39)	3 x 6 (77 x 153)	6.69 x 1.13 (169.8 x 28.5)	8.25 (210)	19.2 (489)
						6.69 x 1.88 (169.8 x 47.6)	9.00 (229)
						6.69 x 2.63 (169.8 x 66.7)	9.75 (248)

Fork lift truck mounting brackets for large heavy duty beams

*SAFETY CHAIN NOT PROVIDED.
	Product photo	Adapter part no.	Adapter capacity per pair lb. (kg)	Unit weight per pair lb. (kg)	Beam size in. (mm)	A x B Fork sheath size in. (mm)	C Max. height in. (mm)	D Sheath length in. (mm)
Photo to come	FTA-6-57 (72300060)	7500 (3402)	82 (38)	5 x 7 (127 x 177)	6.63 x 3.63 (168 x 92)	12 (305)	16 (407)

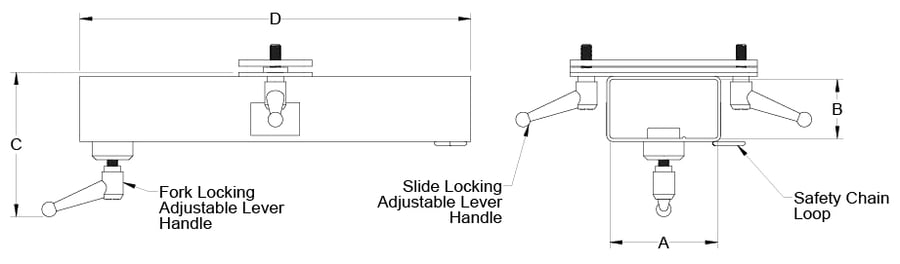

Fork lift truck mounting brackets for large GF-Series lifters

*SAFETY CHAIN NOT PROVIDED.
	Product photo	Adapter part no.	Unit weight per pair lb. (kg)	Compatible with	A x B Fork sheath size in. (mm)	C Max. height in. (mm)	D Sheath length in. (mm)
	72300342	86 (39)	GF-Series lifters	6.63 x 3.63 (168 x 92)	9.83 (250)	24 (610)

13600099 B

Vacuum end-effector system for Gradall excavators

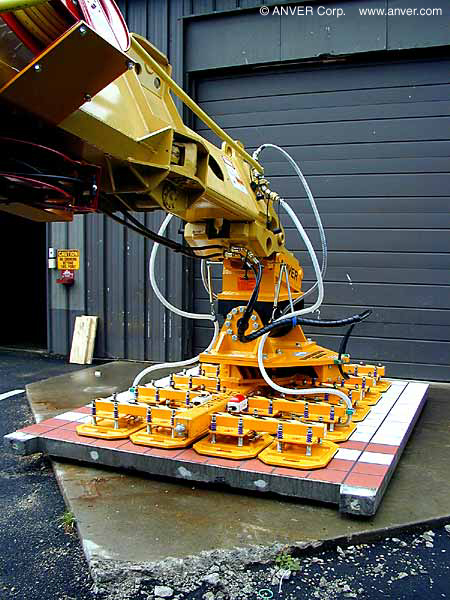

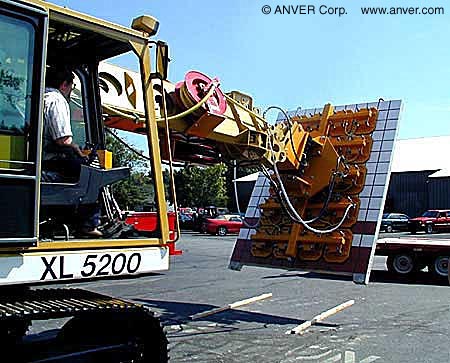

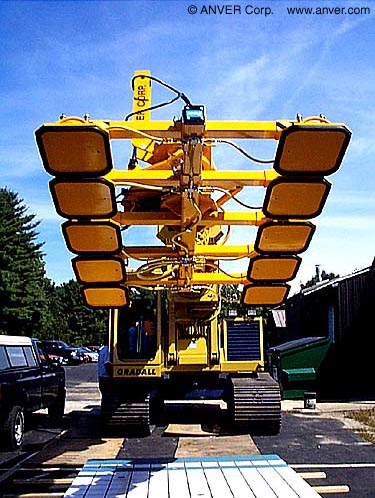

Vacuum end-effector on a Gradall excavator at a job site

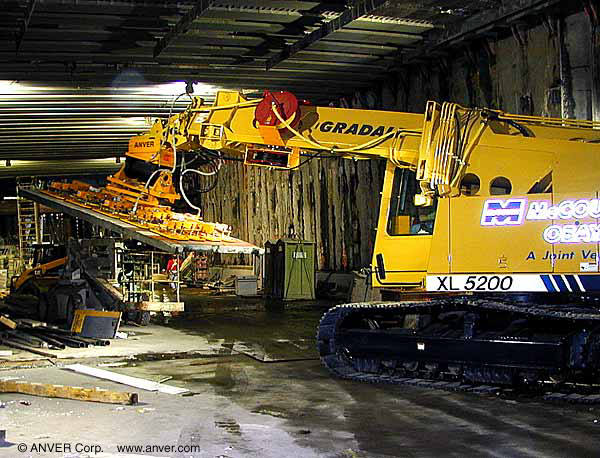

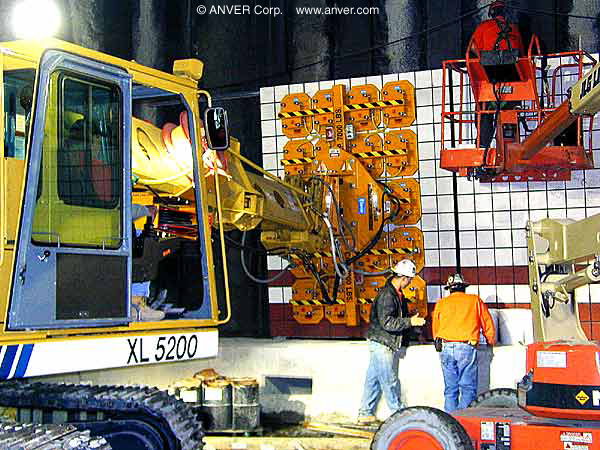

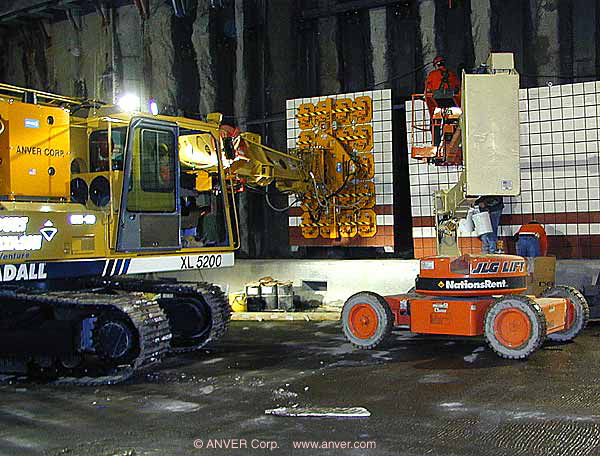

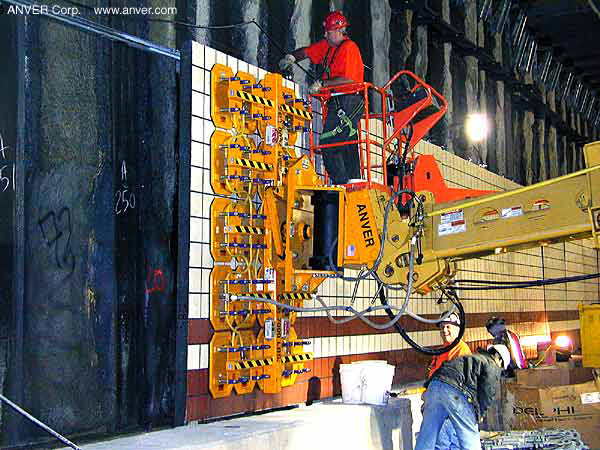

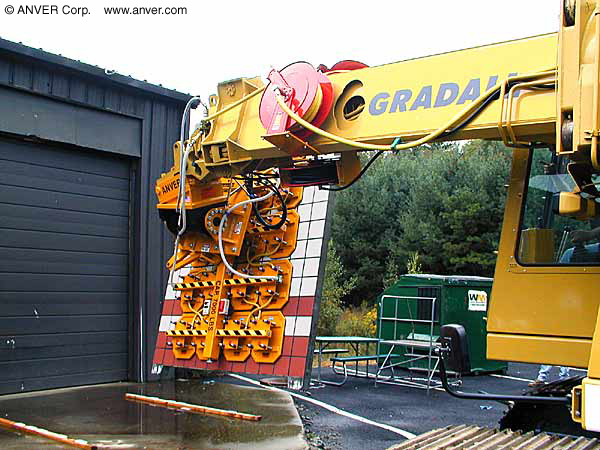

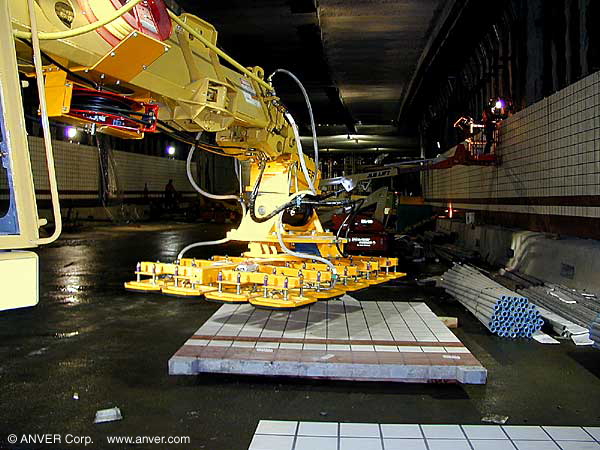

Gradall excavator vacuum end-effector placing panels in a tunnel

ANVER’s knowledgeable applications engineers can help you put together a vacuum lifting attachment for virtually any vacuum lifting application. We have supplied vacuum lifting, tilting and rotating attachments for standard fork lifters as well as customized vacuum end effectors for excavator graders, including heavy panel lifters for Gradall XL Series booms.

Featuring a hydraulically powered vacuum pump and four-ribbed vacuum pad attachments, the ANVER Vacuum End-Effector for Gradall Excavators system controls include a joystick for motion control, red and green safe/unsafe indicator warning lights, an audible vacuum monitoring warning device, and suitable pressure and vacuum gauges. Providing full articulation control from inside the cab, the system vastly increases the speed of placing panels while eliminating manual labor and safety concerns.

The ANVER Vacuum End-Effector System for Gradall Excavators is priced according to configuration. Literature is available upon request.
