ANVER L300M4 H-style 4-pad vacuum lifting frame, 3000 lb

The L300M4-86-2/44 is a standard four-pad ANVER lifting frame with adjustable crossarms that pairs with a vacuum generator to handle carbon and stainless steel sheets and plates, rated at 3000 lb (1361 kg). Below are the dimension drawing, model specifications and compatible vacuum generators.

Request a quote

Four pad vacuum lifter lifting frames – for standard four pad lifters with adjustable crossarms – capacity up to 3000 lb (1361 kg)
Manufacturer PDF

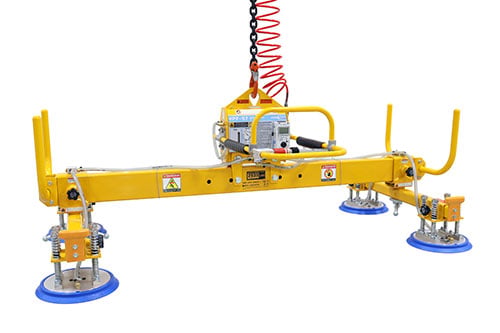

ANVER VPF-57_20HD-AIR-L300M4-86-2/44 vacuum lifter

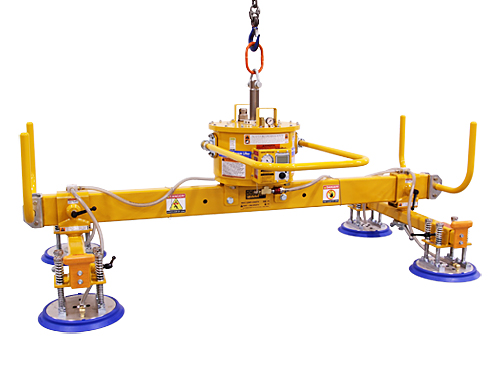

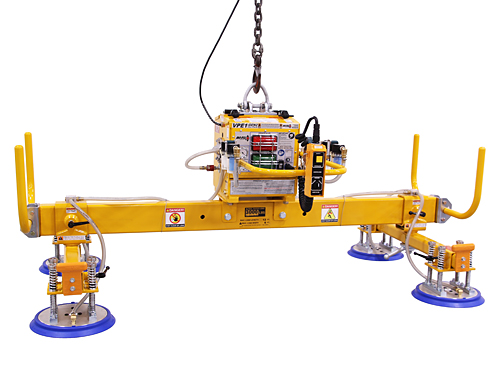

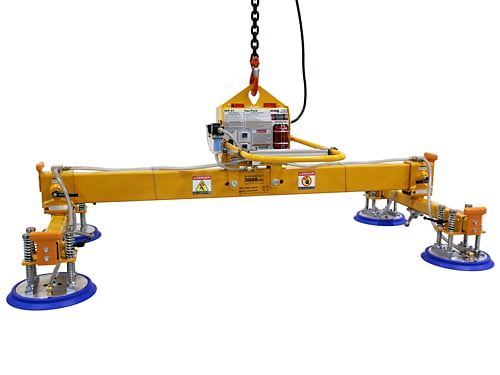

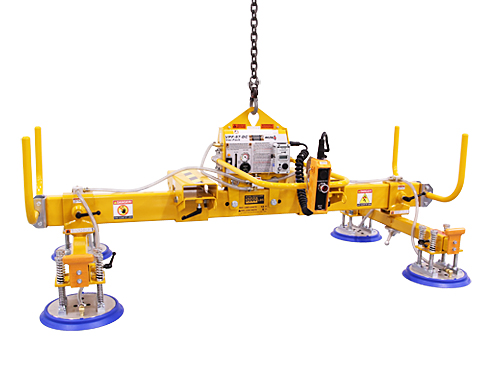

ANVER VPF-57_20HD-AIR-L300M4-86-2/44 vacuum lifterANVER VPE1-GEN2-HD-L300M4-86-2/44 vacuum lifterANVER M250M-L300M4-86-2/44 vacuum lifterANVER VPF-57HD-DCP-L300M4-86-2/44 vacuum lifterANVER VPF-57HD-ACP-L300M4-86-2/44 vacuum lifter

ANVER’s standard vacuum lifters offer efficient material handling solutions by promoting functionality, safety, and ergonomic operations for a wide variety of applications and materials. Standard lifting frames are built to order from stock using modular components, so there are hundreds of possible combinations depending on the vacuum generator, beam, crossarms, and vacuum cups selected.

Basic features on ANVER’s standard horizontal vacuum lifters include: vacuum leakage sensor and warning system; attach/release slide valve with safety lock; and locking hand knobs on the adjustable vacuum pad, slide assemblies, and crossarms (when applicable).

ANVER vacuum lifters comply with ASME B30.20 and ASME BTH-1 standards. Specifications and rated capacities vary by configuration, and users remain responsible for full compliance with workplace safety, inspection, and operating regulations.

The L300M4-86-2/44 four-pad adjustable crossarm lifting frame is ideal for handling carbon steel and stainless steel sheets and plates with a maximum capacity of 3000 lb (1361 kg). The type of vacuum lifter – mechanical, air, or electric – paired with the number of pads used will depend on your application needs. Foam pads are not available for mechanical vacuum generators.

*Lifting frame shown with vacuum generator and/or optional accessories, not included. Unit weight does not include optional equipment.

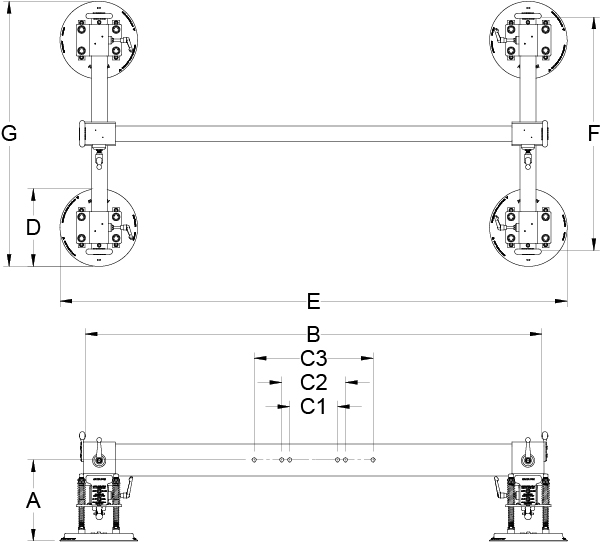

Standard lifting frames with rubber vacuum seals specificationsL300M4-H_DWG dimension drawing

Compatible vacuum generators
Mechanical Air, electric or battery* Electric Battery* Electric Battery*
ANVER M250M mechanical vacuum generator ANVER VPF-57 vacuum generatorANVER VPE1-GEN3 vacuum generatorANVER BAE1-GEN3 vacuum generator ANVER VPE3-GEN2 vacuum generator ANVER BAE3-GEN2 vacuum generator
M250M series VPF-57 series VPE1-GEN3 series BAE1-GEN3 series VPE3-GEN3 series BAE3-GEN3 series
Lifting frame numberL300M4-86-2/44
Rated load capacity [lbs (kg)]3000 (1361)
Unit weight [lbs (kg)]360 (163)
A Lifting frame headroom [in. (mm)]16 (406)
B Spreader beam length [in. (mm)]86 (2184)
C1 Standard hardware mtg. centers [in. (mm)]9 (229)
C2 Inner alternate hardware mtg. centers [in. (mm)]12 (305)
C3 Outer alternate hardware mtg. centers [in. (mm)]22.38 (568)
D Pad diameter [in. (mm)]15 (381)
E Pad distances maximum [in. (mm)]95 (2413)
E Pad distances minimum [in. (mm)]48 (1219)
F Crossarm length [in. (mm)]44 (1118)
G Pad distances maximum [in. (mm)]49 (1245)
G Pad distances minimum [in. (mm)]30 (762)
Maximum sheet size [ft (m)]12 x 6 (3.7 x 1.8)
Seal numberSSR-146
Optional parking stands72000038

*Battery powered vacuum generators are only recommended when handling non-porous loads.

Various plate sizes can be handled by adjusting the vacuum pad positions on the beam

4-pad H-style frame pad position diagram
Crossarms and vacuum pads in maximum position to handle maximum plate size.
4-pad H-style frame pad position diagram
Crossarms can pivot to near parallel with spreader beam to handle narrow plates.
4-pad H-style frame pad position diagram
Vacuum pads and crossarms fully adjustable to handle short and narrow plates.

13600066 A
