ANVER M1700M10 ten pad mechanical vacuum lifter

Model M1700M10-324-5/68FX: self-powered mechanical vacuum generator with ten pad lifting frame. Application: lifting & handling metal sheet 35 ft x 12 ft (9.9 m x 3.7 m) up to 17000 lb (7711 kg).

Request a quote

Mechanical vacuum lifters – save energy while increasing productivity – completely self-powered and self-cycling ten pad lifters with pivoting adjustable crossarms

The L1700M10-324-5/68 and L1700M10-396-5/56 ten-pad lifting frames are ideal for handling carbon steel and stainless steel sheets and plates with a capacity up to 17000 lb (7711 kg). These lifting frames are compatible with mechanical, self-powered vacuum generators.

Standard ten pad adjustable crossarm lifters
Capacity: 17000 lb (7711 kg)

Model #:

M1700M10-324-5/68FX

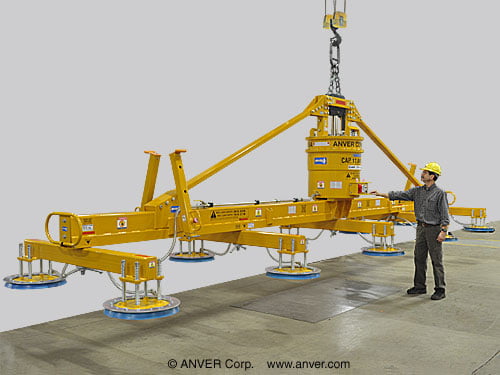

ANVER M1700M10-324-5/68FX: lifting & handling metal sheet 35 ft x 12 ft (9.9 m x 3.7 m) up to 17000 lb (7711 kg)

Description:

Self-powered mechanical vacuum generator with ten pad lifting frame

Max sheet size:

Lifting & handling metal sheet 35 ft x 12 ft (9.9 m x 3.7 m) up to 17000 lb (7711 kg)

Options shown:

Parking stands

Model #:

M1700M10-396-5/56FX

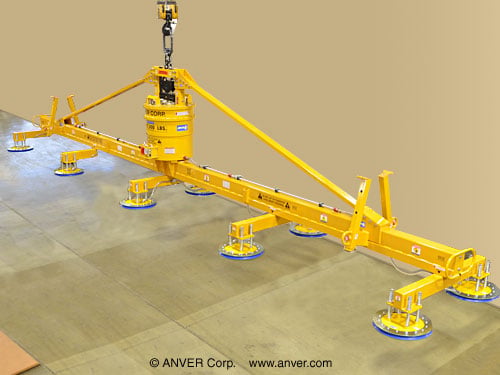

ANVER M1700M10-396-5/56FX: lifting & handling metal sheet 40 ft x 10 ft (12.2 m x 3.1 m) up to 17000 lb (7711 kg)

Description:

Self-powered mechanical vacuum generator with ten pad lifting frame

Max sheet size:

Lifting & handling metal sheet 40 ft x 10 ft (12.2 m x 3.1 m) up to 17000 lb (7711 kg)

Options shown:

Parking stands

L210M8 8-pad lifting frame L600M8 8-pad lifting frame L75M3 3-pad lifting frame L90M6 6-pad lifting frame Custom mechanical lifters M1000M10-200 vacuum lifter M100M10 vacuum lifter M150S mechanical vacuum lifter L300M4 H-style 4-pad lifting frame L690M3 3-pad lifting frame M75S mechanical vacuum lifter VPHF high flow generators

Need an ANVER system for your load?

Send photos, weight and dimensions of the load. FullSharp represents ANVER and replies with a configuration and quote within 24 hours.
