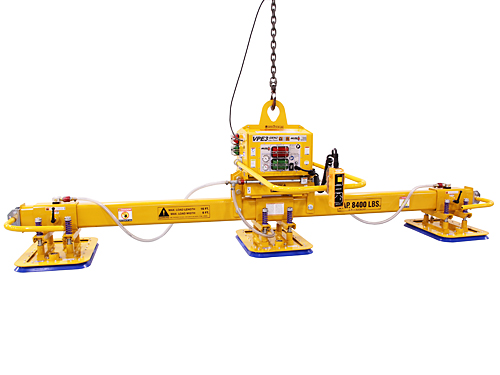

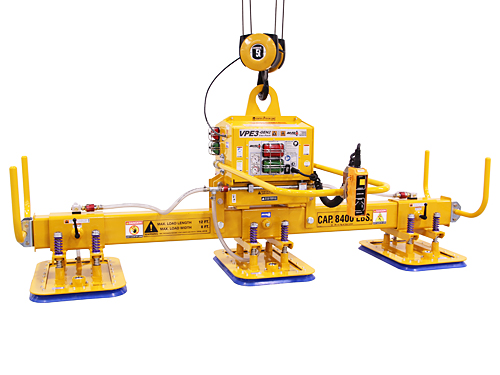

ANVER L840M3 3-pad vacuum lifting frame, 8400 lb

The L840M3-92, L840M3-108 and L840M3-150 are standard three-pad ANVER lifting frames that pair with a vacuum generator to handle carbon and stainless steel sheets and plates, rated at 8400 lb (3810 kg). Below are the dimension drawing, model specifications and compatible vacuum generators.

Request a quote

Three pad vacuum lifter lifting frames – standard three pad lifters – capacity up to 8400 lb (3810 kg)
Manufacturer PDF

ANVER’s standard vacuum lifters offer efficient material handling solutions by promoting functionality, safety, and ergonomic operations for a wide variety of applications and materials. Standard lifting frames are built to order from stock using modular components, so there are hundreds of possible combinations depending on the vacuum generator, beam, crossarms, and vacuum cups selected.

Basic features on ANVER’s standard horizontal vacuum lifters include: vacuum leakage sensor and warning system; attach/release slide valve with safety lock; and locking hand knobs on the adjustable vacuum pad, slide assemblies, and crossarms (when applicable).

ANVER vacuum lifters comply with ASME B30.20 and ASME BTH-1 standards. Specifications and rated capacities vary by configuration, and users remain responsible for full compliance with workplace safety, inspection, and operating regulations.

The L840M3-92, -108, and -150 three-pad lifting frames are ideal for handling carbon steel and stainless steel sheets and plates with a maximum capacity of 8400 lb (3810 kg). The type of vacuum lifter – mechanical, air, or electric – paired with the number of pads used will depend on your application needs. Foam pads are not available for mechanical vacuum generators.

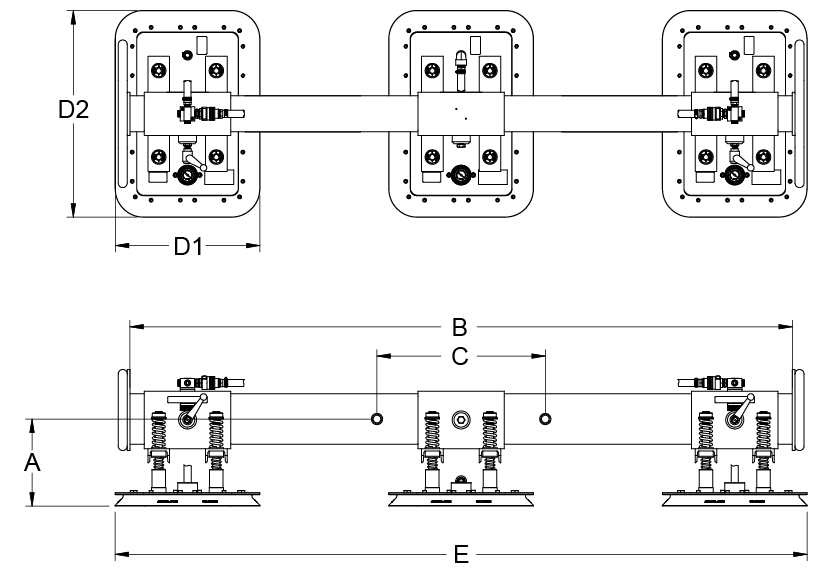

Standard lifting frames with rubber vacuum seals specifications L840M3-92 dimension drawing

Compatible vacuum generators

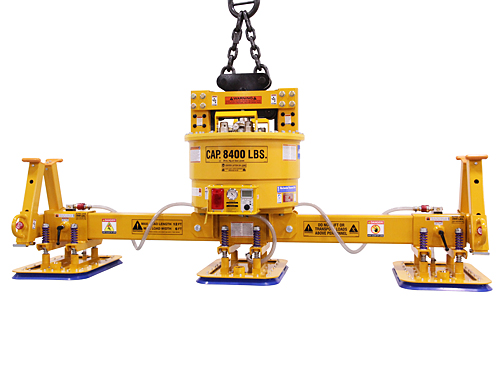

Mechanical

Electric

M900M series

VPE3-GEN3 series

Lifting frame number	L840M3-92	L840M3-108	L840M3-150
Rated load capacity [lbs (kg)]	8400 (3810)	8400 (3810)	8400 (3810)
Unit weight [lbs (kg)]	671 (305)	697 (316)	767 (348)
A Lifting frame headroom [in. (mm)]	12.09 (307)	12.09 (307)	12.09 (307)
B Beam length [in. (mm)]	92 (2337)	108 (2743)	150 (3810)
C Hardware mounting centers [in. (mm)]	22.38 (568)	22.38 (568)	22.38 (568)
D Pad dimensions [in. (mm)]	21 x 29.75 (533 x 756)	21 x 29.75 (533 x 756)	21 x 29.75 (533 x 756)
E Pad distances maximum [in. (mm)]	101 (2565)	117 (2972)	159 (4039)
E Pad distances minimum [in. (mm)]	65 (1651)	65 (1651)	65 (1651)
Maximum sheet size [ft (m)]	10 x 6 (3.1 x 1.8)	12 x 6 (3.7 x 1.8)	16 x 6 (4.9 x 1.8)
Seal number	SR-2129M	SR-2129M	SR-2129M
Parking stands (with M900M)	72000189	72000189	72000189
Parking stands (with VPE3-GEN2)	72000128	72000128	72000128

Various plate sizes can be handled by adjusting the vacuum pad positions on the beam

Vacuum pads in maximum position to handle maximum plate size.

Vacuum pads moved inwards to handle minimum plate size.

Center vacuum pad (1/3 capacity) used for short, narrow plates. Outer pads provided with shut-off valves.

13600125 A
