ANVER L800M8 8-pad vacuum lifting frame, 8000 lb

The L800M8 series (8 versions) are standard eight-pad ANVER lifting frames with adjustable crossarms that pair with a vacuum generator to handle carbon and stainless steel sheets and plates, rated at 8000 lb (3629 kg). Below are the dimension drawing, model specifications and compatible vacuum generators.

Request a quote

Eight pad vacuum lifter lifting frames – for standard eight pad lifters with adjustable crossarms – capacity up to 8000 lb (3629 kg)
Manufacturer PDF

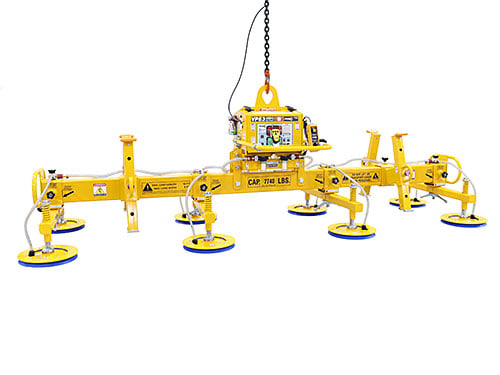

ANVER VPE3-GEN3-HD-L800M8-150-4/44FX vacuum lifter

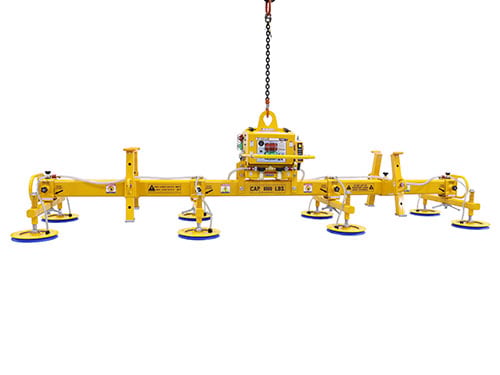

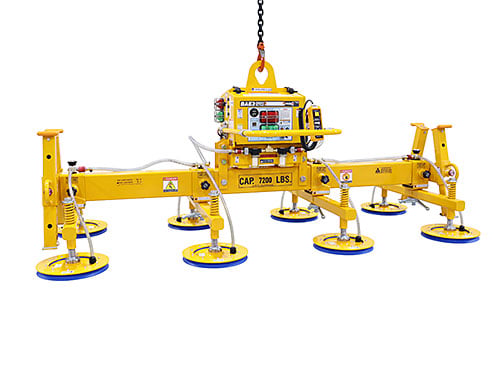

ANVER VPE3-GEN3-HD-L800M8-150-4/44FX vacuum lifterANVER BAE3-GEN3-HD-L800M8-110-4/44FX vacuum lifterANVER L800M8 vacuum lifting frame

ANVER’s standard vacuum lifters offer efficient material handling solutions by promoting functionality, safety, and ergonomic operations for a wide variety of applications and materials. Standard lifting frames are built to order from stock using modular components, so there are hundreds of possible combinations depending on the vacuum generator, beam, crossarms, and vacuum cups selected.

Basic features on ANVER’s standard horizontal vacuum lifters include: vacuum leakage sensor and warning system; attach/release slide valve with safety lock; and locking hand knobs on the adjustable vacuum pad, slide assemblies, and crossarms (when applicable).

ANVER vacuum lifters comply with ASME B30.20 and ASME BTH-1 standards. Specifications and rated capacities vary by configuration, and users remain responsible for full compliance with workplace safety, inspection, and operating regulations.

The L800M8-110-4/44, -110-4/56, -150-4/44, -150-4/56, -190-4/44, -190-4/56, -231-4/44, and -231-4/56 eight-pad lifting frames are ideal for handling carbon steel and stainless steel sheets and plates with a maximum capacity of 8000 lb (3629 kg). The type of vacuum lifter – mechanical, electric or battery – paired with the number of pads used will depend on your application needs.

*Lifting frame shown with vacuum generator and/or optional accessories, not included. Unit weight does not include optional equipment.

Standard rubber seal lifting frames specifications

ANVER L600M8-L800M8-GROUP vacuum lifting frame

Compatible vacuum generators

ANVER M600M vacuum lifter
MechanicalM600M series
ANVER VPE3-GEN2 vacuum generator
ElectricVPE3-GEN3 series
ANVER BAE3-GEN2 vacuum generator
Battery*BAE3-GEN3 series
Lifting frame no.L800M8-110-4/44FXL800M8-150-4/44FXL800M8-190-4/44FXL800M8-231-4/44FX
Rated load capacity [lbs (kg)]8000 (3629)8000 (3629)8000 (3629)8000 (3629)
Approx. unit weight [lbs (kg)]969 (440)1065 (483)1226 (556)1505 (683)
A Headroom [in. (mm)]16 (406)16 (406)16 (406)19 (483)
B Spreader beam length [in. (mm)]110 (2749)150 (3810)190 (4826)231 (5867)
C Pad diameter [in. (mm)]17.25 (438)17.25 (438)17.25 (438)17.25 (438)
D Outer pad distance max. [in. (mm)]121.5 (3086)161.5 (4102)201.5 (5118)242.5 (6160)
D Outer pad distance min. [in. (mm)]89.16 (2265)102.5 (2604)115.83 (2942)129.5 (3289)
E Inner pad distance min. [in. (mm)]50 (1270)50 (1270)50 (1270)50 (1270)
F Crossarm length [in. (mm)]44 (1118)44 (1118)44 (1118)44 (1118)
G Outer pad distance max. [in. (mm)]53.5 (1359)53.5 (1359)53.5 (1359)53.5 (1359)
H Hardware mounting centers [in. (mm)]23.38 (594)23.38 (594)23.38 (594)23.38 (594)
Maximum sheet size [ft. (m)]12 x 8 (3.7 x 2.4)16 x 8 (4.9 x 2.4)20 x 8 (6.1 x 2.4)25 x 8 (7.6 x 2.4)
Seal part number (bolt-on)SR-155MSR-155MSR-155MSR-155M
Lifting frame no.L800M8-110-4/56FXL800M8-150-4/56FXL800M8-190-4/56FXL800M8-231-4/56FX
Rated load capacity [lbs (kg)]8000 (3629)8000 (3629)8000 (3629)8000 (3629)
Approx. unit weight [lbs (kg)]1021 (463)1117 (507)1318 (598)1557 (706)
A Headroom [in. (mm)]16 (406)16 (406)16 (406)19 (483)
B Spreader beam length [in. (mm)]110 (2749)150 (3810)190 (4826)231 (5867)
C Pad diameter [in. (mm)]17.25 (438)17.25 (438)17.25 (438)17.25 (438)
D Outer pad distance max. [in. (mm)]121.5 (3086)161.5 (4102)201.5 (5118)242.5 (6160)
D Outer pad distance min. [in. (mm)]89.16 (2265)102.5 (2604)115.83 (2942)129.5 (3289)
E Inner pad distance min. [in. (mm)]50 (1270)50 (1270)50 (1270)50 (1270)
F Crossarm length [in. (mm)]56 (1422)56 (1422)56 (1422)56 (1422)
G Outer pad distance max. [in. (mm)]65.5 (1664)65.5 (1664)65.5 (1664)65.5 (1664)
H Hardware mounting centers [in. (mm)]23.38 (594)23.38 (594)23.38 (594)23.38 (594)
Maximum sheet size [ft. (m)]12 x 10 (3.7 x 3)16 x 10 (4.9 x 3)20 x 10 (6.1 x 3)25 x 10 (7.6 x 3)
Seal part number (bolt-on)SR-155MSR-155MSR-155MSR-155M
*Battery powered vacuum generators are only recommended when handling non-porous loads.

Various plate sizes can be handled by adjusting the crossarm positions on the beam

8-pad frame pad position diagram
Crossarms and vacuum pads in maximum position to handle maximum plate size.
ANVER 8-Pad-Fixed-2 vacuum lifter
Crossarms adjustable to handle short and narrow plates.
ANVER 8-Pad-Fixed vacuum lifter
Inner crossarms (1/2 capacity) for use with smaller plates. Outer crossarms provided with shut-off valves.
