ANVER M100M to M900M mechanical vacuum generators

ANVER mechanical vacuum generators are self-powered and self-cycling: attach and release alternate with the hoist up and down movement, with no electric motor. Models M100M to M900M.

Request a quote

Mechanical vacuum generators – save energy & increase productivity
Self-powered and self-cycling

M100M mechanical vacuum generators
Manufacturer PDF

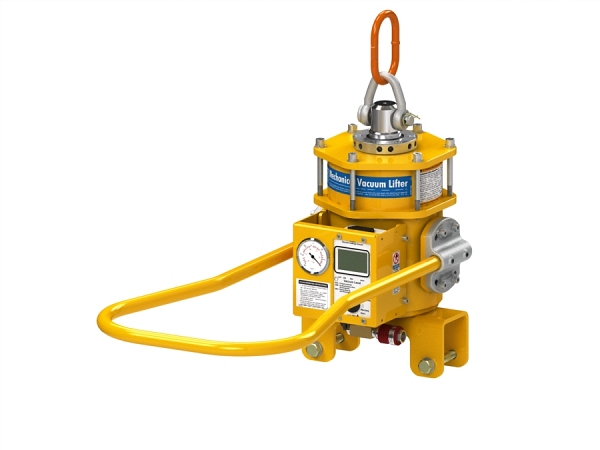

M100M mechanical vacuum generator

Unique features of ANVER mechanical vacuum lifters

Instant attach and release is provided via the hoist up and down movement. The attach and release alternate each lift cycle for fast, efficient handling. Mechanical vacuum lifters increase the speed and efficiency of the horizontal handling of sheet and plate, panels, and all types of non-porous materials.
Simple to operate: one person can control the entire operation. No oil fumes or noise pollution.
Easy to maintain: only the highest quality components and superior construction are used, with few moving parts.
Extremely safe: load cannot be released until it is set down on a surface.
ANVER mechanical vacuum lifters are suitable for 100% duty cycle 24 hour a day operation within the unit’s rated load, service classification and specified operating conditions.
No electric vacuum motor is required, eliminating motor overheating associated with electrically driven vacuum generation.
Easy to maintain and keep operating in heavy production environments.
ANVER vacuum lifters comply with ASME B30.20 and ASME BTH-1 standards. Specifications and rated capacities vary by configuration, and users remain responsible for full compliance with workplace safety, inspection, and operating regulations. See the vacuum lifting device safety standards for more information.

Standard on each generator:

Vacuum gauge
Battery operated VLS vacuum loss sensor and warning system
Front, adjustable pivoting handlebar
Two shut-off valves with locking push-button, 3/8″ NPT port (front/back)

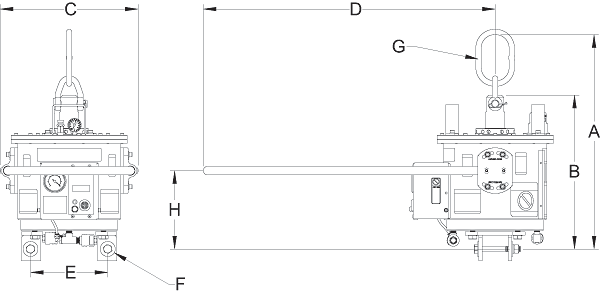

Generator series model no.	M100M
Rated load capacity [lbs (kg.)]	1100 (499)
Unit weight [lb (kg)]	105 (48)
A Max. [in. (mm)]	29 (737)
B Min. [in. (mm)]	18 (457)
C [in. (mm)]	16 (406)
D [in. (mm)]	30 (762)
E Hardware centers [in. (mm)]	9 (229)
F Mounting hardware [in. (mm)]	Provided
G Master chain link dimensions [in. (mm)]	2.38 x 4.25 (60 x 108)
H Handlebar height [in. (mm)]	10 (254)
Fits tube size [in. (mm)]	3 x 3 (76 x 76)

For assistance in determining the proper lifter for your load, contact us to speak with a sales technician.
Reference user’s guide 12000042 mechanical vacuum lifters with M100M generator.

M150M mechanical vacuum generators
Manufacturer PDF

Unique features of ANVER mechanical vacuum lifters

Instant attach and release is provided via the hoist up and down movement. The attach and release alternate each lift cycle for fast, efficient handling. Mechanical vacuum lifters increase the speed and efficiency of the horizontal handling of sheet and plate, panels, and all types of non-porous materials.
Simple to operate: one person can control the entire operation. No oil fumes or noise pollution.
Easy to maintain: only the highest quality components and superior construction are used, with few moving parts.
Extremely safe: load cannot be released until it is set down on a surface.
ANVER mechanical vacuum lifters are suitable for 100% duty cycle, 24 hour a day operation. They never overheat or burn out.
Easy to maintain and keep operating in heavy production environments.
ANVER vacuum lifters comply with ASME B30.20 and ASME BTH-1 standards. Specifications and rated capacities vary by configuration, and users remain responsible for full compliance with workplace safety, inspection, and operating regulations. See the vacuum lifting device safety standards for more information.

Standard on each generator:

Vacuum gauge
Battery operated VLS vacuum loss sensor and warning system
Front, adjustable pivoting handlebar
Two shut-off valves with locking push-button, 3/8″ NPT port (front/back)

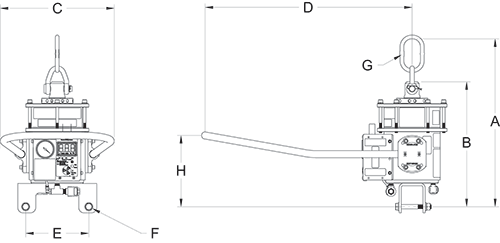

Generator series model no.	M150M	M150M-3X6
Rated load capacity [lbs (kg.)]	2200 (998)	2200 (998)
Unit weight [lb (kg)]	168 (76)	170 (77)
A Max. headroom [in. (mm)]	30 (762)	31 (787)
B Min. height [in. (mm)]	17.1 (434)	18.6 (472)
C Handlebar width [in. (mm)]	16.1 (409)	16.1 (409)
D Handlebar length [in. (mm)]	34 (864)	34 (864)
E Hardware centers [in. (mm)]	9 (229)	9 (229)
F Mounting hardware [in. (mm)]	Provided	Provided
G Master chain link dimensions [in. (mm)]	3.25×5.38 (83×137)	3.25×5.38 (83×137)
H Handlebar height [in. (mm)]	9.13 (232)	10.5 (267)
Fits tube size [in. (mm)]	3×3 (76×76)	3×6 (76×152)

For assistance in determining the proper lifter for your load, contact us to speak with a sales technician.
Reference user’s guide 12000039 mechanical vacuum lifters with M150M/M250M generator (single chain sling)

M250M mechanical vacuum generators
Manufacturer PDF

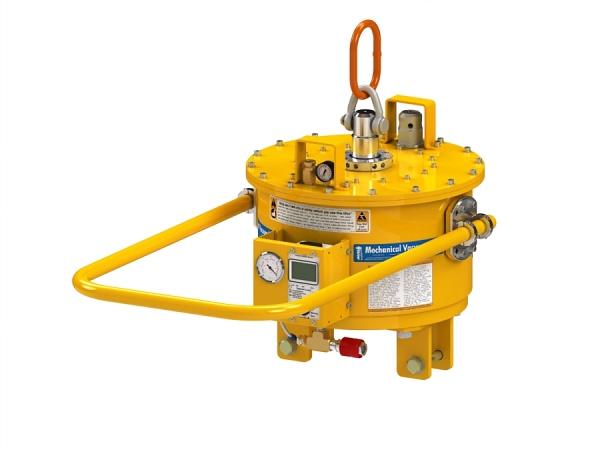

M250M mechanical vacuum generator

Unique features of ANVER mechanical vacuum lifters

Instant attach and release is provided via the hoist up and down movement. The attach and release alternate each lift cycle for fast, efficient handling. Mechanical vacuum lifters increase the speed and efficiency of the horizontal handling of sheet and plate, panels, and all types of non-porous materials.
Simple to operate: one person can control the entire operation. No oil fumes or noise pollution.
Easy to maintain: only the highest quality components and superior construction are used, with few moving parts.
Extremely safe: load cannot be released until it is set down on a surface.
ANVER mechanical vacuum lifters are suitable for 100% duty cycle, 24 hour a day operation. They never overheat or burn out.
Easy to maintain and keep operating in heavy production environments.
ANVER vacuum lifters comply with ASME B30.20 and ASME BTH-1 standards. Specifications and rated capacities vary by configuration, and users remain responsible for full compliance with workplace safety, inspection, and operating regulations. See the vacuum lifting device safety standards for more information.

Standard on each generator:

Vacuum gauge
Battery operated VLS vacuum loss sensor and warning system
Front, adjustable pivoting handlebar
Two shut-off valves with locking push-button, 3/8″ NPT port (front/back)

Generator series model no.	M250M	M250M-5X7	M250M-5X7H
Rated load capacity [lbs (kg.)]	4400 (1996)	4400 (1996)	4400 (1996)
Unit weight [lb (kg)]	302 (137)	305 (138)	320 (145)
A Max. headroom [in. (mm)]	32.25 (819)	32.75 (832)	32.75 (832)
B Min. height [in. (mm)]	20 (508)	20 (508)	20 (508)
C Handlebar width [in. (mm)]	22 (559)	22 (559)	22 (559)
D Handlebar length [in. (mm)]	34.75 (883)	34.75 (883)	34.75 (883)
E Hardware centers [in. (mm)]	12 (305)	12 (305)	12 (305)
F Mounting hardware [in. (mm)]	Provided	Provided	Provided
G Master chain link dimensions [in. (mm)]	3.25×5.38 (83×137)	3.25×5.38 (83×137)	3.25×5.38 (83×137)
H Handlebar height [in. (mm)]	11.5 (292)	11.5 (292)	11.5 (292)
Fits tube size [in. (mm)]	3×6 (76×152)	5×7 (127×178)	5×7 (127×178)

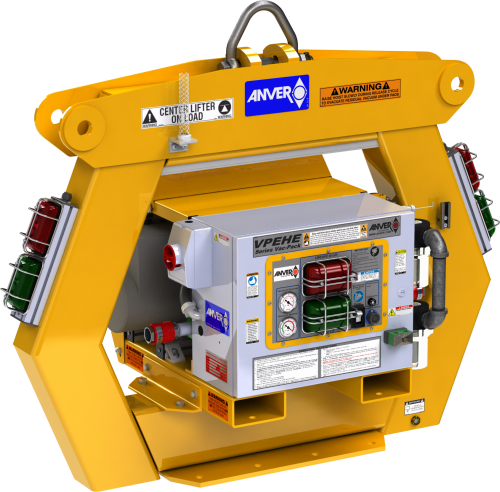

GF5T24-M

Electric or battery powered

Direct replacement retrofit for existing M600M & M900M vacuum lifters with mechanical generators now available.
Contact us for more information.

M600M mechanical vacuum generators (special order only)
Manufacturer PDF

Model no.	M600M-S (special order only)	M600M-H (special order only)
Max. rated load lb (kg)	8000 (3629)	8000 (3629)
Fits tube size in (mm)	3 × 6 (76 × 152)	5 × 7 (127 × 178)
Unit weight lb (kg)	818 (371)	831 (377)
A Max. headroom in (mm)	48 (1219)	48.6 (1234)
B Min. height in (mm)	29.5 (749)	30 (762)
C Width in (mm)	27.4 (696)	27.4 (696)
D Hardware centers in (mm)	22.38 (568)	22.38 (568)
E Mounting hardware in (mm)	Provided	Provided
F Master chain link dim. in (mm)	4 x 6 (102 x 153)	4 x 6 (102 x 153)

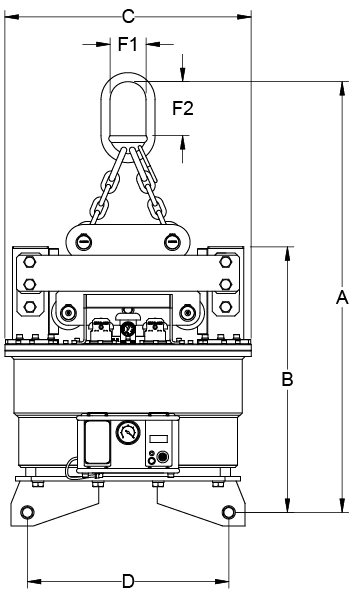

M900M & M902M mechanical vacuum generators
Manufacturer PDF

Larger capacity mechanical vacuum generators are built into specific models. We have a full line up to 18,000 lbs capacity.

M900M

13,000 lb (5897 kg) lift capacity

H 65 in (1651 mm) x W 30.9 in (785 mm)

Weight 950 lb (431 kg)

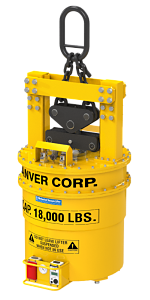

M902M

18,000 lb (8165 kg) lift capacity

H 85 in (2162 mm) x W 30.9 in (785 mm)

Weight 1300 lb (590 kg)

13600037 A
13600038 A
13600039 A
13600128 B
