ANVER VB9HV regenerative vacuum pump, 6.2 HP, 14.7 in. Hg

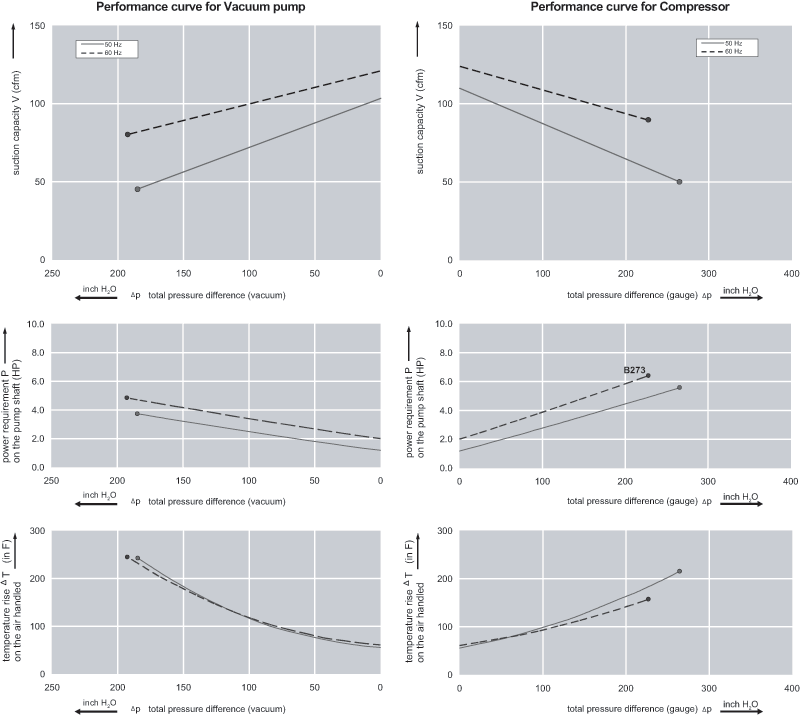

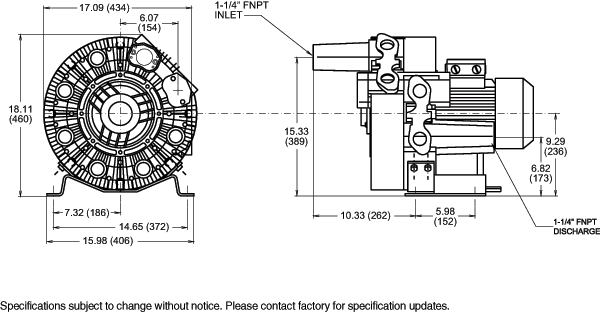

The VB9HV is a higher vacuum, oil-free VB series regenerative vacuum pump with virtually maintenance-free continuous duty. Features, performance curves, dimensions and electrical data below.

Request a quote

Vacuum pumps and vacuum generators
VB series regenerative vacuum pumps
VB9HV specifications

ANVER VB series regenerative vacuum pump

Features:

Cooler running, outboard bearing provides virtually maintenance-free operation in continuous duty service.
Environmentally friendly oil-free design prevents downstream contamination of gas or components.
Quiet operation; as low as 67 dB(A)
Standard TEFC with Class F insulation, UL recognized, CE compliant motors.

VB9HV Vacuum specifications:

HP (Kw)	SCFM (m³/hr)	Max. vac. in. Hg (mbar)	Amps @ 230/460 220/440 VAC (60Hz)	Amps @ 208/380 VAC (50Hz)	Amps @ 575 VAC (50/60Hz)	Pump weight lb (kg)
6.2 (4.6)	120 (203)	14.7 (498)	16.3/9.5	15.8/9.1	7.6	129 (59)

Notes:
A) Performance tolerance is ±10%.
B) Performance curves are based on an air temperature of 60°F (15°C) at the inlet connection and 29.92 Hg abs (1013 mbar) at the discharge connection.

Due to the nature of constantly changing electric motors and pumps, specifications are subject to change without notice.
