ANVER FLTP series plastic in-line vacuum filters

FLTP series plastic in-line vacuum filters protect valves, pumps and ejectors from dust. Dimension table, replacement elements and the 32000280 dual filter assembly below.

Request a quote

FLTP series plastic in-line vacuum filters Manufacturer PDF

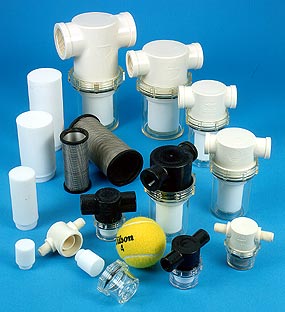

ANVER FLTP plastic vacuum filters in several sizes

Our popular vacuum filters, now with even lower prices. A great value for a quality vacuum filter that is simply the best product available for many applications.

These are absolutely great vacuum filters for use with vacuum pumps and vacuum systems. They are 100% airtight, even after repeated element changes; you can easily see when the element needs changing; they do not corrode or rust; and the element works well even on fine dust.

These filters are used to protect valves, pumps, ejectors, etc., from dust and other harmful particles. In-line filters are designed to be serviced without removing the entire unit from the line.

You can simply remove the bowl by hand and clean or change the filter element. The transparent nylon bowl allows you to easily monitor the filter condition.

ANVER vacuum filters range in size from 1/4″ to 1-1/2″ NPT and are constructed from FDA approved black nylon. If space permits, use of the longer size bowl will require fewer element changes.

Vacuum filters are designed for years of reliable, leak-proof use

    • FDA approved black nylon body is corrosion and rust proof, and shock-proof
    • Buna-N gasket seals the bowl to the housing
    • 70-140 micron polyethylene filter element
    • Transparent nylon bowl shows condition of filter
    • Pressure rating from full vacuum to 100 psi. Sharp pressure spikes are not recommended.

    • Maximum temperature 125° F (52° C) at 100 psi

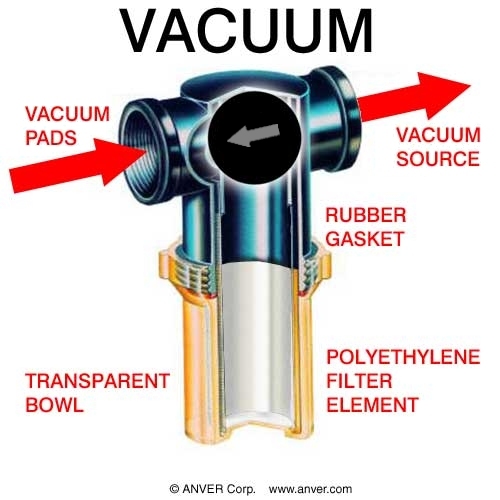

Filter installation diagram in a vacuum system

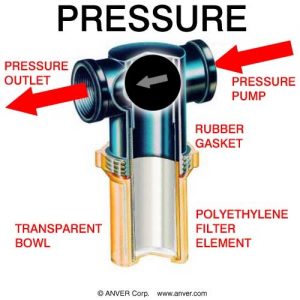

Filter installation diagram in a pressure system

Plastic in-line vacuum filters have easy to replace filter elements

Diagram of plastic in-line vacuum filters

Diagram of plastic in-line vacuum filters

Vacuum filter and replacement element specifications

Filter photo

ANVER part no.

A
in.
(mm)

B
in.
(mm)

C
in.
(mm)

D
in.
(mm)

Filter area in.² (cm²)

Pipe thread (NPT)

Standard elementSpecial order elementFilter O-ring gasketFilter clear bowl
FLTP-1/8F

FLTP-1/8F

PPSF.125-X10
(PPX10RE3)

3.1
(78.7)

2.4
(61)

1.9
(48.3)

2.0
(50.8)

4.27
(28)

1/8″ NPT female

FLTPE-1 White 70-140 micronFLTP-10497FLTPB-1
FLTP-1/4M

FLTP-1/4M

3.1
(78.7)

2.4
(61)

1.9
(48.3)

2.0
(50.8)

4.27
(28)

1/4″ NPT male

FLTPE-1 White 70-140 micronFLTP-10497FLTPB-1
FLTP-1/4F

FLTP-1/4F

PPSF.25-X10
(PPX10RE3)

3.1
(78.7)

2.4
(61)

1.9
(48.3)

2.0
(50.8)

4.27
(28)

1/4″ NPT female

FLTPE-1 White 70-140 micronFLTP-10497FLTPB-1
FLTP-3/8M

FLTP-3/8M

3.1
(78.7)

2.4
(61)

1.9
(48.3)

2.0
(50.8)

4.27
(28)

3/8″ NPT male

FLTPE-1 White 70-140 micronFLTP-10497FLTPB-1
FLTP-3/8FS

FLTP-3/8FS

PPSF.375-X10
(PPX10RE3)

3.1
(78.7)

2.4
(61)

1.9
(48.3)

2.0
(50.8)

4.27
(28)

3/8″ NPT female

FLTPE-1 White 70-140 micronFLTP-10497FLTPB-1
FLTP-3/8F

FLTP-3/8F

3.6
(91.4)

5.1
(129.5)

2.9
(73.6)

4.4
(111.8)

19
(123)

3/8″ NPT female

FLTPE-2 White 70-140 micronFLTPE-2B Blue 150-200 micronFLTP-10514FLTPB-2
FLTP-1/2F

FLTP-1/2F

PPSF.5-X35
(PPX35RE3)

3.6
(91.4)

5.1
(129.5)

2.9
(73.6)

4.4
(111.8)

19
(123)

1/2″ NPT female

FLTPE-2 White 70-140 micron

FLTPE-2B Blue 150-200 micronFLTP-10514FLTPB-2
FLTP-1/2FFLTP-1/2F-F

3.6
(91.4)

5.1
(129.5)

2.9
(73.6)

4.4
(111.8)

19
(123)

1/2″ NPT female

FLTPE-2F white 70-140 micron w/ felt elementFLTP-10514FLTPB-2
FLTP-3/4F

FLTP-3/4F

PPSF.75-X35
(PPX35RE3)

3.6
(91.4)

5.4
(137.2)

2.9
(73.6)

4.6
(116.9)

19
(123)

3/4″ NPT female

FLTPE-2 White 70-140 micronFLTPE-2B Blue 150-200 micronFLTP-10514FLTPB-2
FLTP-1F

FLTP-1F

PPSF1.0-X50
PPX50RE3

4.9
(124.5)

6.4
(162.6)

4.0
(101.6)

5.6
(142.2)

33
(213)

1″ NPT female

FLTPE-3 White 70-140 micronFLTP-10538FLTPB-3
FLTP-1F

FLTP-1F/15

4.9
(124.5)

6.4
(162.6)

4.0
(101.6)

5.6
(142.2)

33
(213)

1″ NPT female

N/AFLTPE-3/15

FLTP-1.5F/15

5.2
(132.1)

8.1
(209.9)

4.0
(101.6)

6.9
(175.3)

39
(252)

1-1/2″ NPT female

N/AFLTPE-4/15

*Note: ANVER plastic filters and elements are direct replacements for P-Style filters.
**ANVER replacement elements are 1 piece while P-Style elements are 3 pieces.

13600107 A

32000280 dual filter assembly for vacuum tilters and VPFL4-series generators
Product photoPart number Description
32000280Filter assembly, handlebar mounted, dual 1/2″ filters
A1212BHose barb, 1/2″ NPT x 1/2″ hose
CLP-05-WClamp, worm for 1/2″ hose
FLTP-1/2FFilter, 1/2″ NPT female (black nylon)
FLTPE-2Filter element, for FLTP-3/8F, -1/2F & -3/4F (70-140 micron)
FLTP-1/2F-BFilter, 1/2″ NPT w/ FLTPE-2B element
FLTPE-2BFilter element, for FLTP-3/8F, -1/2F & -3/4F (150-200 micron), blue
FLTP-10514Filter O-ring gasket for 3/8″ thru 3/4″ plastic filters

Plastic in-line vacuum filters

Replacement of filter elements takes only a few seconds.
All filter elements can be easily cleaned or replaced by hand without removing the entire filter from the line, by simply removing the filter bowl. Simply unscrew the bowl by hand. No tools are needed.

Filter elements can be replaced without removing the filter from the vacuum system
