ANVER FLTP-1.5F/15 plastic in-line vacuum filter

FLTP-1.5F/15 is an ANVER plastic in-line vacuum filter with a 1-1/2″ NPT female port. The table lists dimensions A, B, C, D, filter area and the replacement element number.

Request a quote

ANVER vacuum filters
Plastic in-line type
Part number: FLTP-1.5F/15

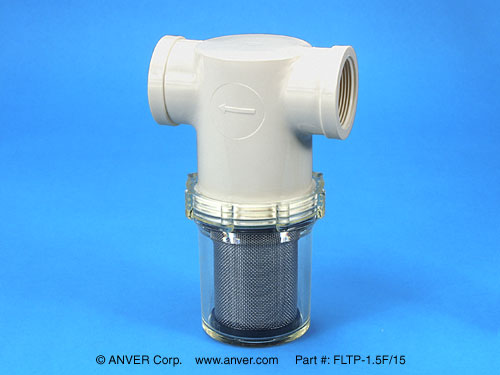

*Standard filter top is black (not white as shown).
White is available for special applications upon request.

Diagram of plastic in-line vacuum filters

ANVER part no.	P-Series filter number*	A in. (mm)	B in. (mm)	C in. (mm)	D in. (mm)	Filter area in.² (cm²)	Item weight oz. (grams)	Pipe thread (NPT)	Replacement element number	P-Series element no.**
	FLTP-1.5F/15	5.2 (132.1)	8.1 (209.9)	4.0 (101.6)	6.9 (175.3)	39 (252)	N/A	18.66 (529)	1-1/2″ NPT female	FLTPE-4/15	N/A

FLTP-1/8F vacuum filter FLTPE-1 replacement element FLTP-1/4M vacuum filter FLTP-1/4F vacuum filter FLTP-3/8M vacuum filter FLTP-1/2F vacuum filter FLTP-3/4F vacuum filter FLTP-1F vacuum filter FLTPE-3 replacement element FLTP-1F/15 vacuum filter FLTPE-3/15 replacement element FLTPE-4/15 replacement element
