FullSharp · since 1991

Equipment › ANVER vacuum lifters › 90° Powered Tilters › Single pad 90° tilter, 80 lb › FLTP plastic vacuum filters › FLTP-3/8M vacuum filter

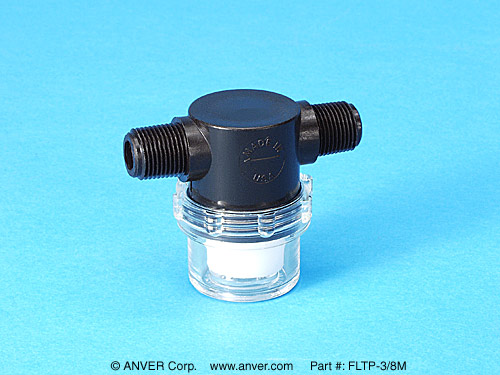

ANVER FLTP-3/8M plastic in-line vacuum filter

FLTP-3/8M is an ANVER plastic in-line vacuum filter with a 3/8″ NPT male port. The table lists dimensions A, B, C, D, filter area and the replacement element number.

Request a quote

ANVER vacuum filters
Plastic in-line type
Part number: FLTP-3/8M

FLTP-3/8M
Diagram of plastic in-line vacuum filters

ANVER part no.

P-Series filter number*

A
in.
(mm)

B
in.
(mm)

C
in.
(mm)

D
in.
(mm)

Filter area in.² (cm²)

Item weight oz. (grams)

Pipe thread (NPT)

Replacement element numberP-Series element no.**
3D model

FLTP-3/8M

3.1
(78.7)

2.4
(61)

1.9
(48.3)

2.0
(50.8)

4.27
(28)

1.817
(51.5)

3/8″ NPT male

FLTPE-1 White, 72-150 micronPPX10RE3
