ANVER ETL8S/ATL8S single pad vacuum tilter, 90° powered tilt

The lightweight ETL8S/ATL8S series are single pad vacuum lifters with 90° powered tilt, in electric (E) and air powered (A) versions, rated 80 lb (36 kg). Dimension drawings and specifications for each model are below.

Request a quote

Single pad vacuum lifters with powered 90° tilt
For standard single pad lifters with powered 90° tilt – capacity up to 80 lb (36 kg)
Manufacturer PDF

82001440-(ETL20S-5518)

ANVER vacuum tilters and upenders are loaded with safety features and have come to set the standard for safe tilting of loads. Each version has been revised over the years to perform better and last longer. The pads, vacuum generators, frame, controls, hardware, filters, safety features, handlebars, etc. are all new and improved. Every aspect of the lifters has been redesigned and the latest represent the best tilters available.

The lightweight electric-powered and air-powered vacuum lifters/tilters are designed to significantly reduce the effort of upending heavy loads while providing powerful suction force and 90 degree tilt capability. Built with safety in mind, these lifters/tilters are loaded with protective features including: a VLS system, 9V battery powered vacuum leakage sensor and warning system; an attach/release slide valve with safety lock; and locking knobs on the adjustable vacuum pad, slide assemblies, and crossarms (when applicable). The ETL and ATL series lifters/tilters are capacity rated at a maximum vacuum level of 24 in. Hg (609.6 mm Hg) with a 4:1 safety factor on vacuum holding (unless otherwise specified).

The dual filter/reservoir assembly, equipped on both electric-powered and air-powered vacuum upenders, offers a clean and reliable vacuum hold in less than ideal environments. Constructed with an ergonomic lifter handlebar, a welded steel lifting frame, and end of beam positioning handles, operators can use this equipment with ease and comfort for a wide range of loads and applications.

*Load weight and depth affect the final angle that the lifter achieves. Consult ANVER for loads thicker than 2 in. (51mm) due to center of gravity offset.

Note: The unit weight does not include optional accessories.
Parking stands are not compatible with ETL/ATL series tilters.

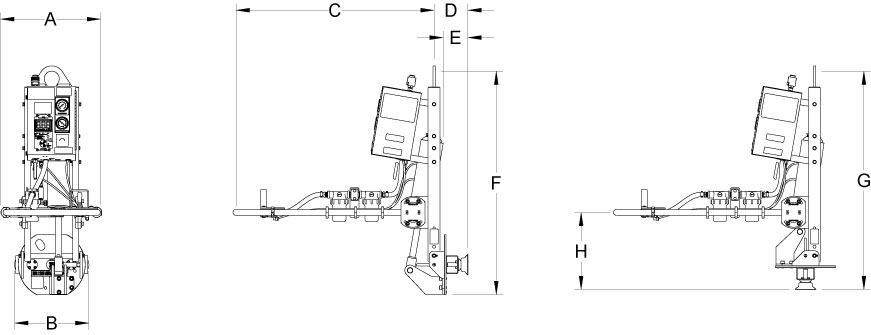

Standard air powered rubber seal tilter specifications:

Air powered lifting frame number	ATL8S-3513
Rated load capacity [lbs (kg.)]	80 (36)
Unit weight [lbs (kg.)]	95 (43)
Power required [psi]	90-120
Air consumption [SCFM (l/min.)]	*10.5 (297.3)
Tilt speed	Variable (100% duty cycle)
A Lifter width [in. (mm)]	17 (432)
B Pad dimension [in. (mm)]	12.69 x 3.69 (322 x 94)
C Handlebar length [in. (mm)]	33 (838)
D Pad distance from bail [in. (mm)]	5.64 (143)
E Pad distance from frame [in. (mm)]	4.12 (104)
F Max. vertical headroom [in. (mm)]	37.25 (946)
G Max. horizontal headroom [in. (mm)]	36.5 (927)
H Pad distance from handlebar [in. (mm)]	12.75 (323)
Max. load size [ft. (m)]	4 x 2 (1.2 x 0.6)
Pad number	VP3513
Manual rotation included?	No

*Air consumption is “0” on a non-porous material once the vacuum level is reached at peak value.

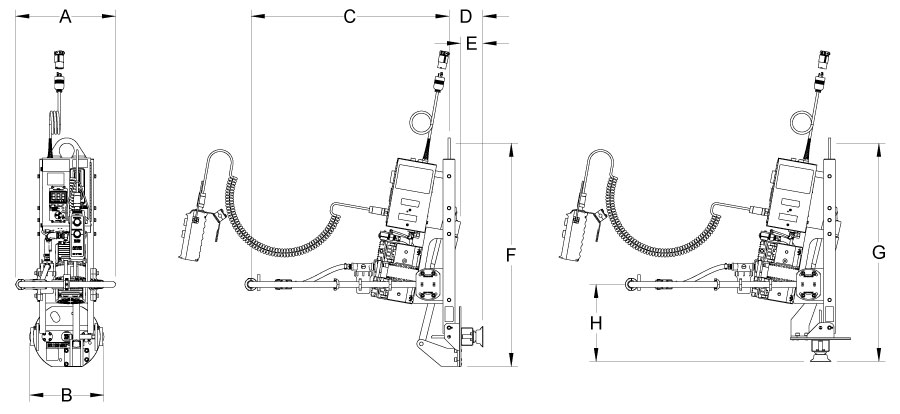

Standard electric powered rubber seal tilter specifications:

Electric powered lifting frame number	ETL8S-3513
Rated load capacity [lbs (kg.)]	80 (36)
Unit weight [lbs (kg.)]	115 (52)
Power required	115V/60Hz/1Ph/11A
Tilt speed [sec.]	8 (**25% duty cycle)
Tilt cycles per hour	56
A Lifter width [in. (mm)]	17 (432)
B Pad dimension [in. (mm)]	12.69 x 3.69 (322 x 94)
C Handlebar length [in. (mm)]	33 (838)
D Pad distance from bail [in. (mm)]	5.64 (143)
E Pad distance from frame [in. (mm)]	3.73 (94)
F Max. vertical headroom [in. (mm)]	37.25 (946)
G Max. horizontal headroom [in. (mm)]	36.5 (927)
H Pad distance from handlebar [in. (mm)]	12.75 (323)
Max. load size [ft. (m)]	4 x 2 (1.2 x 0.6)
Pad number	VP3513
Manual rotation included?	No

**Example of “25% duty cycle”: 25 seconds continuous, 75 seconds rest.

Spare / replacement filters and filter elements
