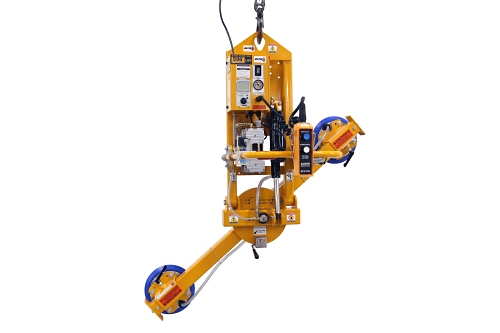

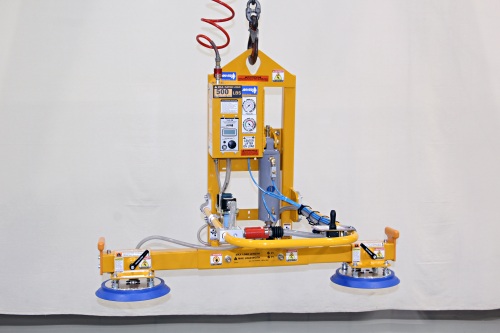

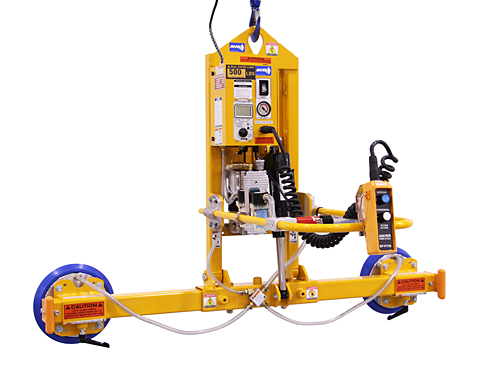

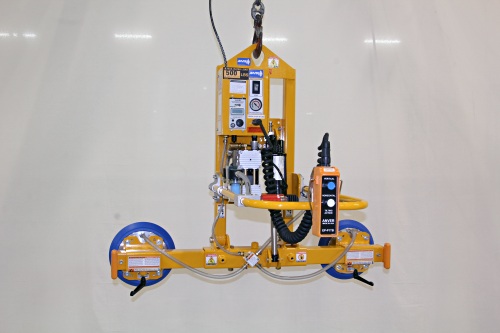

ANVER ET50M2/AT50M2 two pad vacuum tilter, 90° powered tilt
The ET50M2/AT50M2 series are two pad vacuum lifters with 90° powered tilt, in electric (E) and air powered (A) versions, rated 500 lb (227 kg), with rubber or foam seal and manual rotation versions. Dimension drawings and specifications for each model are below.
Two pad vacuum lifters with powered 90° tilt
For standard two pad lifters with powered 90° tilt – capacity up to 500 lb (227 kg)
Manufacturer PDF
ANVER vacuum tilters and upenders are loaded with safety features and have come to set the standard for safe tilting of loads. Each version has been revised over the years to perform better and last longer. The pads, vacuum generators, frame, controls, hardware, filters, safety features, handlebars, etc. are all new and improved. Every aspect of the lifters has been redesigned and the latest represent the best tilters available.
The standard electric-powered and air-powered series vacuum lifters/tilters are designed to significantly reduce the effort of upending heavy loads while providing powerful suction force and 90 degree tilt capability. Built with safety in mind, these lifters/tilters are loaded with protective features including: a VLS system, 9V battery powered vacuum leakage sensor and warning system; an attach/release slide valve with safety lock; and locking knobs on the adjustable vacuum pad, slide assemblies, and crossarms (when applicable). The ET and AT series lifters/tilters are capacity rated at a maximum vacuum level of 24 in. Hg (609.6 mm Hg) with a 4:1 safety factor on vacuum holding (unless otherwise specified).
The dual filter/reservoir assembly, equipped on both electric-powered and air-powered vacuum upenders, offers a clean and reliable vacuum hold in less than ideal environments. Constructed with an ergonomic lifter handlebar, a welded steel lifting frame, and end of beam positioning handles, operators can use this equipment with ease and comfort for a wide range of loads and applications.
*Load weight and depth affect the final angle that the lifter achieves. Consult ANVER for ET/AT loads thicker than 1.18 in. (3cm) due to center of gravity offset.
Note: The unit weight does not include optional accessories.
Available with foam pads for semi-porous / textured applications like wood, stone and diamond plate. Please note that foam pads are not available for mechanical vacuum generators.
Standard air powered rubber seal tilters specifications
| Air powered lifter model | AT50M2-48 | AT50M2-61 | AT50M2-86 |
| Rated load capacity [lbs (kg.)] | 500 (227) | 500 (227) | 500 (227) |
| Unit weight [lbs (kg.)] | 175 (79) | 180 (82) | 200 (91) |
| Power required [psi] | 90-120 | 90-120 | 90-120 |
| Air consumption [SCFM (l/min.)] | *10.5 (297.3) | *10.5 (297.3) | *10.5 (297.3) |
| Tilt speed | Variable (100% duty cycle) | Variable (100% duty cycle) | Variable (100% duty cycle) |

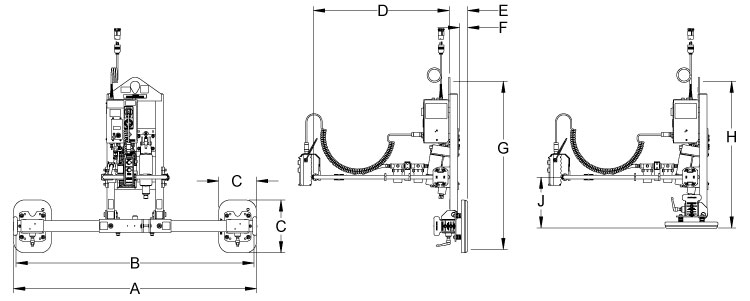

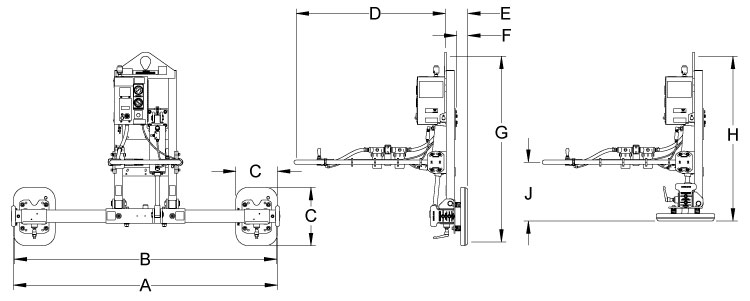

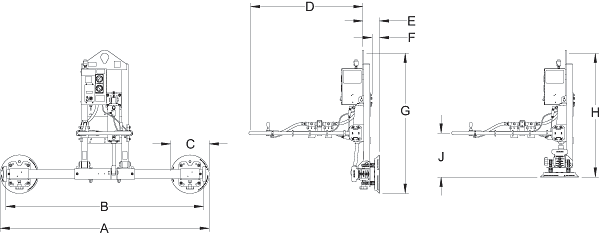

| A Pad distances max. [in. (mm)] | 53 (1346) | 66 (1676) | 91 (2311) |
| A Pad distances min. [in. (mm)] | 38 (965) | 38 (965) | 38 (965) |
| B Beam length [in. (mm)] | 50 (1270) | 63 (1600) | 88 (2235) |
| C Pad dimension [in. (mm)] | 12 (305) | 12 (305) | 12 (305) |
| D Handlebar length [in. (mm)] | 36 (914) | 36 (914) | 36 (914) |
| E Pad distance from bail [in. (mm)] | 5 (127) | 5 (127) | 5 (127) |
| F Pad distance from frame [in. (mm)] | 2 (51) | 2 (51) | 2 (51) |
| G Maximum vertical headroom [in. (mm)] | 45 (1016) | 45 (1016) | 45 (1016) |
| H Maximum horizontal headroom [in. (mm)] | 40 (1016) | 40 (1016) | 40 (1016) |
| J Pad distance from handlebar [in. (mm)] | 14 (356) | 14 (356) | 14 (356) |
| Maximum plate dimensions [ft. (m)] | 6 x 6 (1.8 x 1.8) | 8 x 6 (2.5 x 1.8) | 12 x 6 (3.7 x 1.8) |
| Pad number | VP122 | VP122 | VP122 |
| Manual rotation | No | No | No |
| Optional parking stands | PS-150-3X3 | PS-150-3X3 | PS-150-3X3 |
*Air consumption is “0” on a non-porous material once the vacuum level is reached at peak value

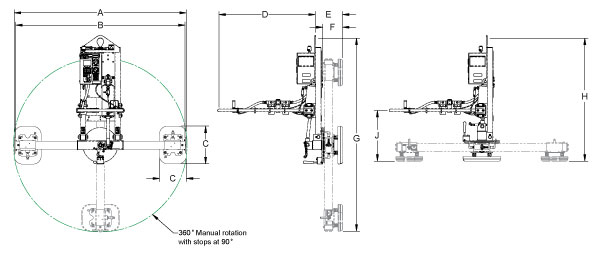

Standard air powered foam seal tilters specifications
| Air powered lifter model | AT50M2-48FP | AT50M2-61FP | AT50M2-86FP |
| Rated load capacity [lbs (kg.)] | 500 (227) | 500 (227) | 500 (227) |
| Unit weight [lbs (kg.)] | 175 (79) | 195 (88) | 215 (98) |
| Power required [psi] | 90-120 | 90-120 | 90-120 |
| Air consumption [SCFM (l/min.)] | *10.5 (297.3) | *10.5 (297.3) | *10.5 (297.3) |
| Tilt speed | Variable (100% duty cycle) | Variable (100% duty cycle) | Variable (100% duty cycle) |
| A Pad distances max. [in. (mm)] | 49 (1245) | 64 (1626) | 89 (2261) |
| A Pad distances min. [in. (mm)] | 36 (914) | 36 (914) | 36 (914) |
| B Beam length [in. (mm)] | 50 (1270) | 63 (1600) | 88 (2235) |
| C Pad dimension [in. (mm)] | 10 x 14 (254 x 356) | 10 x 14 (254 x 356) | 10 x 14 (254 x 356) |
| D Handlebar length [in. (mm)] | 36 (914) | 36 (914) | 36 (914) |
| E Pad distance from bail [in. (mm)] | 5 (127) | 5 (127) | 5 (127) |
| F Pad distance from frame [in. (mm)] | 2 (51) | 2 (51) | 2 (51) |
| G Maximum vertical headroom [in. (mm)] | 46 (1168) | 46 (1168) | 46 (1168) |
| H Maximum horizontal headroom [in. (mm)] | 40 (1016) | 40 (1016) | 40 (1016) |
| J Pad distance from handlebar [in. (mm)] | 14 (356) | 14 (356) | 14 (356) |
| Maximum plate dimensions [ft. (m)] | 6 x 6 (1.8 x 1.8) | 8 x 6 (2.5 x 1.8) | 12 x 6 (3.7 x 1.8) |
| Pad number | FP100140 | FP100140 | FP100140 |
| Manual rotation | No | No | No |
| Optional parking stands | PS-150-3X3 | PS-150-3X3 | PS-150-3X3 |

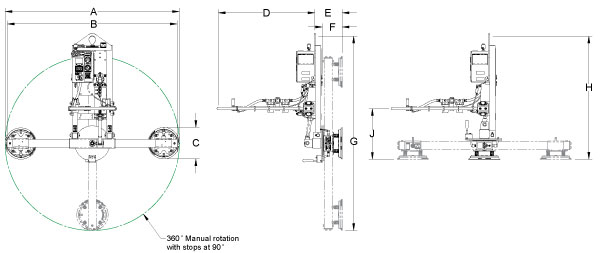

Standard air powered rubber seal tilter/rotator specifications
| Air powered lifter model | AT50M2-48MR | AT50M2-61MR | AT50M2-86MR |
| Rated load capacity [lbs (kg.)] | 500 (227) | 500 (227) | 500 (227) |
| Unit weight [lbs (kg.)] | 210 (96) | 220 (100) | 228 (104) |
| Power required [psi] | 90-120 | 90-120 | 90-120 |
| Air consumption [SCFM (l/min.)] | *10.5 (297.3) | *10.5 (297.3) | *10.5 (297.3) |
| Tilt speed | Variable (100% duty cycle) | Variable (100% duty cycle) | Variable (100% duty cycle) |

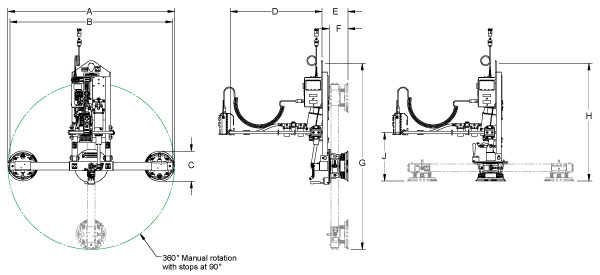

| A Pad distances max. [in. (mm)] | 53 (1346) | 66 (1676) | 91 (2311) |
| A Pad distances min. [in. (mm)] | 32 (812) | 32 (812) | 32 (812) |
| B Beam length [in. (mm)] | 50 (1270) | 63 (1600) | 88 (2235) |
| C Pad dimension [in. (mm)] | 12 (305) | 12 (305) | 12 (305) |
| D Handlebar length [in. (mm)] | 36 (914) | 36 (914) | 36 (914) |
| E Pad distance from bail [in. (mm)] | 10 (254) | 10 (254) | 10 (254) |
| F Pad distance from frame [in. (mm)] | 7 (177) | 7 (177) | 7 (177) |
| G Maximum vertical headroom [in. (mm)] | 59 (1499) | 72 (1829) | 97 (2464) |
| H Maximum horizontal headroom [in. (mm)] | 46 (1169) | 46 (1169) | 46 (1169) |
| J Pad distance from handlebar [in. (mm)] | 19 (482) | 19 (482) | 19 (482) |
| Maximum plate dimensions [ft. (m)] | 6 x 6 (1.8 x 1.8) | 8 x 6 (2.5 x 1.8) | 12 x 6 (3.7 x 1.8) |
| Pad number | VP122 | VP122 | VP122 |
| Manual rotation | Yes | Yes | Yes |
| Optional parking stands | PS-150-3X3 | PS-150-3X3 | PS-150-3X3 |
Standard air powered foam seal tilter/rotator specifications
| Air powered lifter model | AT50M2-48FP-MR | AT50M2-61FP-MR | AT50M2-86FP-MR |
| Rated load capacity [lbs (kg.)] | 500 (227) | 500 (227) | 500 (227) |
| Unit weight [lbs (kg.)] | 225 (102) | 235 (107) | 243 (111) |
| Power required [psi] | 90-120 | 90-120 | 90-120 |
| Air consumption [SCFM (l/min.)] | *10.5 (297.3) | *10.5 (297.3) | *10.5 (297.3) |
| Tilt speed | Variable (100% duty cycle) | Variable (100% duty cycle) | Variable (100% duty cycle) |
| A Pad distances max. [in. (mm)] | 49 (1245) | 64 (1626) | 89 (2261) |
| A Pad distances min. [in. (mm)] | 30 (762) | 30 (762) | 30 (762) |
| B Beam length [in. (mm)] | 50 (1270) | 63 (1600) | 88 (2235) |
| C Pad dimension [in. (mm)] | 10 x 14 (254 x 356) | 10 x 14 (254 x 356) | 10 x 14 (254 x 356) |
| D Handlebar length [in. (mm)] | 36 (914) | 36 (914) | 36 (914) |
| E Pad distance from bail [in. (mm)] | 10 (254) | 10 (254) | 10 (254) |
| F Pad distance from frame [in. (mm)] | 7 (177) | 7 (177) | 7 (177) |
| G Maximum vertical headroom [in. (mm)] | 59 (1499) | 72 (1829) | 97 (2464) |
| H Maximum horizontal headroom [in. (mm)] | 46 (1169) | 46 (1169) | 46 (1169) |
| J Pad distance from handlebar [in. (mm)] | 19 (482) | 19 (482) | 19 (482) |
| Maximum plate dimensions [ft. (m)] | 6 x 6 (1.8 x 1.8) | 8 x 6 (2.5 x 1.8) | 12 x 6 (3.7 x 1.8) |
| Pad number | FP100140 | FP100140 | FP100140 |
| Manual rotation | Yes | Yes | Yes |
| Optional parking stands | PS-150-3X3 | PS-150-3X3 | PS-150-3X3 |

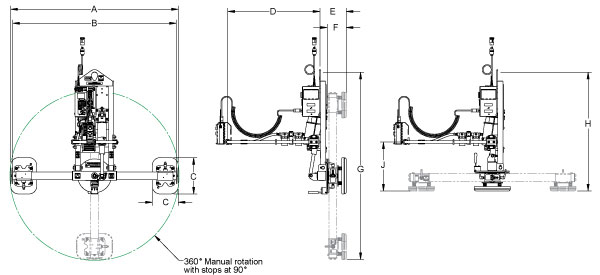

Standard electric powered rubber seal lifting tilters specifications
| Electric powered lifter model | ET50M2-48 | ET50M2-61 | ET50M2-86 |
| Rated load capacity [lbs (kg.)] | 500 (227) | 500 (227) | 500 (227) |
| Unit weight [lbs (kg.)] | 195 (88) | 208 (94) | 230 (104) |
| Power required | 115V/60Hz/1Ph/11A | 115V/60Hz/1Ph/11A | 115V/60Hz/1Ph/11A |
| Tilt speed [sec.] | 8 (**25% duty cycle) | 8 (**25% duty cycle) | 8 (**25% duty cycle) |
| Tilt cycles per hour | 56 | 56 | 56 |

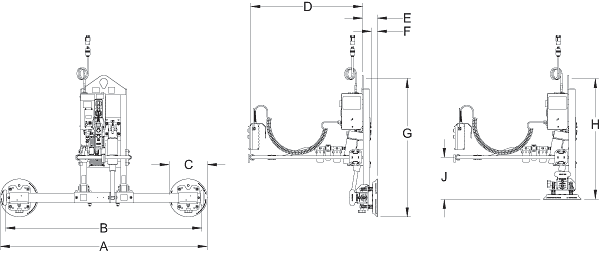

| A Pad distances max. [in. (mm)] | 53 (1346) | 66 (1676) | 91 (2311) |
| A Pad distances min. [in. (mm)] | 38 (965) | 38 (965) | 38 (965) |
| B Beam length [in. (mm)] | 50 (1270) | 63 (1600) | 88 (2235) |
| C Pad dimension [in. (mm)] | 12 (305) | 12 (305) | 12 (305) |
| D Handlebar length [in. (mm)] | 36 (914) | 36 (914) | 36 (914) |
| E Pad distance from bail [in. (mm)] | 5 (127) | 5 (127) | 5 (127) |
| F Pad distance from frame [in. (mm)] | 2 (51) | 2 (51) | 2 (51) |
| G Maximum vertical headroom [in. (mm)] | 45 (1016) | 45 (1016) | 45 (1016) |
| H Maximum horizontal headroom [in. (mm)] | 40 (1016) | 40 (1016) | 40 (1016) |
| J Pad distance from handlebar [in. (mm)] | 14 (356) | 14 (356) | 14 (356) |
| Maximum plate dimensions [ft. (m)] | 6 x 6 (1.8 x 1.8) | 8 x 6 (2.5 x 1.8) | 12 x 6 (3.7 x 1.8) |
| Pad number | VP122 | VP122 | VP122 |
| Manual rotation | No | No | No |
| Optional parking stands | PS-150-3X3 | PS-150-3X3 | PS-150-3X3 |
**Example of “25% duty cycle”: 25 seconds continuous, 75 seconds rest.
Standard electric powered foam seal lifting tilters specifications
| Electric powered lifter model | ET50M2-48FP | ET50M2-61FP | ET50M2-86FP |
| Rated load capacity [lbs (kg.)] | 500 (227) | 500 (227) | 500 (227) |
| Unit weight [lbs (kg.)] | 195 (88) | 225 (102) | 245 (111) |
| Power required | 115V/60Hz/1Ph/11A | 115V/60Hz/1Ph/11A | 115V/60Hz/1Ph/11A |
| Tilt speed [sec.] | 8 (**25% duty cycle) | 8 (**25% duty cycle) | 8 (**25% duty cycle) |
| Tilt cycles per hour | 56 | 56 | 56 |
| A Pad distances max. [in. (mm)] | 49 (1245) | 64 (1626) | 89 (2261) |
| A Pad distances min. [in. (mm)] | 36 (914) | 36 (914) | 36 (914) |
| B Beam length [in. (mm)] | 50 (1270) | 63 (1600) | 88 (2235) |
| C Pad dimension [in. (mm)] | 10 x 14 (254 x 356) | 10 x 14 (254 x 356) | 10 x 14 (254 x 356) |
| D Handlebar length [in. (mm)] | 36 (914) | 36 (914) | 36 (914) |
| E Pad distance from bail [in. (mm)] | 5 (127) | 5 (127) | 5 (127) |
| F Pad distance from frame [in. (mm)] | 2 (51) | 2 (51) | 2 (51) |
| G Maximum vertical headroom [in. (mm)] | 46 (1168) | 46 (1168) | 46 (1168) |
| H Maximum horizontal headroom [in. (mm)] | 40 (1016) | 40 (1016) | 40 (1016) |
| J Pad distance from handlebar [in. (mm)] | 14 (356) | 14 (356) | 14 (356) |
| Maximum plate dimensions [ft. (m)] | 6 x 6 (1.8 x 1.8) | 8 x 6 (2.5 x 1.8) | 12 x 6 (3.7 x 1.8) |
| Pad number | FP100140 | FP100140 | FP100140 |
| Manual rotation | No | No | No |
| Optional parking stands | PS-150-3X3 | PS-150-3X3 | PS-150-3X3 |
**Example of “25% duty cycle”: 25 seconds continuous, 75 seconds rest.
Standard electric powered rubber seal tilter/rotator specifications
| Electric powered lifter model | ET50M2-48MR | ET50M2-61MR | ET50M2-86MR |
| Rated load capacity [lbs (kg.)] | 500 (227) | 500 (227) | 500 (227) |
| Unit weight [lbs (kg.)] | 230 (105) | 240 (109) | 248 (113) |
| Power required | 115V/60Hz/1Ph/11A | 115V/60Hz/1Ph/11A | 115V/60Hz/1Ph/11A |
| Tilt speed [sec.] | 8 (**25% duty cycle) | 8 (**25% duty cycle) | 8 (**25% duty cycle) |
| Tilt cycles per hour | 56 | 56 | 56 |
| A Pad distances max. [in. (mm)] | 53 (1346) | 66 (1676) | 91 (2311) |
| A Pad distances min. [in. (mm)] | 32 (812) | 32 (812) | 32 (812) |
| B Beam length [in. (mm)] | 50 (1270) | 63 (1600) | 88 (2235) |
| C Pad dimension [in. (mm)] | 12 (305) | 12 (305) | 12 (305) |
| D Handlebar length [in. (mm)] | 36 (914) | 36 (914) | 36 (914) |
| E Pad distance from bail [in. (mm)] | 10 (254) | 10 (254) | 10 (254) |
| F Pad distance from frame [in. (mm)] | 7 (177) | 7 (177) | 7 (177) |
| G Maximum vertical headroom [in. (mm)] | 59 (1499) | 72 (1829) | 97 (2464) |
| H Maximum horizontal headroom [in. (mm)] | 46 (1169) | 46 (1169) | 46 (1169) |
| J Pad distance from handlebar [in. (mm)] | 19 (482) | 19 (482) | 19 (482) |
| Maximum plate dimensions [ft. (m)] | 6 x 6 (1.8 x 1.8) | 8 x 6 (2.5 x 1.8) | 12 x 6 (3.7 x 1.8) |
| Pad number | VP122 | VP122 | VP122 |
| Manual rotation | Yes | Yes | Yes |
| Optional parking stands | PS-150-3X3 | PS-150-3X3 | PS-150-3X3 |
**Example of “25% duty cycle”: 25 seconds continuous, 75 seconds rest.
Standard electric powered foam seal tilter/rotator specifications
| Electric powered lifter model | ET50M2-48FP-MR | ET50M2-61FP-MR | ET50M2-86FP-MR |
| Rated load capacity [lbs (kg.)] | 500 (227) | 500 (227) | 500 (227) |
| Unit weight [lbs (kg.)] | 245 (112) | 255 (116) | 263 (120) |
| Power required | 115V/60Hz/1Ph/11A | 115V/60Hz/1Ph/11A | 115V/60Hz/1Ph/11A |
| Tilt speed [sec.] | 8 (**25% duty cycle) | 8 (**25% duty cycle) | 8 (**25% duty cycle) |
| Tilt cycles per hour | 56 | 56 | 56 |
| A Pad distances max. [in. (mm)] | 49 (1245) | 64 (1626) | 89 (2261) |
| A Pad distances min. [in. (mm)] | 30 (762) | 30 (762) | 30 (762) |
| B Beam length [in. (mm)] | 50 (1270) | 63 (1600) | 88 (2235) |
| C Pad dimension [in. (mm)] | 10 x 14 (254 x 356) | 10 x 14 (254 x 356) | 10 x 14 (254 x 356) |
| D Handlebar length [in. (mm)] | 36 (914) | 36 (914) | 36 (914) |
| E Pad distance from bail [in. (mm)] | 10 (254) | 10 (254) | 10 (254) |
| F Pad distance from frame [in. (mm)] | 7 (177) | 7 (177) | 7 (177) |
| G Maximum vertical headroom [in. (mm)] | 59 (1499) | 72 (1829) | 97 (2464) |
| H Maximum horizontal headroom [in. (mm)] | 46 (1169) | 46 (1169) | 46 (1169) |
| J Pad distance from handlebar [in. (mm)] | 19 (482) | 19 (482) | 19 (482) |
| Maximum plate dimensions [ft. (m)] | 6 x 6 (1.8 x 1.8) | 8 x 6 (2.5 x 1.8) | 12 x 6 (3.7 x 1.8) |
| Pad number | FP100140 | FP100140 | FP100140 |
| Manual rotation | Yes | Yes | Yes |
| Optional parking stands | PS-150-3X3 | PS-150-3X3 | PS-150-3X3 |
**Example of “25% duty cycle”: 25 seconds continuous, 75 seconds rest.
13600021
Related pages
Need an ANVER system for your load?
Send photos, weight and dimensions of the load. FullSharp represents ANVER and replies with a configuration and quote within 24 hours.
