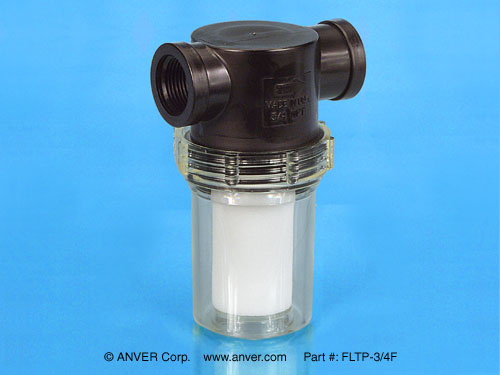

ANVER FLTP-3/4F plastic in-line vacuum filter

FLTP-3/4F is an ANVER plastic in-line vacuum filter with a 3/4″ NPT female port. The table lists dimensions A, B, C, D, filter area and the replacement element number.

Request a quote

ANVER vacuum filters
Plastic in-line type
Part number: FLTP-3/4F

FLTP-3/4F

Diagram of plastic in-line vacuum filters

ANVER part no.

P-Series filter number*

A
in.
(mm)

B
in.
(mm)

C
in.
(mm)

D
in.
(mm)

Filter area in.² (cm²)

Item weight oz. (grams)

Pipe thread (NPT)

Replacement element number

P-Series element no.**

3D model

FLTP-3/4F

PPSF
.75-X35

3.6
(91.4)

5.4
(137.2)

2.9
(73.6)

4.6
(116.9)

19
(123)

6.861
(194.5)

3/4″ NPT female

FLTPE-2 White, 72-150 micron

FLTPE-2B Blue, 150-200 micron

PPX35RE3
