Equipment › ANVER vacuum lifters › 90° Powered Tilters › Single pad 90° tilter, 80 lb › FLTP plastic vacuum filters › FLTP-1F vacuum filter

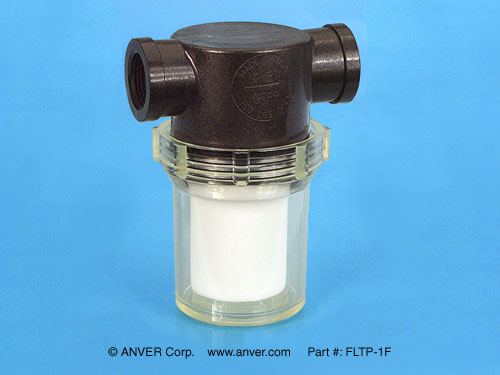

ANVER FLTP-1F plastic in-line vacuum filter

FLTP-1F is an ANVER plastic in-line vacuum filter with a 1″ NPT female port. The table lists dimensions A, B, C, D, filter area and the replacement element number.

Request a quote

ANVER vacuum filters
Plastic in-line type
Part number: FLTP-1F

FLTP-1F
Diagram of plastic in-line vacuum filters

ANVER part no.

P-Series filter number*

A
in.
(mm)

B
in.
(mm)

C
in.
(mm)

D
in.
(mm)

Filter area in.² (cm²)

Pipe thread (NPT)

Replacement element numberP-Series element no.**
3D model

FLTP-1F

PPSF
1.0-X50

4.9
(124.5)

6.4
(162.6)

4.0
(101.6)

5.6
(142.2)

33
(213)

1″ NPT female

FLTPE-3 White, 72-150 micronPPX50RE3
