ANVER L420M2 2-pad vacuum lifting frame, 4200 lb

The L420M2-86 is a standard two-pad ANVER lifting frame that pairs with a vacuum generator to handle carbon and stainless steel sheets and plates, rated at 4200 lb (1905 kg). Below are the dimension drawing, model specifications and compatible vacuum generators.

Request a quote

Two pad vacuum lifter lifting frames – for standard two pad lifters – capacity up to 4200 lb (1905 kg)
Manufacturer PDF

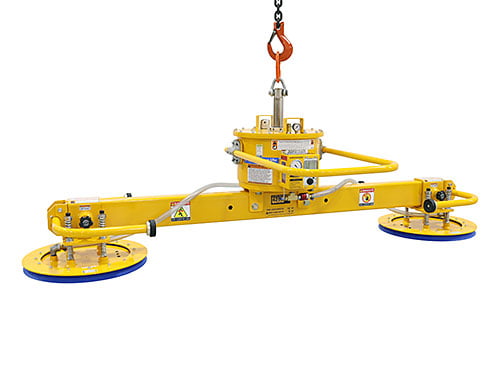

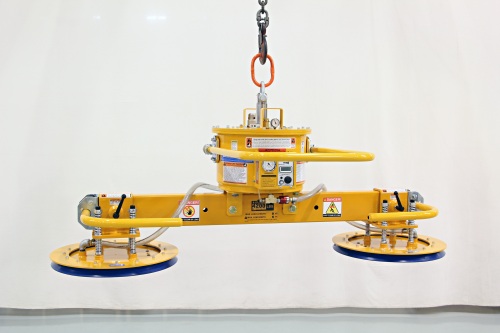

ANVER M250M-L-L420M2-86 vacuum lifter ANVER M250M-L_L420M2-61 vacuum lifter M250M-L & L420M2-86 M250M-L_L420M2-61

ANVER’s standard vacuum lifters offer efficient material handling solutions by promoting functionality, safety, and ergonomic operations for a wide variety of applications and materials. Standard lifting frames are built to order from stock using modular components, so there are hundreds of possible combinations depending on the vacuum generator, beam, crossarms, and vacuum cups selected.

Basic features on ANVER’s standard horizontal vacuum lifters include: vacuum leakage sensor and warning system; attach/release slide valve with safety lock; and locking hand knobs on the adjustable vacuum pad, slide assemblies, and crossarms (when applicable).

ANVER vacuum lifters comply with ASME B30.20 and ASME BTH-1 standards. Specifications and rated capacities vary by configuration, and users remain responsible for full compliance with workplace safety, inspection, and operating regulations.

The L420M2-86 two-pad lifting frame is ideal for handling carbon steel and stainless steel sheets and plates with a capacity up to 4200 lb (1905 kg). This lifting frame is compatible with a mechanical, self-powered vacuum generator. Foam pads are not available for mechanical vacuum generators.

*Lifting frame shown with vacuum generator and/or optional accessories, not included. Unit weight does not include optional equipment.

Standard rubber seal lifting frames specifications

L420M2 dimension drawing

Compatible vacuum generators
Mechanical
ANVER M250M mechanical vacuum generator
M250M series
Lifting frame numberL420M2-86
Rated load capacity [lbs (kg)]4200 (1905)
Unit weight [lbs (kg)]309 (140)
A Pad diameter [in. (mm)]24 (610)
B Lifting frame headroom [in. (mm)]11 (279)
C Beam length [in. (mm)]86 (2184)
D1 Standard hardware mtg. centers [in. (mm)]9 (229)
D2 Inner alternate hardware mtg. centers [in. (mm)]12 (305)
D3 Outer alternate hardware mtg. centers [in. (mm)]22.38 (568)
E Pad distances max. [in. (mm)]103.5 (2629)
E Pad distances min. with M250M [in. (mm)]44.5 (1130)
Maximum sheet size [ft (m)]12 x 6 (3.7 x 1.8)
Seal numberSR-235M
Optional parking stands72000038

Various plate sizes can be handled by adjusting the vacuum pad positions on the beam

2-pad frame pad position diagram
Vacuum pads in fully extended position to handle maximum plate size.
2-pad frame pad position diagram
Vacuum pads moved inwards to handle shorter plate.
