ANVER L300M6 6-pad vacuum lifting frame, 3000 lb

The L300M6 series (6 versions) are standard six-pad ANVER lifting frames with adjustable crossarms that pair with a vacuum generator to handle carbon and stainless steel sheets and plates, rated at 3000 lb (1361 kg). Below are the dimension drawing, model specifications and compatible vacuum generators.

Request a quote

Six pad vacuum lifter lifting frames – for standard six pad lifters with adjustable crossarms – capacity up to 3000 lb (1361 kg)
Manufacturer PDF

ANVER VPF-57HD-DCP-L3P_6P-L300M6-110-3/44 vacuum lifter

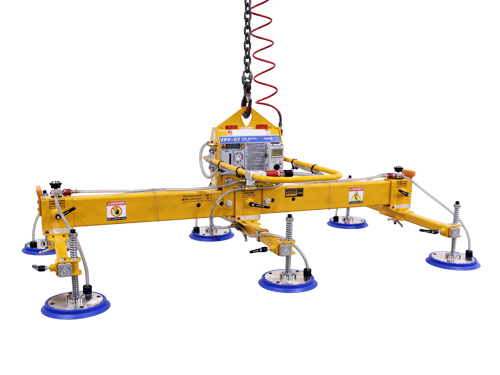

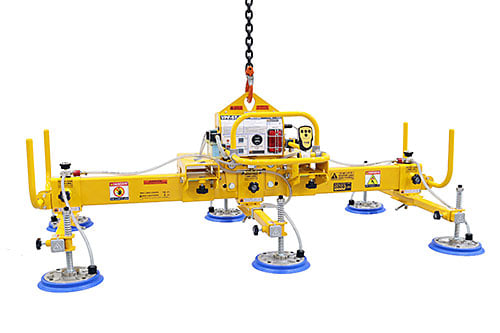

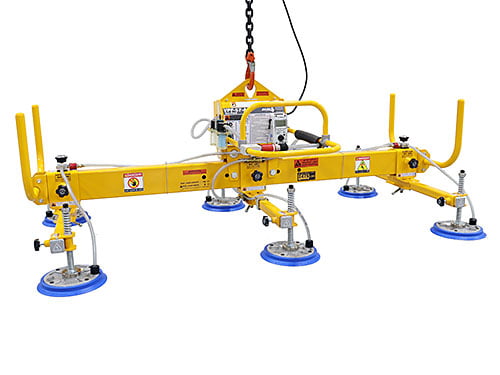

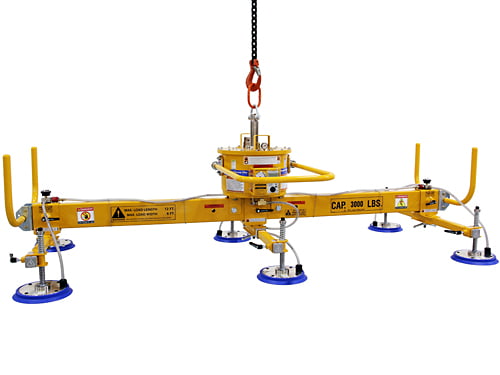

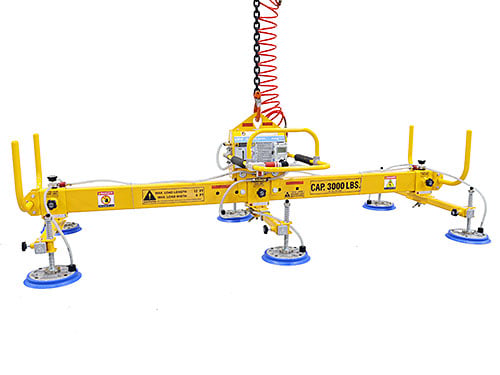

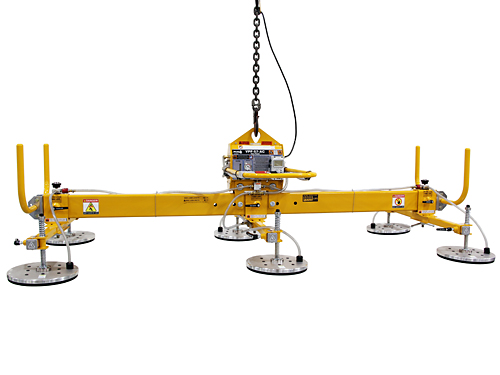

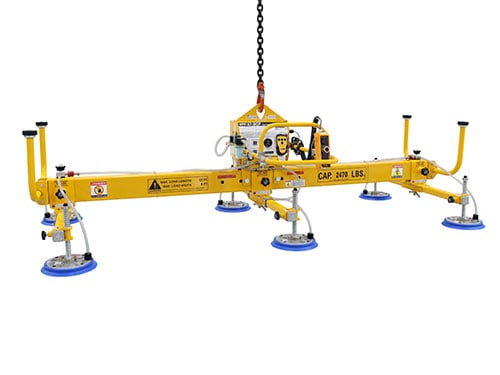

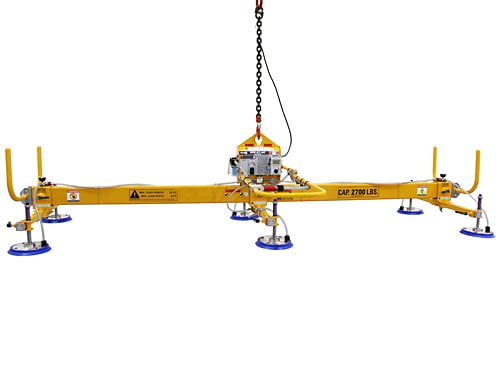

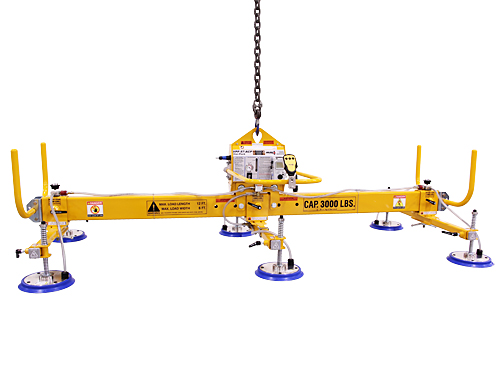

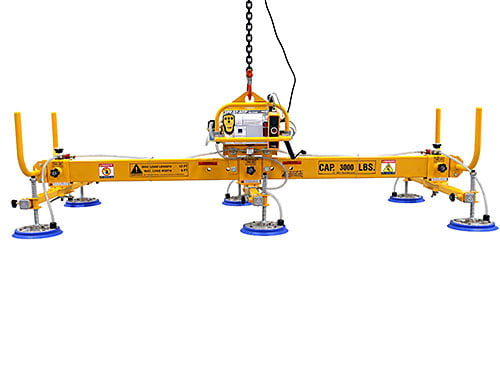

ANVER VPF-57HD-DCP-L3P_6P-L300M6-110-3/44 vacuum lifterANVER VPF-57HD-AC-L300M6-86-3/44 vacuum lifterANVER VPF-57_20HD-AIR-L300M6-110-3/44 vacuum lifterANVER VPF-57HD-DCP-L300M6-86-3/44 vacuum lifterANVER VPF-57-ACP-L300M6-110-3/44 vacuum lifterANVER VPF-57/20-AIR-L300M6-86-3/44b vacuum lifterANVER M250M-L300M6-150-3/44 vacuum lifterANVER VPF-57HD-AC-L300M6-110-3/44FP vacuum lifterANVER VPF-57HD-ACP-L300M6-110-3/44 vacuum lifterANVER VPF-57HD-AC-L300M6-150-3/44 vacuum lifterANVER M250M-L300M6-110-3/44 vacuum lifter

ANVER’s standard vacuum lifters offer efficient material handling solutions by promoting functionality, safety, and ergonomic operations for a wide variety of applications and materials. Standard lifting frames are built to order from stock using modular components, so there are hundreds of possible combinations depending on the vacuum generator, beam, crossarms, and vacuum cups selected.

Basic features on ANVER’s standard horizontal vacuum lifters include: vacuum leakage sensor and warning system; attach/release slide valve with safety lock; and locking hand knobs on the adjustable vacuum pad, slide assemblies, and crossarms (when applicable).

ANVER vacuum lifters comply with ASME B30.20 and ASME BTH-1 standards. Specifications and rated capacities vary by configuration, and users remain responsible for full compliance with workplace safety, inspection, and operating regulations.

The L300M6-86-3/44, -110-3/44, and -150-3/44 six-pad lifting frames are ideal for handling carbon steel and stainless steel sheets and plates with a maximum capacity of 3000 lb (1361 kg). The type of vacuum lifter – mechanical, air, or electric – paired with the number of pads used will depend on your application needs. Available with foam pads for semi-porous / textured applications like wood, stone and diamond plate. Please note that foam pads are not available for mechanical vacuum generators.

*Lifting frame shown with vacuum generator and/or optional accessories, not included. Unit weight does not include optional equipment.

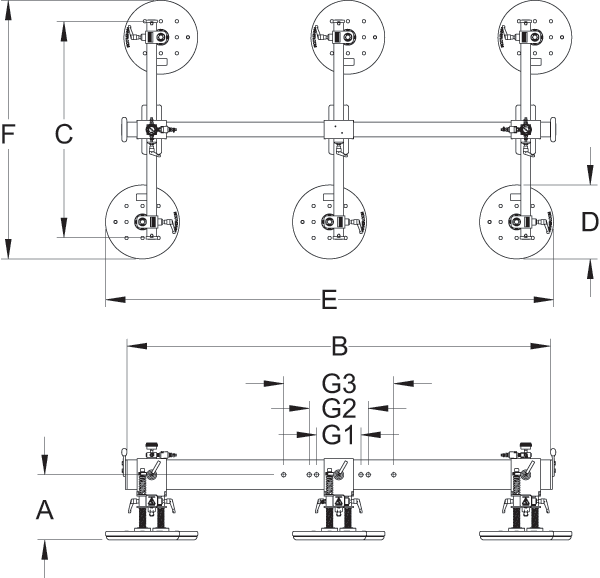

Standard rubber seal lifting frames specificationsL300M6 dimension drawing

Compatible vacuum generators
Mechanical Air, electric or battery* Electric Battery* Electric
ANVER M250M mechanical vacuum generator ANVER VPF-57 vacuum generatorANVER VPE1-GEN3 vacuum generatorANVER BAE1-GEN3 vacuum generator ANVER VPE3-GEN2 vacuum generator
M250M series VPF-57 series VPE1-GEN3 series BAE1-GEN3 series VPE3-GEN3 series
Lifting frame numberL300M6-86-3/44L300M6-110-3/44L300M6-150-3/44
Rated load capacity [lbs (kg)]3000 (1361)3000 (1361)3000 (1361)
Unit weight [lbs (kg)]278 (126)301 (137)375 (170)
A Lifting frame headroom [in. (mm)]13 (330)13 (330)13 (330)
B Spreader beam length [in. (mm)]86 (2184)110 (2794)150 (3810)
C Crossarm length [in. (mm)]44 (1118)44 (1118)44 (1118)
D Pad diameter [in. (mm)]12 (305)12 (305)12 (305)
E Outer pad distances maximum [in. (mm)]96 (2438)120 (3048)160 (4064)
E Outer pad distances minimum [in. (mm)]47 (1194)47 (1194)47 (1194)
F Outer pad distances maximum [in. (mm)]53 (1346)53 (1346)53 (1346)
F Outer pad distances minimum [in. (mm)]26 (660)26 (660)26 (660)
G1 Standard hardware mtg. centers [in. (mm)]9 (229)9 (229)9 (229)
G2 Inner alternate hardware mtg. centers [in. (mm)]12 (305)12 (305)12 (305)
G3 Outer alternate hardware mtg. centers [in. (mm)]23.38 (594)23.38 (594)23.38 (594)
Maximum sheet size [ft (m)]10 x 6 (3.0 x 1.8)12 x 6 (3.7 x 1.8)16 x 8 (4.9 x 2.4)
Seal numberSSR-122SSR-122SSR-122
Optional parking stands720000387200003872000038

Standard foam seal lifting frames specifications
Note: foam pads are available for air and electric powered vacuum generators only.

L300M6 dimension drawing

Compatible vacuum generators
Air, electric or battery* Electric Battery* Electric
ANVER VPF-57 vacuum generatorANVER VPE1-GEN3 vacuum generatorANVER BAE1-GEN3 vacuum generator ANVER VPE3-GEN2 vacuum generator
VPF-57 series VPE1-GEN3 series BAE1-GEN3 series VPE3-GEN3 series
Lifting frame numberL300M6-86-3/44FPL300M6-110-3/44FPL300M6-150-3/44FP
Rated load capacity [lbs (kg)]3000 (1361)3000 (1361)3000 (1361)
Unit weight [lbs (kg)]320 (145)343 (156)417 (190)
A Lifting frame headroom [in. (mm)]14 (356)14 (356)14 (356)
B Spreader beam length [in. (mm)]86 (2184)110 (2794)150 (3810)
C Crossarm length [in. (mm)]44 (1118)44 (1118)44 (1118)
D Pad diameter [in. (mm)]15 (381)15 (381)15 (381)
E Outer pad distances maximum [in. (mm)]96 (2438)120 (3048)160 (4064)
E Outer pad distances minimum [in. (mm)]46 (1168)46 (1168)46 (1168)
F Outer pad distances maximum [in. (mm)]55 (1397)55 (1397)55 (1397)
F Outer pad distances minimum [in. (mm)]31 (787)31 (787)31 (787)
G1 Standard hardware mtg. centers [in. (mm)]9 (229)9 (229)9 (229)
G2 Inner alternate hardware mtg. centers [in. (mm)]12 (305)12 (305)12 (305)
G3 Outer alternate hardware mtg. centers [in. (mm)]22.38 (594)22.38 (594)22.38 (594)
Maximum sheet size [ft (m)]10 x 6 (3.0 x 1.8)12 x 6 (3.7 x 1.8)16 x 8 (4.9 x 2.4)
Seal numberFP150FP150FP150
Optional parking stands720000387200003872000038

*Battery powered vacuum generators are only recommended when handling non-porous loads.

Various plate sizes can be handled by adjusting the vacuum pad positions on the beam

6-pad H-style frame pad position diagram
Crossarms and vacuum pads in maximum position to handle maximum plate size.
6-pad H-style frame pad position diagram
Crossarms can pivot to near parallel with spreader beam to handle narrow plates.
6-pad H-style frame pad position diagram
Vacuum pads and crossarms fully adjustable to handle short and narrow plates.
6-pad H-style frame pad position diagram
Inner crossarms and vacuum pads (1/3 capacity) for use with smaller plates. Outer crossarms provided with shut-off valves.

13600072 A
