ANVER L330M3 3-pad vacuum lifting frame, 3300 lb

The L330M3-86, L330M3-110 and L330M3-150 are standard three-pad ANVER lifting frames that pair with a vacuum generator to handle carbon and stainless steel sheets and plates, rated at 3300 lb (1497 kg). Below are the dimension drawing, model specifications and compatible vacuum generators.

Request a quote

Three pad vacuum lifter lifting frames – for standard three pad lifters – capacity up to 3300 lb (1497 kg)
Manufacturer PDF

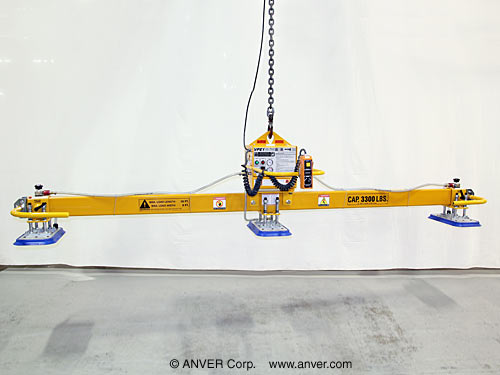

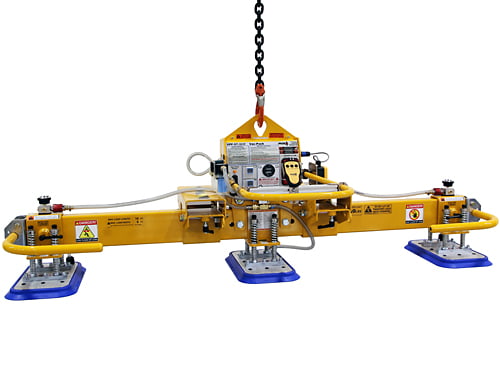

ANVER M250M-L330M3-86 vacuum lifter

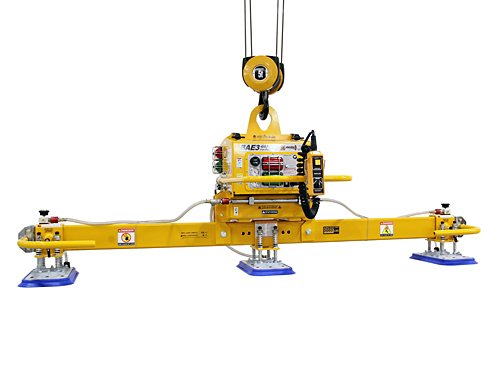

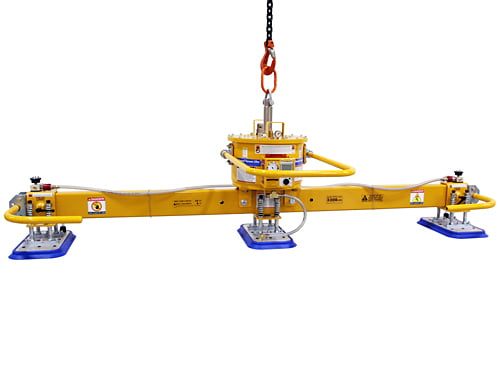

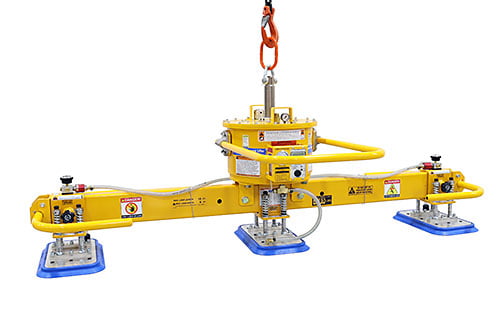

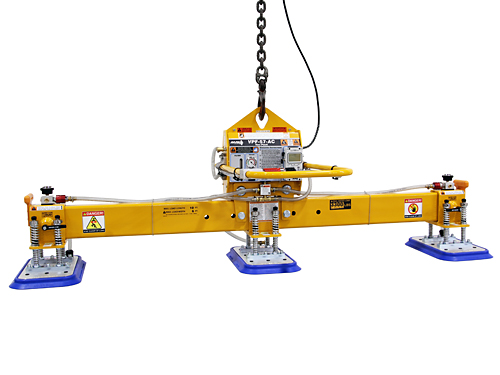

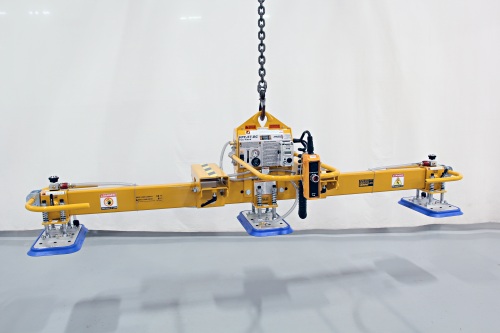

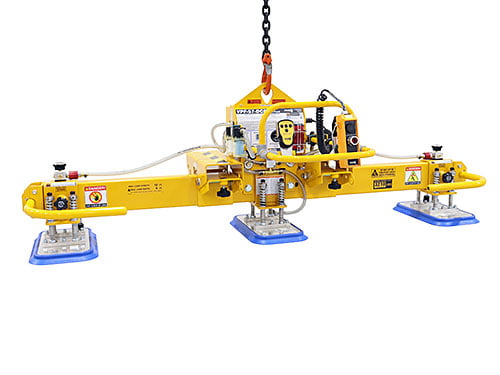

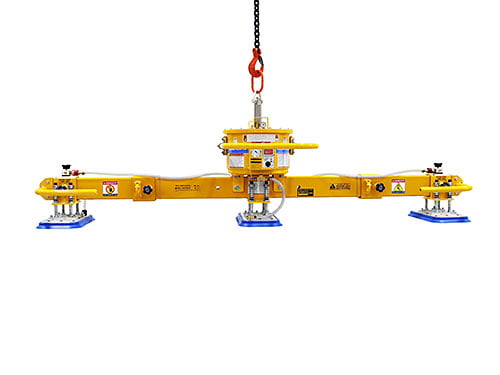

ANVER M250M-L330M3-86 vacuum lifterANVER VPF-57HD-DCP-L330M3-86 vacuum lifterANVER VPF-57HD-AC-L330M3-86 vacuum lifterANVER VPF-57HD-DCP-L330M3-86 vacuum lifterANVER M250M-L330M3-1101 vacuum lifterANVER BAE3-GEN2-S-L330M3-110 vacuum lifterANVER M250M-L330M3-150 vacuum lifterANVER VPE1-HD-L330M3-150 vacuum lifterANVER VPF-57HD-DCP_L330M3-110_FTA vacuum lifter

ANVER’s standard vacuum lifters offer efficient material handling solutions by promoting functionality, safety, and ergonomic operations for a wide variety of applications and materials. Standard lifting frames are built to order from stock using modular components, so there are hundreds of possible combinations depending on the vacuum generator, beam, crossarms, and vacuum cups selected.

Basic features on ANVER’s standard horizontal vacuum lifters include: vacuum leakage sensor and warning system; attach/release slide valve with safety lock; and locking hand knobs on the adjustable vacuum pad, slide assemblies, and crossarms (when applicable).

ANVER vacuum lifters comply with ASME B30.20 and ASME BTH-1 standards. Specifications and rated capacities vary by configuration, and users remain responsible for full compliance with workplace safety, inspection, and operating regulations.

The L330M3-86, -110, and -150 three-pad lifting frames are ideal for handling carbon steel and stainless steel sheets and plates with a maximum capacity of 3300 lb (1497 kg). The type of vacuum lifter – mechanical, air, or electric – paired with the number of pads used will depend on your application needs. Foam pads are not available for mechanical vacuum generators.

*Lifting frame shown with vacuum generator and/or optional accessories, not included. Unit weight does not include optional equipment.

Standard rubber seal lifting frames specifications

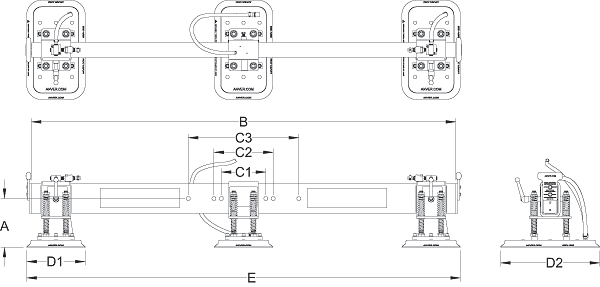

L330M3 dimension drawing

Compatible vacuum generators
Mechanical Air, electric or battery* Electric Battery* Electric Battery*
ANVER M250M mechanical vacuum generator ANVER VPF-57 vacuum generatorANVER VPE1-GEN3 vacuum generatorANVER BAE1-GEN3 vacuum generator ANVER VPE3-GEN2 vacuum generator ANVER BAE3-GEN2 vacuum generator
M250M series VPF-57 series VPE1-GEN3 series BAE1-GEN3 series VPE3-GEN3 series BAE3-GEN3 series
Lifting frame numberL330M3-86L330M3-110L330M3-150
Rated load capacity [lbs (kg)]3300 (1497)3300 (1497)3300 (1497)
Unit weight [lbs (kg)]219 (99)240 (109)276 (125)
A Lifting frame headroom [in. (mm)]10 (254)10 (254)10 (254)
B Beam length [in. (mm)]86 (2184)110 (2794)150 (3810)
C1 Standard hardware mtg. centers [in. (mm)]9 (229)9 (229)9 (229)
C2 Inner alternate hardware mtg. centers [in. (mm)]12 (305)12 (305)12 (305)
C3 Outer alternate hardware mtg. centers [in. (mm)]22.38 (568)22.38 (568)22.38 (568)
D Pad dimensions [in. (mm)]12.1 x 20.5 (307 x 521)12.1 x 20.5 (307 x 521)12.1 x 20.5 (307 x 521)
E Pad distances maximum [in. (mm)]92 (2337)116 (2946)156 (3962)
E Pad distances min. with M250M [in. (mm)]37 (940)37 (940)37 (940)
E Pad distances min. with VPF-57HD [in. (mm)]37 (940)37 (940)37 (940)
E Pad distances min. with VPE1-H [in. (mm)]37 (940)37 (940)37 (940)
E Pad distances min. with VPE3-S [in. (mm)]43 (1092)43 (1092)43 (1092)
Maximum sheet size [ft (m)]10 x 6 (3.0 x 1.8)12 x 6 (3.7 x 1.8)16 x 6 (4.9 x 1.8)
Seal numberSSR-1220SSR-1220SSR-1220
Optional parking stands720000387200003872000038

*Battery powered vacuum generators are only recommended when handling non-porous loads.

Various plate sizes can be handled by adjusting the vacuum pad positions on the beam

3-pad frame pad position diagram
Vacuum pads in maximum position to handle maximum plate size.
3-pad frame pad position diagram
Vacuum pads moved inwards to handle minimum plate size.
3-pad frame pad position diagram
Center vacuum pad (1/3 capacity) used for short, narrow plates. Outer pads provided with shut-off valves.

13600055 A
