Vacuum lifting checker plate with foam cups

Quick answer: Checker plate and rough steel surfaces have raised ribs that make standard NBR rubber cups leak, so foam vacuum cups are needed to seal around the ribs. A 3000 x 1500 x 3 mm plate weighs about 106–120 kg, under 200 kg, which suits a pneumatic vacuum lifting pad. Foam wears faster in hot, humid climates such as Vietnam, so a spare set of cups should be kept in a cool storeroom.

Why standard NBR suction cups struggle on checker plate

Checker plate (diamond plate, tread plate) has raised ribs across the whole surface. Hot-rolled plate stored for a while also becomes rusty, rough and uneven. A standard NBR rubber cup has a fairly stiff, thin lip. On this kind of surface the lip only rests on top of the ribs while the gaps between them stay open. Air keeps leaking in through those gaps, so the vacuum never builds up enough, or it builds up and then slowly drops while the plate is in the air.

On flat, clean plate an NBR cup is durable and inexpensive. On checker plate or rough surfaces it is a risk: the plate can slip, tilt or fall during travel. That is why FullSharp recommends foam vacuum cups for this group of materials.

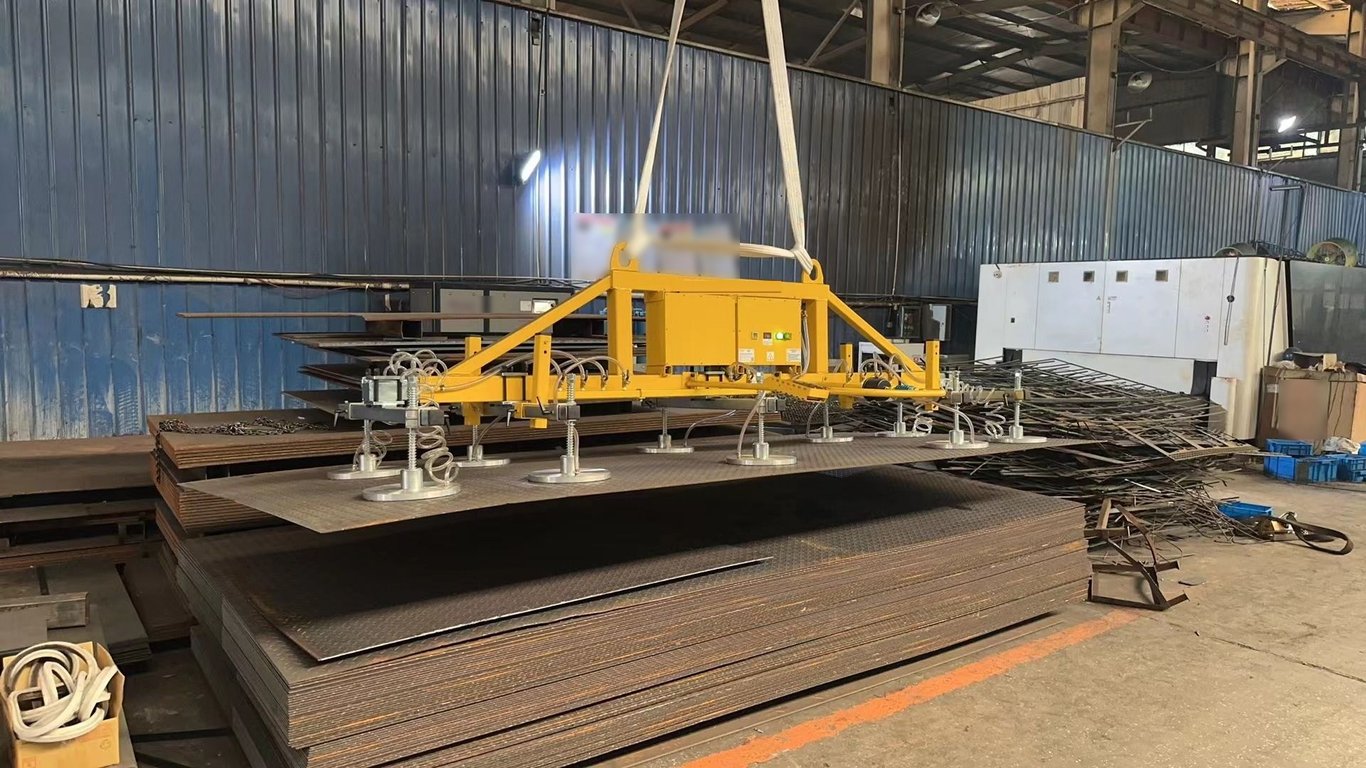

Checker plate 3000 x 1500 x 3 mm: the raised ribs let air leak under standard NBR suction cups

How foam vacuum cups seal on a ribbed surface

A foam cup has a thick, elastic closed-cell foam layer instead of a rubber lip. When the pad is lowered and vacuum starts, the foam is compressed, follows the shape of the ribs and closes most of the gaps. The vacuum zone inside is then sealed well enough to hold the plate.

On ribbed surfaces the foam can still leak slightly. The system therefore needs a vacuum source with enough flow to compensate, plus a vacuum gauge and alarm so the operator knows when vacuum falls below the safe level.

NBR cups vs foam cups

Criterion	NBR rubber cup	Foam cup
Suitable surface	Flat, smooth sheet: sheet metal, stainless, plain plate, glass	Checker plate, ribbed plate, rusty or uneven surfaces
Seal on ribbed surface	Poor, the lip only rests on the ribs	Good, the foam follows the ribs
Vacuum flow needed	Low	Higher, to compensate for slight leakage
Durability	Long life, rarely replaced	Wears faster, especially in hot, humid conditions
Running cost	Low	Budget for periodic replacement cups

Suggested setup for a 3000 x 1500 x 3 mm plate under 200 kg

A plain steel plate of 3000 x 1500 x 3 mm has an area of 4.5 m² and weighs about 106 kg. A checker plate of the same size is slightly heavier because of the ribs, and usually still stays under 200 kg. For this load the suitable setup is:

Pneumatic vacuum source: for thin, light sheets under 200 kg, a pneumatic vacuum lifting pad is the most compact and economical choice, with no electric pump.
A long frame along the 3 m side: foam cups spread evenly along the plate so the 3 mm sheet does not sag at both ends.
Supporting structure: a pneumatic jib crane for a single loading station, or a rail system with a hoist when the plate must travel along the storage area to the cutter.
Test before confirming: FullSharp tests the pad on the customer's actual plate to check sealing and holding time.

If the plate is thicker and exceeds 200 kg, move to an electric or battery-powered pad; see our metal sheet lifting solutions.

In tropical climates foam cups wear faster: keep spare cups in stock

Foam is sensitive to heat and humidity. In a hot, humid tropical climate such as Vietnam, especially under metal factory roofs in summer, the foam ages, hardens and loses elasticity faster than it does in cold countries. Sharp plate edges, burrs and rust also wear and tear the foam more quickly.

When buying the equipment, customers should therefore order a spare set of foam cups and keep it in a dry, cool storeroom away from sunlight. When the cups in use wear out, they can be replaced immediately without stopping production to wait for parts. Replace the cups when:

The foam feels hard and stays compressed instead of recovering.
The foam surface is torn, peeling at the edge or cut by plate edges.
The vacuum gauge rises more slowly or drops faster than usual on the same plate.

Safety notes for lifting rough steel plate

Always lift a few centimetres first and check the vacuum gauge before moving the plate.
Never stand or reach under a suspended plate; move slowly when changing direction.
Brush off loose rust, standing water and oil where the cups will sit.
Do not lift perforated plates or loads above the rated capacity of the pad.
Inspect foam cups daily and replace them in pairs or as a full set for even holding force.

Real projects installed by FullSharp

500kg Rail Jib Crane with Pneumatic Vacuum Lifter from Steel Sheet Rack to Cutter

Pneumatic Jib Crane with 150 kg Pneumatic Vacuum Lifter for Loading Steel Sheets onto a CNC Cutter

Jib Crane with Pneumatic Hoist and Vacuum Lifting Pad

Pneumatic Jib Crane with Vacuum Lifting Pad

Aluminum Rail with Pneumatic Hoist and Vacuum Lifting Pad

80 kg Pneumatic Jib Crane with 25 kg Vacuum Lifting Pad

500kg Rail Jib Crane with 500kg Electric Vacuum Lifter for Steel Sheets

Equipment in operation (videos)

Multi-purpose foam vacuum pad on different surfaces

Vacuum lifter with a multi-purpose foam pad

Pneumatic jib crane with a 200 kg vacuum pad for metal sheets

Pneumatic jib crane with a vacuum pad for large metal sheets

Frequently asked questions

Can checker plate be lifted with a vacuum lifter?

Yes, with foam vacuum cups. Standard NBR rubber cups only rest on the ribs, leak air and cannot hold the plate safely.

How much does a 3000 x 1500 x 3 mm steel plate weigh?

A plain plate weighs about 106 kg; a checker plate of the same size is slightly heavier because of the ribs and usually still under 200 kg.

How long do foam vacuum cups last?

It depends on the lifting frequency, how sharp the plate edges are and the workshop temperature. In hot, humid conditions foam wears faster than in cold climates, so watch its elasticity and the vacuum gauge to replace it in time.

Should I buy spare foam cups?

Yes, order them together with the equipment and store them in a dry, cool place away from sunlight, so worn cups can be replaced immediately without stopping production.

Can a pneumatic vacuum pad lift ribbed steel plate under 200 kg?

Yes. Thin, light plates under 200 kg suit a pneumatic pad, provided it uses foam cups and a stable compressed-air supply.

Send FullSharp the plate size, thickness, weight, a photo of the surface pattern and where the plate needs to go (cutter, press brake, rack), and our engineers will propose a setup and test a sample.
