ANVER VP series oval and rectangular vacuum pads with slip-on seals

VP series oval and rectangular NBR vacuum pads use short lip slip-on seals that are replaced quickly. Tables list capacities, dimensions, foam pad equivalents and suspension rods for each pad.

Made in the USA
ISO 9001:2015 certified
More than 58 years of experience

Request a quote
ANVER VP series oval and rectangular vacuum pads

Oval and rectangular vacuum pads
with slip-on seals

Manufacturer PDF

ANVER’s VP series rectangular vacuum pads are also available for use with our rigid or ball swivel suspensions. These cups have been designed using our 30+ years of experience in the vacuum handling field, making them some of the most versatile and economical vacuum cups we offer.

Features:

  • Easy-to-install replacement slip-on seals make maintenance simple and economical.
  • Short lip seals attach quickly and evenly.
  • Standard ball swivel or rigid mounting on all pads.
  • Cleated bottom maximizes capacity – excellent for both horizontal and vertical loads.
  • The standard material is nitrile (NBR). For more information on the materials, click here.

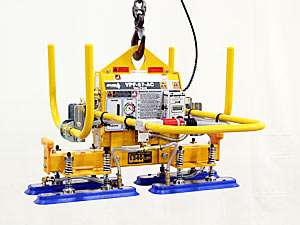

Custom pad attachment for vacuum lifter
Custom pad attachment for vacuum lifter

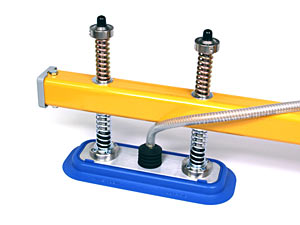

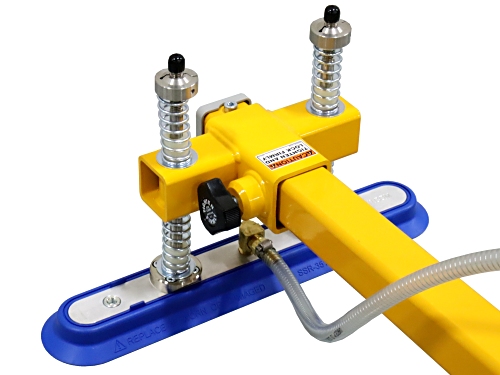

Mounted on an adjustable slide		VP pads mounted in a fixed position Mounted in a fixed position

Range of motion for adjustable slide assemblies

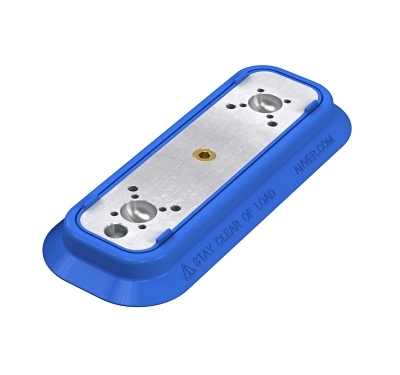

Hand replaceable seals for vacuum pads

Specifications for oval / rectangular vacuum cups:

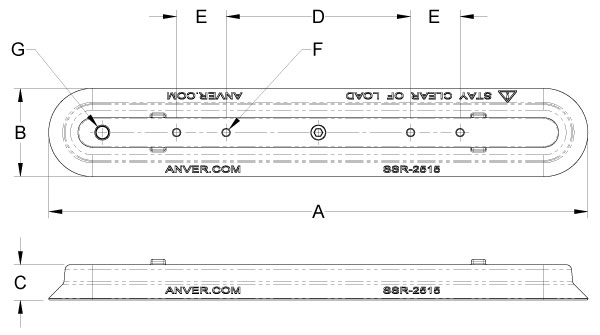

Product photoPad numberReplacement seal numberHorizontal rated load (flat) lb. (kg)Vertical rated load (horizontal cylindrical) lb. (kg)Minimum load radius in. (mm)A
in.
(mm)		B
in.
(mm)		C
in.
(mm)		D
in.
(mm)		E
in.
(mm)		F
in.
(mm) 		G Port sizeWeight lb. (kg)
VP2515-NBRSSR-2515140
(63.5)		70
(31.7)		4
(101)		15.25
(387)		2.75
(70)		0.98
(25)		5.13
(130)		1.38
(35)		M6x1.01.06
(0.48)

Note: Some pads include two vacuum ports. A plug will be provided.

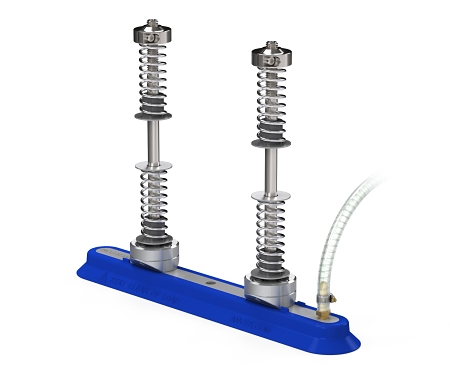

Product photo
Pad numberVP2515-NBR
Rectangular foam seal pads
Foam pad equivalentFP025150
Swivel suspension rod
Rigid suspension rod

Note: Some pads include two vacuum ports. A plug will be provided.

*The cup capacities shown above are based on 24″Hg at sea level with a safety factor of two (2) in the horizontal (flat) and four (4) in the vertical (upright). Vertical load capacity is half of the listed horizontal load capacities above. Rated load capacities are estimated; actual capacity will vary based on the load surface and the level of vacuum.

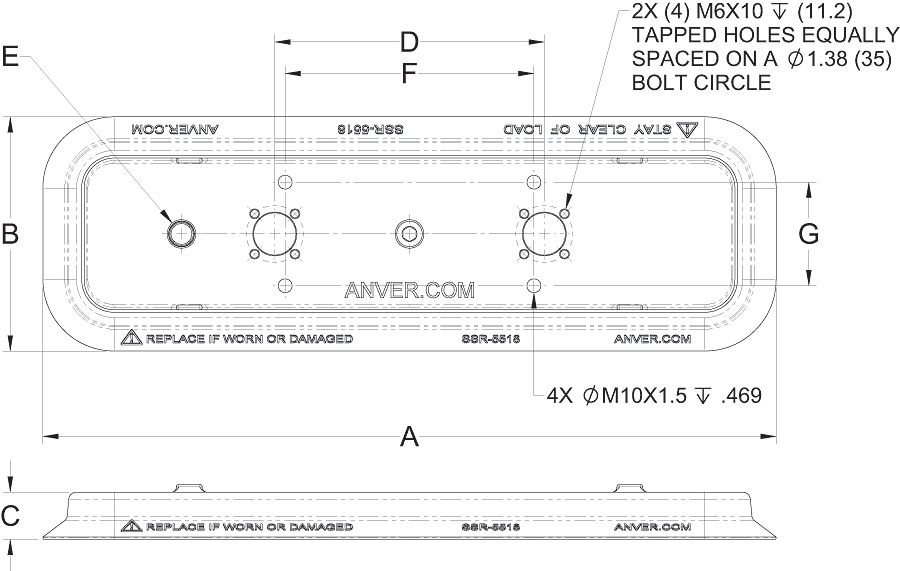

VP5518 pad drawing

Product photoPad numberReplacement seal numberHorizontal rated load (flat) lb. (kg)Vertical rated load (horizontal cylindrical) lb. (kg)Minimum load radius in. (mm)A
in.
(mm)		B
in.
(mm)		C
in.
(mm)		D
in.
(mm)		E Port sizeF
in.
(mm)		G
in.
(mm)		Weight lb. (kg)
VP3513-NBRSSR-3513160
(73)		80
(36)		8
(203)		12.69
(322)		3.69
(94)		1.14
(29)		6.5
(165)		N/AN/A1.32
(0.6)
VP3518-NBRSSR-3518245
(111)		122
(55)		8
(203)		17.75
(451)		3.69
(94)		1.14
(29)		6.5
(165)		N/AN/A2.20
(1)
VP4512-NBRSSR-4512230
(104)		115
(52)		21.5
(546)		12
(305)		4.88
(124)		1.14
(29)		6.5
(165)		N/AN/A2.20
(1)
VP4512-NBR-BLSSR-4512230
(104)		115
(52)		21.5
(546)		12
(305)		4.88
(124)		1.14
(29)		 N/A N/AN/AN/A2.20
(1)
VP4518-NBRSSR-4518335
(152)		167
(76)		21.5
(546)		17.94
(456)		4.81
(122)		1.14
(29)		6.5
(165)		N/AN/A3.31
(1.5)

VP5518-NBR

(Replaces VP618-NBR)

SSR-5518450
(204)		225
(102)		39
(991)		18
(457)		5.88
(149)		1.14
(29)		6.5
(165)		6.0
(152)		2.5
(63.5)		4.63
(2.1)

VP6520-NBR

(Replaces VP720-NBR)

SSR-6520550
(249)		275
(125)		37
(940)		20.13
(511)		6.88
(175)		1.14
(29)		6.5
(165)		6.0
(152)		2.5
(63.5)		6.39
(2.9)

Note: Some pads include two vacuum ports. A plug will be provided.

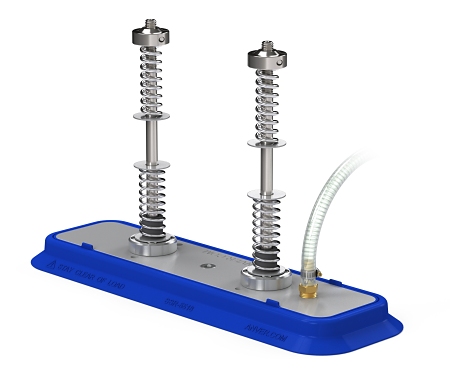

Product photoPad numberFoam pad equivalentSwivel suspension rodRigid suspension rod
VP3513-NBR FP040110 (76201058)
Swivel mount B		N/A
Suspension adapters

VPHA138S12M12-B		N/A

VP3518-NBR

FP040160 (76201059)


Swivel mount B		N/A
Suspension adapters

VPHA138S12M12-B		N/A
VP4512-NBR FP050120 (76201060)
Suspension adapters

VPHA138S12M12		Suspension adapters

VPHA138RM12
VPHA138R12-13
VPHA138R58-11
VPHA138RM20
VPHA138R34-10

VP4518-NBR

FP050160 (76201068)

Suspension adapters

VPHA138S12M12		Suspension adapters

VPHA138RM12
VPHA138R12-13
VPHA138R58-11
VPHA138RM20
VPHA138R34-10
VP5518-NBRFP060180 (76201061)
Suspension adapters

VPHA138S12M12		Suspension adapters

VPHA138RM12
VPHA138R12-13
VPHA138R58-11
VPHA138RM20
VPHA138R34-10

VP6520-NBR

FP070200 (76200980)

Suspension adapters

VPHA138S12M12		Suspension adapters

VPHA138RM12
VPHA138R12-13
VPHA138R58-11
VPHA138RM20
VPHA138R34-10

Note: Some pads include two vacuum ports. A plug will be provided.

Specifications for VP series rectangular vacuum cups for retrofit:

Product photoPad numberReplacement seal numberHorizontal rated load (flat) lb. (kg)Vertical rated load (horizontal cylindrical) lb. (kg)Minimum load radius in. (mm)A
in.
(mm)		B
in.
(mm)		C
in.
(mm)		D
in.
(mm)		E Port sizeWeight lb. (kg)
VP4512R-NBRSSR-4512 &

24000258

230
(104)		115
(52)		21.5
(546)		12
(305)		4.88
(124)		1.14
(29)		6.5
(165)		2.12
(.96)

Note: Some pads include two vacuum ports. A plug will be provided.

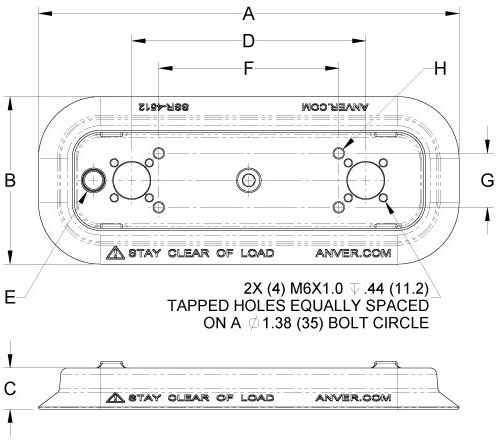

Product photoPad numberFoam pad equivalentF
in.
(mm)		G
in.
(mm)		H Thread sizeSwivel suspension rodRigid suspension rod
VP4512R-NBR FP050120 (76201060) 5.0
(127)		1.5
(38.1)		M8X1.25
(x4)
Suspension adapters

VPHA138S12M12		Suspension adapters

VPHA138RM12
VPHA138R12-13
VPHA138R58-11
VPHA138RM20
VPHA138R34-10

Note: Some pads include two vacuum ports. A plug will be provided.

*The cup capacities shown above are based on 24″Hg at sea level with a safety factor of two (2) in the horizontal (flat), and four (4) in the vertical (upright). Vertical load capacity is half of the listed horizontal load capacities above. Rated load capacities are estimated; actual capacity will vary based on the load surface and the level of vacuum.
