ANVER VP918, VP1117 and VP1220 large capacity vacuum pads

Rectangular vacuum seal pads for heavy, compact loads where the load surface precludes lifters with multiple pads. Handles glass and stone panels vertically and horizontally.

Request a quote

Vacuum cups and suction cups
Large capacity rectangular vacuum pads

Manufacturer PDF


ANVER rectangular vacuum seal pad attachments are ideal for lifting heavy, compact loads in situations where the available load surface precludes the use of lifters with multiple pads.

Features:

  • Can handle both heavy and thin brittle loads
  • High lifting capacity for a compact size
  • Non-slip rubber bottom can handle thin or brittle materials without deforming or breaking them
  • Shallow lip for quick attach and release
  • An excellent pad for handling glass and stone panels in the vertical and horizontal position
  • Takes a 3/8″ NPT port hose barb
  • Note that the bonded one-piece pads come with M10 x 1.5 threaded mounting holes which do not protrude further than the metal plate. They are blind and sealed by the rubber underneath. If you bolt these pads to a plate you need to select the correct length metric screws so they do not protrude too far and poke through the rubber. If the rubber underneath the bolts is pierced these pads will leak.
  • The two-piece aluminum pad with seal (VP1117-NBR and VP1220A-NBR) has blind tapped holes and is vacuum tight.

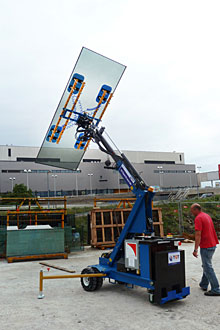

Rectangular vacuum pad lifting glass

VP918 and VP1117 specifications

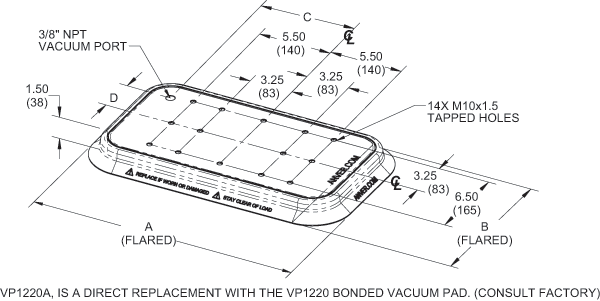

VP1220 and VP1220A specifications

Product photoProduct numberDescription and applicationReplacement sealA
in.
(mm)		B
in.
(mm)		C
in.
(mm)		D
in.
(mm)		Item weight lb. (kg)Horizontal rated load* lb. (kg)Vertical rated load* lb. (kg)
VP1117-NBR nitrile two-piece, pad & sealStandard durometer for metal, glass etc.SSR-1117 hand replaceable sealing ring16.75
(426)		11.00
(280)		5.5
(140)		2.5
(64)		10.3
(4.67)		750
(340)		375
(170)
N/A

VP918-NBR nitrile bonded, one-piece; replaced by VP1117-NBRStandard durometer for metal, glass etc.N/AN/A18.63
(473)		10.00
(254)		5.5
(140)		2.5
(64)		14.7
(6.66)		750
(340)		375
(170)
N/AVP918-SI (high heat silicone) bonded, one-piece; replaced by VP1117-NBRStandard durometer for high-heat applications up to 401° F (205° C)N/AN/A18.63
(473)		10.00
(254)		5.5
(140)		2.5
(64)		14.7
(6.66)		750
(340)		375
(170)
VP1220A-NBR nitrile two-piece, pad & sealStandard durometer for metal, glass etc.SSR-1220 hand replaceable sealing ring20.50
(521)		12.10
(308)		7.13
(181)		2.94
(75)		15
(6.8)		1100
(499)		550
(250)
VP1220-NBR nitrile (24400312) bonded, one-piece; replaced by VP1220A-NBRStandard durometer for metal, glass etc.N/AN/A20.63
(524)		12.63
(320)		6.79
(172.5)		3.27
(82.9)		22
(10)		1100
(499)		550
(250)
VP1220-SI (high heat silicone) bonded, one-piece; special order onlyStandard durometer for high-heat applications up to 401° F (205° C)N/AN/A20.63
(524)		12.63
(320)		6.79
(172.5)		3.27
(82.9)		22
(10)		1100
(499)		550
(250)

* Notes:
• Rated load at 24 in. Hg vacuum, when used in the horizontal plane. Based on a safety factor of two (2) on vacuum holding.
• VP918-NBR-J1 and VP1220-NBR-J1 have been replaced by our FP series foam seal pads

VP series oval and rectangular vacuum pads

13600232
