ANVER VPSA series mid-size complete suspension assemblies
VPSA series mid-size complete suspension assemblies mount ANVER vacuum cups and pads to vacuum systems. Specification tables for each mounting group and spring class, plus adjustment knobs.
Made in the USA
ISO 9001:2015 certified
More than 58 years of experience
Vacuum pad suspension assemblies

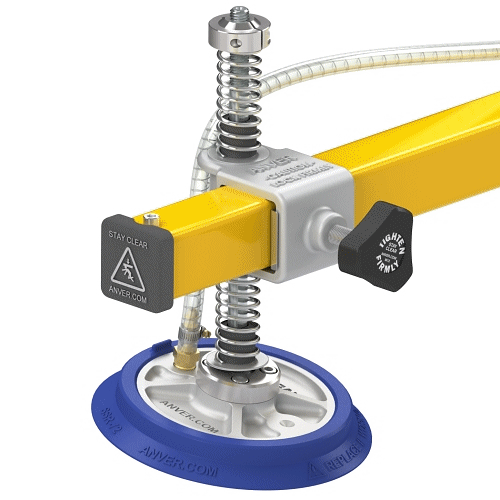

VPSA series mid-size complete suspension assemblies
with suspension rods, springs and vacuum pad adapters
Features
- ANVER vacuum cups and pads can be mounted to most vacuum systems using pad suspension assemblies. ANVER offers several types of rigid or ball swivel suspensions for pads from 3” to 15” diameters.
- Easy bolt-on connection to vacuum pads. Can be used with customer supplied lifting structure or provided with adjustable suspension slides for 1-3/4” sq. or 2” sq. beams.
- Ball swivel type can pivot up to 15 degrees in any direction. Double spring compensation for handling deflection of porous to rigid type loads.
- Vacuum port is independent from suspension mounting, preventing leaks and reducing wear.
Range of motion for adjustable slide assemblies | Hand replaceable seals for vacuum pads | |

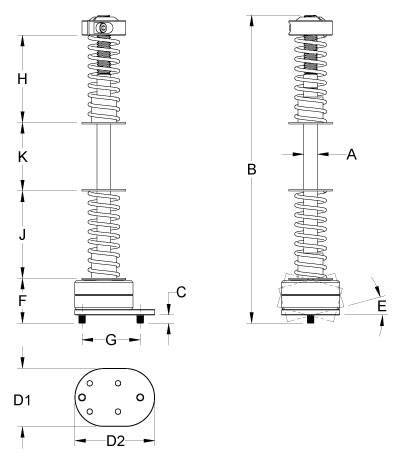

Ball swivel mount – group DSM – spring class E
Group “DSM” spring class “E” can be used with these pads: |
| Suspension assembly | Part number | VPSA138SM12X254E-DSM (76300150) | |
| Product photo | |||
| Suspension rod | A Rod diameter [in. (mm)] | 0.47 (12) | |
| B Rod height [in. (mm)] | 10.6 (269) | ||
| C Mounting height [in. (mm)] | 0.28 (7) | ||
| Vacuum pad adapter | D1 Mounting adapter width [in. (mm)] | 2 (51) | |
| D2 Mounting adapter length [in. (mm)] | 2.75 (70) | ||
| E Adapter swivel pivot | Up to 15° | ||
| F Adapter height [in. (mm)] | 1.55 (39) | ||
| G Mounting hardware | 2 (51) [M6X1.0] | ||
| Suspension springs | Spring class | E | |
| H Top spring | Free height [in. (mm)] | 3.00 (76) | |
| Compressed height [in. (mm)] | 1.09 (28) | ||
| J Bottom spring | Free height [in. (mm)] | 3 (76) | |
| Compressed height [in. (mm)] | 1.09 (28) | ||
| K Available mounting [in. (mm)] | 2.06 (52) | ||

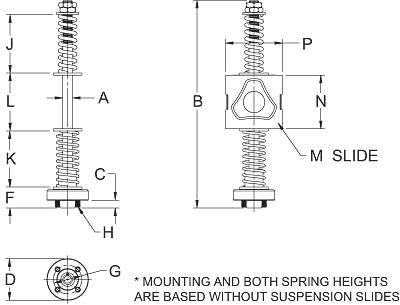

Ball swivel mount – group BM – spring class E
| Suspension assembly | Part number | VPSA138SM12X254E-BM (76300148) | VPSA138SM12X254E134-BM | VPSA138SM12X254E200-BM | |
| Product photo | |||||
| Suspension rod | A Rod diameter [in. (mm)] | 0.47 (12) | 0.47 (12) | 0.47 (12) | |
| B Rod height [in. (mm)] | 10 (254) | 10 (254) | 10 (254) | ||
| C Mounting height [in. (mm)] | 0.19 (5) | 0.19 (5) | 0.19 (5) | ||
| Vacuum pad adapter | D Mounting adapter dia. [in. (mm)] | 2 (51) | 2 (51) | 2 (51) | |
| E Adapter swivel pivot | Up to 15° | Up to 15° | Up to 15° | ||
| F Adapter height [in. (mm)] | 1.27 (32) | 1.27 (32) | 1.27 (32) | ||
| G Bolt circle mounting [in. (mm)] | 1.38 (35) | 1.38 (35) | 1.38 (35) | ||
| H Mounting hardware | M6X1.0 | M6X1.0 | M6X1.0 | ||
| Suspension springs | Spring class | E | E | E | |
| J Top spring | Free height [in. (mm)] | 3.00 (76) | 3.00 (76) | 3.00 (76) | |
| Compressed height [in. (mm)] | 1.09 (28) | 1.09 (28) | 1.09 (28) | ||
| K Bottom spring | Free height [in. (mm)] | 3 (76) | 3 (76) | 3 (76) | |
| Compressed height [in. (mm)] | 1.09 (28) | 1.09 (28) | 1.09 (28) | ||
| L Available mounting [in. (mm)] | 2.06 (52) | 2.06 (52) | 2.06 (52) | ||
| Suspension slide (if purchased) | M Square slide tubing size [in. (mm)] | N/A | 1.75 (45) | 2 (51) | |
| N Slide height [in. (mm)] | N/A | 2.6 (66) | 2.79 (71) | ||
| P Slide width [in. (mm)] | N/A | 2.65 (67) | 2.75 (70) | ||

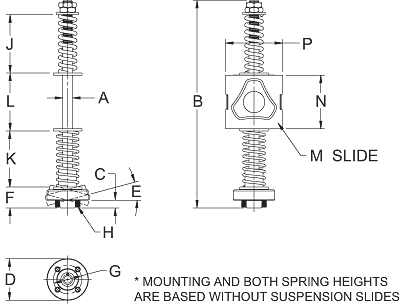

Ball swivel mount – group B – spring class E
| Suspension assembly | Part number | VPSA138SM12X254E-B (76300143) | |
| Product photo |
| ||
| Suspension rod | A Rod diameter [in. (mm)] | 0.47 (12) | |
| B Rod height [in. (mm)] | 10 (254) | ||
| C Mounting height [in. (mm)] | 0.19 (5) | ||
| Vacuum pad adapter | D Mounting adapter dia. [in. (mm)] | 2 (51) | |
| E Adapter swivel pivot | Up to 15° | ||
| F Adapter height [in. (mm)] | 1.27 (32) | ||
| G Bolt circle mounting [in. (mm)] | 1.38 (35) | ||
| H Mounting hardware | M6X1.0 | ||
| Suspension springs | Spring class | E | |
| J Top spring | Free height [in. (mm)] | 3.00 (76) | |
| Compressed height [in. (mm)] | 1.09 (28) | ||
| K Bottom spring | Free height [in. (mm)] | 3 (76) | |
| Compressed height [in. (mm)] | 1.09 (28) | ||
| L Available mounting [in. (mm)] | 2.06 (52) | ||
| Suspension slide (if purchased) | M Square slide tubing size [in. (mm)] | N/A | |
| N Slide height [in. (mm)] | N/A | ||
| P Slide width [in. (mm)] | N/A | ||

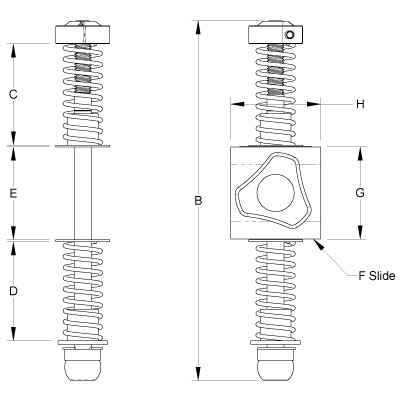

Ball swivel mount – group 46 – spring class E
| Suspension assembly | Part number | VPSA-SM12X254E | VPSA-SM12X254E134 | VPSA-SM12X254E200 | |
| Product photo | |||||
| Suspension rod | A Rod diameter [in. (mm)] | 0.47 (12) | 0.47 (12) | 0.47 (12) | |
| B Rod height [in. (mm)] | 10 (254) | 10 (254) | 10 (254) | ||
| Adapter swivel pivot | Up to 15° | Up to 15° | Up to 15° | ||
| Suspension springs | Spring class | E | E | E | |
| C Top spring | Free height [in. (mm)] | 3.00 (76) | 3.00 (76) | 3.00 (76) | |
| Compressed height [in. (mm)] | 1.09 (28) | 1.09 (28) | 1.09 (28) | ||
| D Bottom spring | Free height [in. (mm)] | 3 (76) | 3 (76) | 3 (76) | |
| Compressed height [in. (mm)] | 1.09 (28) | 1.09 (28) | 1.09 (28) | ||
| E Available mounting [in. (mm)] | 2.10 (53) | N/A | N/A | ||
| Suspension slide (if purchased) | F Square slide tubing size [in. (mm)] | N/A | 1.75 (45) | 2 (51) | |
| G Slide height [in. (mm)] | N/A | 2.6 (66) | 2.79 (71) | ||
| H Slide width [in. (mm)] | N/A | 2.65 (67) | 2.75 (70) | ||
Ball swivel mount – group 10 – spring class E – 1/8″ NPT port
Spring class “E” can be used with these pads:
Note: hub adapter supplied with 1/8″ NPT port
| Suspension assembly | Part number | VPSA138SM12X254E-18 (76300105) | VPSA138SM12X254E134-18 (76300106) | VPSA138SM12X254E200-18 (76300107) | |
| Product photo | |||||
| Suspension rod | A Rod diameter [in. (mm)] | 0.47 (12) | 0.47 (12) | 0.47 (12) | |
| B Rod height [in. (mm)] | 10 (254) | 10 (254) | 10 (254) | ||
| C Mounting height [in. (mm)] | 0.36 (9) | 0.36 (9) | 0.36 (9) | ||
| Vacuum pad adapter | D Mounting adapter dia. [in. (mm)] | 2.5 (64) | 2.5 (64) | 2.5 (64) | |
| E Adapter swivel pivot | Up to 15° | Up to 15° | Up to 15° | ||
| F Adapter height [in. (mm)] | 1.1 (28) | 1.1 (28) | 1.1 (28) | ||
| G Bolt circle mounting [in. (mm)] | 1.38 (35) | 1.38 (35) | 1.38 (35) | ||
| H Mounting hardware | M6X1.0 | M6X1.0 | M6X1.0 | ||
| Suspension springs | Spring class | E | E | E | |
| J Top spring | Free height [in. (mm)] | 3.00 (76) | 3.00 (76) | 3.00 (76) | |
| Compressed height [in. (mm)] | 1.09 (28) | 1.09 (28) | 1.09 (28) | ||
| K Bottom spring | Free height [in. (mm)] | 3 (76) | 3 (76) | 3 (76) | |
| Compressed height [in. (mm)] | 1.09 (28) | 1.09 (28) | 1.09 (28) | ||
| L Available mounting [in. (mm)] | 2.06 (52) | 2.06 (52) | 2.06 (52) | ||
| Suspension slide (if purchased) | M Square slide tubing size [in. (mm)] | N/A | 1.75 (45) | 2 (51) | |
| N Slide height [in. (mm)] | N/A | 2.6 (66) | 2.79 (71) | ||
| P Slide width [in. (mm)] | N/A | 2.65 (67) | 2.75 (70) | ||
Rigid mount – group 10 – spring class E – 1/8″ NPT port
Spring class “E” can be used with these pads:
Note: hub adapter supplied with 1/8″ NPT port
| Suspension assembly | Part number | VPSA138RM12X254E-18 (76300111) | VPSA138RM12X254E134-18 (76300112) | VPSA138RM12X254E200-18 (76300113) | |
| Product photo | |||||
| Suspension rod | A Rod diameter [in. (mm)] | 0.47 (12) | 0.47 (12) | 0.47 (12) | |
| B Rod height [in. (mm)] | 10 (254) | 10 (254) | 10 (254) | ||
| C Mounting height [in. (mm)] | 0.36 (9) | 0.36 (9) | 0.36 (9) | ||
| Vacuum pad adapter | D Mounting adapter dia. [in. (mm)] | 2.5 (64) | 2.5 (64) | 2.5 (64) | |
| E Adapter swivel pivot | N/A | N/A | N/A | ||
| F Adapter height [in. (mm)] | 1.1 (28) | 1.1 (28) | 1.1 (28) | ||
| G Bolt circle mounting [in. (mm)] | 1.38 (35) | 1.38 (35) | 1.38 (35) | ||
| H Mounting hardware | M6X1.0 | M6X1.0 | M6X1.0 | ||
| Suspension springs | Spring class | E | E | E | |
| J Top spring | Free height [in. (mm)] | 3.00 (76) | 3.00 (76) | 3.00 (76) | |
| Compressed height [in. (mm)] | 1.09 (28) | 1.09 (28) | 1.09 (28) | ||
| K Bottom spring | Free height [in. (mm)] | 3 (76) | 3 (76) | 3 (76) | |
| Compressed height [in. (mm)] | 1.09 (28) | 1.09 (28) | 1.09 (28) | ||
| L Available mounting [in. (mm)] | 2.06 (52) | 2.06 (52) | 2.06 (52) | ||
| Suspension slide (if purchased) | M Square slide tubing size [in. (mm)] | N/A | 1.75 (45) | 2 (51) | |
| N Slide height [in. (mm)] | N/A | 2.6 (66) | 2.79 (71) | ||
| P Slide width [in. (mm)] | N/A | 2.65 (67) | 2.75 (70) | ||
Ball swivel mount – group 10 – spring class E
Spring class “E” can be used with these pads:
| Suspension assembly | Part number | VPSA138SM12X254E (76300102) | VPSA138SM12X254E134 (76300103) | VPSA138SM12X254E200 (76300104) | |
| Product photo | |||||
| Suspension rod | A Rod diameter [in. (mm)] | 0.47 (12) | 0.47 (12) | 0.47 (12) | |
| B Rod height [in. (mm)] | 10 (254) | 10 (254) | 10 (254) | ||
| C Mounting height [in. (mm)] | 0.36 (9) | 0.36 (9) | 0.36 (9) | ||
| Vacuum pad adapter | D Mounting adapter dia. [in. (mm)] | 2 (51) | 2 (51) | 2 (51) | |
| E Adapter swivel pivot | Up to 15° | Up to 15° | Up to 15° | ||
| F Adapter height [in. (mm)] | 1.1 (28) | 1.1 (28) | 1.1 (28) | ||
| G Bolt circle mounting [in. (mm)] | 1.38 (35) | 1.38 (35) | 1.38 (35) | ||
| H Mounting hardware | M6X1.0 | M6X1.0 | M6X1.0 | ||
| Suspension springs | Spring class | E | E | E | |
| J Top spring | Free height [in. (mm)] | 3.00 (76) | 3.00 (76) | 3.00 (76) | |
| Compressed height [in. (mm)] | 1.09 (28) | 1.09 (28) | 1.09 (28) | ||
| K Bottom spring | Free height [in. (mm)] | 3 (76) | 3 (76) | 3 (76) | |
| Compressed height [in. (mm)] | 1.09 (28) | 1.09 (28) | 1.09 (28) | ||
| L Available mounting [in. (mm)] | 2.06 (52) | 2.06 (52) | 2.06 (52) | ||
| Suspension slide (if purchased) | M Square slide tubing size [in. (mm)] | N/A | 1.75 (45) | 2 (51) | |
| N Slide height [in. (mm)] | N/A | 2.6 (66) | 2.79 (71) | ||
| P Slide width [in. (mm)] | N/A | 2.65 (67) | 2.75 (70) | ||
Rigid mount – group 10 – spring class E
Spring class “E” can be used with these pads:
| Suspension assembly | Part number | VPSA138RM12X254E | VPSA138RM12X254E134 | VPSA138RM12X254E200 | |
| Product photo | |||||
| Suspension rod | A Rod diameter [in. (mm)] | 0.47 (12) | 0.47 (12) | 0.47 (12) | |
| B Rod height [in. (mm)] | 10 (254) | 10 (254) | 10 (254) | ||
| C Mounting height [in. (mm)] | 0.36 (9) | 0.36 (9) | 0.36 (9) | ||
| Vacuum pad adapter | D Mounting adapter dia. [in. (mm)] | 2 (51) | 2 (51) | 2 (51) | |
| E Adapter swivel pivot | N/A | N/A | N/A | ||
| F Adapter height [in. (mm)] | 1.1 (28) | 1.1 (28) | 1.1 (28) | ||
| G Bolt circle mounting [in. (mm)] | 1.38 (35) | 1.38 (35) | 1.38 (35) | ||
| H Mounting hardware | M6X1.0 | M6X1.0 | M6X1.0 | ||
| Suspension springs | Spring class | E | E | E | |
| J Top spring | Free height [in. (mm)] | 3.00 (76) | 3.00 (76) | 3.00 (76) | |
| Compressed height [in. (mm)] | 1.09 (28) | 1.09 (28) | 1.09 (28) | ||
| K Bottom spring | Free height [in. (mm)] | 3 (76) | 3 (76) | 3 (76) | |
| Compressed height [in. (mm)] | 1.09 (28) | 1.09 (28) | 1.09 (28) | ||
| L Available mounting [in. (mm)] | 2.06 (52) | 2.06 (52) | 2.06 (52) | ||
| Suspension slide (if purchased) | M Square slide tubing size [in. (mm)] | N/A | 1.75 (45) | 2 (51) | |
| N Slide height [in. (mm)] | N/A | 2.6 (66) | 2.79 (71) | ||
| P Slide width [in. (mm)] | N/A | 2.65 (67) | 2.75 (70) | ||
Ball swivel mount – group 10 – spring class A
Spring class “A” can be used with these pads:
| Suspension assembly | Part number | VPSA138SM12X254A | VPSA138SM12X254A134 | VPSA138SM12X254A200 | |
| Product photo | |||||
| Suspension rod | A Rod diameter [in. (mm)] | 0.47 (12) | 0.47 (12) | 0.47 (12) | |
| B Rod height [in. (mm)] | 10 (254) | 10 (254) | 10 (254) | ||
| C Mounting height [in. (mm)] | 0.40 (10) | 0.40 (10) | 0.40 (10) | ||
| Vacuum pad adapter | D Mounting adapter dia. [in. (mm)] | 2 (51) | 2 (51) | 2 (51) | |
| E Adapter swivel pivot | Up to 15° | Up to 15° | Up to 15° | ||
| F Adapter height [in. (mm)] | 1 (25) | 1 (25) | 1 (25) | ||
| G Bolt circle mounting [in. (mm)] | 1.38 (35) | 1.38 (35) | 1.38 (35) | ||
| H Mounting hardware | M6X1.0 | M6X1.0 | M6X1.0 | ||
| Suspension springs | Spring class | A | A | A | |
| J Top spring | Free height [in. (mm)] | 3.00 (76) | 3.00 (76) | 3.00 (76) | |
| Compressed height [in. (mm)] | 1.77 (45) | 1.77 (45) | 1.77 (45) | ||
| K Bottom spring | Free height [in. (mm)] | 3 (76) | 3 (76) | 3 (76) | |
| Compressed height [in. (mm)] | 1.09 (28) | 1.09 (28) | 1.09 (28) | ||
| L Available mounting [in. (mm)] | 2.35 (60) | N/A | N/A | ||
| Suspension slide (if purchased) | M Square slide tubing size [in. (mm)] | N/A | 1.75 (45) | 2 (51) | |
| N Slide height [in. (mm)] | N/A | 2.6 (66) | 2.79 (71) | ||
| P Slide width [in. (mm)] | N/A | 2.65 (67) | 2.75 (70) | ||
Rigid mount – group 10 – spring class A
Spring class “A” can be used with these pads:
| Suspension assembly | Part number | VPSA138RM12X254A (76300078) | VPSA138RM12X254A134 (76300088) | VPSA138RM12X254A200 (76300089) | |
| Product photo | |||||
| Suspension rod | A Rod diameter [in. (mm)] | 0.47 (12) | 0.47 (12) | 0.47 (12) | |
| B Rod height [in. (mm)] | 10 (254) | 10 (254) | 10 (254) | ||
| C Mounting height [in. (mm)] | 0.35 (9) | 0.35 (9) | 0.35 (9) | ||
| Vacuum pad adapter | D Mounting adapter dia. [in. (mm)] | 2 (51) | 2 (51) | 2 (51) | |
| E Adapter swivel pivot | N/A | N/A | N/A | ||
| F Adapter height [in. (mm)] | 0.98 (25) | 0.98 (25) | 0.98 (25) | ||
| G Bolt circle mounting [in. (mm)] | 1.38 (35) | 1.38 (35) | 1.38 (35) | ||
| H Mounting hardware | M6X1.0 | M6X1.0 | M6X1.0 | ||
| Suspension springs | Spring class | A | A | A | |
| J Top spring | Free height [in. (mm)] | 3.00 (76) | 3.00 (76) | 3.00 (76) | |
| Compressed height [in. (mm)] | 1.77 (45) | 1.77 (45) | 1.77 (45) | ||
| K Bottom spring | Free height [in. (mm)] | 3 (76) | 3 (76) | 3 (76) | |
| Compressed height [in. (mm)] | 1.09 (28) | 1.09 (28) | 1.09 (28) | ||
| L Available mounting [in. (mm)] | 2.37 (60) | N/A | N/A | ||
| Suspension slide (if purchased) | M Square slide tubing size [in. (mm)] | N/A | 1.75 (45) | 2 (51) | |
| N Slide height [in. (mm)] | N/A | 2.6 (66) | 2.79 (71) | ||
| P Slide width [in. (mm)] | N/A | 2.65 (67) | 2.75 (70) | ||
Ball swivel mount – group 10 – spring class B
| Suspension assembly | Part number | VPSA138SM12X254B (76300077) | VPSA138SM12X254B134 (76300086) | VPSA138SM12X254B200 (76300087) | |
| Product photo | |||||
| Suspension rod | A Rod diameter [in. (mm)] | 0.47 (12) | 0.47 (12) | 0.47 (12) | |
| B Rod height [in. (mm)] | 10 (254) | 10 (254) | 10 (254) | ||
| C Mounting height [in. (mm)] | 0.40 (10) | 0.40 (10) | 0.40 (10) | ||
| Vacuum pad adapter | D Mounting adapter dia. [in. (mm)] | 2 (51) | 2 (51) | 2 (51) | |
| E Adapter swivel pivot | Up to 15° | Up to 15° | Up to 15° | ||
| F Adapter height [in. (mm)] | 1 (25) | 1 (25) | 1 (25) | ||
| G Bolt circle mounting [in. (mm)] | 1.38 (35) | 1.38 (35) | 1.38 (35) | ||
| H Mounting hardware | M6X1.0 | M6X1.0 | M6X1.0 | ||
| Suspension springs | Spring class | B | B | B | |
| J Top spring | Free height [in. (mm)] | 2.50 (64) | 2.50 (64) | 2.50 (64) | |
| Compressed height [in. (mm)] | 1.28 (33) | 1.28 (33) | 1.28 (33) | ||
| K Bottom spring | Free height [in. (mm)] | 3 (76) | 3 (76) | 3 (76) | |
| Compressed height [in. (mm)] | 1.28 (33) | 1.28 (33) | 1.28 (33) | ||
| L Available mounting [in. (mm)] | 2.79 (71) | N/A | N/A | ||
| Suspension slide (if purchased) | M Square slide tubing size [in. (mm)] | N/A | 1.75 (45) | 2 (51) | |
| N Slide height [in. (mm)] | N/A | 2.6 (66) | 2.79 (71) | ||
| P Slide width [in. (mm)] | N/A | 2.65 (67) | 2.75 (70) | ||
Rigid mount – group 10 – spring class B
| Suspension assembly | Part number | VPSA138RM12X254B (76300079) | VPSA138RM12X254B134 (76300090) | VPSA138RM12X254B200 (76300091) | |
| Product photo | |||||
| Suspension rod | A Rod diameter [in. (mm)] | 0.47 (12) | 0.47 (12) | 0.47 (12) | |
| B Rod height [in. (mm)] | 10 (254) | 10 (254) | 10 (254) | ||
| C Mounting height [in. (mm)] | 0.35 (9) | 0.35 (9) | 0.35 (9) | ||
| Vacuum pad adapter | D Mounting adapter dia. [in. (mm)] | 2 (51) | 2 (51) | 2 (51) | |
| E Adapter swivel pivot | N/A | N/A | N/A | ||
| F Adapter height [in. (mm)] | 0.98 (25) | 0.98 (25) | 0.98 (25) | ||
| G Bolt circle mounting [in. (mm)] | 1.38 (35) | 1.38 (35) | 1.38 (35) | ||
| H Mounting hardware | M6X1.0 | M6X1.0 | M6X1.0 | ||
| Suspension springs | Spring class | B | B | B | |
| J Top spring | Free height [in. (mm)] | 2.50 (64) | 2.50 (64) | 2.50 (64) | |
| Compressed height [in. (mm)] | 1.28 (33) | 1.28 (33) | 1.28 (33) | ||
| K Bottom spring | Free height [in. (mm)] | 3 (76) | 3 (76) | 3 (76) | |
| Compressed height [in. (mm)] | 1.28 (33) | 1.28 (33) | 1.28 (33) | ||
| L Available mounting [in. (mm)] | 2.81 (71) | N/A | N/A | ||
| Suspension slide (if purchased) | M Square slide tubing size [in. (mm)] | N/A | 1.75 (45) | 2 (51) | |
| N Slide height [in. (mm)] | N/A | 2.6 (66) | 2.79 (71) | ||
| P Slide width [in. (mm)] | N/A | 2.65 (67) | 2.75 (70) | ||
Ball swivel mount – group 20 – spring class C
Spring class “C” can be used with these pads:
| Suspension assembly | Part number | VPSA214SM20X330C (76300080) | VPSA214SM20X330C200 (76300093) | |
| Product photo | ||||
| Suspension rod | A Rod diameter [in. (mm)] | 0.78 (20) | 0.78 (20) | |
| B Rod height [in. (mm)] | 13.0 (330) | 13.0 (330) | ||
| C Mounting height [in. (mm)] | 0.42 (11) | 0.42 (11) | ||
| Vacuum pad adapter | D Mounting adapter dia. [in. (mm)] | 3.25 (83) | 3.25 (83) | |
| E Adapter swivel pivot | Up to 15° | Up to 15° | ||
| F Adapter height [in. (mm)] | 1.21 (31) | 1.21 (31) | ||
| G Bolt circle mounting [in. (mm)] | 2.25 (57) | 2.25 (57) | ||
| H Mounting hardware | M10X1.5 | M10X1.5 | ||
| Suspension springs | Spring class | C | C | |
| J Top spring | Free height [in. (mm)] | 4.00 (102) | 4.00 (102) | |
| Compressed height [in. (mm)] | 2.10 (53) | 2.10 (53) | ||
| K Bottom spring | Free height [in. (mm)] | 4.00 (102) | 4.00 (102) | |
| Compressed height [in. (mm)] | 2.10 (53) | 2.10 (53) | ||
| L Available mounting [in. (mm)] | 2.63 (67) | N/A | ||
| Suspension slide (if purchased) | M Square slide tubing size [in. (mm)] | N/A | 2.00 (51) | |
| N Slide height [in. (mm)] | N/A | 2.79 (71) | ||
| P Slide width [in. (mm)] | N/A | 2.75 (70) | ||
Rigid mount – group 20 – spring class C
Spring class “C” can be used with these pads:
| Suspension assembly | Part number | VPSA214RM20X330C (76300082) | VPSA214RM20X330C200 (76300096) | |
| Product photo | ||||
| Suspension rod | A Rod diameter [in. (mm)] | 0.78 (20) | 0.78 (20) | |
| B Rod height [in. (mm)] | 13.0 (330) | 13.0 (330) | ||
| C Mounting height [in. (mm)] | 0.47 (12) | 0.47 (12) | ||
| Vacuum pad adapter | D Mounting adapter dia. [in. (mm)] | 3.25 (83) | 3.25 (83) | |
| E Adapter swivel pivot | N/A | N/A | ||
| F Adapter height [in. (mm)] | 1.21 (31) | 1.21 (31) | ||
| G Bolt circle mounting [in. (mm)] | 2.25 (57) | 2.25 (57) | ||
| H Mounting hardware | M10X1.5 | M10X1.5 | ||
| Suspension springs | Spring class | C | C | |
| J Top spring | Free height [in. (mm)] | 4.00 (102) | 4.00 (102) | |
| Compressed height [in. (mm)] | 2.10 (53) | 2.10 (53) | ||
| K Bottom spring | Free height [in. (mm)] | 4.00 (102) | 4.00 (102) | |
| Compressed height [in. (mm)] | 2.10 (53) | 2.10 (53) | ||
| L Available mounting [in. (mm)] | 2.62 (67) | N/A | ||
| Suspension slide (if purchased) | M Square slide tubing size [in. (mm)] | N/A | 2.00 (51) | |
| N Slide height [in. (mm)] | N/A | 2.79 (71) | ||
| P Slide width [in. (mm)] | N/A | 2.75 (70) | ||
Ball swivel mount – group 20 – spring class D
| Suspension assembly | Part number | VPSA214SM20X330D (76300081) | |
| Product photo | |||
| Suspension rod | A Rod diameter [in. (mm)] | 0.78 (20) | |
| B Rod height [in. (mm)] | 13.0 (330) | ||
| C Mounting height [in. (mm)] | 0.42 (11) | ||
| Vacuum pad adapter | D Mounting adapter dia. [in. (mm)] | 3.25 (83) | |
| E Adapter swivel pivot | Up to 15° | ||
| F Adapter height [in. (mm)] | 1.21 (31) | ||
| G Bolt circle mounting [in. (mm)] | 2.25 (57) | ||
| H Mounting hardware | M10X1.5 | ||
| Suspension springs | Spring class | D | |
| J Top spring | Free height [in. (mm)] | 4.00 (102) | |
| Compressed height [in. (mm)] | 1.49 (38) | ||
| K Bottom spring | Free height [in. (mm)] | 4.00 (102) | |
| Compressed height [in. (mm)] | 1.89 (48) | ||
| L Available mounting [in. (mm)] | 2.82 (72) | ||
| Suspension slide (if purchased) | M Square slide tubing size [in. (mm)] | N/A | |
| N Slide height [in. (mm)] | N/A | ||
| P Slide width [in. (mm)] | N/A | ||
Rigid mount – group 20 – spring class D
| Suspension assembly | Part number | VPSA214RM20X330D (76300083) | |
| Product photo | |||
| Suspension rod | A Rod diameter [in. (mm)] | 0.78 (20) | |
| B Rod height [in. (mm)] | 13.0 (330) | ||
| C Mounting height [in. (mm)] | 0.47 (12) | ||
| Vacuum pad adapter | D Mounting adapter dia. [in. (mm)] | 3.25 (83) | |
| E Adapter swivel pivot | N/A | ||
| F Adapter height [in. (mm)] | 1.21 (31) | ||
| G Bolt circle mounting [in. (mm)] | 2.25 (57) | ||
| H Mounting hardware | M10X1.5 | ||
| Suspension springs | Spring class | D | |
| J Top spring | Free height [in. (mm)] | 4.00 (102) | |
| Compressed height [in. (mm)] | 1.49 (38) | ||
| K Bottom spring | Free height [in. (mm)] | 4.00 (102) | |
| Compressed height [in. (mm)] | 1.89 (48) | ||
| L Available mounting [in. (mm)] | 2.82 (72) | ||
| Suspension slide (if purchased) | M Square slide tubing size [in. (mm)] | N/A | |
| N Slide height [in. (mm)] | N/A | ||
| P Slide width [in. (mm)] | N/A | ||
Ball swivel mount – group 20 – spring class F
Spring class “F” can be used with these pads:

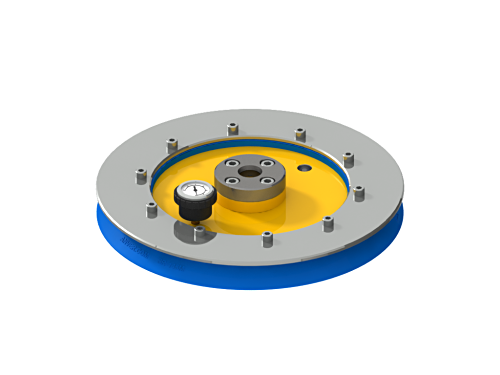

VP145
| Suspension assembly | Part number | VPSA214SM20X400F | |
| Weight [lb (kg)] | 7.1 (3.2) | ||
| Product photo | |||
| Suspension rod | A Rod diameter [in. (mm)] | 0.78 (20) | |
| B Rod height [in. (mm)] | 15.75 (400) | ||
| C Mounting height [in. (mm)] | 0.42 (11) | ||
| Vacuum pad adapter | D Mounting adapter dia. [in. (mm)] | 3.25 (83) | |
| E Adapter swivel pivot | Up to 15° | ||
| F Adapter height [in. (mm)] | 1.21 (31) | ||
| G Bolt circle mounting [in. (mm)] | 2.25 (57) | ||
| H Mounting hardware | M10X1.5 | ||
| Suspension springs | Spring class | F | |
| J Top spring | Free height [in. (mm)] | 5.00 (127) | |
| Compressed height [in. (mm)] | 3.50 (89) | ||
| K Bottom spring | Free height [in. (mm)] | 5.50 (140) | |
| Compressed height [in. (mm)] | 3.36 (85) | ||
| L Available mounting [in. (mm)] | 3.00 (76) | ||
| Suspension slide (if purchased) | M Square slide tubing size [in. (mm)] | N/A | |
| N Slide height [in. (mm)] | N/A | ||
| P Slide width [in. (mm)] | N/A | ||
Ball swivel mount – group 30 – spring class F
Spring class “F” can be used with these pads:
VP155
| Suspension assembly | Part number | VPSA212SM24X450F | |
| Product photo | |||
| Suspension rod | A Rod diameter [in. (mm)] | 1.0 (25.4) | |
| B Rod height [in. (mm)] | 17.75 (450) | ||
| C Mounting height [in. (mm)] | 0.64 (16) | ||
| Vacuum pad adapter | D Mounting adapter dia. [in. (mm)] | 3.50 (89) | |
| E Adapter swivel pivot | Up to 15° | ||
| F Adapter height [in. (mm)] | 1.39 (35) | ||
| G Bolt circle mounting [in. (mm)] | 2.50 (64) | ||
| H Mounting hardware | M10X1.5 | ||
| Suspension springs | Spring class | F | |
| J Top spring | Free height [in. (mm)] | 5.00 (127) | |
| Compressed height [in. (mm)] | 3.50 (89) | ||
| K Bottom spring | Free height [in. (mm)] | 5.50 (140) | |
| Compressed height [in. (mm)] | 3.36 (85) | ||
| L Available mounting [in. (mm)] | 4.00 (102) | ||
| Suspension slide (if purchased) | M Square slide tubing size [in. (mm)] | N/A | |
| N Slide height [in. (mm)] | N/A | ||
| P Slide width [in. (mm)] | N/A | ||
Ball swivel mount – group 30 – spring class G
Spring class “G” can be used with these pads:
VP185 & VP195
| Suspension assembly | Part number | VPSA212M24X450G | |
| Weight [lb (kg)] | 11.97 (5.43) | ||
| Product photo | |||
| Suspension rod | A Rod diameter [in. (mm)] | 1.0 (25.4) | |
| B Rod height [in. (mm)] | 17.75 (450) | ||
| C Mounting height [in. (mm)] | 0.64 (16) | ||
| Vacuum pad adapter | D Mounting adapter dia. [in. (mm)] | 3.50 (89) | |
| E Adapter swivel pivot | Up to 15° | ||
| F Adapter height [in. (mm)] | 1.39 (35) | ||
| G Bolt circle mounting [in. (mm)] | 2.50 (64) | ||
| H Mounting hardware | M10X1.5 | ||
| Suspension springs | Spring class | G | |
| J Top spring | Free height [in. (mm)] | 5.00 (127) | |
| Compressed height [in. (mm)] | 3.60 (92) | ||
| K Bottom spring | Free height [in. (mm)] | 6.00 (152) | |
| Compressed height [in. (mm)] | 3.36 (85) | ||
| L Available mounting [in. (mm)] | 4.00 (102) | ||
| Suspension slide (if purchased) | M Square slide tubing size [in. (mm)] | N/A | |
| N Slide height [in. (mm)] | N/A | ||
| P Slide width [in. (mm)] | N/A | ||
Ball swivel mount – group 40 – spring class H
Spring class “H” can be used with these pads:
VP215 & VP235
| Suspension assembly | Part number | VPSA314SM36X550H | |
| Weight [lb (kg)] | 24.27 (11) | ||
| Product photo | |||
| Suspension rod | A Rod diameter [in. (mm)] | 1.5 (38.1) | |
| B Rod height [in. (mm)] | 21.65 (550) | ||
| C Mounting height [in. (mm)] | 0.95 (24) | ||
| Vacuum pad adapter | D Mounting adapter dia. [in. (mm)] | 4.50 (114) | |
| E Adapter swivel pivot | Up to 15° | ||
| F Adapter height [in. (mm)] | 1.98 (50) | ||
| G Bolt circle mounting [in. (mm)] | 3.25 (83) | ||
| H Mounting hardware | M10X1.5 | ||
| Suspension springs | Spring class | H | |
| J Top spring | Free height [in. (mm)] | 6.00 (152) | |
| Compressed height [in. (mm)] | 4.21 (107) | ||
| K Bottom spring | Free height [in. (mm)] | 6.00 (152) | |
| Compressed height [in. (mm)] | 3.35 (85) | ||
| L Available mounting [in. (mm)] | 5.00 (76) | ||
| Suspension slide (if purchased) | M Square slide tubing size [in. (mm)] | N/A | |
| N Slide height [in. (mm)] | N/A | ||
| P Slide width [in. (mm)] | N/A | ||
* The cup capacities shown above are based on 24″Hg at sea level with a safety factor of two (2) in the horizontal (flat), and four (4) in the vertical (upright). Vertical load capacity is half of the horizontal load capacities listed above.
Rated load capacities are estimated; actual capacity will vary based on the load surface and the level of vacuum.
| Adjustment knobs | ||
| Product photo | Part number | Description |
| KNM16X50P | Hand knob, M16 x 50 mm stud, black plastic. Replaces HDLM16X50ZRAT & HDLM16X60ZRAT | |
| KNM12X45P | Hand knob, M12 x 45 mm stud, black plastic. Replaces HDLM12X40ZRAT | |
| KNM12X35SP | Hand knob, M12 x 35 mm stud, small black plastic Replaces HDLM12X40ZRAT, HDLM12X30ZRAT & KNM12X45SP | |
Related pages
Need an ANVER system for your load?
Send photos, weight and dimensions of the load. FullSharp represents ANVER and replies with a configuration and quote within 24 hours.
