ANVER FPA rectangle foam pad attachments with ANDURASOFT® seals
ANDURASOFT® foam seal pad attachments for electric and air powered vacuum generators, built for rough, uneven surfaces. Single and dual pad models, dimensions and adjustment knobs below.
Standard rectangle foam pad attachments
ANDURASOFT® foam seal vacuum pad attachments for electric and air-powered vacuum generators
Foam seal vacuum pad attachments
ANVER’s ANDURASOFT® foam seal vacuum pad attachments are designed for handling rough, moderately uneven load surfaces such as saw cut or flamed stone, rough wood, fiberglass web and concrete. They can also handle smooth stone surfaces if used for both smooth and rough stone.
The ANDURASOFT® foam seals themselves fit into a snap lip so they will stay on firmly even in the vertical position. Changing seals can be done in under a minute by hand without tools, making this system perfect for critical job site installation schedules. The economical replaceable ANDURASOFT® foam seals readily conform to rough, uneven surfaces to create as vacuum tight a seal as possible.
The pad attachments are rated at a conservative 22″ Hg vacuum, unlike the 24″ Hg used on traditional cups. They are then divided by two for horizontal or four for vertical handling. Made in USA by ANVER.
Features
- A range of standard interchangeable pad attachments with ANDURASOFT® foam seals, which can be quickly changed as needed with a two nut-and-bolt mounting.
- Snap lip to ensure the seal stays in position. Long lasting foam seals handle both smooth and rough stone.
- Replacing worn seals can be done in under a minute by hand without tools.
- Replacement seals are in stock for immediate shipping.
Note: any pad attachments used with EZ-Tilt (series) attachments must use the vertical capacity listed.
Note: foam sealing rings are not included with vacuum pads and attachments. Because we have so many different foam seals, they must be selected and purchased separately. They are normally quoted per application. Contact factory for more information.

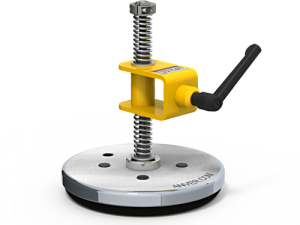

Single foam pad attachments for ANDURASOFT® foam seals

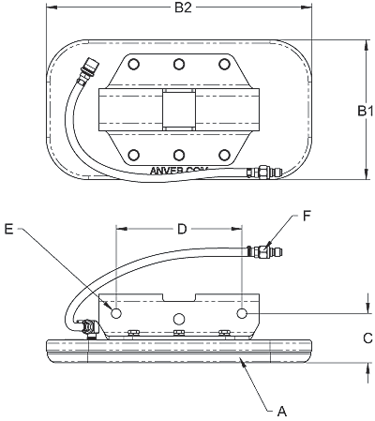

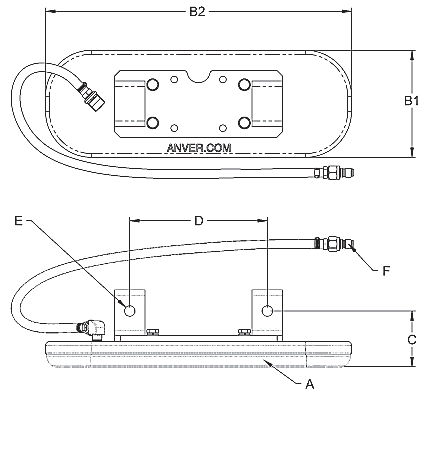

Figure F Figure G | ||||||||||||
| Product photo | Vacuum pad number* | Rated load capacity* (horizontal) lb (kg) | A Standard replacement seal number (not included) | Approx. weight lbs (kg) | Drawing diagram (above) | Dimensions | C Height in. (mm) | D Mounting centers in. (mm) | F Quick disconnect / port size NPT | |||
| B1 Width in. (mm) | B2 Length in. (mm) | |||||||||||

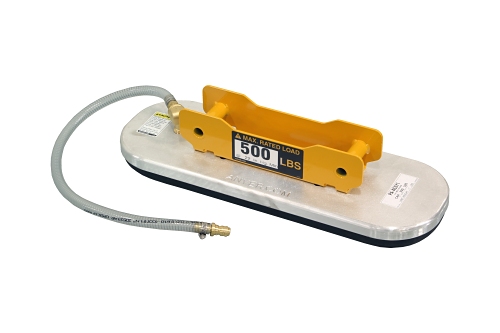

FPA040110G33 Shown with optional foam sealing ring K3R | 100 (45) | FR040110-K3R Standard (24531450) | 6.2 (2.8) | Figure F | 4 (102) | 11 (279) | 2.64 (67) | 9 (229) | 3/8″ | |||
FPA040160G33 Shown with optional foam sealing ring K3R | 170 (77) | FR040160-K3R Standard (24531451) | 7.3 (3.3) | Figure F | 4 (102) | 16 (406) | 2.64 (67) | 9 (229) | 3/8″ | |||
FPA050120G33 Shown with optional foam sealing ring K3R | 170 (77) | FR050120-K3R Standard (24531452) | 7.3 (3.3) | Figure F | 5 (127) | 12 (305) | 2.64 (67) | 9 (229) | 3/8″ | |||
FPA050160G33 Shown with optional foam sealing ring K3R | 225 (102) | FR050160-K3R Standard (24531453) | 8.4 (3.8) | Figure F | 5 (127) | 16 (406) | 2.64 (67) | 9 (229) | 3/8″ | |||
FPA060180G33 Shown with optional foam sealing ring K3R | 350 (159) | FR060180-K3R Standard (24531454) | 10.3 (4.7) | Figure F | 6 (152) | 18 (457) | 2.64 (67) | 9 (229) | 3/8″ | |||
FPA070200G33 Shown with optional foam sealing ring K1R | 500 (227) | FR070200-K1R Standard | 14.6 (6.6) | Figure F | 7.13 (181) | 20.13 (511) | 3.69 (94) | 9.00 (228) | 3/8″ | |||
| FR070200-K2C2 (24531083) | ||||||||||||
FPA100140G33 Shown with optional foam sealing ring K1R | 500 (227) | FR100140-K1R Standard | 18.05 (8.19) | Figure G | 10.13 (257) | 14.13 (359) | 3.56 (90) | 9.00 (228) | 3/8″ | |||
| FR100140-K2C2 (24531084) | ||||||||||||
FPA100190G33 Shown with optional foam sealing ring K1R | 750 (340) | FR100190-K1R Standard | 22.91 (10.39) | Figure G | 10.13 (257) | 19.13 (486) | 3.56 (90) | 9.00 (228) | 3/8″ | |||
| FR100190-K2C2 (24531085) | ||||||||||||
FPA100250G33 Shown with optional foam sealing ring K1R | 1000 (454) | FR100250-K1R Standard | 32.99 (14.97) | Figure G | 10.13 (257) | 25.13 (638) | 3.56 (90) | 9.00 (228) | 3/8″ | |||
| FR100250-K2C2 (24531086) | ||||||||||||
FPA120210G33 Shown with optional foam sealing ring K1R | 1000 (454) | FR120210-K1R Standard | 33.33 (15.11) | Figure G | 12.13 (308) | 21.13 (537) | 3.56 (90) | 9.00 (228) | 3/8″ | |||
| FR120210-K2C2 (24531087) | ||||||||||||
FPA120290G33 Shown with optional foam sealing ring K1R | 1500 (680) | FR120290-K1R Standard | 45.87 (20.81) | Figure G | 12.13 (308) | 29.13 (740) | 3.56 (90) | 9.00 (228) | 1/2″ | |||
| FR120290-K2C2 (24531088) | ||||||||||||
FPA140320G33 Shown with optional foam sealing ring K1R | 2000 (907) | FR140320-K1R Standard | 54.03 (24.51) | Figure G | 14.13 (359) | 32.13 (816) | 3.56 (90) | 9.00 (228) | 1/2″ | |||
| FR140320-K2C2 (24531090) | ||||||||||||
Note: Consult factory for alternate configurations.
*The cup capacities shown above are based on 22″ Hg at sea level with a safety factor of two (2) in the horizontal (flat), and four (4) in the vertical (upright). Vertical load capacity is half of the listed horizontal load capacities above. Rated load capacities are estimated; actual capacity will vary based on the load surface and the level of vacuum.
**Replaceable foam seal. For information and application recommendations please visit web page
13600097 B

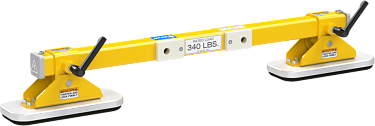

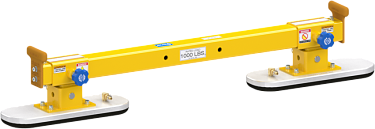

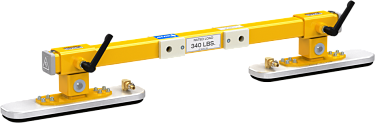

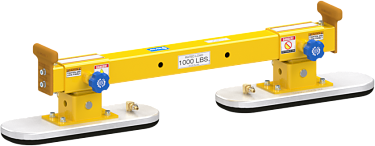

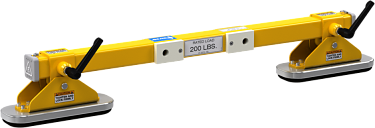

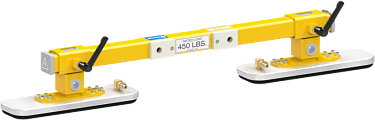

Specifications for dual foam pad vacuum pad attachments
| |||||||||||||||

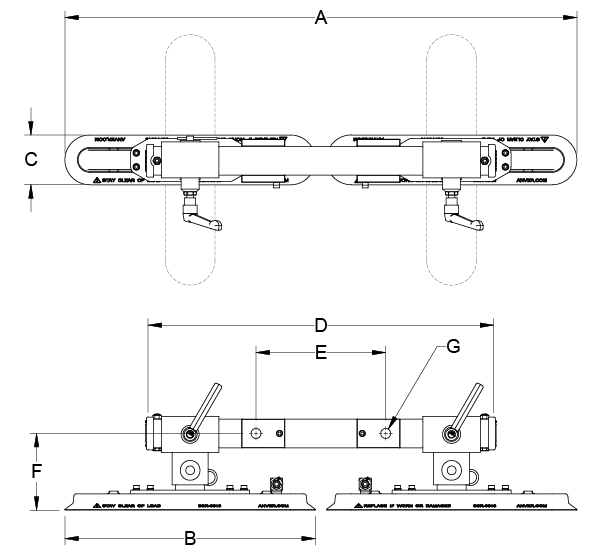

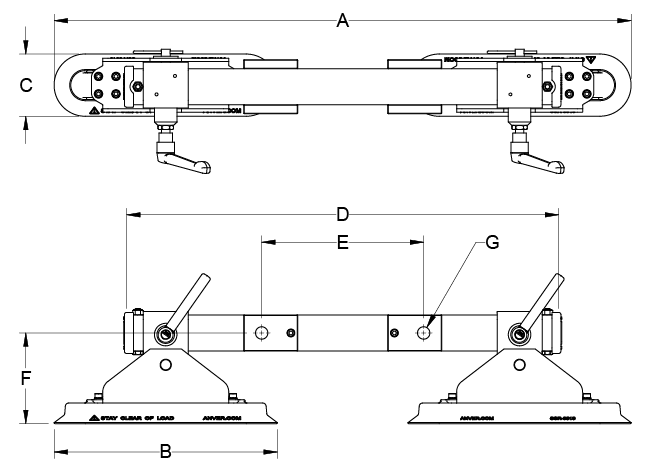

| Product photo | ANVER part number | Rated load lb (kg)* | A Standard replacement seal number (not included) | Unit weight lb (kg) | Pad layout | A Outside in. (mm) | B Pad length in. (mm) | C Pad width in. (mm) | D Beam length in. (mm) | E Hardware mtg. centers in. (mm) | F Headroom in. (mm) | G Mtg. hole dia. in. (mm) | |||
| Max. | Min. | ||||||||||||||

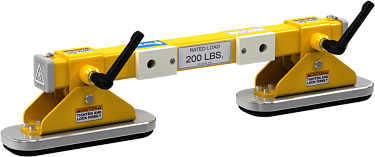

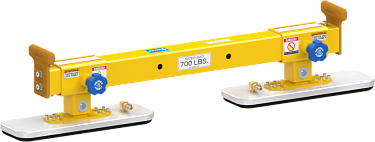

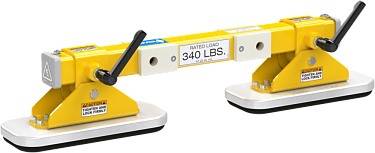

| FPA040110-2-24-3 (76400689) | 200 (91) | FR040110-K3R | T.B.D. | 30.66 (778) | 24.5 (622) | 11 (279) | 4 (102) | 24 (610) | 9 (229) | 5.16 (131) | .69 (17) | ||||
| FPA040110-2-36-3 (76400689) | 200 (91) | FR040110-K3R | T.B.D. | 42.66 (1083) | 36.5 (927) | 11 (279) | 4 (102) | 36 (914) | 9 (229) | 5.16 (131) | .69 (17) | ||||
| FPA040160-2-24-3 (76400690) | 340 (154) | FR040160-K3R | T.B.D. | 34.17 (867) | 32 (813) | 16 (406) | 4 (102) | 24 (610) | 9 (229) | 5.45 (139) | .69 (17) | ||||
| 22.17 (563) | 18.99 (482) | ||||||||||||||
| FPA040160-2-36-3 (76400690) | 340 (154) | FR040160-K3R | 34 (16) | 46.17 (1172) | 32 (813) | 16 (406) | 4 (102) | 36 (914) | 9 (229) | 5.45 (139) | .69 (17) | ||||
| 34.17 (867) | 18.99 (482) | ||||||||||||||
| FPA050120-2-24-3 (76400691) | 340 (154) | FR050120-K3R | T.B.D. | 31.66 (804) | 25.5 (647) | 12 (305) | 5 (127) | 24 (610) | 9 (229) | 5.16 (131) | .69 (17) | ||||
| FPA050120-2-36-3 (76400691) | 340 (154) | FR050120-K3R | T.B.D. | 43.66 (1108) | 37.5 (953) | 12 (305) | 5 (127) | 36 (914) | 9 (229) | 5.16 (131) | .69 (17) | ||||

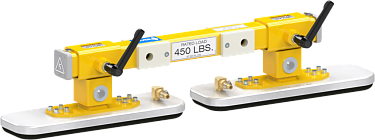

| FPA050160-2-24-3 (76400692) | 450 (204) | FR050160-K3R | 32 (15) | 34.16 (868) | 32 (813) | 16 (406) | 5 (127) | 24 (610) | 9 (229) | 5.45 (139) | .69 (17) | ||||
| 23.16 (588) | 20 (508) | ||||||||||||||
| FPA050160-2-36-3 (76400692) | 450 (204) | FR050160-K3R | T.B.D. | 46.16 (1172) | 32 (813) | 16 (406) | 5 (127) | 36 (914) | 9 (229) | 5.45 (139) | .69 (17) | ||||
| 35.16 (893) | 20 (508) | ||||||||||||||
| FPA060180-2-36-3 (76400693) | 700 (318) | FR060180-K3R | T.B.D. | 47.2 (1199) | 38.8 (986) | 18 (457) | 6 (152) | 36 (914) | 9 (229) | 7.08 (180) | .69 (17) | ||||
| 34.2 (869) | 22.8 (579) | ||||||||||||||

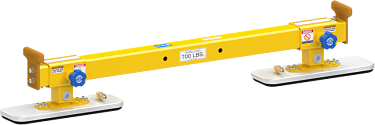

| FPA060180-2-48-3 (76400693) | 700 (318) | FR060180-K3R | T.B.D. | 59.2 (1504) | 38.8 (986) | 18 (457) | 6 (152) | 50 (1270) | 9 (229) | 7.08 (180) | .69 (17) | ||||
| 46.2 (1173) | 22.8 (579) | ||||||||||||||
| FPA070200-2-36-3 (76400694) | 1000 (454) | FR070200-K1R Standard | T.B.D. | 49.3 (1252) | 40 (1016) | 20.13 (511) | 7.13 (181) | 36 (914) | 9 (229) | 7.08 (180) | .69 (17) | ||||
| FR070200-K2C2 (24531090) | 36.3 (922) | 24 (610) | |||||||||||||
| FPA070200-2-48-3 (76400694) | 1000 (454) | FR070200-K1R Standard | T.B.D. | 61.3 (1557) | 40 (1016) | 20.13 (511) | 7.13 (181) | 50 (1270) | 9 (229) | 7.08 (180) | .69 (17) | ||||
| FR070200-K2C2 (24531090) | 48.3 (1227) | 24 (610) | |||||||||||||
*The cup capacities shown above are based on 22″ Hg (unless stated) at sea level with a safety factor of two (2) in the horizontal (flat), and four (4) in the vertical (upright).
Actual capacity will vary based on the load surface and the level of vacuum.
| Adjustment knobs | ||
| Product photo | Part number | Description |
| KNM16X50P | Hand knob, M16 x 50MM stud, black plastic Replaces HDLM16X50ZRAT & HDLM16X60ZRAT | |
| KNM12X45P | Hand knob, M12 x 45MM stud, black plastic Replaces HDLM12X40ZRAT | |
| KNM12X35SP | Hand knob, M12 x 35MM stud, small black plastic Replaces HDLM12X40ZRAT, HDLM12X30ZRAT & KNM12X45SP | |
13600098 A
Standard foam seal vacuum pads
