ANVER VPFL4-AIR low headroom air vacuum generator, 2200 lb

The VPFL4-AIR is a lightweight, entry level air powered vacuum generator that needs no electricity and mounts on a 3" square beam. Features, specifications for six models and dimensions below.

Request a quote

Compressed air powered vacuum generators
Low headroom air powered vacuum generators – VPFL4-AIR series
Manufacturer PDF

ANVER VPFL4-AIR air powered vacuum generator

ANVER’s latest models of vacuum generators feature high capacity pumps, valves, filters and gauges for trouble-free operation in the most demanding production environments. These lightweight entry level units are designed for use with a wide assortment of vacuum lifter assemblies and pad attachments. The VPFL4-AIR series features a sturdy welded frame construction and is ruggedly built, yet affordably priced for unmatched value.

VLS safety system included

Features:

  • Air powered vacuum generators
    No electric power required, operates using dry, clean compressed air for vacuum generation. The vacuum generator incorporates a single stage venturi with no moving parts or rubber gaskets to maintain or replace.
  • Front mounted vacuum gauge
    Manifold vacuum gauge is front mounted on the manifold block for continuous monitoring by the operator.
  • Ergonomic adjustable front handlebar
    Easy to grasp, large loop handlebar enables the operator to easily and safely maneuver the attached load without touching the load itself. Handlebar can be adjusted for smaller size loads.
  • Slide control valve with push-button safety lock
    The slide control valve assembly controls the vacuum attach and release and is mounted to the front handlebar for convenient access by the operator. The push-button safety lock keeps the slide valve in the attach position while lifting a load to prevent accidental load release.
  • Vacuum check valve and reservoir
    A check valve and a vacuum reservoir help to maintain vacuum if the supply of compressed air is interrupted, for safe handling of non-porous loads.
  • Takes standard dry, clean shop air
    Input pressure to be regulated to 72.5 psi. Provided with 1/4” NPT inlet.
  • Vacuum leakage sensor and warning system
    The VLS is a battery powered unit consisting of solid state circuitry with microprocessor, pressure sensor, LCD digital display in inches of Hg, and audible and visual warning signs (horn and red light). The system is plumbed to the Vac-Pack and monitors vacuum level, triggering the alarm in the event of a leakage in vacuum level.
  • Air filter
    High capacity air filter provides protection against venturi damage. A clear filter bowl allows the filter to be monitored for inspection and cleaning.

General:

  • Frame construction
    Frames are fully welded with a structural lifting capacity rating of 2200 lb. (998 kg) for 3” sq. beams with beam mounting hardware.
  • Versatility
    For larger load lifting capacity or alternate power requirements, ANVER offers electric powered, air powered and self powered mechanical vacuum generators, all with standard mounting designs for interchangeability.

Specifications:

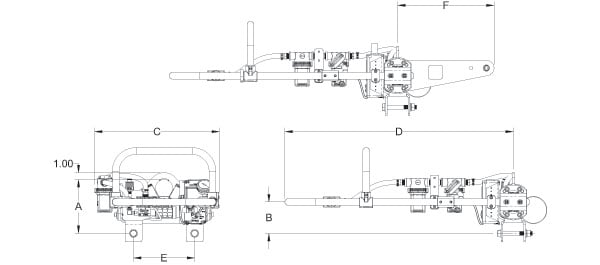

VPFL4-AIR dimension drawing Lifting bail dimensions

Generator modelVPFL4-20-AIRVPFL4-20-AIR-CVPFL4-25-AIRVPFL4-25-AIR-CVPFL4-30-AIRVPFL4-30-AIR-C
Rated load capacity [lbs (kg.)]2200 (998)2200 (998)2200 (998)2200 (998)2200 (998)2200 (998)
Unit weight [lbs (kg.)]25 (11)25 (11)25 (11)25 (11)25 (11)25 (11)
A Maximum headroom [in. (mm)]8 (203)14 (356)8 (203)14 (356)8 (203)14 (356)
B Handlebar height [in. (mm)]4.63 (118)4.63 (118)4.63 (118)4.63 (118)4.63 (118)4.63 (118)
C Handlebar width [in. (mm)]16 (406)16 (406)16 (406)16 (406)16 (406)16 (406)
D Handlebar length [in. (mm)]34 (864)17 (432)34 (864)17 (432)34 (864)17 (432)
E Hardware centers [in. (mm)]9 (229)9 (229)9 (229)9 (229)9 (229)9 (229)
F Counterweight length (optional) [in. (mm)]14.2 (361)N/A14.2 (361)N/A14.2 (361)N/A
Fits square tube size [in. (mm)]3x3 (76x76)3x3 (76x76)3x3 (76x76)3x3 (76x76)3x3 (76x76)3x3 (76x76)
Vacuum flow [SCFM (l/min.)]4.5 (130)4.5 (130)7.06 (200)7.06 (200)9.5 (270)9.5 (270)
Air consumption [SCFM (l/min.)]6.1 (170)6.1 (170)9.2 (260)9.2 (260)14 (400)14 (400)
ApplicationSmooth, non-porousSmooth, non-porousSmooth, semi-porousSmooth, semi-porousRough, semi-porousRough, semi-porous

Spare parts list

Optimum pressure is 72.5 psi. Air supply flow (CFM) may adversely affect required pressure (psi) to achieve optimum vacuum level. Vacuum level is 24″ Hg at sea level.

VPFL4 generator with pad attachment
Lightweight generators with pad attachments		Compact VPFL4 generator
Compact VPFL4 generator available		Selecting the right vacuum lifter
Selecting the right vacuum lifter		Vacuum pad attachments
Vacuum pad attachments

13600007 C
