Equipment › ANVER vacuum lifters › Standard lifting frames › L80M8 8-pad lifting frame

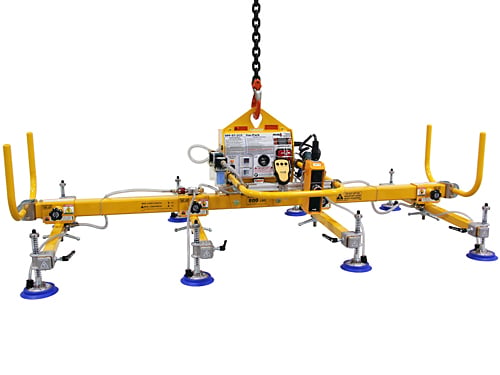

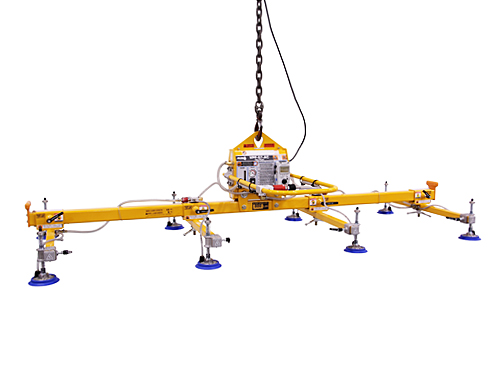

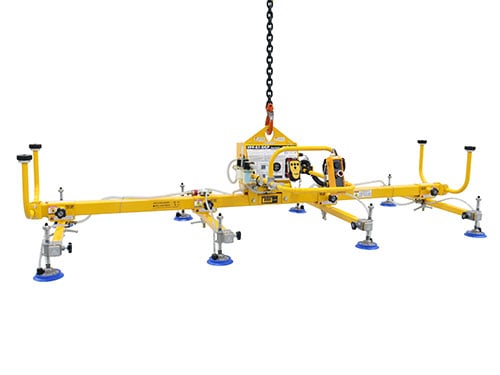

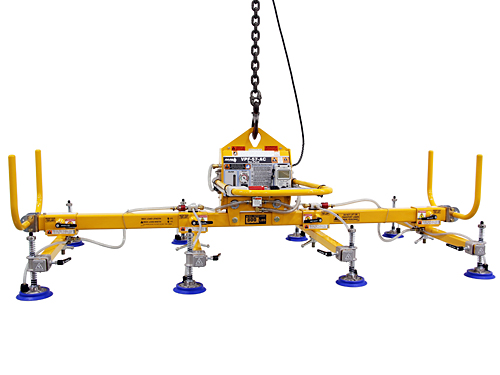

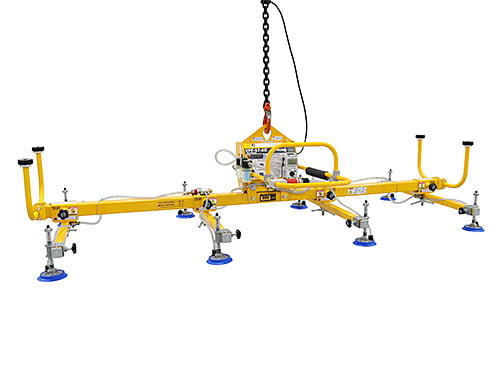

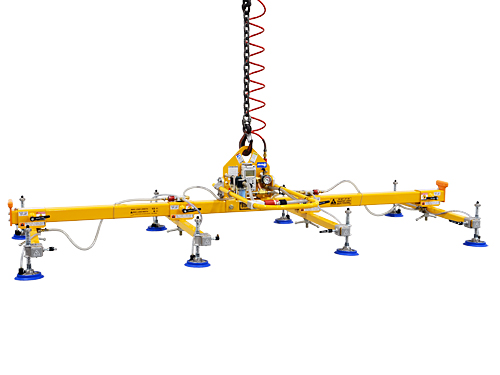

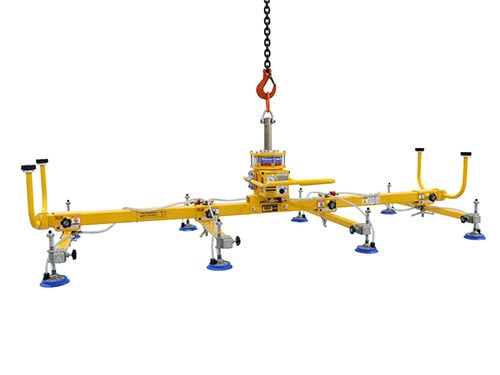

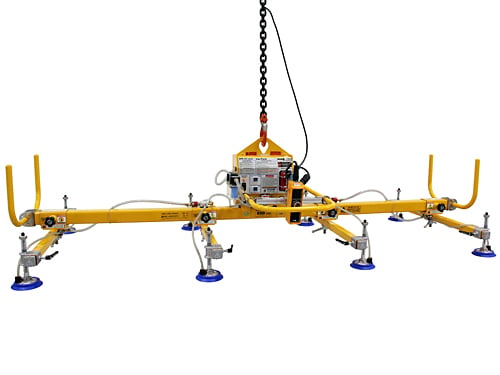

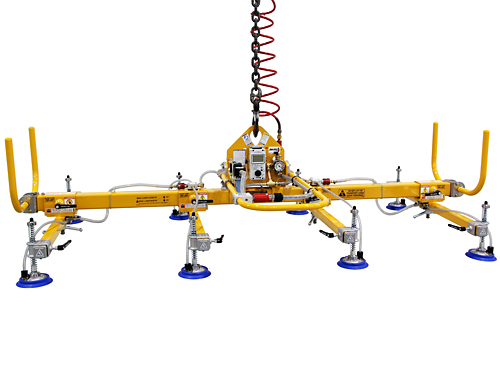

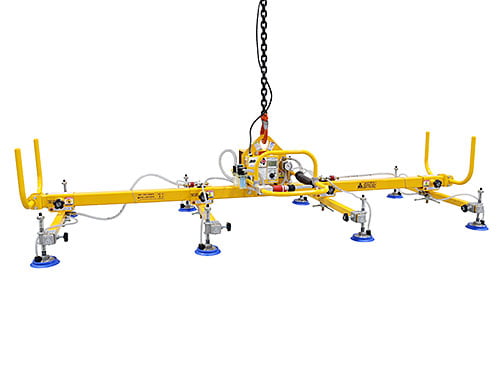

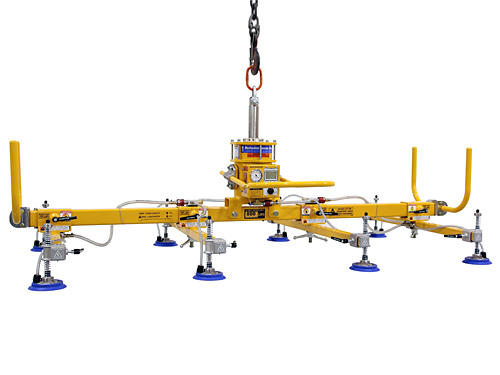

ANVER L80M8 8-pad vacuum lifting frame, 800 lb

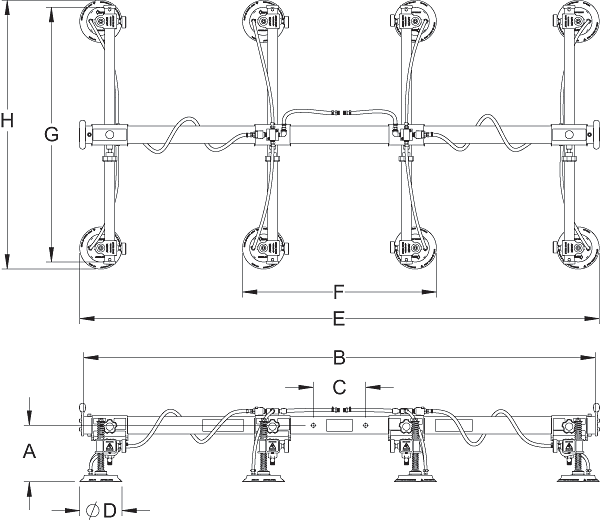

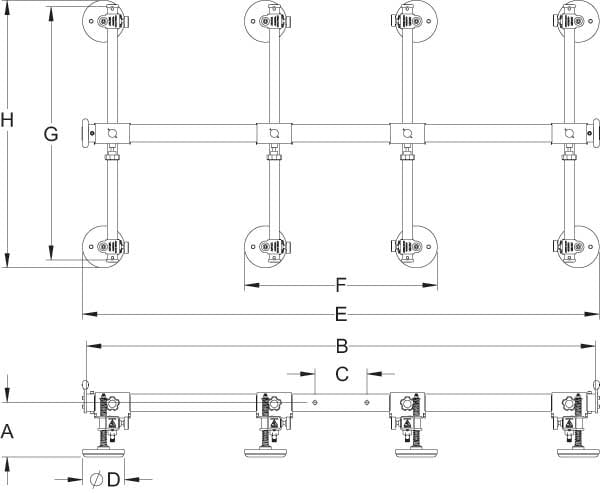

The L80M8 series (4 versions) are standard eight-pad ANVER lifting frames with adjustable crossarms that pair with a vacuum generator to handle carbon and stainless steel sheets and plates, rated at 800 lb (363 kg). Below are the dimension drawing, model specifications and compatible vacuum generators.
Eight pad vacuum lifter lifting frames – for standard eight pad lifters with adjustable crossarms – capacity up to 800 lb (363 kg)
Manufacturer PDF
ANVER’s standard vacuum lifters offer efficient material handling solutions by promoting functionality, safety, and ergonomic operations for a wide variety of applications and materials. Standard lifting frames are built to order from stock using modular components, so there are hundreds of possible combinations depending on the vacuum generator, beam, crossarms, and vacuum cups selected.
Basic features on ANVER’s standard horizontal vacuum lifters include: vacuum leakage sensor and warning system; attach/release slide valve with safety lock; and locking hand knobs on the adjustable vacuum pad, slide assemblies, and crossarms (when applicable).
ANVER vacuum lifters comply with ASME B30.20 and ASME BTH-1 standards. Specifications and rated capacities vary by configuration, and users remain responsible for full compliance with workplace safety, inspection, and operating regulations.

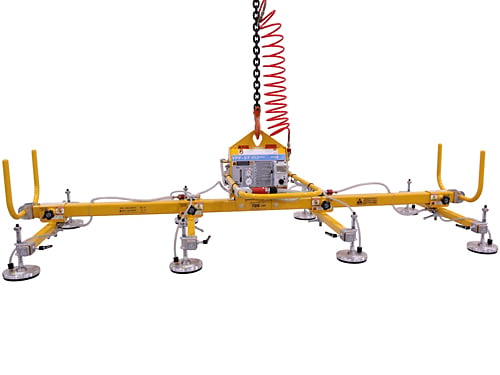

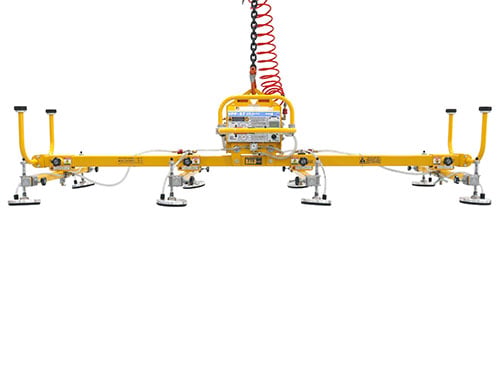

The L80M8-86-4/44 and -110-4/44 eight-pad lifting frames are ideal for handling carbon steel and stainless steel sheets and plates with a capacity up to 800 lb (363 kg). The type of vacuum lifter – mechanical, air, or electric – paired with the number of pads used will depend on your application needs. Available with foam pads for semi-porous / textured applications like wood, stone and diamond plate. Please note that foam pads are not available for mechanical vacuum generators.
*Lifting frame shown with vacuum generator and/or optional accessories, not included. Unit weight does not include optional equipment.
Standard rubber seal lifting frames specifications
| Lifting frame number | L80M8-86-4/44 | L80M8-110-4/44 |
| Rated load capacity [lbs (kg)] | 800 (363) | 800 (363) |
| Unit weight [lbs (kg)] | 170 (77) | 185 (84) |
| A Lifting frame headroom [in. (mm)] | 10 (254) | 10 (254) |
| B Spreader beam length [in. (mm)] | 88 (2235) | 112 (2845) |
| C Hardware mounting centers [in. (mm)] | 9 (229) | 9 (229) |
| D Pad diameter [in. (mm)] | 6.0 (153) | 6.0 (153) |
| E Outer pad distances maximum [in. (mm)] | 89 (2261) | 113 (2870) |
| E Outer pad distances minimum [in. (mm)] | 48 (1219) | 48 (1219) |
| F Minimum inner pad distance [in. (mm)] | 31 (787) | 31 (787) |
| G Crossarm length [in. (mm)] | 44 (1118) | 44 (1118) |
| H Outer pad distances maximum [in. (mm)] | 47 (1194) | 47 (1194) |
| H Outer pad distances minimum [in. (mm)] | 19 (483) | 19 (483) |
| Maximum sheet size [ft (m)] | 9 x 6 (2.7 x 1.8) | 12 x 6 (3.7 x 1.8) |
| Seal number | SSR-62 | SSR-62 |
| Optional parking stands | PS-150-3X3 | PS-150-3X3 |
Standard foam seal lifting frames specifications
Note: foam pads are available for air and electric powered vacuum generators only.
| Lifting frame number | L80M8-86-4/44FP | L80M8-110-4/44FP |
| Rated load capacity [lbs (kg)] | 800 (363) | 800 (363) |
| Unit weight [lbs (kg)] | 172 (78) | 190 (86) |
| A Lifting frame headroom [in. (mm)] | 11 (279) | 11 (279) |
| B Spreader beam length [in. (mm)] | 88 (2235) | 112 (2845) |
| C Hardware mounting centers [in. (mm)] | 9 (229) | 9 (229) |
| D Pad diameter [in. (mm)] | 7.25 (184) | 7.25 (184) |
| E Outer pad distances maximum [in. (mm)] | 90 (2286) | 114 (2896) |
| E Outer pad distances minimum [in. (mm)] | 56 (1422) | 56 (1422) |
| F Minimum inner pad distance [in. (mm)] | 32 (813) | 32 (813) |
| G Crossarm length [in. (mm)] | 44 (1118) | 44 (1118) |
| H Outer pad distances maximum [in. (mm)] | 48 (1219) | 48 (1219) |
| H Outer pad distances minimum [in. (mm)] | 22 (559) | 22 (559) |
| Maximum sheet size [ft (m)] | 9 x 6 (2.7 x 1.8) | 12 x 6 (3.7 x 1.8) |
| Seal number | FR78 | FR78 |
| Optional parking stands | PS-150-3X3 | PS-150-3X3 |
*Battery powered vacuum generators are only recommended when handling non-porous loads.
Various plate sizes can be handled by adjusting the vacuum pad positions on the beam
13600073 C
