Equipment › ANVER vacuum lifters › Standard lifting frames › L100M4 H-style 4-pad lifting frame

ANVER L100M4 H-style 4-pad vacuum lifting frame, 1000 lb

The L100M4 series (4 versions) are standard four-pad ANVER lifting frames with adjustable crossarms that pair with a vacuum generator to handle carbon and stainless steel sheets and plates, rated at 1000 lb (454 kg). Below are the dimension drawing, model specifications and compatible vacuum generators.

Request a quote

Four pad vacuum lifter lifting frames – for standard four pad lifters with adjustable crossarms – capacity up to 1000 lb (454 kg)
 Manufacturer PDF

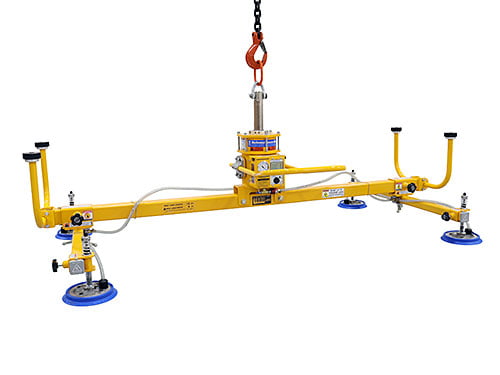

ANVER M100M-L-L100M4-86-2/44 vacuum lifter

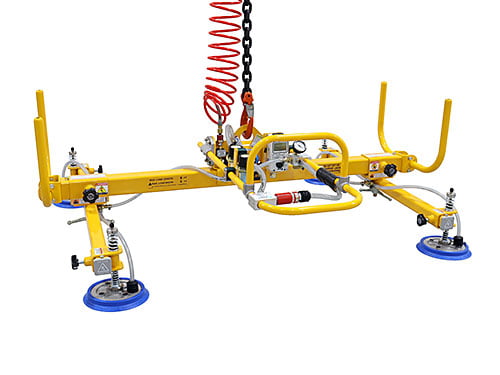

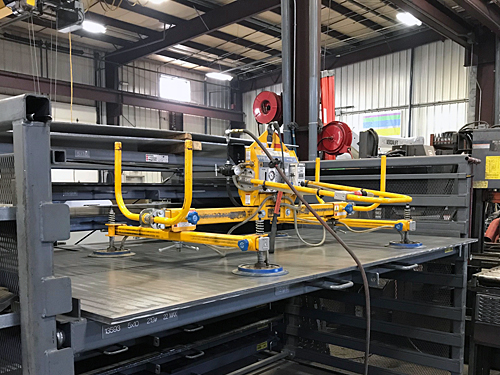

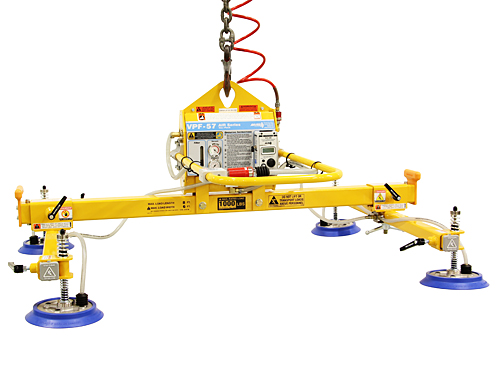

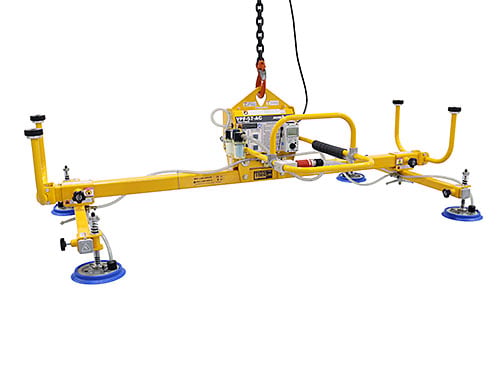

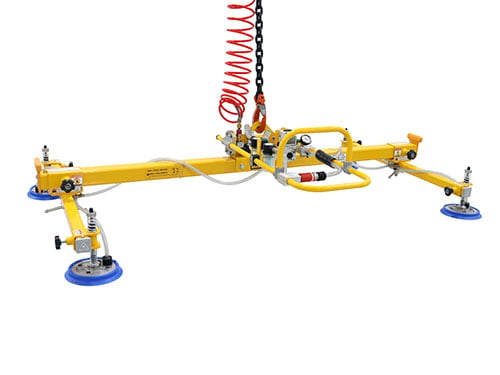

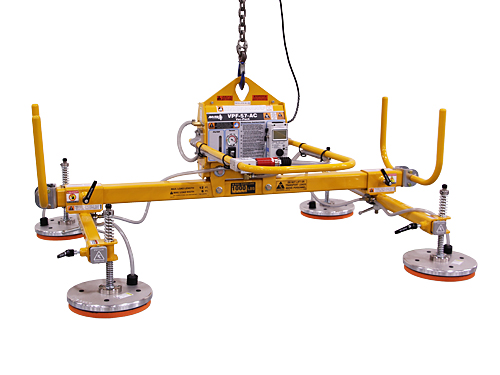

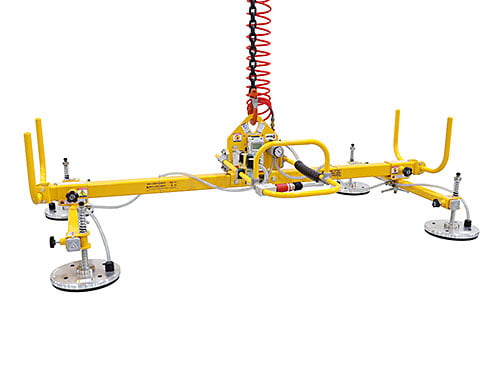

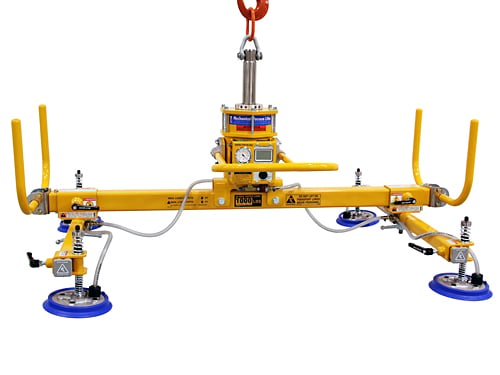

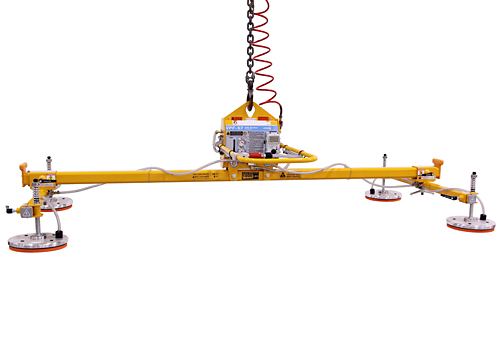

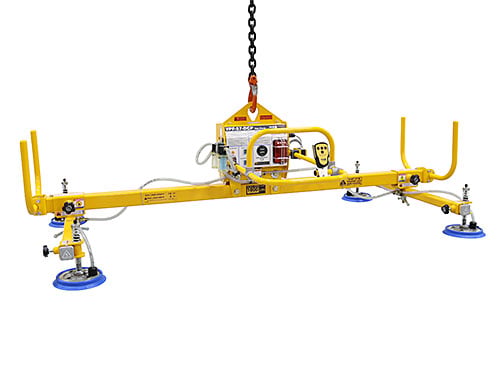

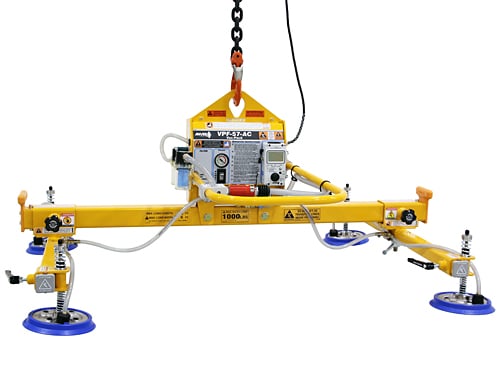

ANVER M100M-L-L100M4-86-2/44 vacuum lifterANVER VPF-57-AC-L100M4-86-2/44 vacuum lifterANVER VPFL4-20-AIR-L-L100M4-86-2/44 vacuum lifterANVER VPFL4-25-AIR-L100M4-61-2/44 vacuum lifterANVER VPFL4-20-AIR-T-L100M4-86-2/44FP vacuum lifterANVER VPF-57-DCP-L100M4-86-2/44 vacuum lifterANVER VPF-57_20-AIR-L100M4-61-2/44 vacuum lifterANVER FOUR-PAD-AIR vacuum lifterANVER VPF-57-AC-L100M4-61-2/44FP vacuum lifterANVER M100M-L100M4-61-2/44 vacuum lifterANVER VPF-57-AC-L100M4-61-2/441 vacuum lifterANVER VPF-57_30-AIR-L100M4-110-2/44FP vacuum lifter

ANVER’s standard vacuum lifters offer efficient material handling solutions by promoting functionality, safety, and ergonomic operations for a wide variety of applications and materials. Standard lifting frames are built to order from stock using modular components, so there are hundreds of possible combinations depending on the vacuum generator, beam, crossarms, and vacuum cups selected.

Basic features on ANVER’s standard horizontal vacuum lifters include: vacuum leakage sensor and warning system; attach/release slide valve with safety lock; and locking hand knobs on the adjustable vacuum pad, slide assemblies, and crossarms (when applicable).

ANVER vacuum lifters comply with ASME B30.20 and ASME BTH-1 standards. Specifications and rated capacities vary by configuration, and users remain responsible for full compliance with workplace safety, inspection, and operating regulations.

The L100M4-61-2/44 and -86-2/44 four-pad lifting frames are ideal for handling carbon steel and stainless steel sheets and plates with a capacity up to 1000 lb (454 kg). The type of vacuum lifter – mechanical, air, or electric – paired with the number of pads used will depend on your application needs. Available with foam pads for semi-porous / textured applications like wood, stone and diamond plate. Please note that foam pads are not available for mechanical vacuum generators.

*Lifting frame shown with vacuum generator and/or optional accessories, not included. Unit weight does not include optional equipment.

Standard rubber seal lifting frames specifications

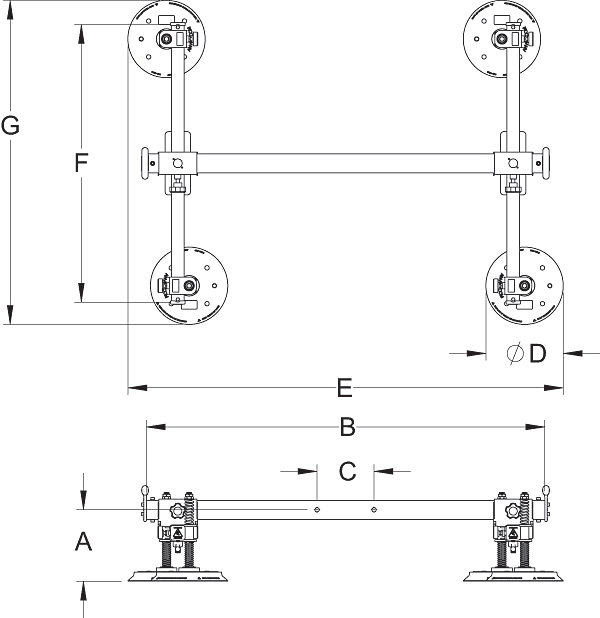

L100M4 dimension drawing

Compatible vacuum generators
Mechanical Mechanical Air or electricAir, electric or battery* Electric Battery*
ANVER M100M mechanical vacuum generator ANVER M150M mechanical vacuum generatorANVER VPFL4 vacuum generatorANVER VPF-57 vacuum generatorANVER VPE1-GEN3 vacuum generatorANVER BAE1-GEN3 vacuum generator
M100M series M150M series VPFL4 series VPF-57 series VPE1-GEN3 series BAE1-GEN3 series
Lifting frame numberL100M4-61-2/44L100M4-86-2/44
Rated load capacity [lbs (kg)]1000 (454)1000 (454)
Unit weight [lbs (kg)]120 (54)135 (61)
A Lifting frame headroom [in. (mm)]11.5 (292)11.5 (292)
B Spreader beam length [in. (mm)]63 (1600)88 (2235)
C Hardware mounting centers [in. (mm)]9 (229)9 (229)
D Pad diameter [in. (mm)]9.25 (235)9.25 (235)
E Pad distances maximum [in. (mm)]64 (1626)89 (2261)
E Pad distances minimum [in. (mm)]34 (864)34 (864)
F Crossarm length [in. (mm)]44 (1118)44 (1118)
G Pad distances maximum [in. (mm)]48 (1219)48 (1219)
G Pad distances minimum [in. (mm)]22 (559)22 (559)
Maximum sheet size [ft (m)]8 x 6 (2.4 x 1.8)12 x 6 (3.7 x 1.8)
Seal numberSSR-92SSR-92
Optional parking standsPS-150-3X3PS-150-3X3

Standard foam seal lifting frames specifications
Note: foam pads are available for air and electric powered vacuum generators only.

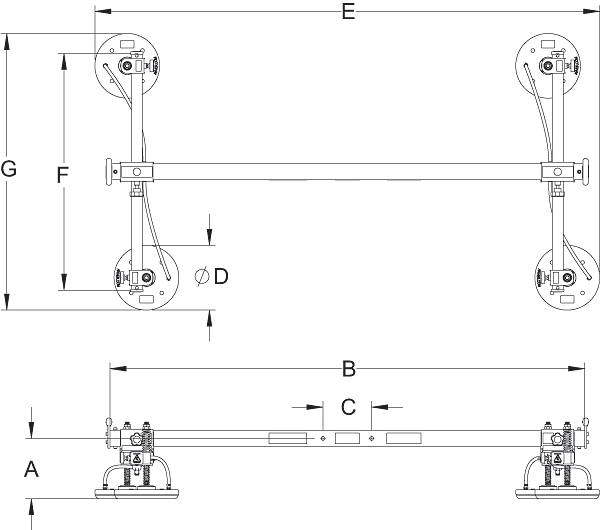

L100M4 dimension drawing

Compatible vacuum generators
Air or electricAir, electric or battery* Electric Battery*
ANVER VPFL4 vacuum generatorANVER VPF-57 vacuum generatorANVER VPE1-GEN3 vacuum generatorANVER BAE1-GEN3 vacuum generator
VPFL4 series VPF-57 series VPE1-GEN3 series BAE1-GEN3 series
Lifting frame numberL100M4-61-2/44FPL100M4-86-2/44FP
Rated load capacity [lbs (kg)]1000 (454)1000 (454)
Unit weight [lbs (kg)]155 (70)170 (77)
A Lifting frame headroom [in. (mm)]11.5 (292)11.5 (292)
B Spreader beam length [in. (mm)]63 (1600)88 (2235)
C Hardware mounting centers [in. (mm)]9 (229)9 (229)
D Pad diameter [in. (mm)]12 (305)12 (305)
E Pad distances maximum [in. (mm)]69 (1753)94 (2388)
E Pad distances minimum [in. (mm)]36 (914)36 (914)
F Crossarm length [in. (mm)]44 (1118)44 (1118)
G Pad distances maximum [in. (mm)]52 (1321)52 (1321)
G Pad distances minimum [in. (mm)]26 (660)26 (660)
Maximum sheet size [ft (m)]8 x 6 (2.4 x 1.8)12 x 6 (3.7 x 1.8)
Seal numberFR128FR128
Optional parking standsPS-150-3X3PS-150-3X3

*Battery powered vacuum generators are only recommended when handling non-porous loads.

Various plate sizes can be handled by adjusting the vacuum pad positions on the beam

4-pad H-style frame pad position diagram
Crossarms and vacuum pads in maximum position to handle maximum plate size.
4-pad H-style frame pad position diagram
Crossarms can pivot to near parallel with spreader beam to handle narrow plates.
4-pad H-style frame pad position diagram
Vacuum pads and crossarms fully adjustable to handle short and narrow plates.
