ANVER L460M2 2-pad vacuum lifting frame, 4600 lb

The L460M2-86 is a standard two-pad ANVER lifting frame that pairs with a vacuum generator to handle carbon and stainless steel sheets and plates, rated at 4600 lb (2087 kg). Below are the dimension drawing, model specifications and compatible vacuum generators.

Request a quote

Two pad vacuum lifter lifting frames – for standard two pad lifters – capacity up to 4600 lb (2086 kg)
Manufacturer PDF

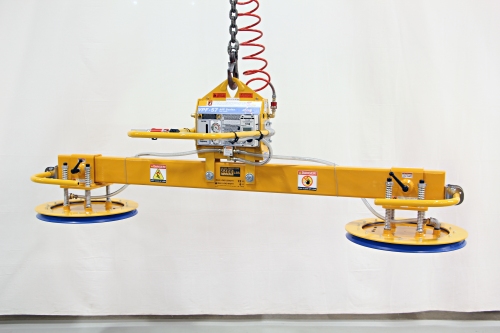

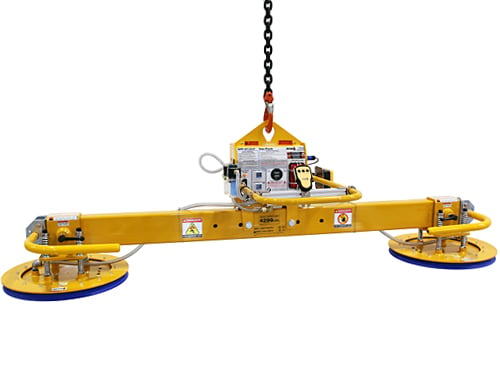

ANVER VPF-57HD-AC-L460M2-86 vacuum lifter

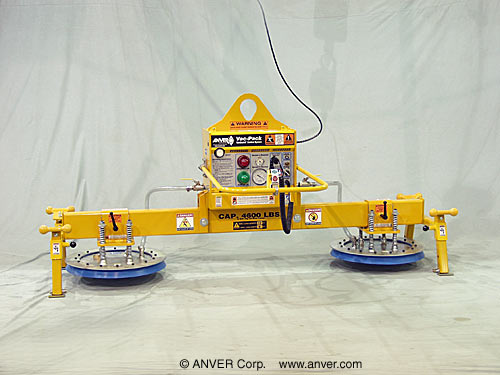

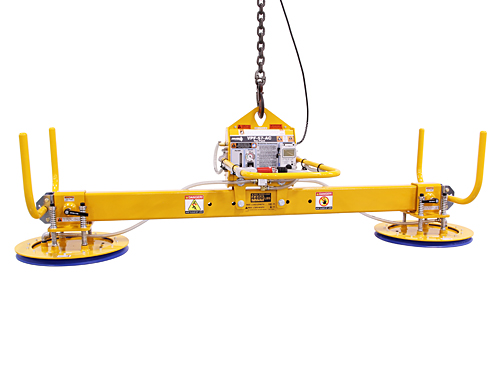

ANVER VPF-57HD-AC-L460M2-86 vacuum lifterANVER VPF-57HD-DCP-L460M2-86 vacuum lifterANVER L460M2-86 vacuum lifting frameANVER VPE3-S-L460M2-861 vacuum lifter

ANVER’s standard vacuum lifters offer efficient material handling solutions by promoting functionality, safety, and ergonomic operations for a wide variety of applications and materials. Standard lifting frames are built to order from stock using modular components, so there are hundreds of possible combinations depending on the vacuum generator, beam, crossarms, and vacuum cups selected.

Basic features on ANVER’s standard horizontal vacuum lifters include: vacuum leakage sensor and warning system; attach/release slide valve with safety lock; and locking hand knobs on the adjustable vacuum pad, slide assemblies, and crossarms (when applicable).

ANVER vacuum lifters comply with ASME B30.20 and ASME BTH-1 standards. Specifications and rated capacities vary by configuration, and users remain responsible for full compliance with workplace safety, inspection, and operating regulations.

The L460M2-86 two pad lifting frames are ideal for handling carbon steel and stainless steel sheets and plates with a capacity up to 4600 lb (2086 kg). The type of vacuum lifter – mechanical, air, or electric – paired with the number of pads used will depend on your application needs. Foam pads are not available for mechanical vacuum generators.

*Lifting frame shown with vacuum generator and/or optional accessories, not included. Unit weight does not include optional equipment.


Standard lifting frames with rubber vacuum seals specifications

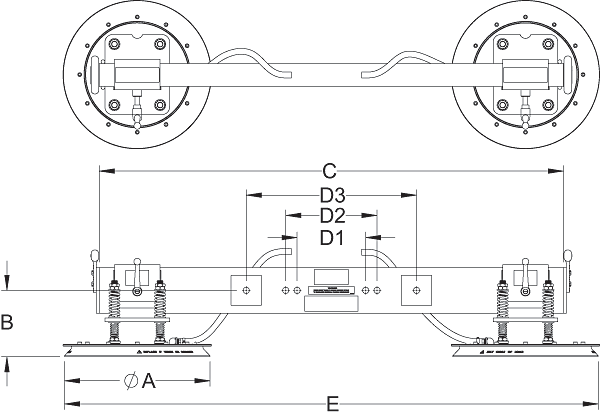

L460M2 dimension drawing

Compatible vacuum generators
Air, electric or battery* Electric Battery* Electric Battery*
ANVER VPF-57 vacuum generatorANVER VPE1-GEN3 vacuum generatorANVER BAE1-GEN3 vacuum generator ANVER VPE3-GEN2 vacuum generator ANVER BAE3-GEN2 vacuum generator
VPF-57 series VPE1-GEN3 series BAE1-GEN3 series VPE3-GEN3 series BAE3-GEN3 series
Lifting frame numberL460M2-86
Rated load capacity [lbs (kg)]4600 (2087)
Unit weight [lbs (kg)]205 (93 kg
A Pad diameter [in. (mm)]24 (610)
B Lifting frame headroom [in. (mm)]11 (279)
C Beam length [in. (mm)]86 (2184)
D1 Hardware mtg. centers [in. (mm)]9 (229)
D2 Inner alternate hardware mtg. centers [in. (mm)]12 (305)
D3 Outer alternate hardware mtg. centers [in. (mm)]22.38 (568)
E Pad distances max. [in. (mm)]103.5 (2629)
E Pad distances min. with M250M [in. (mm)]49 (1245)
E Pad distances min. with VPF-57HD [in. (mm)]49 (1245)
E Pad distances min. with VPE1-H [in. (mm)]49 (1245)
E Pad distances min. with VPE3-S [in. (mm)]57 (1448)
Maximum sheet size [ft (m)]12 x 6 (3.7 x 1.8)
Pad numberVP235MQ
Optional parking stands72000038

*Battery powered vacuum generators are only recommended when handling non-porous loads.
**Derate lifting frame to 4400 lbs (1996 kg) capacity when using a VPF-57-series generator.

Various plate sizes can be handled by adjusting the vacuum pad positions on the beam

2-pad frame pad position diagram
Vacuum pads in fully extended position to handle maximum plate size.
2-pad frame pad position diagram
Vacuum pads moved inwards to handle shorter plate.

13600050 A
