ANVER L120M8 8-pad vacuum lifting frame, 1200 lb

The L120M8 series (6 versions) are standard eight-pad ANVER lifting frames with adjustable crossarms that pair with a vacuum generator to handle carbon and stainless steel sheets and plates, rated at 1200 lb (544 kg). Below are the dimension drawing, model specifications and compatible vacuum generators.

Request a quote

Eight pad vacuum lifter lifting frames – for standard eight pad lifters with adjustable crossarms – capacity up to 1200 lb (544 kg)
Manufacturer PDF

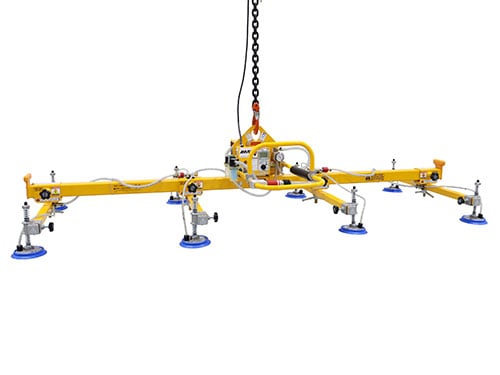

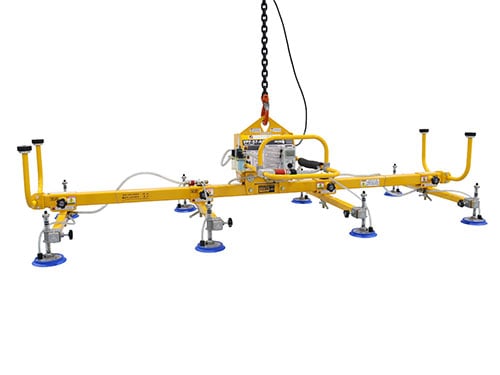

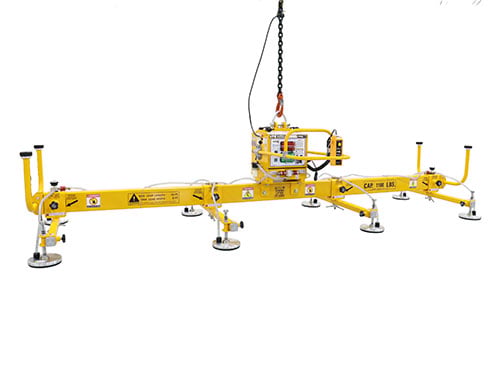

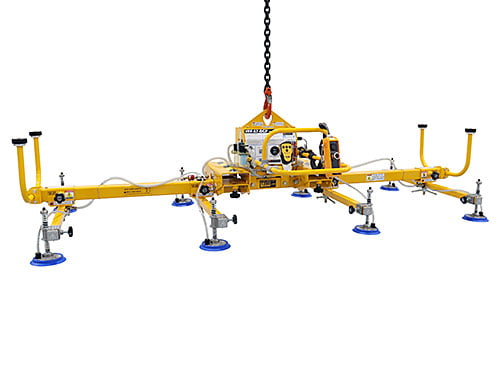

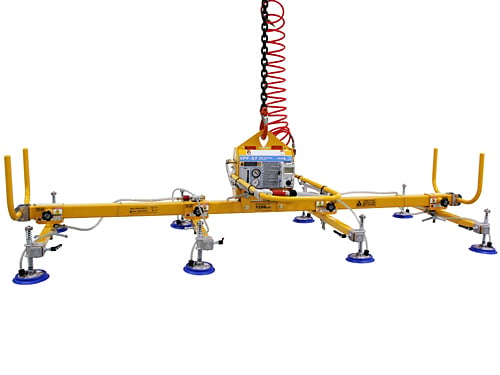

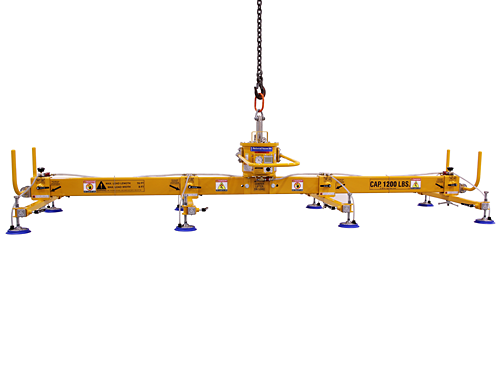

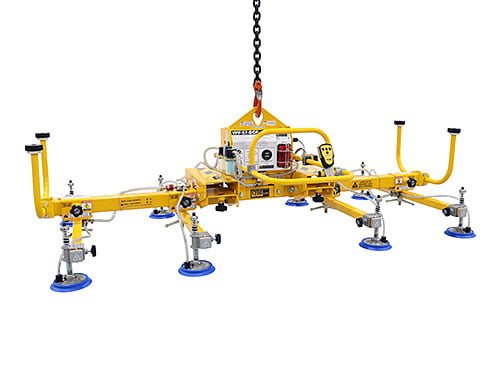

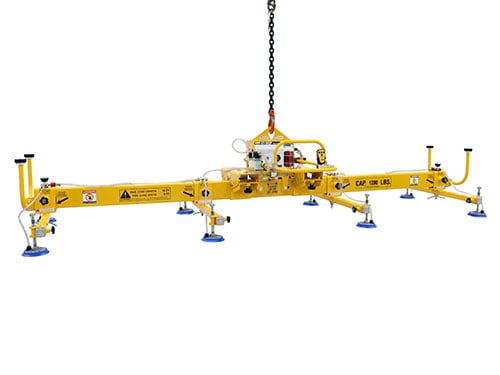

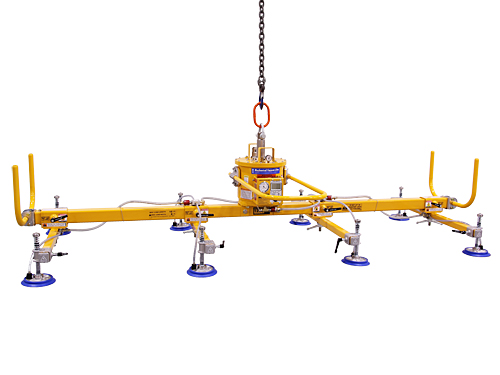

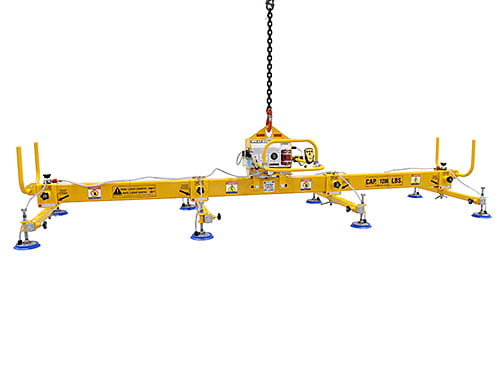

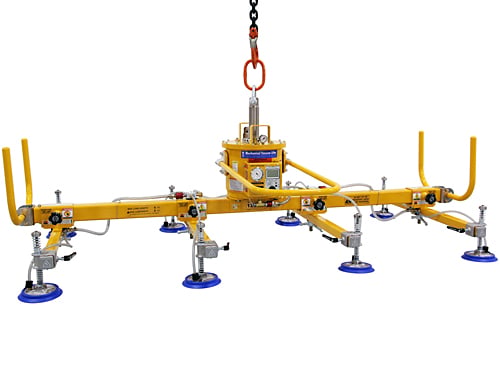

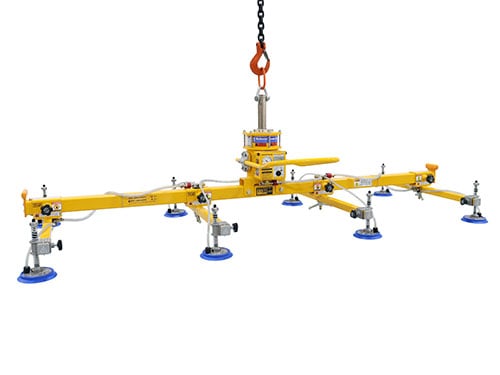

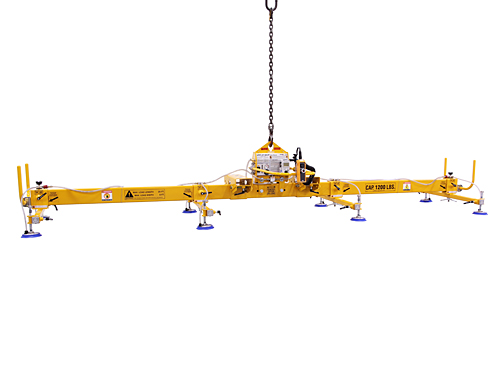

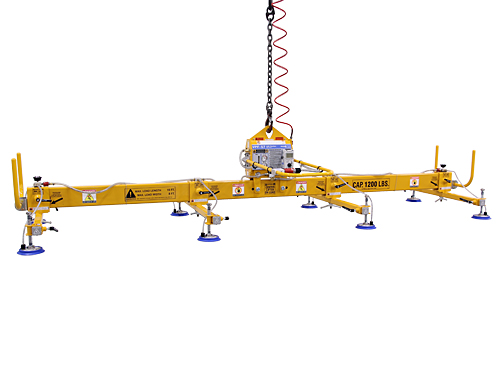

ANVER VPF-57-AC-L-L120M8-110-4/44 vacuum lifter
ANVER VPF-57-AC-L-L120M8-110-4/44 vacuum lifterANVER VPF-57-DCP-L-L120M8-86-4/44 vacuum lifterANVER M100M-L-L120M8-110-4/44 vacuum lifterANVER VPF-57-DCP-L-L120M8-110-4/44 vacuum lifterANVER VPF-57HD-DCP-L-L120M8-150-4/44 vacuum lifterANVER VPE1-GEN3-HD-L120M8-150-4/44FP vacuum lifterANVER VPF-57HD-DCP-L120M8-150-4/44 vacuum lifterANVER VPFL4-04-AC240-L120M8-110-4/44 vacuum lifterANVER M150M-L120M8-110-4/44 vacuum lifterANVER VPF-57/20HD-AIR-L120M8-150-4/44 vacuum lifterANVER VPF-57HD-DCP-L120M8-190-4/44 vacuum lifterANVER M150M-3X6L120M8-150-4/44 vacuum lifterANVER VPF-57_20-AIR-L120M8-110-4/442 vacuum lifterANVER M150M-L120M8-86-4/44 vacuum lifter

ANVER’s standard vacuum lifters offer efficient material handling solutions by promoting functionality, safety, and ergonomic operations for a wide variety of applications and materials. Standard lifting frames are built to order from stock using modular components, so there are hundreds of possible combinations depending on the vacuum generator, beam, crossarms, and vacuum cups selected.

Basic features on ANVER’s standard horizontal vacuum lifters include: vacuum leakage sensor and warning system; attach/release slide valve with safety lock; and locking hand knobs on the adjustable vacuum pad, slide assemblies, and crossarms (when applicable).

ANVER vacuum lifters comply with ASME B30.20 and ASME BTH-1 standards. Specifications and rated capacities vary by configuration, and users remain responsible for full compliance with workplace safety, inspection, and operating regulations.

The L120M8-86-4/44, -110-4/44, -150-4/44, and -190-4/44 eight-pad lifting frames are ideal for handling carbon steel and stainless steel sheets and plates with a capacity up to 1200 lb (544 kg). The type of vacuum lifter – mechanical, air, or electric – paired with the number of pads used will depend on your application needs. Available with foam pads for semi-porous / textured applications like wood, stone and diamond plate. Please note that foam pads are not available for mechanical vacuum generators.

*Lifting frame shown with vacuum generator and/or optional accessories, not included. Unit weight does not include optional equipment.

Standard rubber seal lifting frames specifications

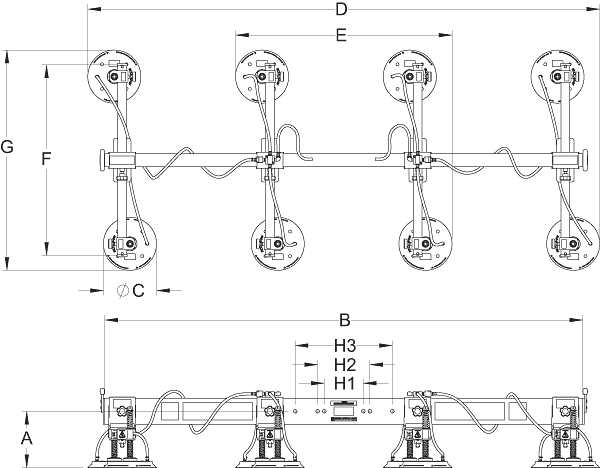

L120M8 dimension drawing

Compatible vacuum generators
Mechanical Air or electricAir, electric or battery* Electric Battery*
ANVER M150M mechanical vacuum generatorANVER VPFL4 vacuum generatorANVER VPF-57 vacuum generatorANVER VPE1-GEN3 vacuum generatorANVER BAE1-GEN3 vacuum generator
M150M series VPFL4 series VPF-57 series VPE1-GEN3 series BAE1-GEN3 series
Lifting frame numberL120M8-86-4/44L120M8-110-4/44
Rated load capacity [lbs (kg)]1200 (544)1200 (544)
Unit weight [lbs (kg)]173 (78)188 (85)
A Lifting frame headroom [in. (mm)]10 (254)10 (254)
B Spreader beam length [in. (mm)]88 (2235)112 (2845)
C Hardware mounting centers [in. (mm)]9 (229)9 (229)
D Pad diameter [in. (mm)]7.00 (178)7.00 (178)
E Outer pad distances maximum [in. (mm)]90 (2286)114 (2896)
E Outer pad distances minimum [in. (mm)]49 (1245)49 (1245)
F Minimum inner pad distance [in. (mm)]32 (813)32 (813)
G Crossarm length [in. (mm)]44 (1118)44 (1118)
H Outer pad distances maximum [in. (mm)]48 (1219)48 (1219)
H Outer pad distances minimum [in. (mm)]20 (508)20 (508)
Maximum sheet size [ft (m)]9 x 6 (2.7 x 1.8)12 x 6 (3.7 x 1.8)
Seal numberSSR-72SSR-72
Optional parking standsPS-150-3X3PS-150-3X3

L120M8 dimension drawing

Compatible vacuum generators
Mechanical Air, electric or battery* Electric Battery*
ANVER M150M mechanical vacuum generator ANVER VPF-57 vacuum generator ANVER VPE1-GEN2 vacuum generator ANVER BAE1-GEN2 vacuum generator
M150M series VPF-57 series VPE1-GEN3 series BAE1-GEN3 series
Lifting frame numberL120M8-150-4/44L120M8-190-4/44
Rated load capacity [lbs (kg)]1200 (544)1200 (544)
Unit weight [lbs (kg)]310 (141)350 (159)
A Lifting frame headroom [in. (mm)]11.5 (292)11.5 (292)
B Spreader beam length [in. (mm)]150 (3810)190 (4826)
C Pad diameter [in. (mm)]7.00 (178)7.00 (178)
D Outer pad distances max. [in. (mm)]156 (3962)196 (4978)
D Outer pad distances min. [in. (mm)]49 (1245)49 (1245)
E Minimum inner pad distance [in. (mm)]32 (813)32 (813)
F Crossarm length [in. (mm)]44 (1118)44 (1118)
G Outer pad distances max. [in. (mm)]48 (1219)48 (1219)
G Outer pad distances min. [in. (mm)]20 (508)20 (508)
H1 Standard hardware mtg. centers [in. (mm)]9 (229)9 (229)
H2 Inner alternate hardware mtg. centers [in. (mm)]12 (305)12 (305)
H3 Outer alternate hardware mtg. centers [in. (mm)]22.38 (568)22.38 (568)
Maximum sheet size [ft (m)]16 x 8 (4.9 x 2.4)20 x 8 (6.1 x 2.4)
Seal numberSSR-72SSR-72
Optional parking standsPS-150-3X6PS-150-3X6

Standard foam seal lifting frames specifications
Note: foam pads are available for air and electric powered vacuum generators only.

L120M8 dimension drawing

Compatible vacuum generators
Air or electricAir, electric or battery* Electric Battery*
ANVER VPFL4 vacuum generator ANVER VPF-57 vacuum generator ANVER VPE1-GEN2 vacuum generator ANVER BAE1-GEN2 vacuum generator
VPFL4 series VPF-57 series VPE1-GEN3 series BAE1-GEN3 series
Lifting frame numberL120M8-86-4/44FPL120M8-110-4/44FP
Rated load capacity [lbs (kg)]1200 (544)1200 (544)
Unit weight [lbs (kg)]175 (79)190 (86)
A Lifting frame headroom [in. (mm)]11 (279)11 (279)
B Spreader beam length [in. (mm)]88 (2235)112 (2845)
C Hardware mounting centers [in. (mm)]9 (229)9 (229)
D Pad diameter [in. (mm)]8.25 (210)8.25 (210)
E Outer pad distances maximum [in. (mm)]91 (2296)115 (2921)
E Outer pad distances minimum [in. (mm)]57 (1448)57 (1448)
F Minimum inner pad distance [in. (mm)]33 (838)33 (838)
G Crossarm length [in. (mm)]44 (1118)44 (1118)
H Outer pad distances maximum [in. (mm)]49 (1245)49 (1245)
H Outer pad distances minimum [in. (mm)]23 (584)23 (584)
Maximum sheet size [ft (m)]9 x 6 (2.7 x 1.8)12 x 6 (3.7 x 1.8)
Seal numberFR88FR88
Optional parking standsPS-150-3X3PS-150-3X3

*Battery powered vacuum generators are only recommended when handling non-porous loads.

Various plate sizes can be handled by adjusting the vacuum pad positions on the beam

8-pad frame pad position diagram
Crossarms and vacuum pads in maximum position to handle maximum plate size.
8-pad frame pad position diagram
Vacuum pads and crossarms fully adjustable to handle short and narrow plates.
8-pad frame pad position diagram
Crossarms can pivot to near parallel with spreader beam to handle narrow plates.
8-pad frame pad position diagram
Inner crossarms and vacuum pads (1/2 capacity) for use with smaller plates. Outer crossarms provided with shut-off valves.

13600074 A
