5T Ceiling Rail, ANVER Vacuum Lifter 200 kg

Bags flex and their center of gravity shifts as they are lifted, so shoulder-carrying has long been the only way workers could move them. Hundreds of bags pass through a worker's hands, back, and shoulders every shift, and bags often slip when transferred onto pallets.

FullSharp installs a 5T rail rated for 200 kg along the loading line and fits it with an ANVER vacuum lifter built with a bag-lifting pad. The operator presses the pad onto the bag, pulls the handle to lift it, slides it along the rail to the pallet, and releases.

Ceiling-Mounted 5T Rail with ANVER Vacuum Lifter for Bag Handling

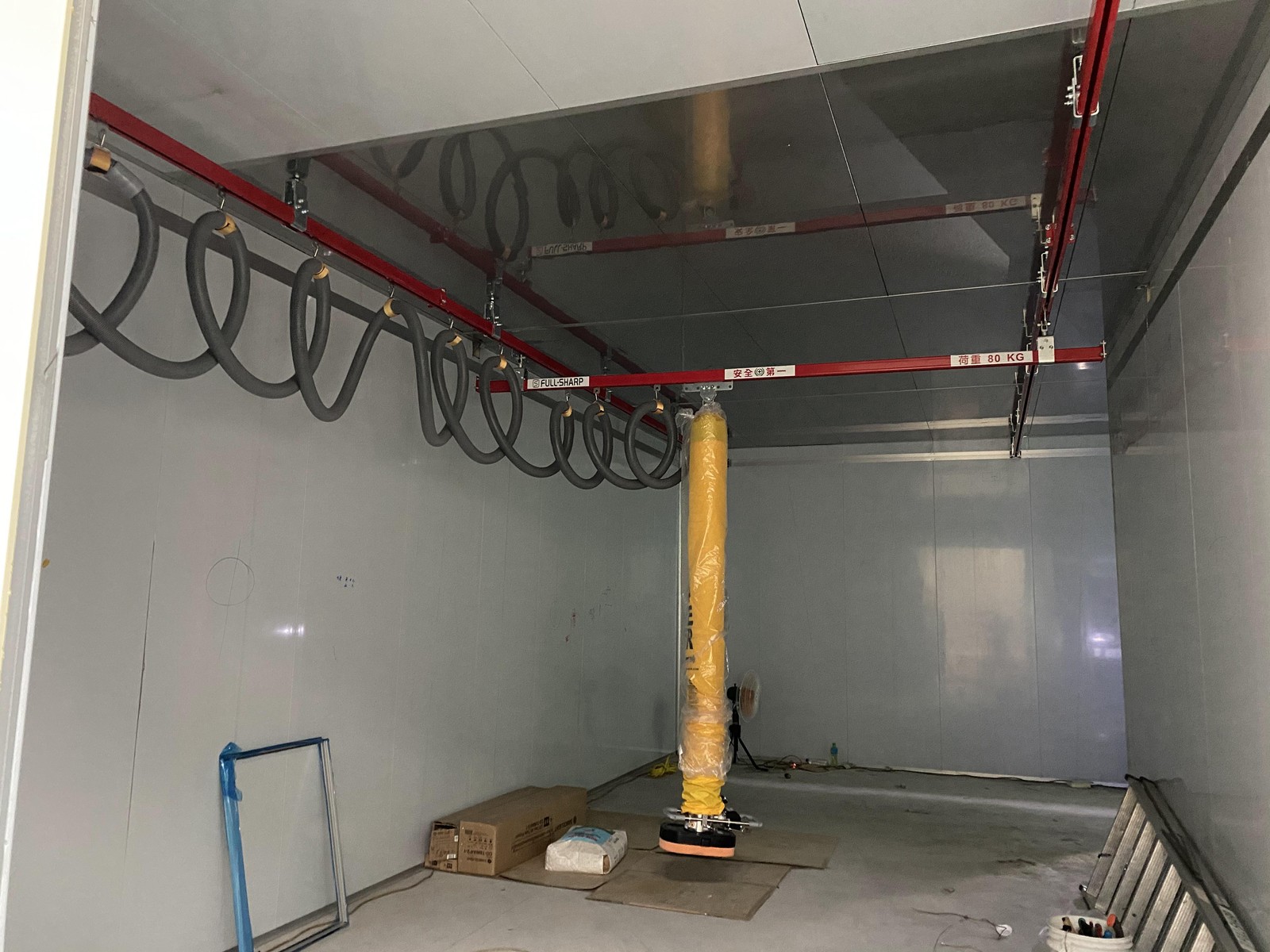

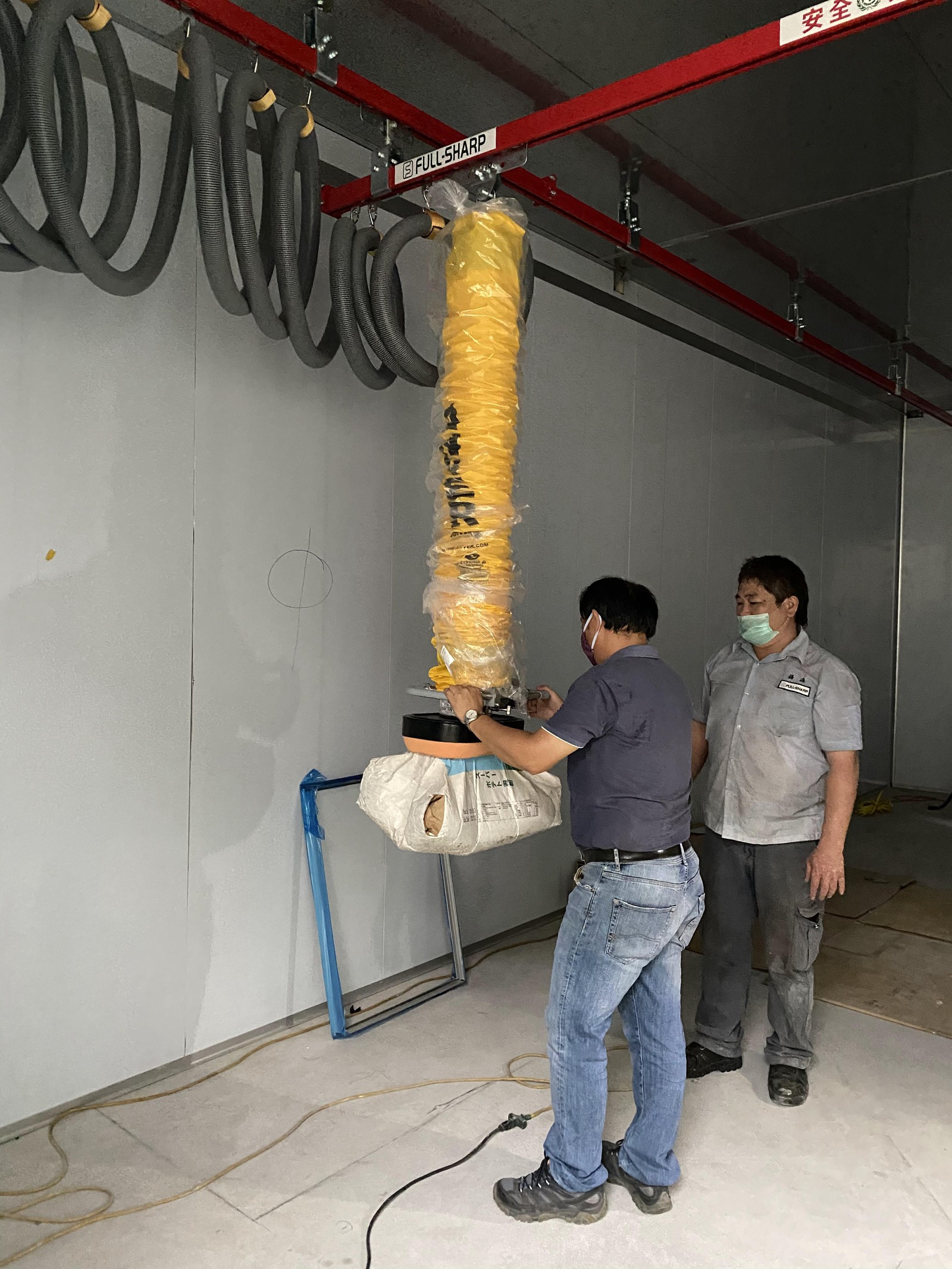

An ANVER vacuum lifter running on a ceiling-mounted 5T rail, lifting a bag at the warehouse.

Equipment Installed

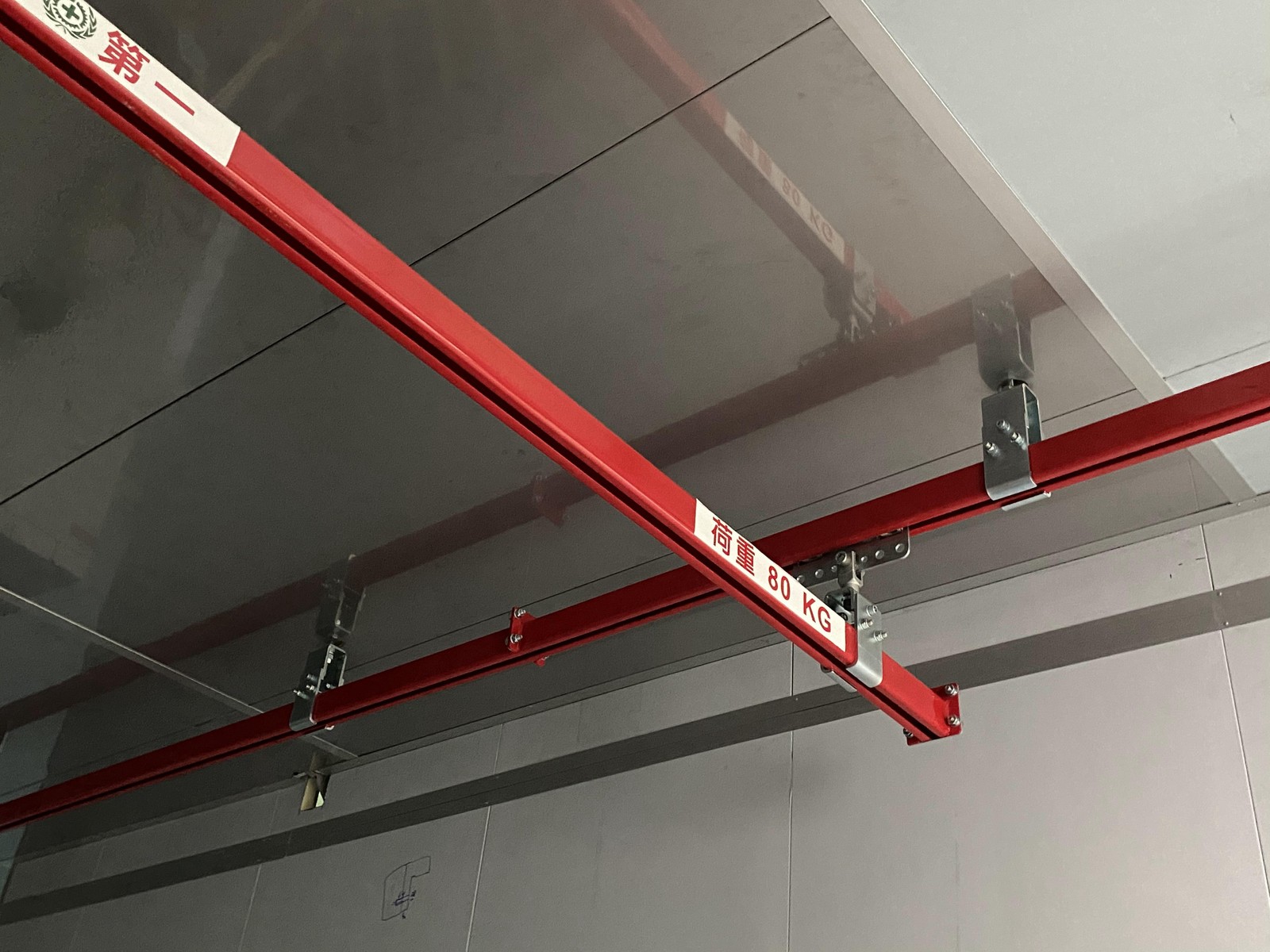

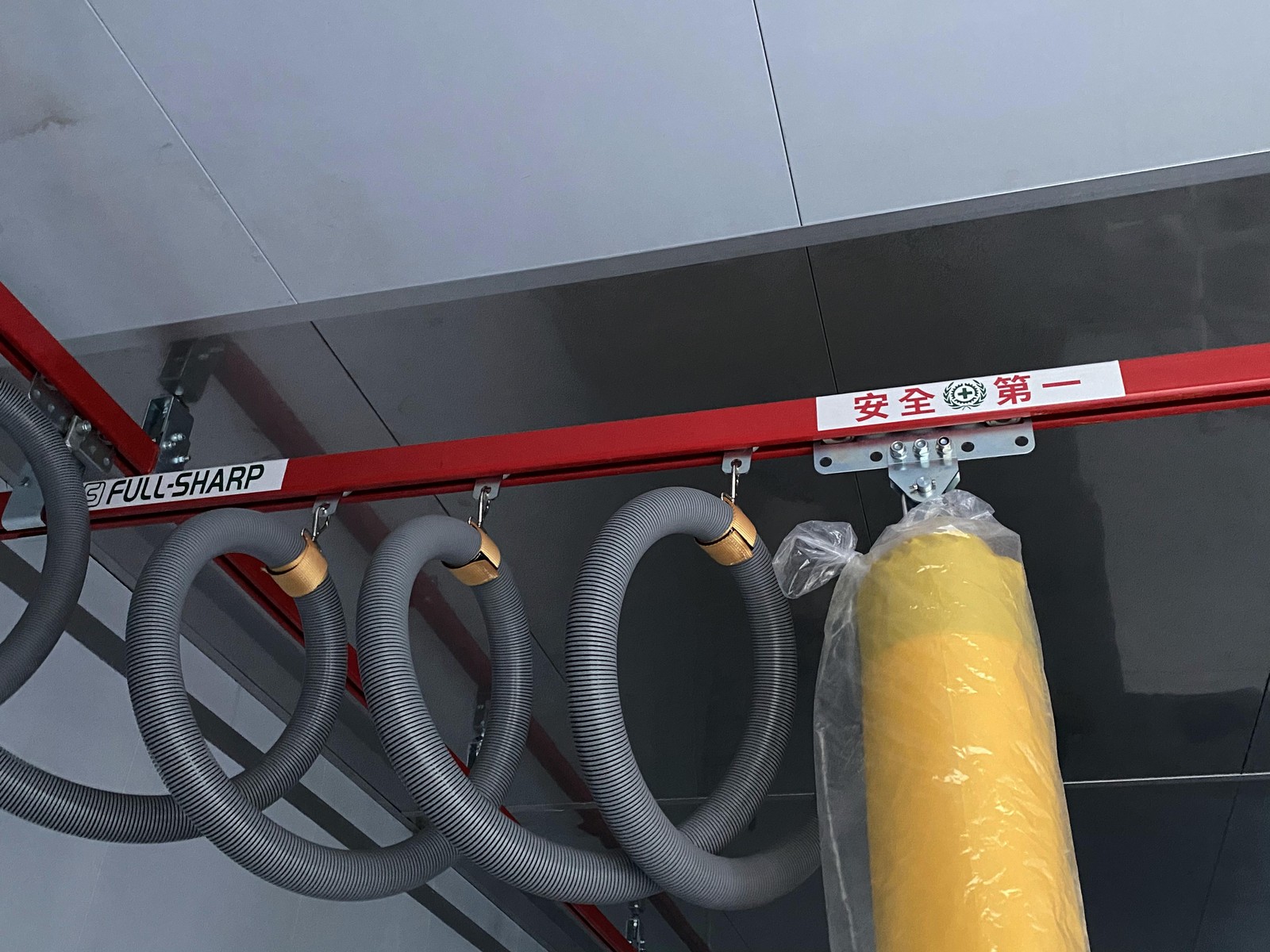

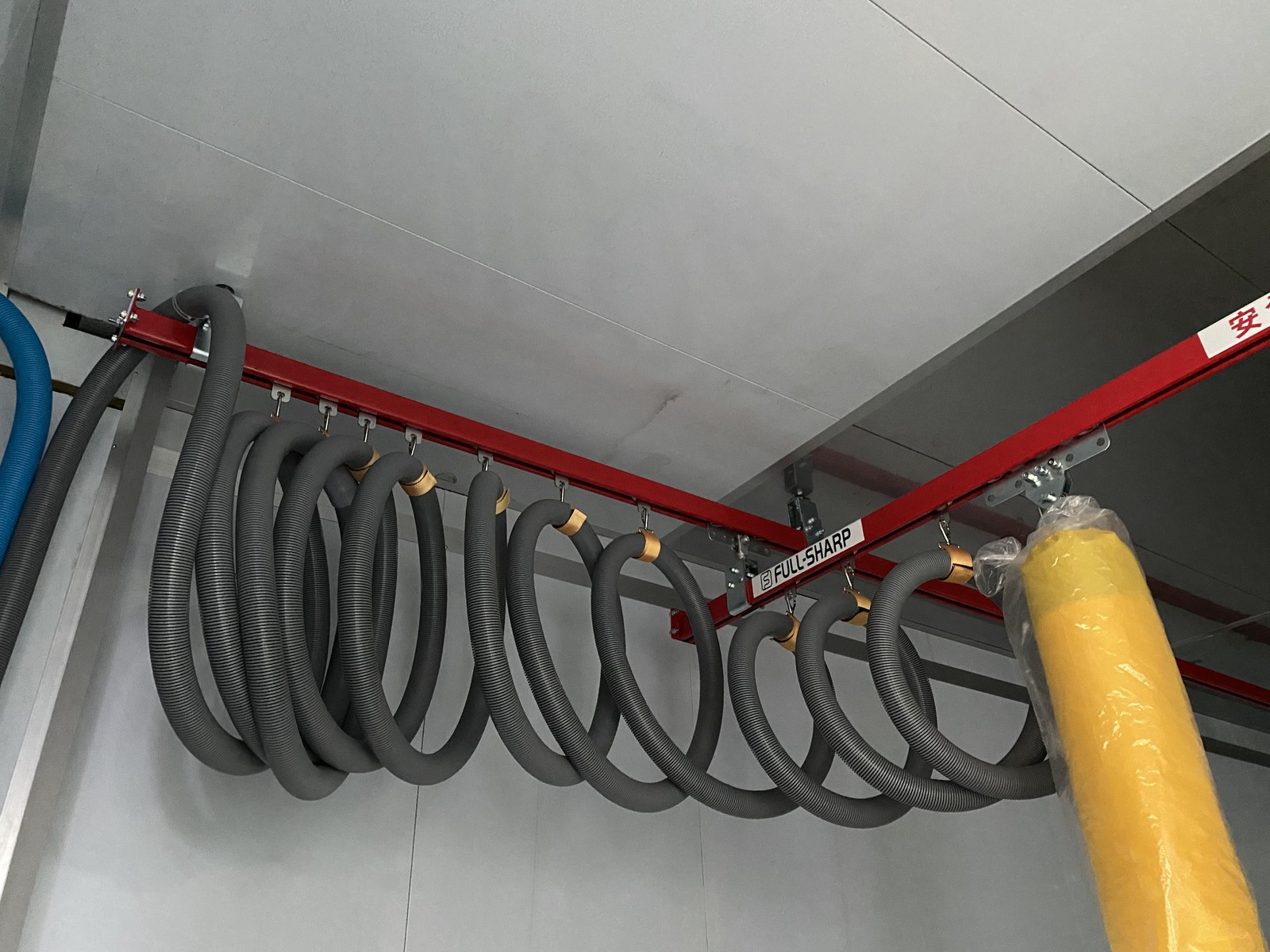

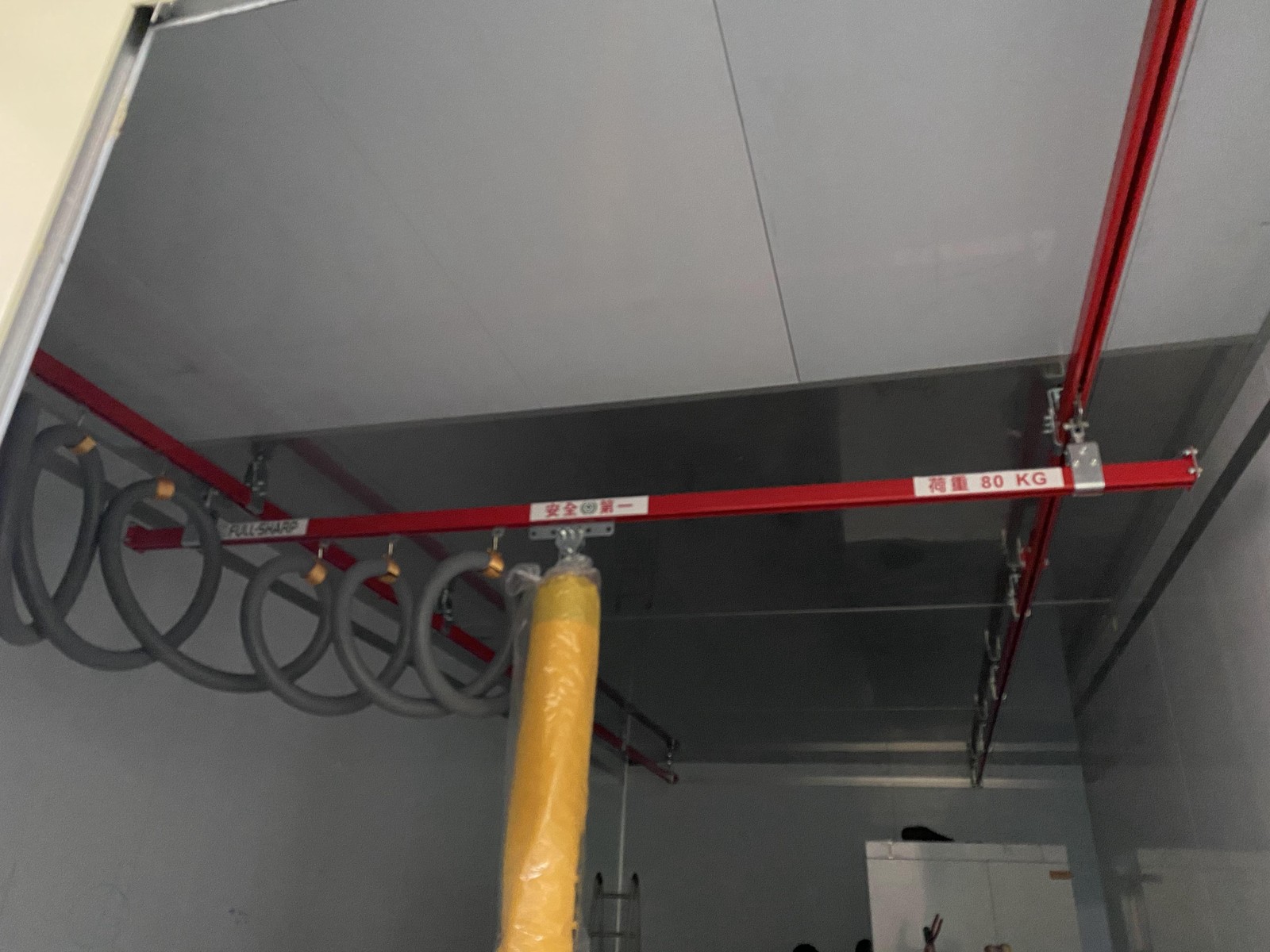

5T rail: ceiling-mounted with threaded rods, 200 kg rated load, running the full length of the loading line.

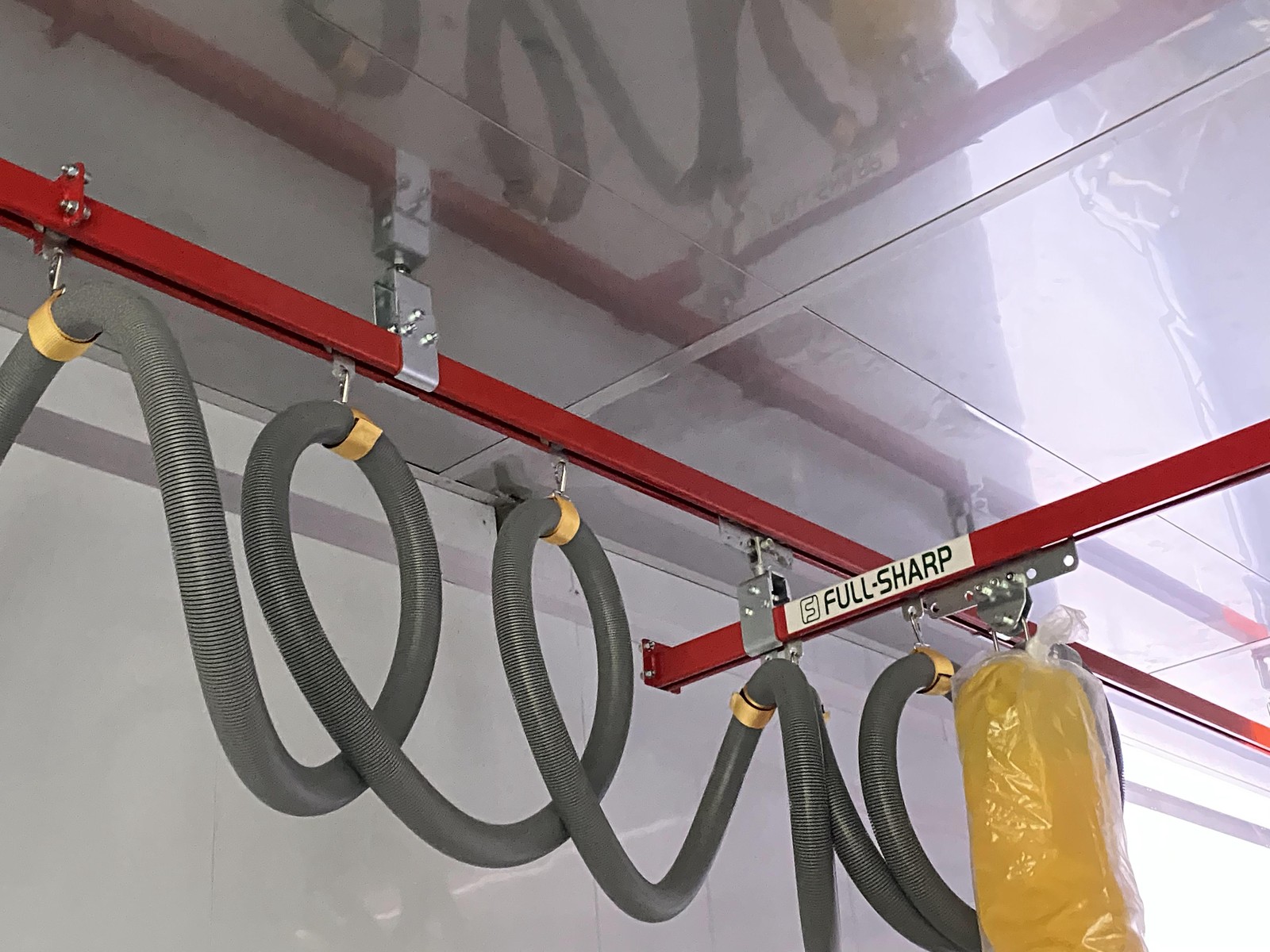

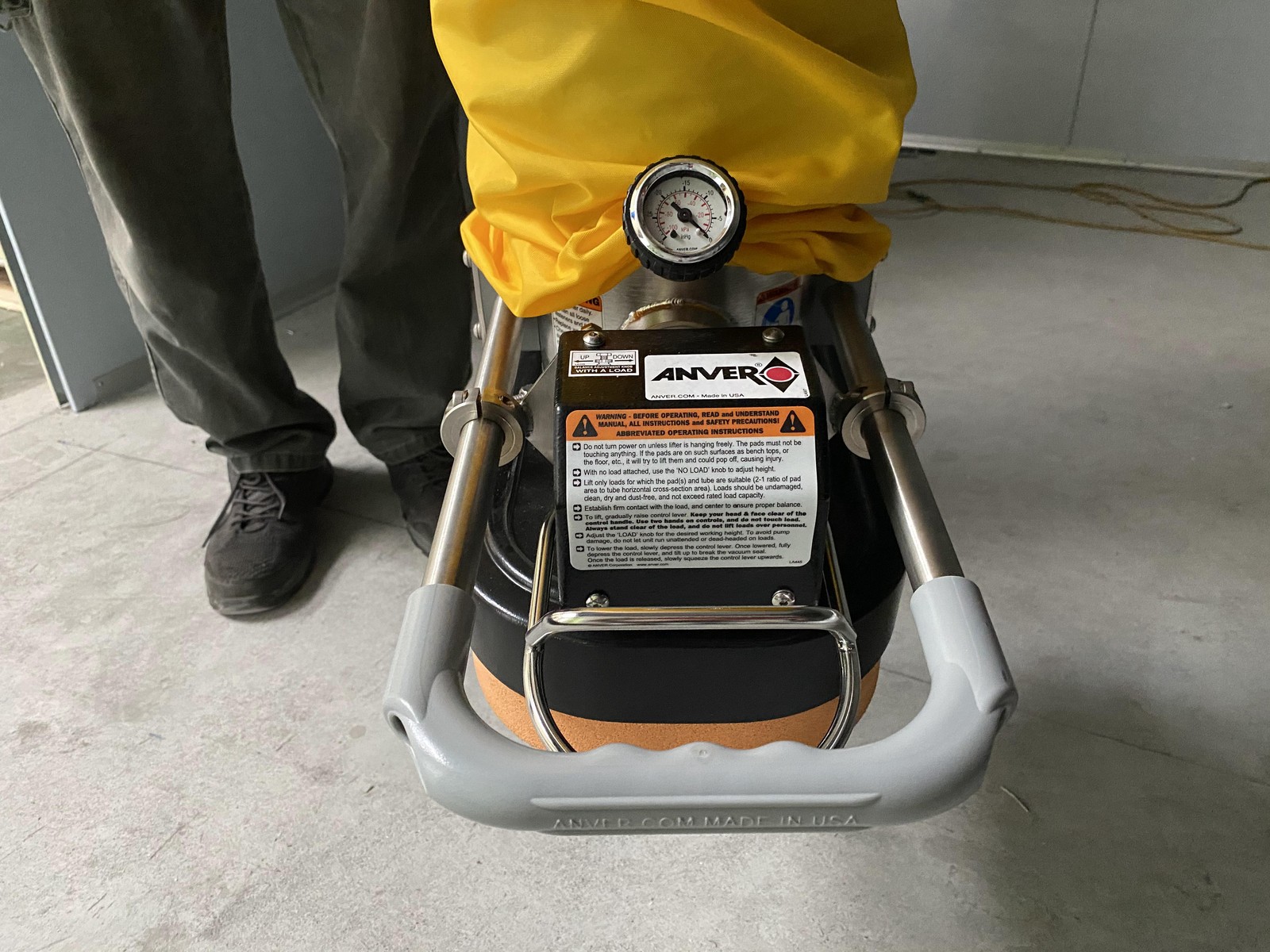

ANVER vacuum tube: a flexible bellows tube that raises and lowers the bag, controlled by a lever on the handle.

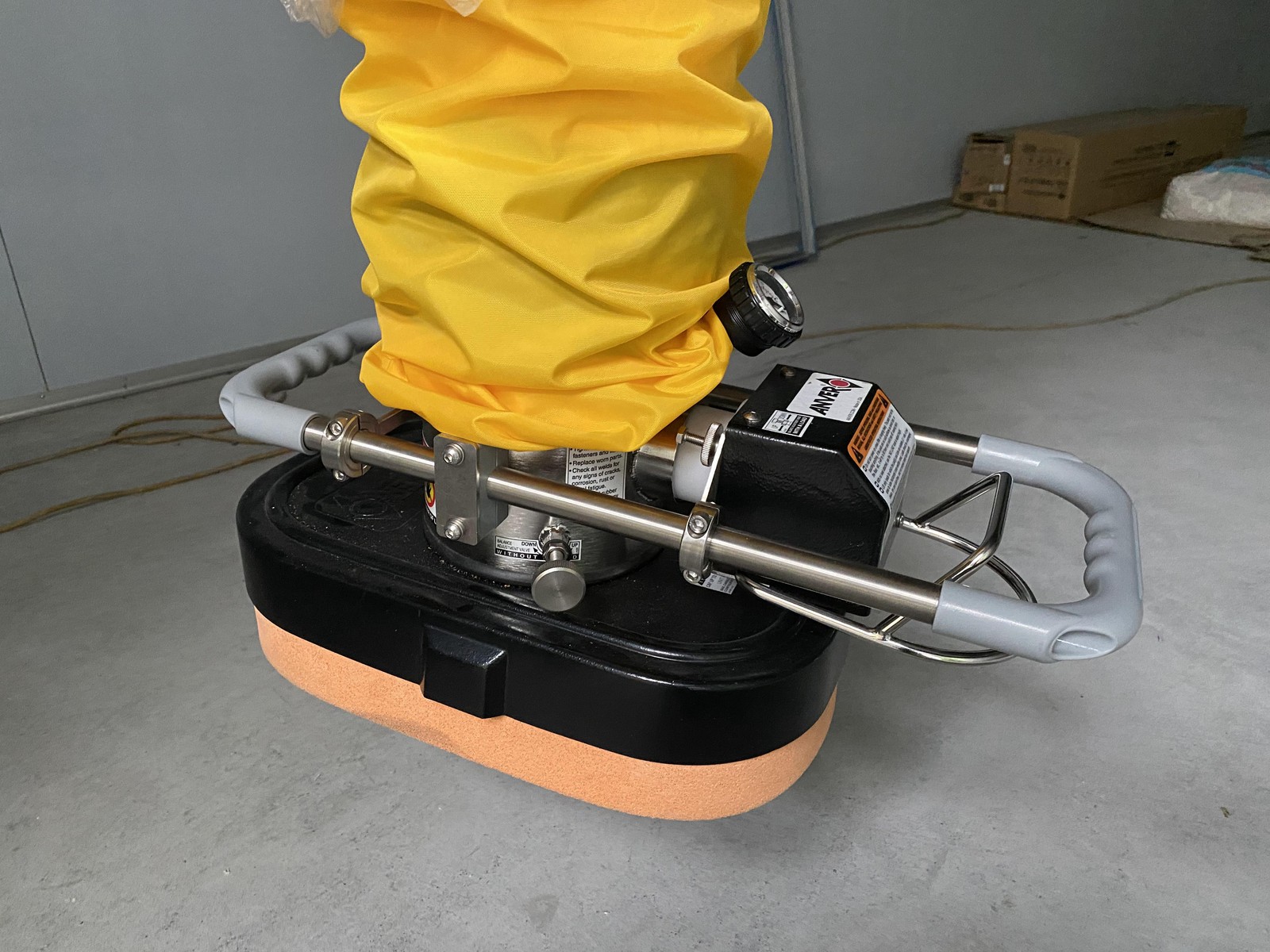

Bag-lifting pad: a pad designed for soft bag surfaces, holding firmly even on slightly wrinkled bags.

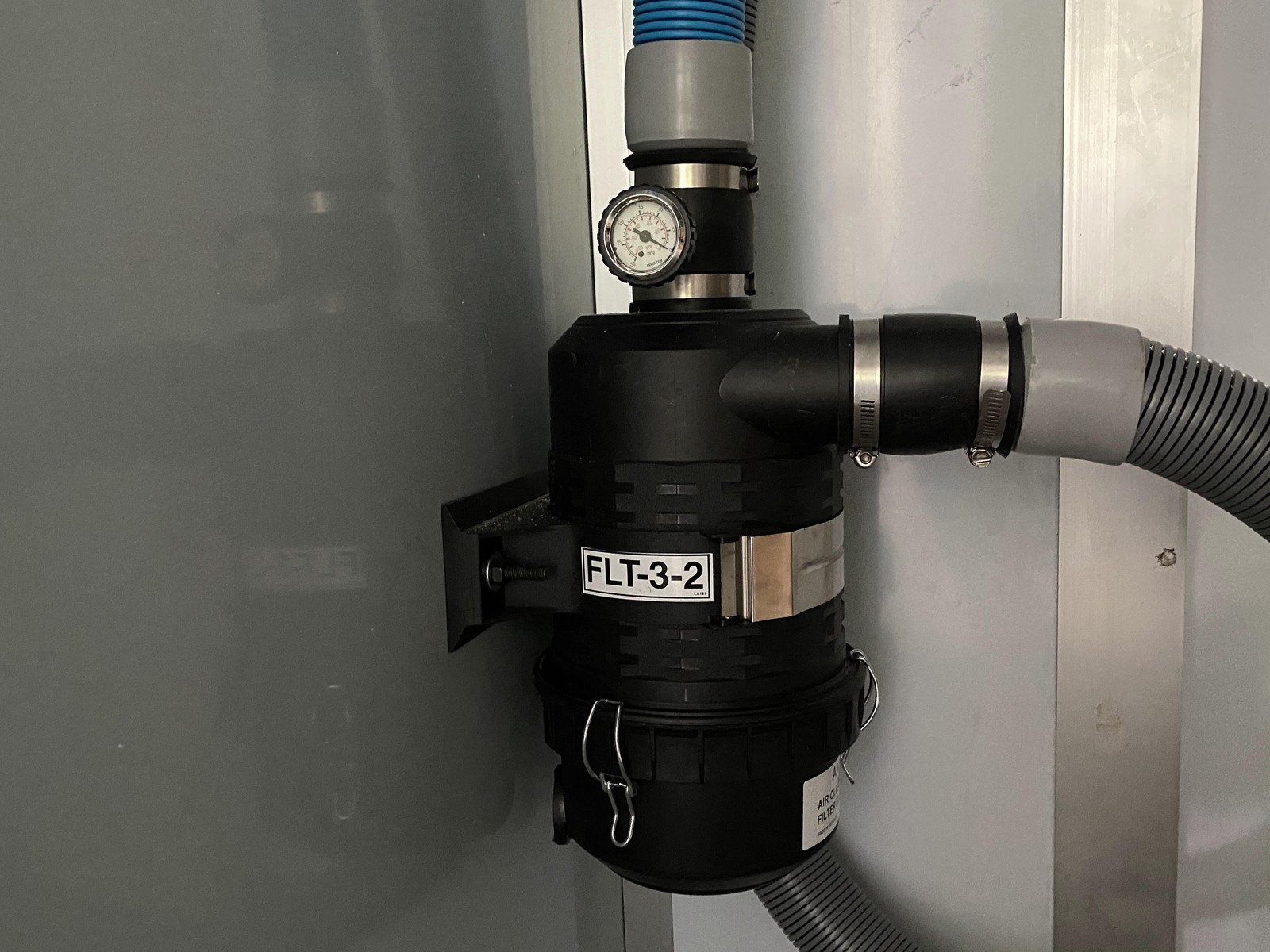

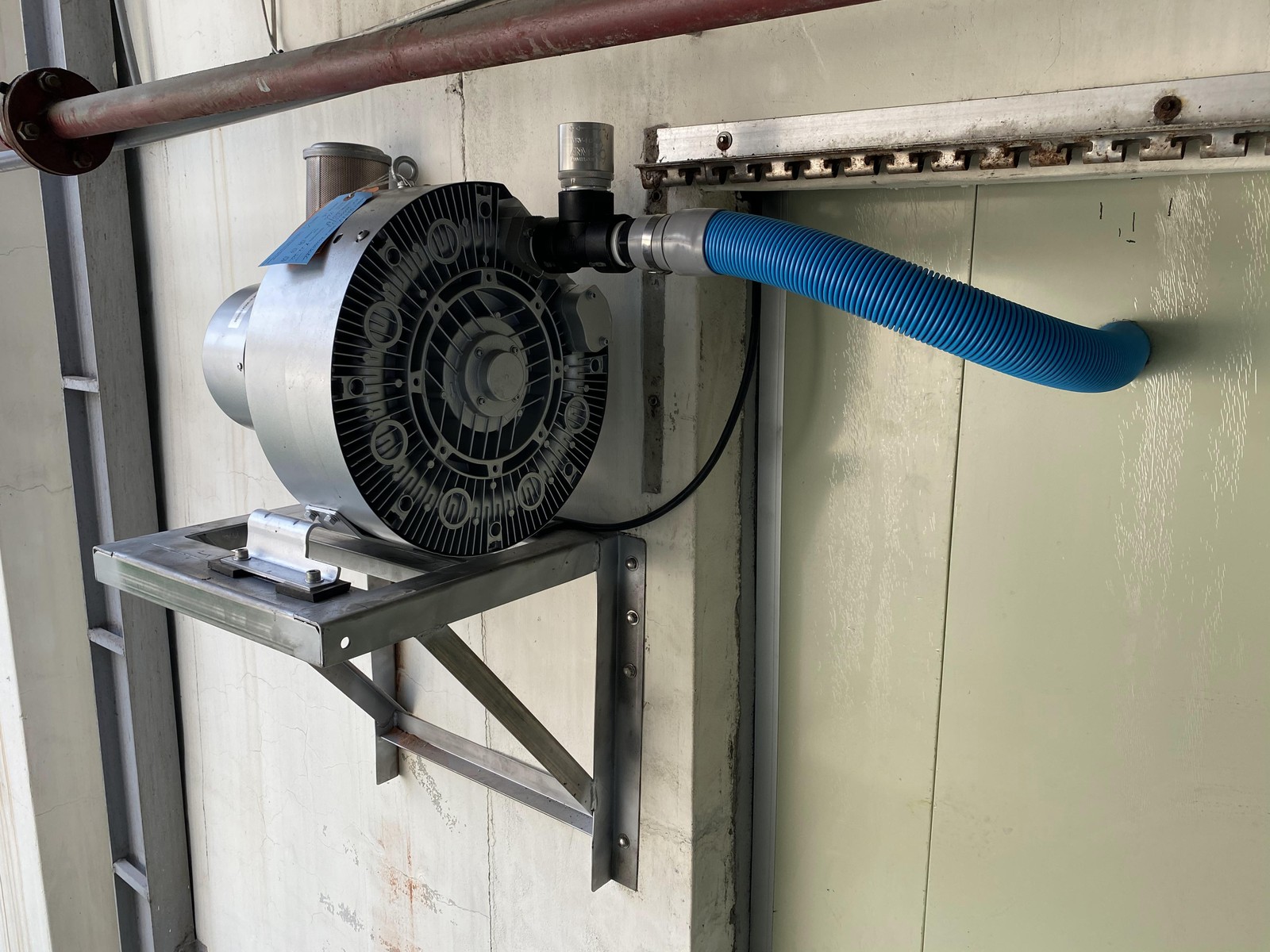

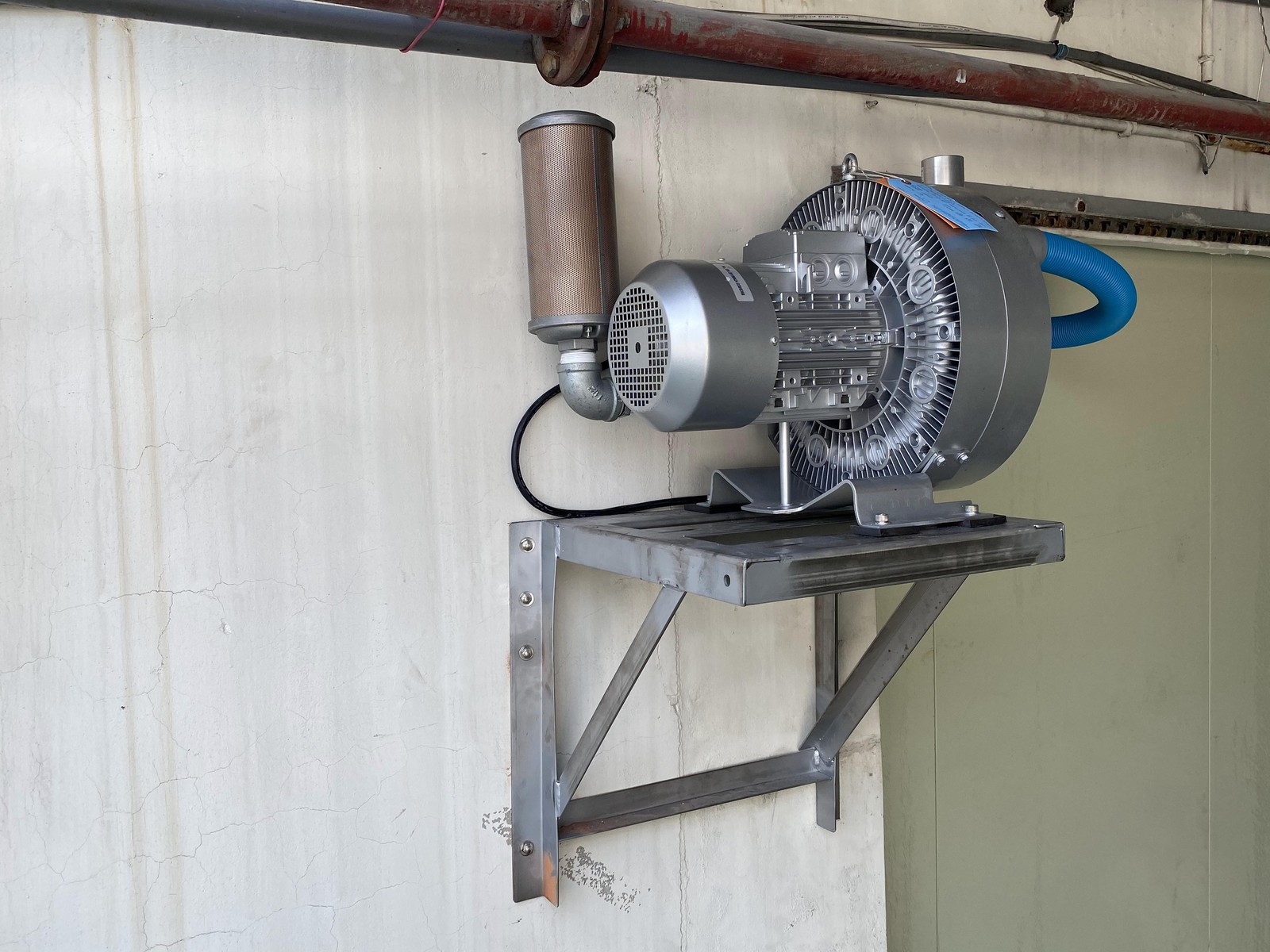

Vacuum pump and filter: filters dust from the bags and keeps vacuum level stable through long shifts.

Key Specifications

Rail load capacity200 kg
RailModel 5T, ceiling-mounted
Lifting equipmentANVER vacuum lifter
Load typeBags, sacks

Benefits for Your Plant

No more shoulder-carrying

Bags are lifted by vacuum and slide along the rail. Workers' shoulders and spines are spared the strain.

No dropped bags

The pad holds the bag evenly and lowers it slowly onto the pallet, reducing torn bags and spilled loads.

Faster palletizing

The rail runs straight from the pickup point to the pallet, keeping a steady pace throughout the shift.

Photos from the Installation

Ceiling-Mounted 5T Rail with ANVER Vacuum Lifter for Bag Handling - ảnh 1

Ceiling-Mounted 5T Rail with ANVER Vacuum Lifter for Bag Handling - ảnh 2

Ceiling-Mounted 5T Rail with ANVER Vacuum Lifter for Bag Handling - ảnh 3

Ceiling-Mounted 5T Rail with ANVER Vacuum Lifter for Bag Handling - ảnh 4

Ceiling-Mounted 5T Rail with ANVER Vacuum Lifter for Bag Handling - ảnh 5

Ceiling-Mounted 5T Rail with ANVER Vacuum Lifter for Bag Handling - ảnh 6

Ceiling-Mounted 5T Rail with ANVER Vacuum Lifter for Bag Handling - ảnh 7

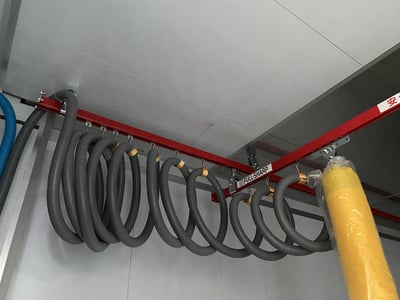

Ceiling-Mounted 5T Rail with ANVER Vacuum Lifter for Bag Handling - ảnh 8

Ceiling-Mounted 5T Rail with ANVER Vacuum Lifter for Bag Handling - ảnh 9

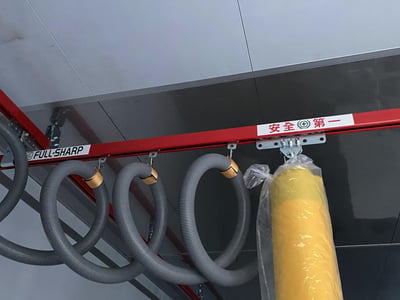

Ceiling-Mounted 5T Rail with ANVER Vacuum Lifter for Bag Handling - ảnh 10

Ceiling-Mounted 5T Rail with ANVER Vacuum Lifter for Bag Handling - ảnh 11

Ceiling-Mounted 5T Rail with ANVER Vacuum Lifter for Bag Handling - ảnh 12

Ceiling-Mounted 5T Rail with ANVER Vacuum Lifter for Bag Handling - ảnh 13

Click a photo to enlarge. 13-photo album taken on site.

Suitable Applications

Warehouses for bagged materials
Batching and mixing plants
Distribution centers for bagged goods
End of bagging production lines

Get an Installation Consultation for Your Plant

FullSharp visits your warehouse to weigh sample bags, check the bag material, and measure the travel path from the pickup point to the pallet. We select the pad to match your bag surface, the rail length, and the ceiling mounting points. Contact FullSharp to schedule a site survey.
